Model Whirlpool KHMS1850SBL0 MICROWAVE HOOD COMBINATION 1.8 CU. FT. – Common Parts &amp; Diagrams

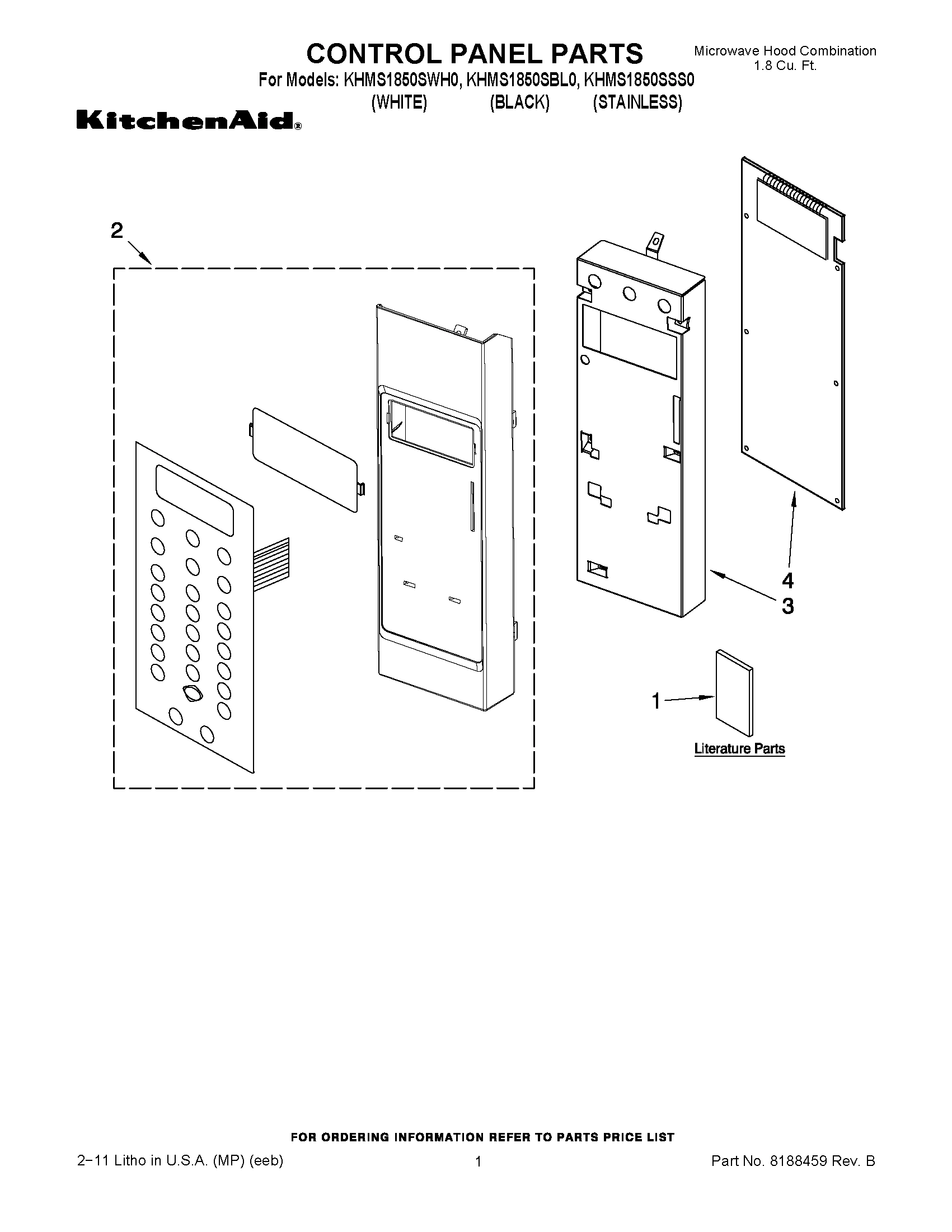

1

Pivot, Door WPL 8184922 Contact Us For Availability

1

Deflector, Air WPL 8205350 Contact Us For Availability

1

Motor, Stirrer WPL 8205044 Contact Us For Availability

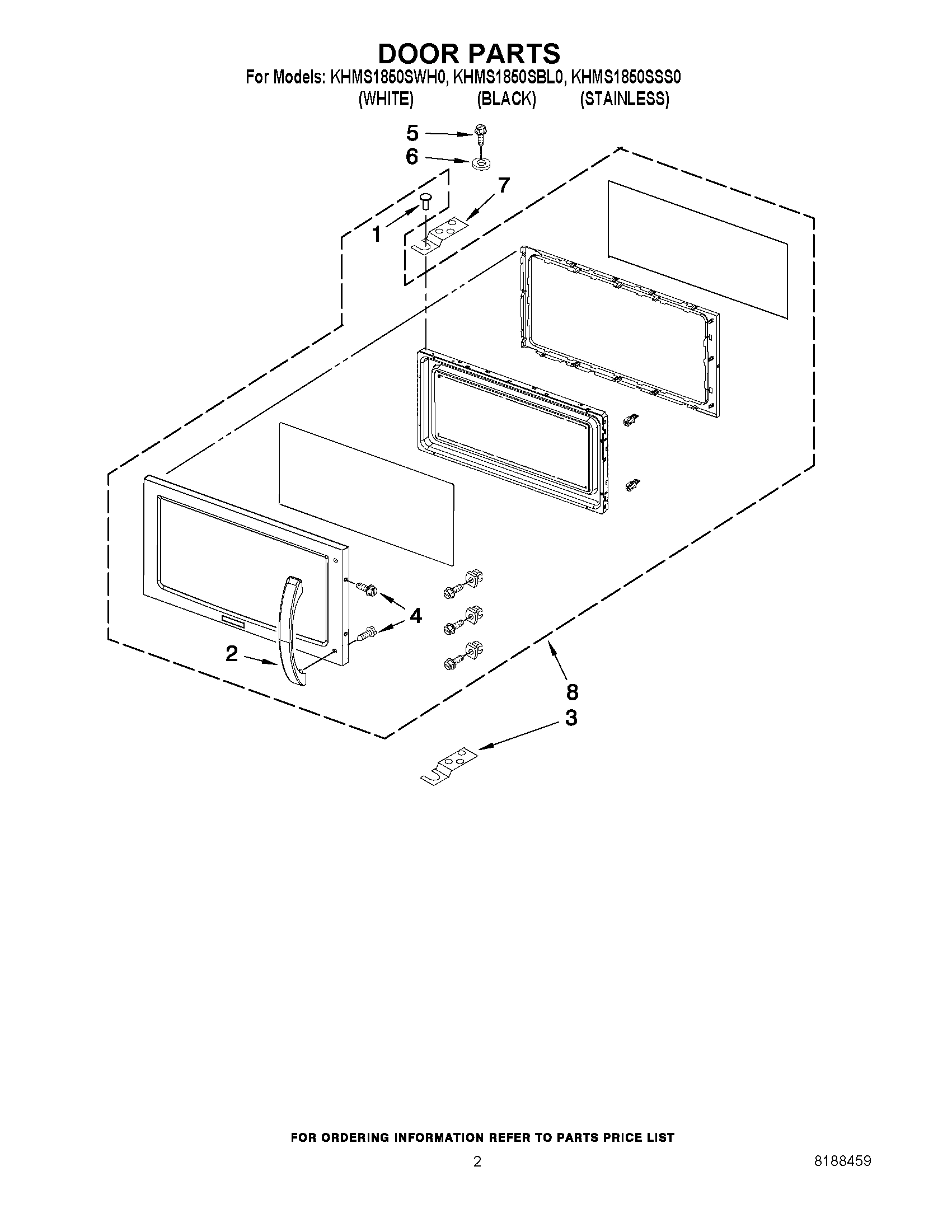

2

W10110267 Whirlpool Microwave Door Handle Backorder WPL W10110267 $102.90

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $55.48

2

Handle, Door (White) WPL 8206501 Contact Us For Availability

2

Cover, Lamp WPL W10117848 Contact Us For Availability

2

Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability

3

W10708076 Whirlpool Microwave Power Cord In Stock WPL W10708076 $8.66

3

Duct, Air WPL 8205368 Contact Us For Availability

3

Thermostat/Bracket WPL 8206454 Contact Us For Availability

4

Case, Outer (White) WPL W10117844 Contact Us For Availability

4

Case, Outer (Black) WPL W10117845 Contact Us For Availability

4

Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability

5

W10315274 Whirlpool Microwave Meal Rack Backorder WPL W10315274 $26.90

5

Grille, Vent (White) WPL W10117917 Contact Us For Availability

5

Grille, Vent (Black) WPL W10117918 Contact Us For Availability

5

Grille, Vent (Stainless Steel) WPL W10117919 Contact Us For Availability

5

Thrmst, Exh.Fan WPL 8183703 Contact Us For Availability

6

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

6

Cover WPL 8204676 Contact Us For Availability

6

Nails/Bushings (4 of each) WPL 8184549 Contact Us For Availability

7

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $2.91

7

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

7

Turntable WPL 4393799 Contact Us For Availability

7

Holder, Glass WPL 8184889 Contact Us For Availability

8

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

8

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $20.42

8

Plate, Damper WPL 8206452 Contact Us For Availability

8

Air Guide, Back WPL 8205354 Contact Us For Availability

9

Resistor WPL 8205152 Contact Us For Availability

9

Motor, Fan Assy WPL W10117942 Contact Us For Availability

10

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $24.34

10

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $79.94

10

Shield (Left) WPL 8206460 Contact Us For Availability

11

Spring, Interlock WPL 8169438 Contact Us For Availability

11

Thrmst, Cavity WPL 8183999 Contact Us For Availability

11

Cover, Terminal WPL W10110598 Contact Us For Availability

12

W10222507 Whirlpool Microwave Magnetron Backorder WPL W10222507 $150.53

12

Plate, Cam WPL 8183824 Contact Us For Availability

12

Shield (Middle) WPL W10117915 Contact Us For Availability

13

Support, Interlock WPL W10117909 Contact Us For Availability

13

Shield (Right) WPL W10117916 Contact Us For Availability

13

Thermostat WPL 8184951 Contact Us For Availability

14

Screw WPL 8169474 Contact Us For Availability

14

Fan, DC 12 Volt WPL 8205362 Contact Us For Availability

14

Rack WPL 8205549 Contact Us For Availability

Housing, Fan WPL 8205364 Contact Us For Availability

Air Guide (Right) WPL 8205352 Contact Us For Availability

Air Guide (Left) WPL 8205367 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

16

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

16

Humidity, Sensor WPL 8206446 Contact Us For Availability

16

Shield, Wtr. Spill WPL W10117906 Contact Us For Availability

17

Filter WPL 8206624 Contact Us For Availability

17

Diffuser, Housing WPL 8205357 Contact Us For Availability

17

SPACER WPL W10117929 Contact Us For Availability

18

Holder, Lamp WPL 8169539 Contact Us For Availability

18

Tube, Watershoot WPL W10117907 Contact Us For Availability

18

DRIVER,TURNTABLE WPL W10155348 Contact Us For Availability

19

Rod-Locking Link WPL 8185190 Contact Us For Availability

19

Base Plate, Air Guide WPL 8205351 Contact Us For Availability

20

Plate, Cam WPL W10117910 Contact Us For Availability

20

Socket, Motor Wire WPL W10117846 Contact Us For Availability

21

Spring, Interlock WPL W10117911 Contact Us For Availability

22

Plate, Side WPL 8206455 Contact Us For Availability

23

Piston Assembly WPL W10117912 Contact Us For Availability

24

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $15.87

25

Cover, Terminal WPL 8184202 Contact Us For Availability

26

Motor, Capacitor WPL 8184091 Contact Us For Availability

27

Holder, Fuse WPL W10117908 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

29

SCREW WPL 8184199 Contact Us For Availability

31

SCREW WPL 8184200 Contact Us For Availability

32

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51

33

HOLDER, LAMP WPL W10270797 Contact Us For Availability

34

W10112514A Whirlpool Microwave Vent Hood Char In Stock WPL W10112514A $9.99

35

Transformer, H.V. WPL 8206456 Contact Us For Availability

36

Bracket, Capacitor WPL 8206457 Contact Us For Availability

37

Capacitor, H.V. WPL W10117913 Contact Us For Availability

38

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $10.01

39

Chassis WPL W10117914 Contact Us For Availability

8205948 Whirlpool Microwave Mount In Stock WPL 8205948 $7.89

W10539840 Whirlpool Microwave Wire Harness Backorder WPL W10539840 $9.20

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $3.00

Template, Upper WPL 8184731 Contact Us For Availability

Main Wire Assy WPL W10117930 Contact Us For Availability

Lamp/TT Wire Assy. WPL W10117931 Contact Us For Availability

H.V. Wire Assembly WPL W10117932 Contact Us For Availability

Therm. Harns-Wire WPL W10117933 Contact Us For Availability

Wire-Grnd, AC Line WPL W10117934 Contact Us For Availability
