Model Whirlpool KHMS175MBL0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

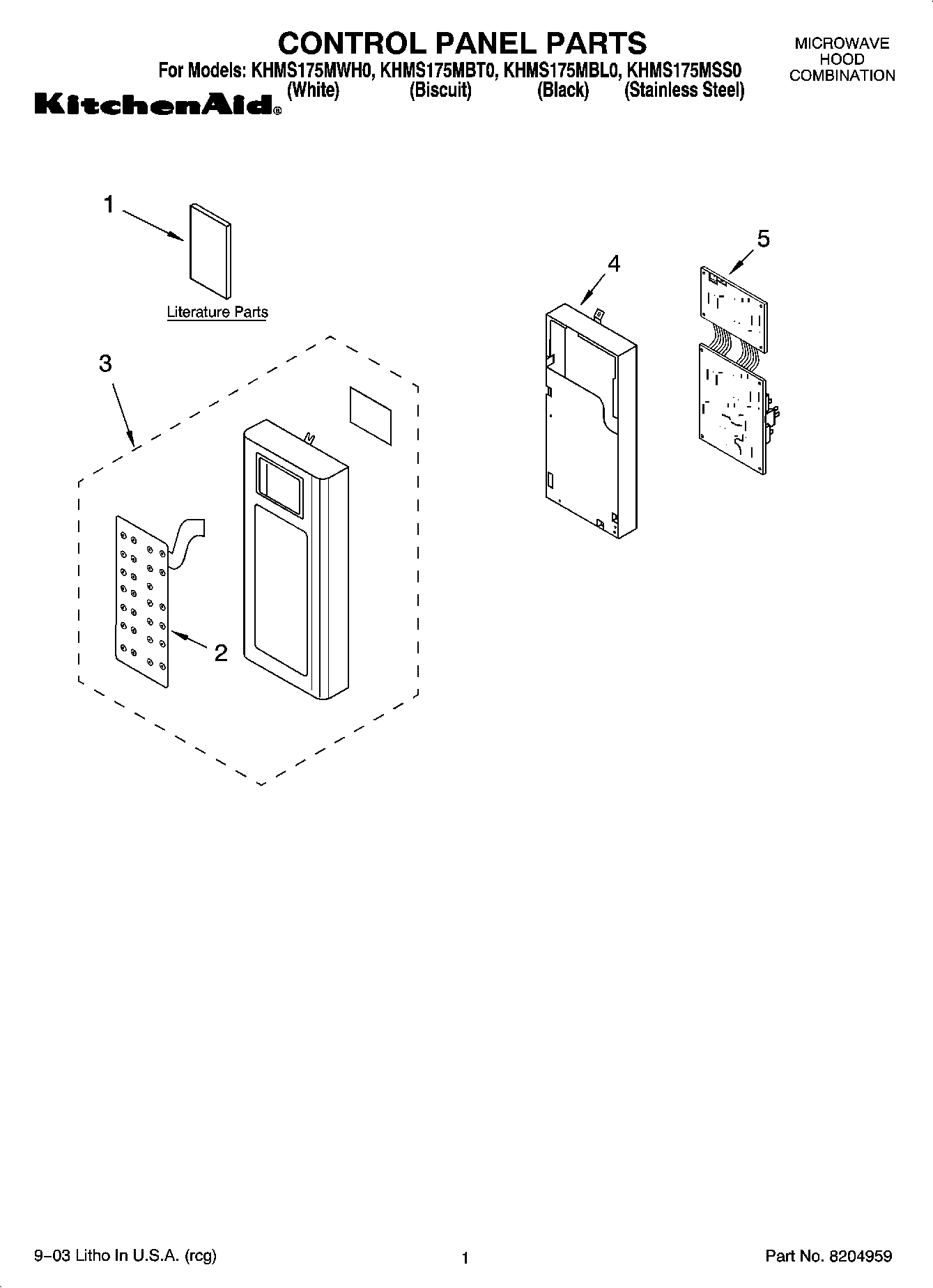

01 - CONTROL PANEL PARTS

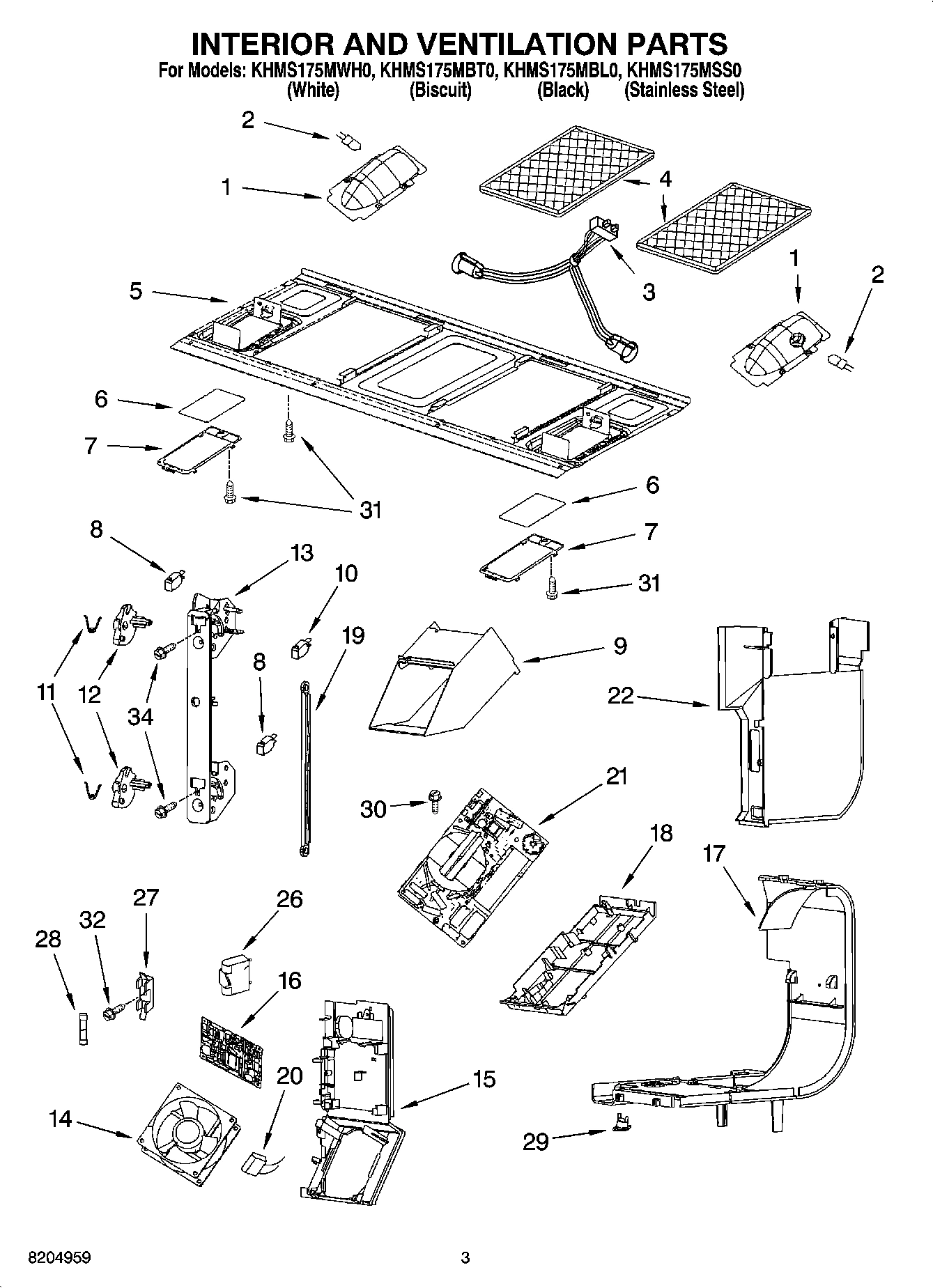

03 - INTERIOR AND VENTILATION PARTS

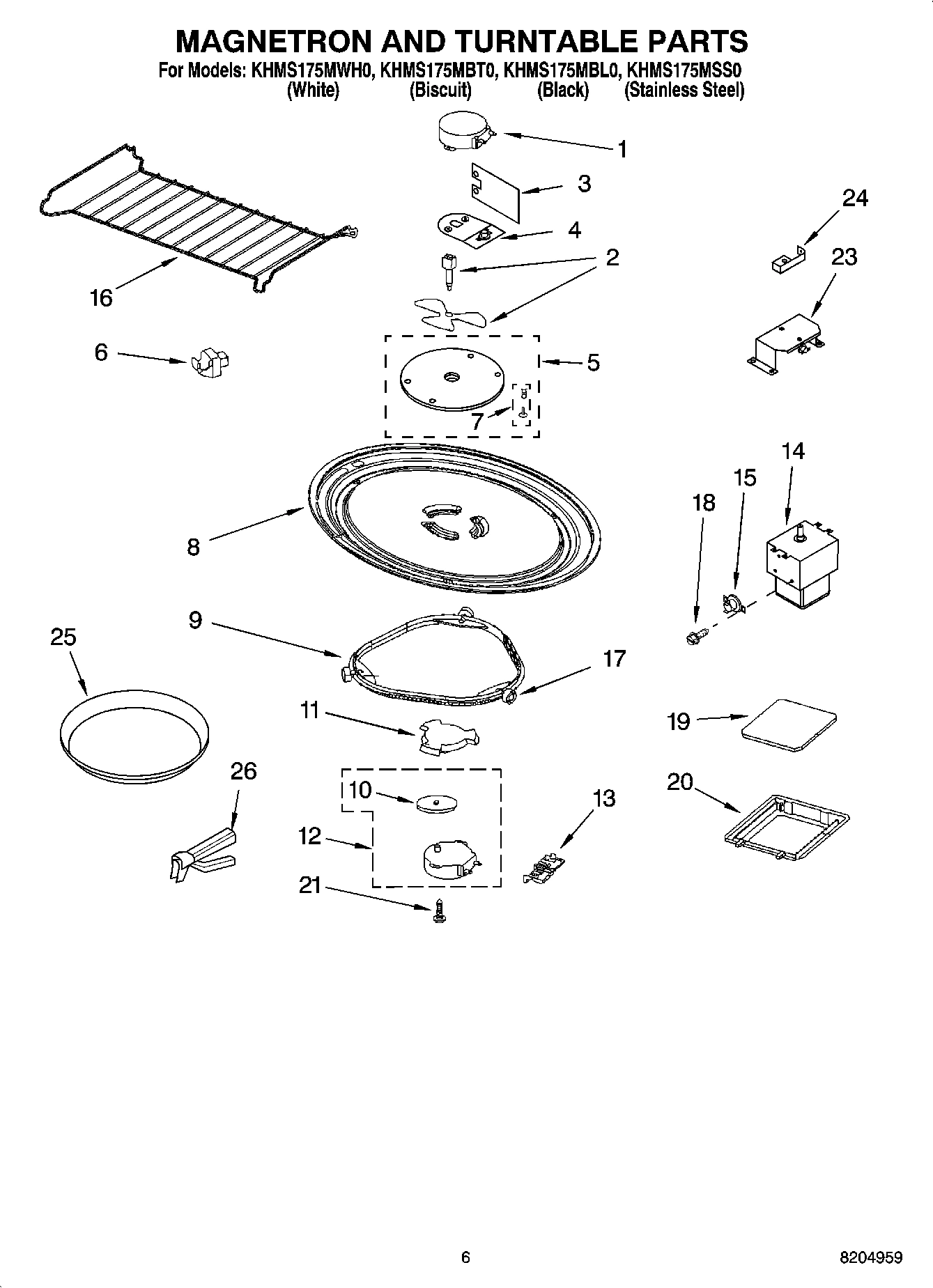

05 - MAGNETRON AND TURNTABLE PARTS

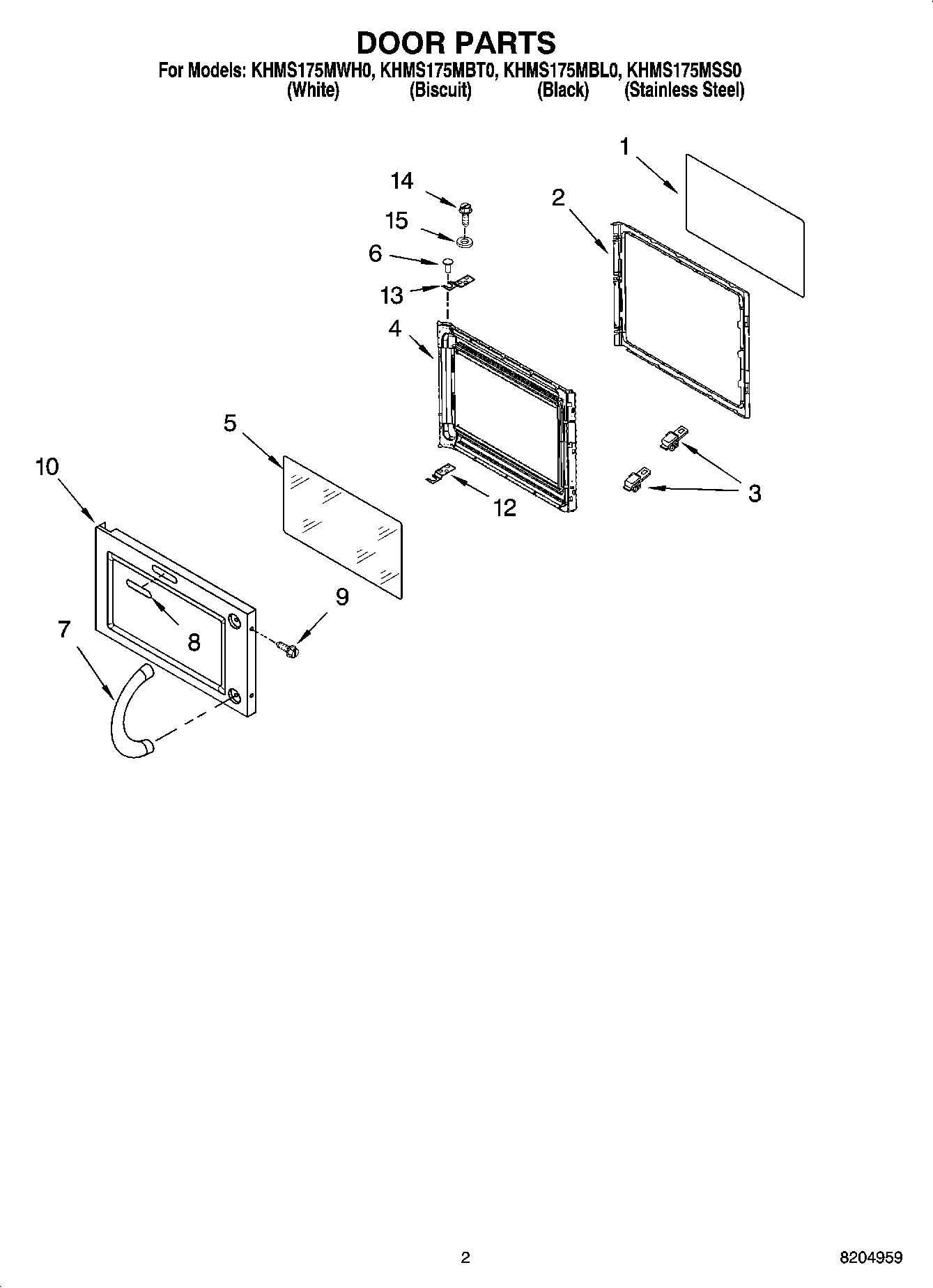

02 - DOOR PARTS

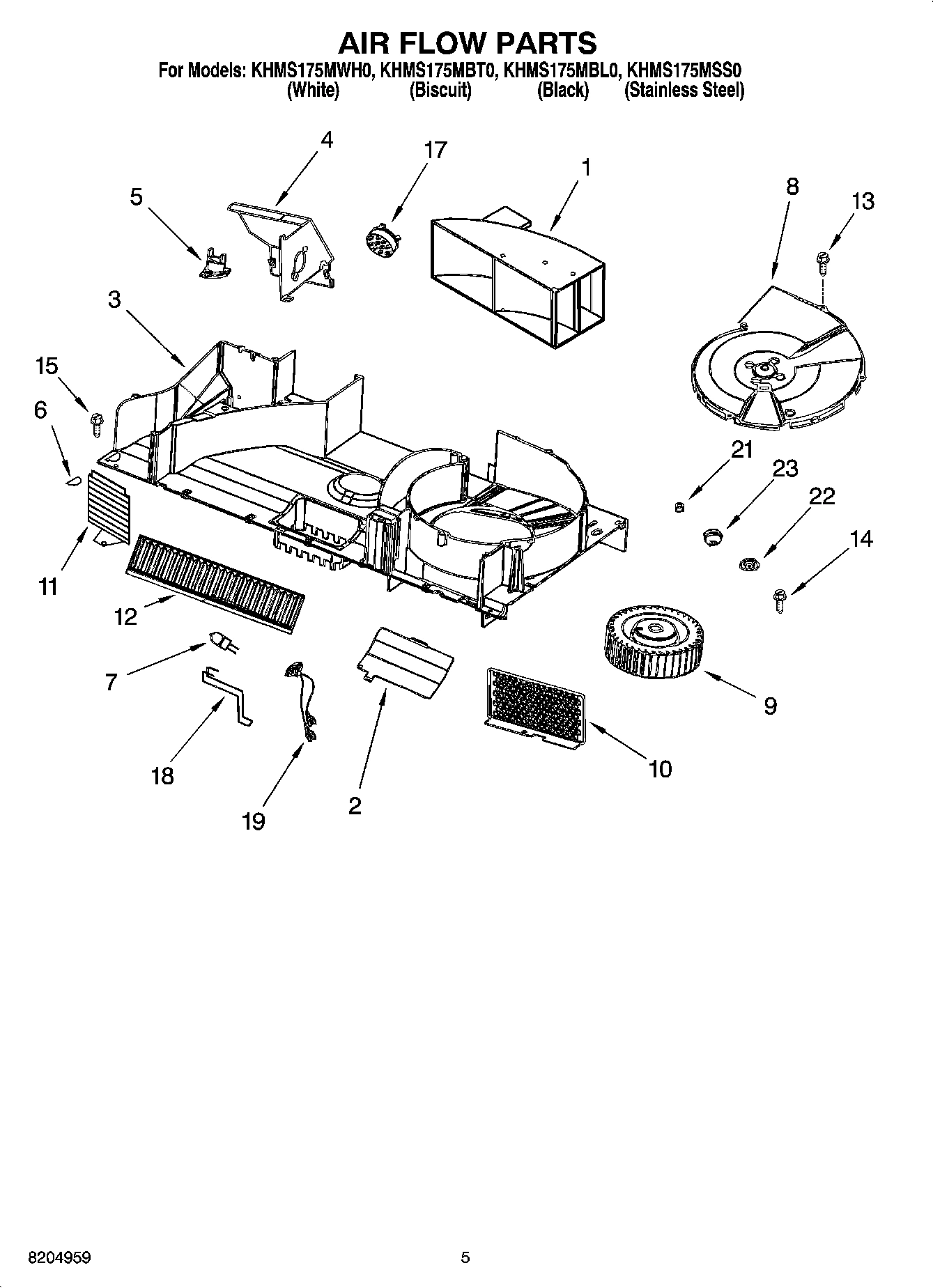

04 - AIR FLOW PARTS

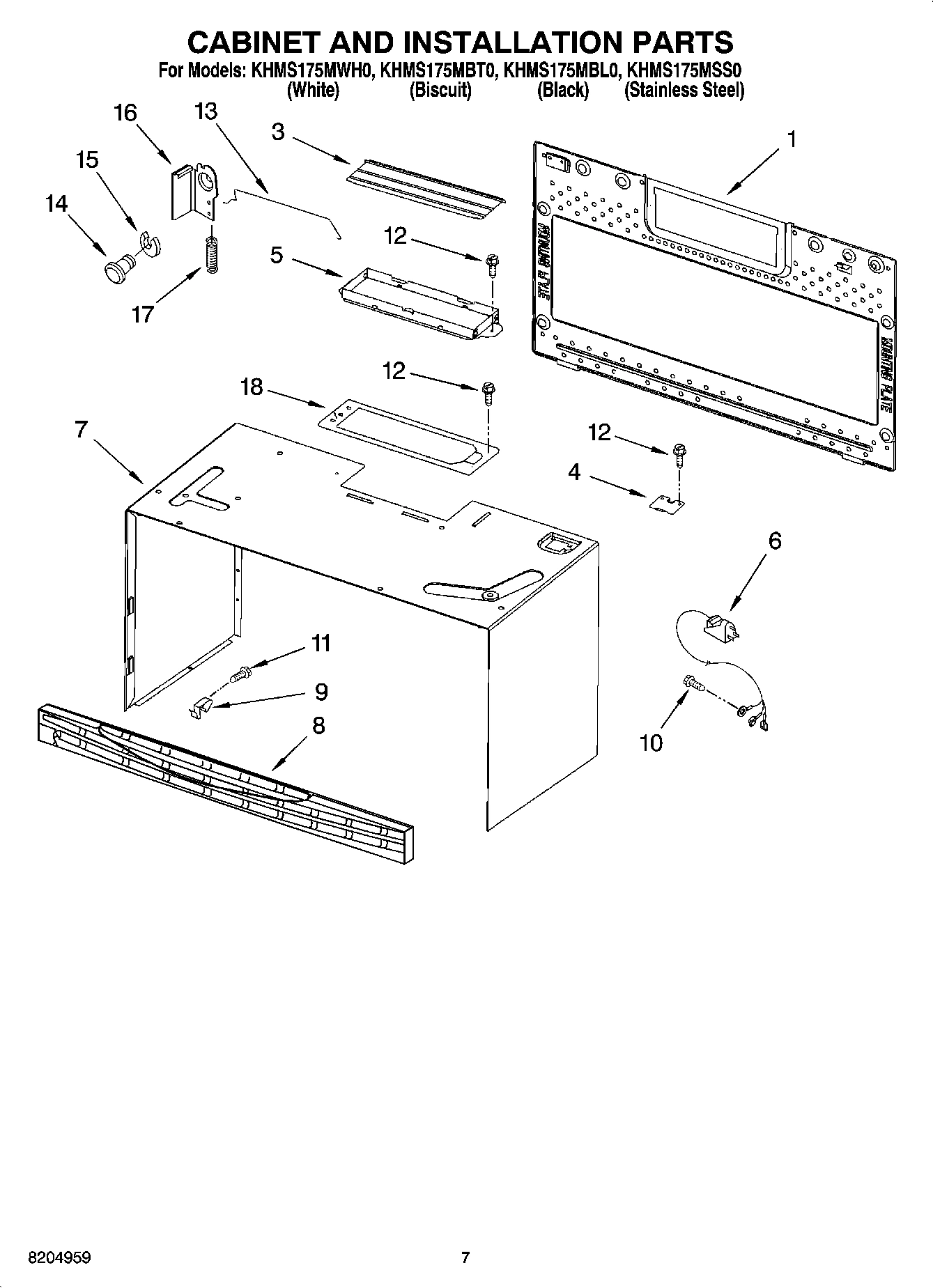

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool KHMS175MBL0 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI88574A6 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184632 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Cover, Lamp WPL 8184925 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8204807 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8204808 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8204809 Contact Us For Availability
4
Bracket, Thermostat WPL 8184136 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
5
Glass, Outer WPL 8185185 Contact Us For Availability
6
Pivot, Door WPL 8184134 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Handle (Stainless) WPL 8185156 Contact Us For Availability
7
Handle (White) WPL 8185178 Contact Us For Availability
7
Handle (Biscuit) WPL 8185179 Contact Us For Availability
7
Handle (Black) WPL 8185180 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Nameplate WPL 8185157 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Grille, Vent (White) WPL 8204962 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8204963 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8204964 Contact Us For Availability
8
Grille, Vent (Black) WPL 8204965 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Frame Asy, Outer (Stainless) WPL 8185182 Contact Us For Availability
10
Frame Asy, Outer (White) WPL 8204966 Contact Us For Availability
10
Frame Asy, Outer (Biscuit) WPL 8204967 Contact Us For Availability
10
Frame Asy, Outer (Black) WPL 8204968 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
SHIELD WPL 8204675 Contact Us For Availability
12
Hinge, Lower WPL 8204678 Contact Us For Availability
12
Filter, Fan Hood WPL 8190268 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Hinge, Upper WPL 8204679 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Inverter 40 W WPL 8204961 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Spring WPL 8169647 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Template, Upper WPL 8184781 Contact Us For Availability
18
Miscellaneous WPL ARI88575A6 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Glass, Lamp WPL 8169499 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 8184092 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
