Model Whirlpool KHMS155LSS1 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

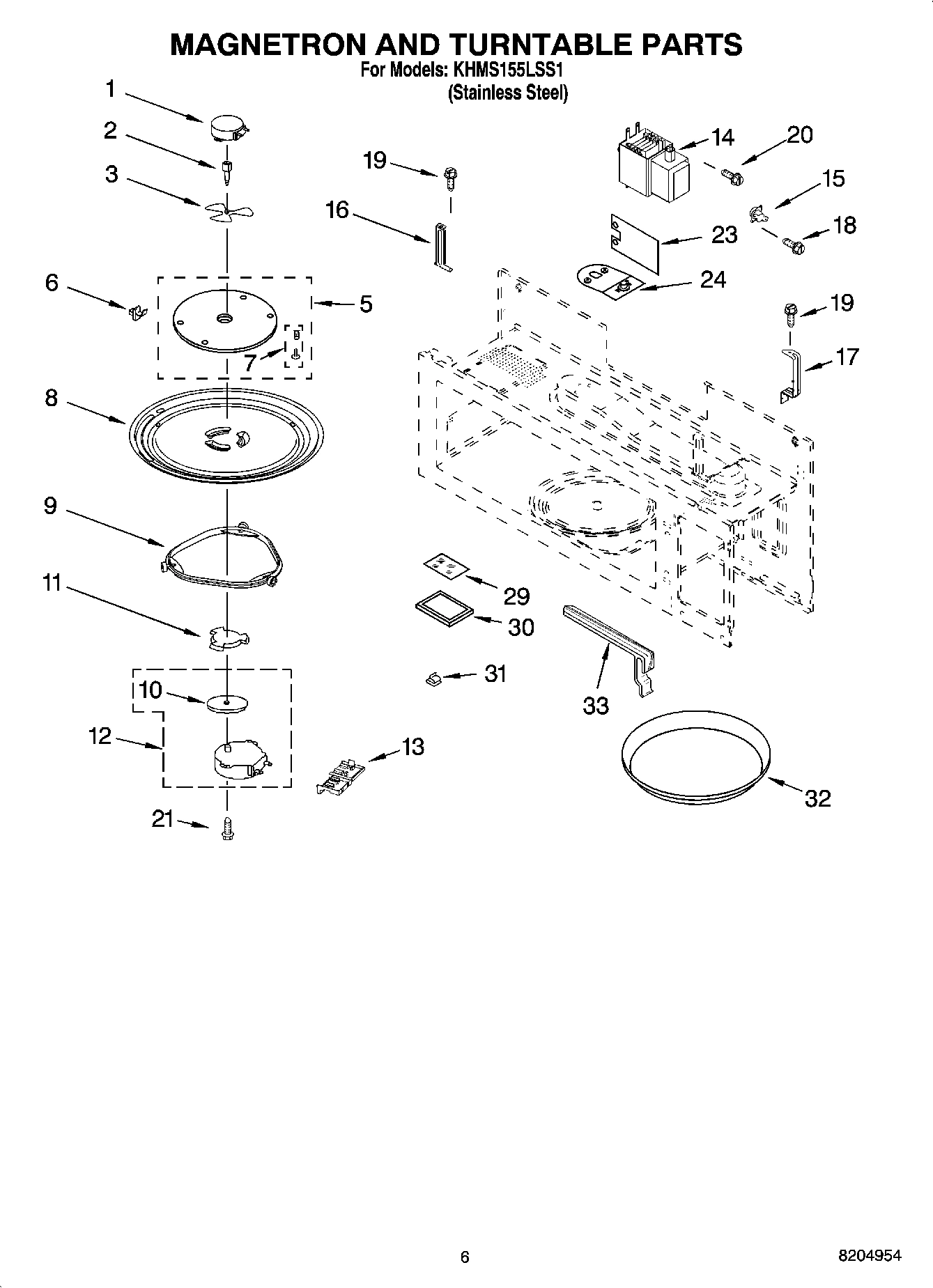

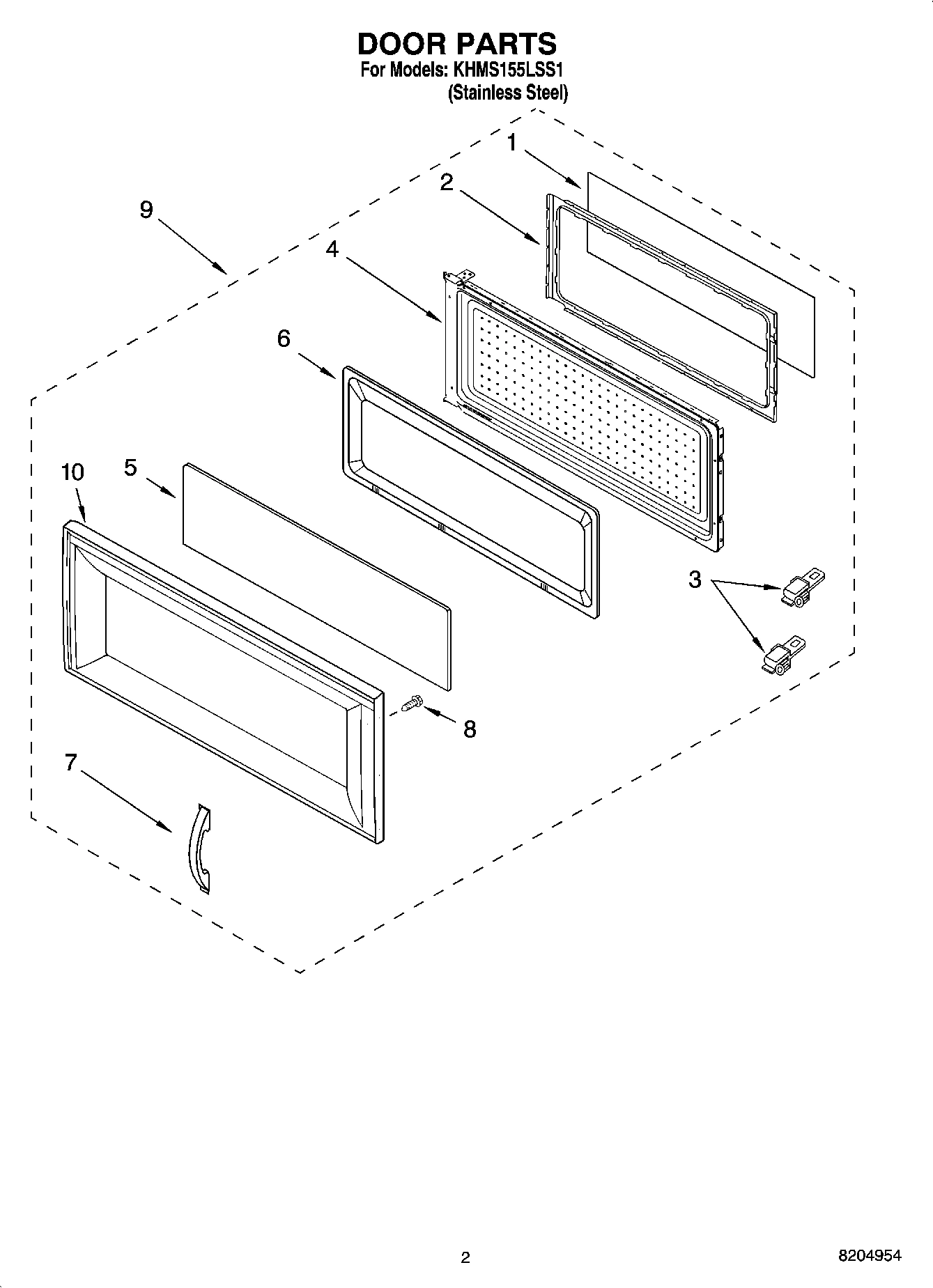

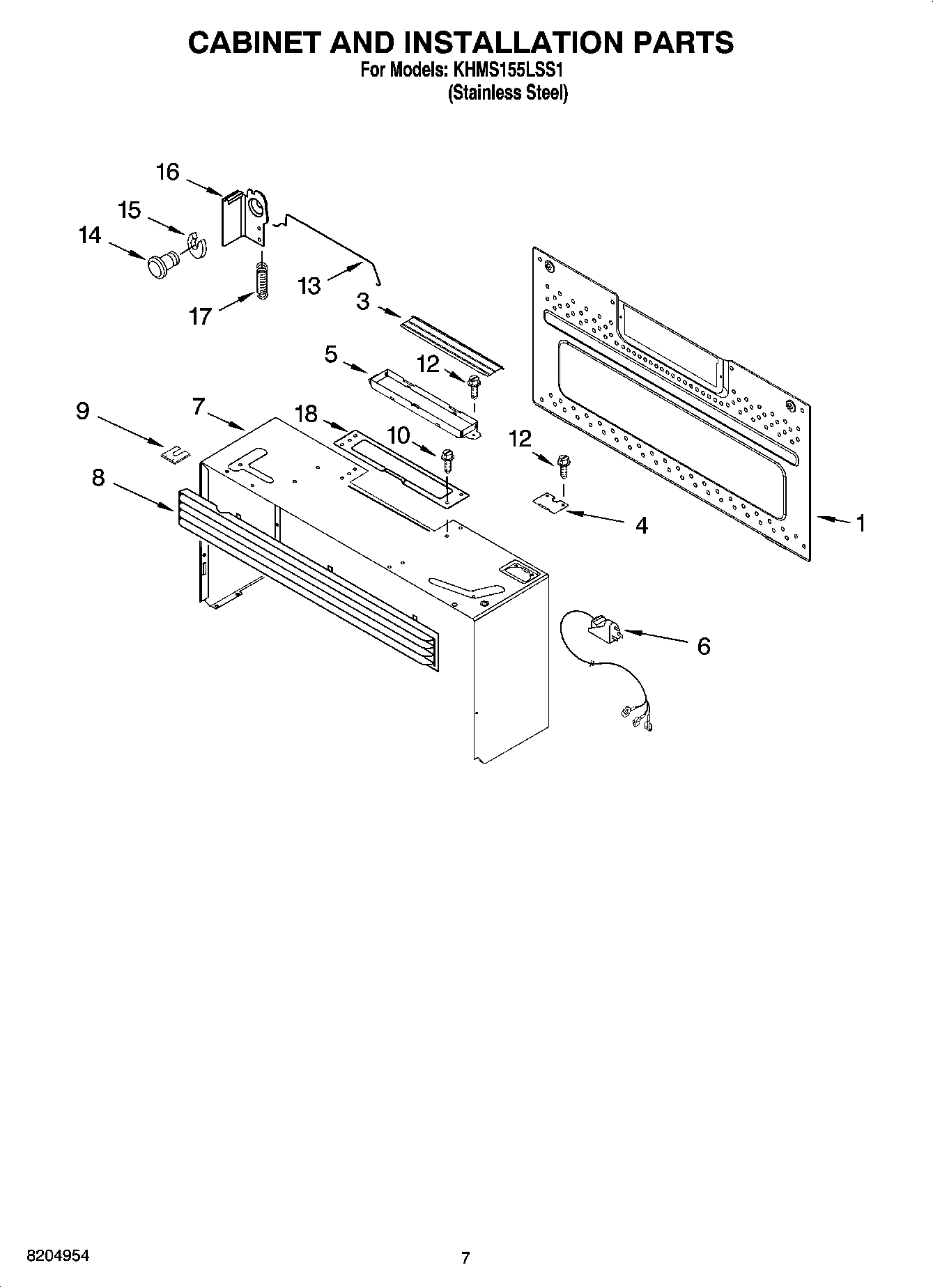

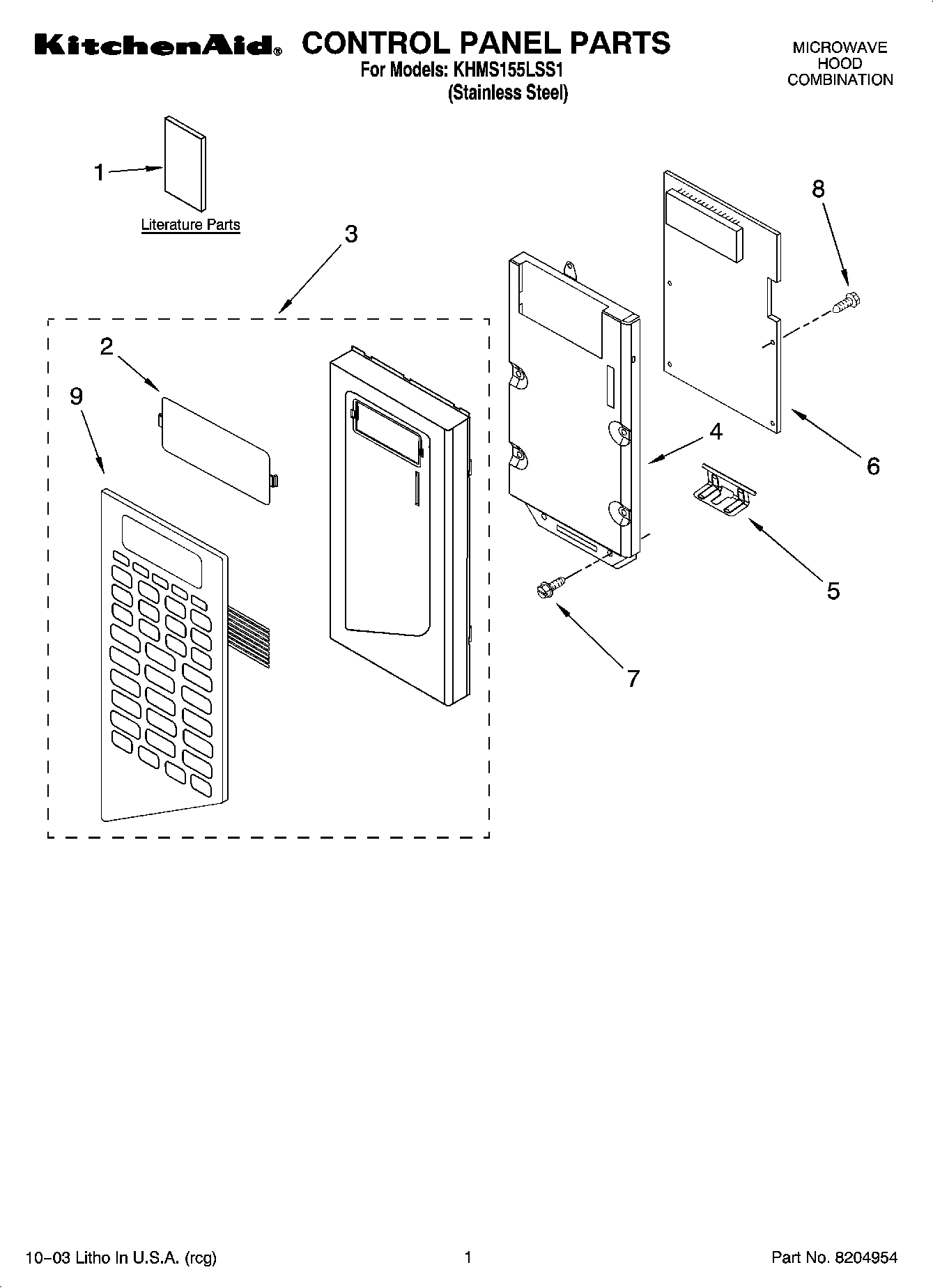

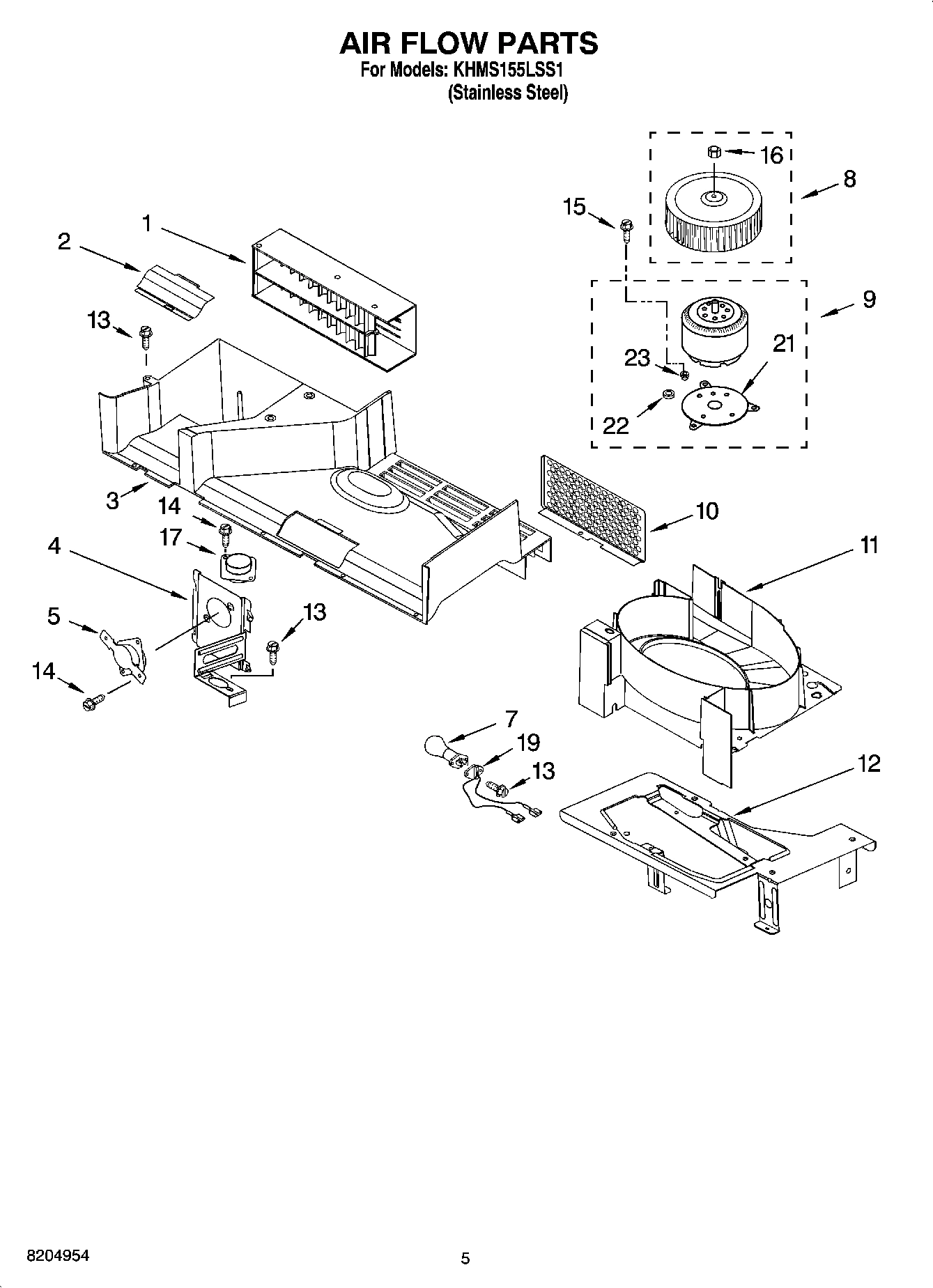

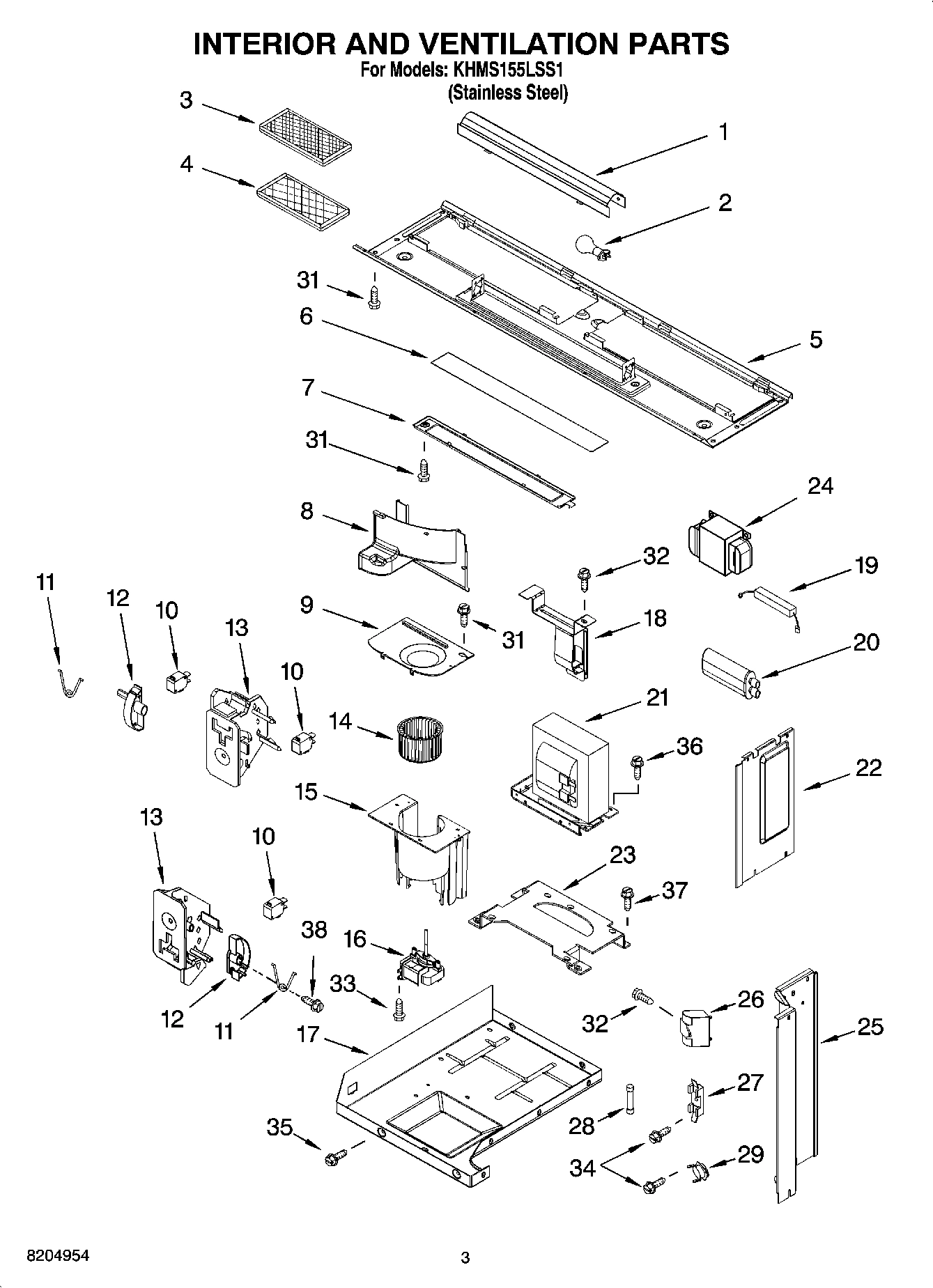

1

Film, Back WPL 4393870 Contact Us For Availability

1

Deflector, Air WPL 8184638 Contact Us For Availability

1

Motor, Stirrer WPL 4393746 Contact Us For Availability

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Reflector, Air WPL 8169557 Contact Us For Availability

2

Shaft, Stirrer WPL 4393794 Contact Us For Availability

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Duct, Air WPL 8185083 Contact Us For Availability

3

Stirrer WPL 8184632 Contact Us For Availability

4

Lid, Power Cord WPL 8184313 Contact Us For Availability

4

Body, Door WPL 8169460 Contact Us For Availability

4

Bracket, Thermostat WPL 8204653 Contact Us For Availability

5

Glass, Outer WPL 4393725 Contact Us For Availability

5

Thermostat WPL 8183697 Contact Us For Availability

5

Cover, Inlet WPL 8184476 Contact Us For Availability

6

Hook, Rack (4) WPL 8204662 Contact Us For Availability

6

PCB Assembly WPL 8169733 Contact Us For Availability

6

Cord, Power WPL 8184898 Contact Us For Availability

6

Panel, Door WPL 8185349 Contact Us For Availability

7

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

7

Case, Outer WPL 8169661 Contact Us For Availability

7

Handle, Door WPL 8184320 Contact Us For Availability

7

Nail, Plastic WPL 4393291 Contact Us For Availability

8

Turntable WPL 4393799 No Longer Available

8

Grille, Vent WPL 8205008 Contact Us For Availability

8

Screw WPL 4393833 Contact Us For Availability

8

Wheel, Fan WPL 4393960 Contact Us For Availability

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.73

9

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $20.42

9

Complete Door WPL 8205007 Contact Us For Availability

9

Motor, Fan WPL 8169632 Contact Us For Availability

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $3.70

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $2.51

Frame, Outer WPL 8205009 Contact Us For Availability

Shield WPL 8204754 Contact Us For Availability

11

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 $12.02

11

Spring, Interlock WPL 8169438 Contact Us For Availability

11

Housing, Fan WPL 8185085 Contact Us For Availability

12

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

12

Plate, Cam WPL 8183824 Contact Us For Availability

12

Bracket, Fan (Not Serviced) WPL ARI88559A5 Contact Us For Availability

13

Screw WPL 8169474 Contact Us For Availability

13

Rod WPL 8169318 Contact Us For Availability

13

Cover, Terminal WPL 4393756 Contact Us For Availability

14

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

14

Latch, Pivot WPL 8169319 Contact Us For Availability

14

Screw WPL 4393316 Contact Us For Availability

15

Thermostat WPL 8183698 Contact Us For Availability

15

E-Ring WPL 8169320 Contact Us For Availability

15

Screw WPL 4393830 Contact Us For Availability

16

Catch WPL 8185033 Contact Us For Availability

16

Nut WPL 8184404 Contact Us For Availability

16

Holder, Connector (L) WPL 8169540 Contact Us For Availability

17

Spring WPL 8169374 Contact Us For Availability

17

Humidity, Sensor WPL 4393808 Contact Us For Availability

17

Holder, Connector (R) WPL 8169705 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $2.85

Holder, Capacitor WPL 8184311 Contact Us For Availability

Installation, Hardware WPL 8169659 Contact Us For Availability

Plate, Damper WPL 8169697 Contact Us For Availability

Wall Template WPL 8183743 Contact Us For Availability

Upper Cab Template WPL 8184781 Contact Us For Availability

Rack WPL 8204725 Contact Us For Availability

Miscellaneous WPL ARI88560A9 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $10.01

19

Screw WPL 4393828 Contact Us For Availability

19

Holder, Lamp WPL 8185084 Contact Us For Availability

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $118.69

20

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

21

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

21

Transformer, H.V. WPL 8204844 Contact Us For Availability

21

Adapter, Motor WPL 8184000 Contact Us For Availability

22

Plate, Damper WPL 8204674 Contact Us For Availability

22

Plate, Side (R) WPL 8204657 Contact Us For Availability

23

WP8184485 Whirlpool Microwave Shield Backorder WPL WP8184485 $40.26

23

Cushion, Mtr WPL 8169635 Contact Us For Availability

23

Bracket, Transformer WPL 4393706 Contact Us For Availability

24

Transformer, L.V. WPL 8185003 Contact Us For Availability

24

Thermostat/Bracket WPL 8184585 Contact Us For Availability

25

Plate, Side (L) WPL 8204658 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

29

Thermostat WPL 8183703 Contact Us For Availability

29

Glass, Lamp WPL 8169499 Contact Us For Availability

30

Frame, Glass WPL 8169646 Contact Us For Availability

31

Clip WPL 8169647 Contact Us For Availability

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

32

Pan, Crisping WPL 8204680 Contact Us For Availability

33

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

34

Screw WPL 8169478 Contact Us For Availability

35

Screw WPL 8169475 Contact Us For Availability

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

37

Screw WPL 4393839 Contact Us For Availability

38

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51
