Model Whirlpool KHMS145KSS1 MICROWAVE OVEN 1.4 CU. FT. – Common Parts & Diagrams

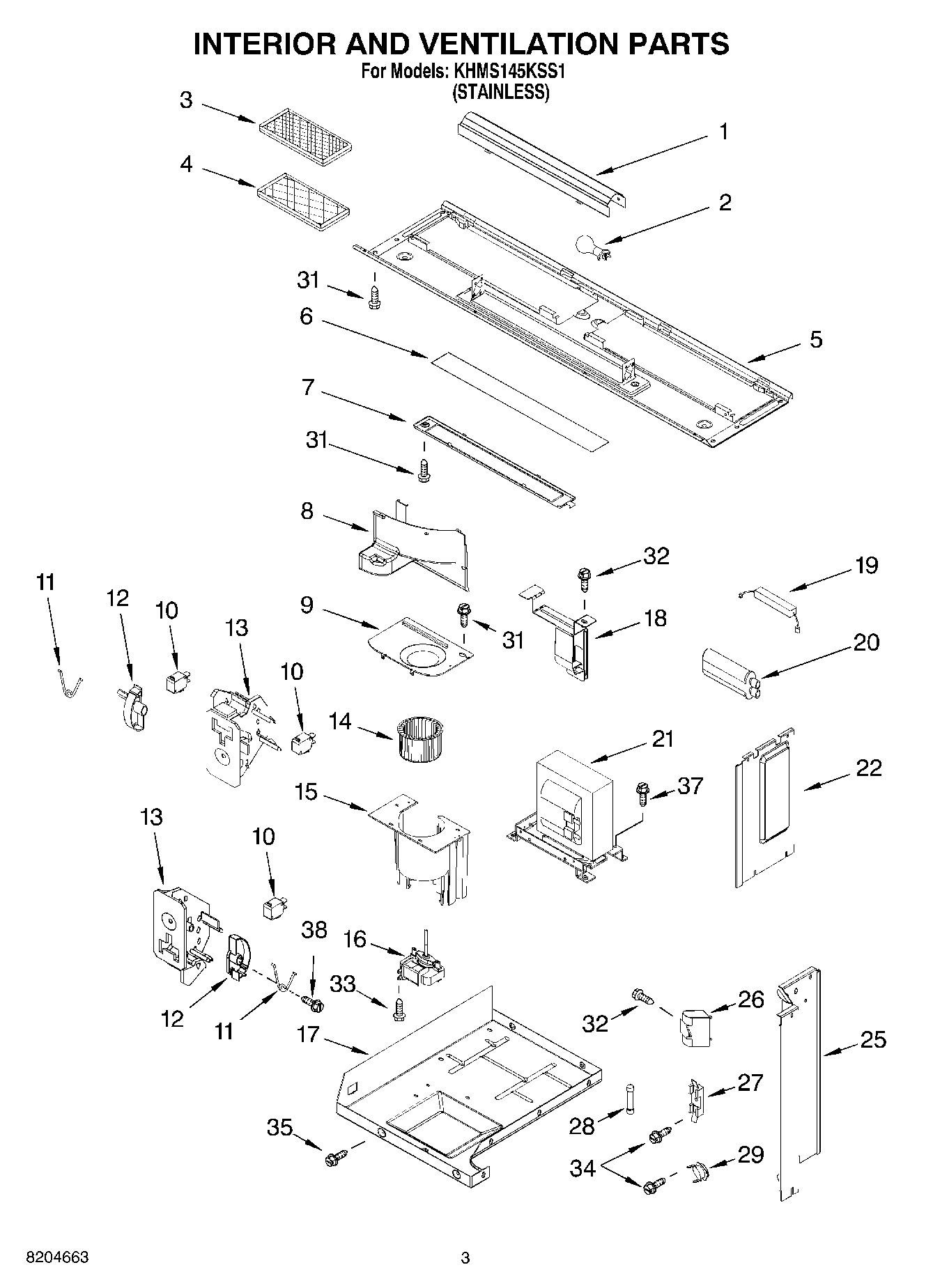

03 - INTERIOR AND VENTILATION PARTS

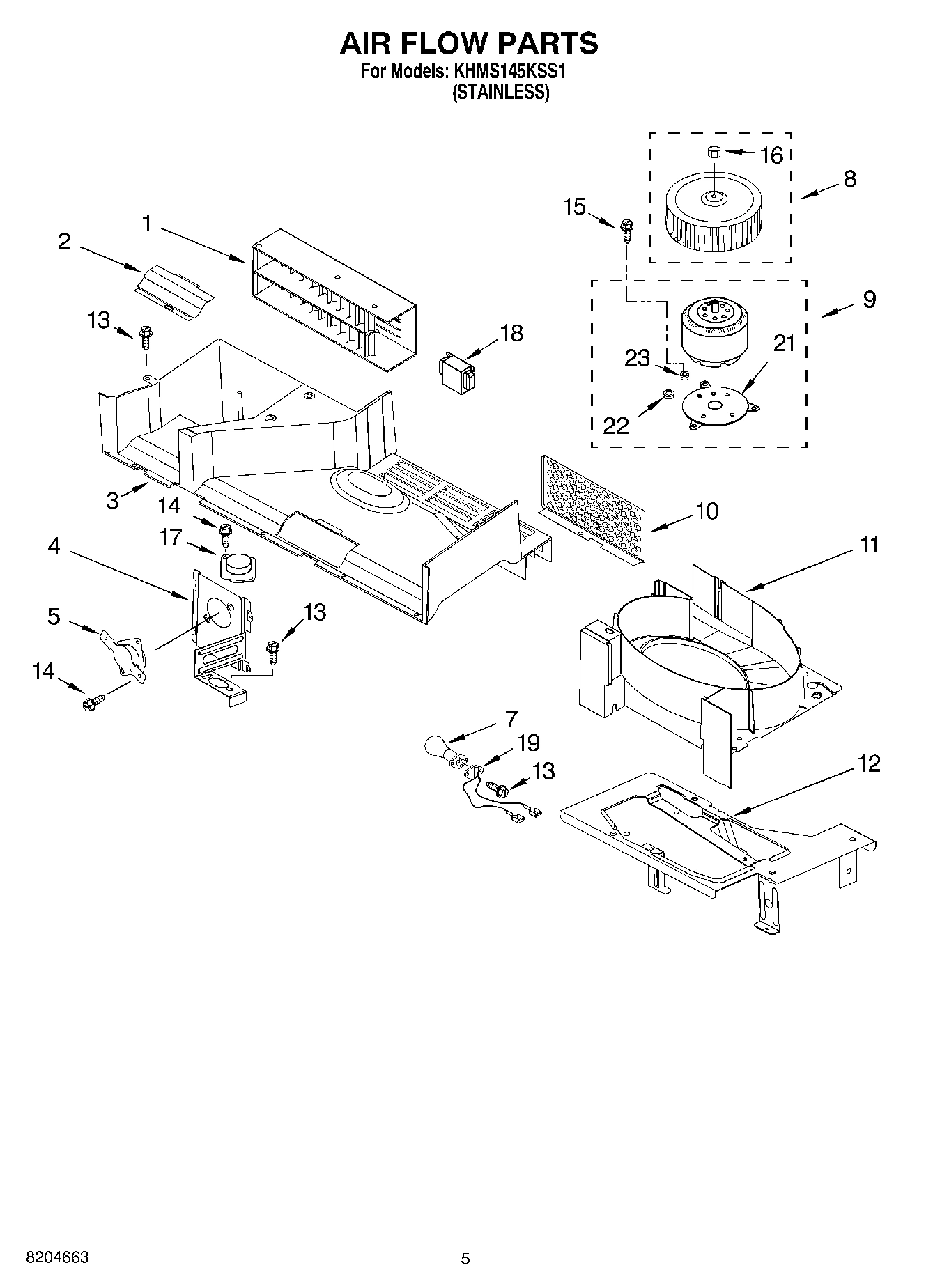

04 - AIR FLOW PARTS

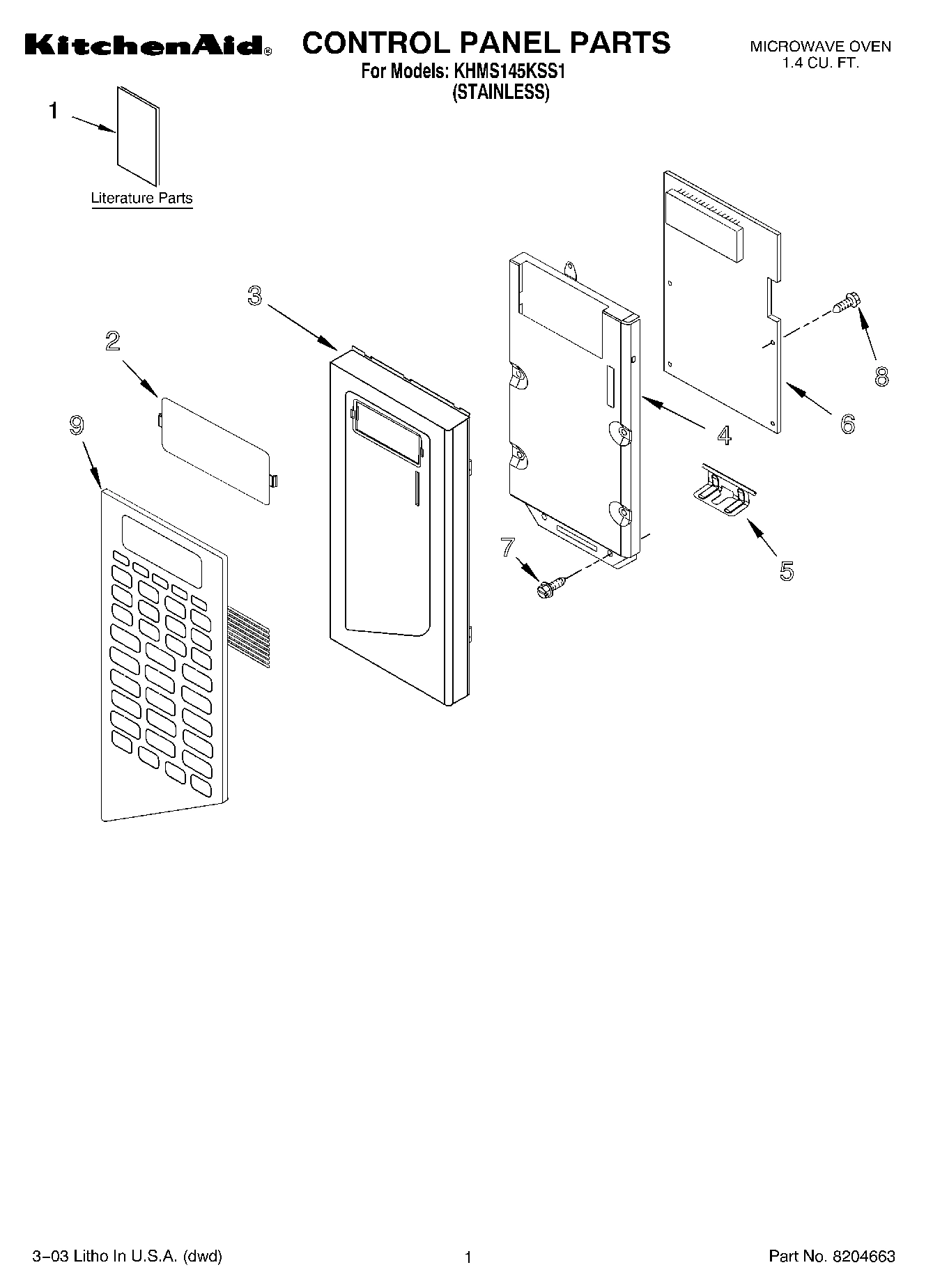

01 - CONTROL PANEL PARTS

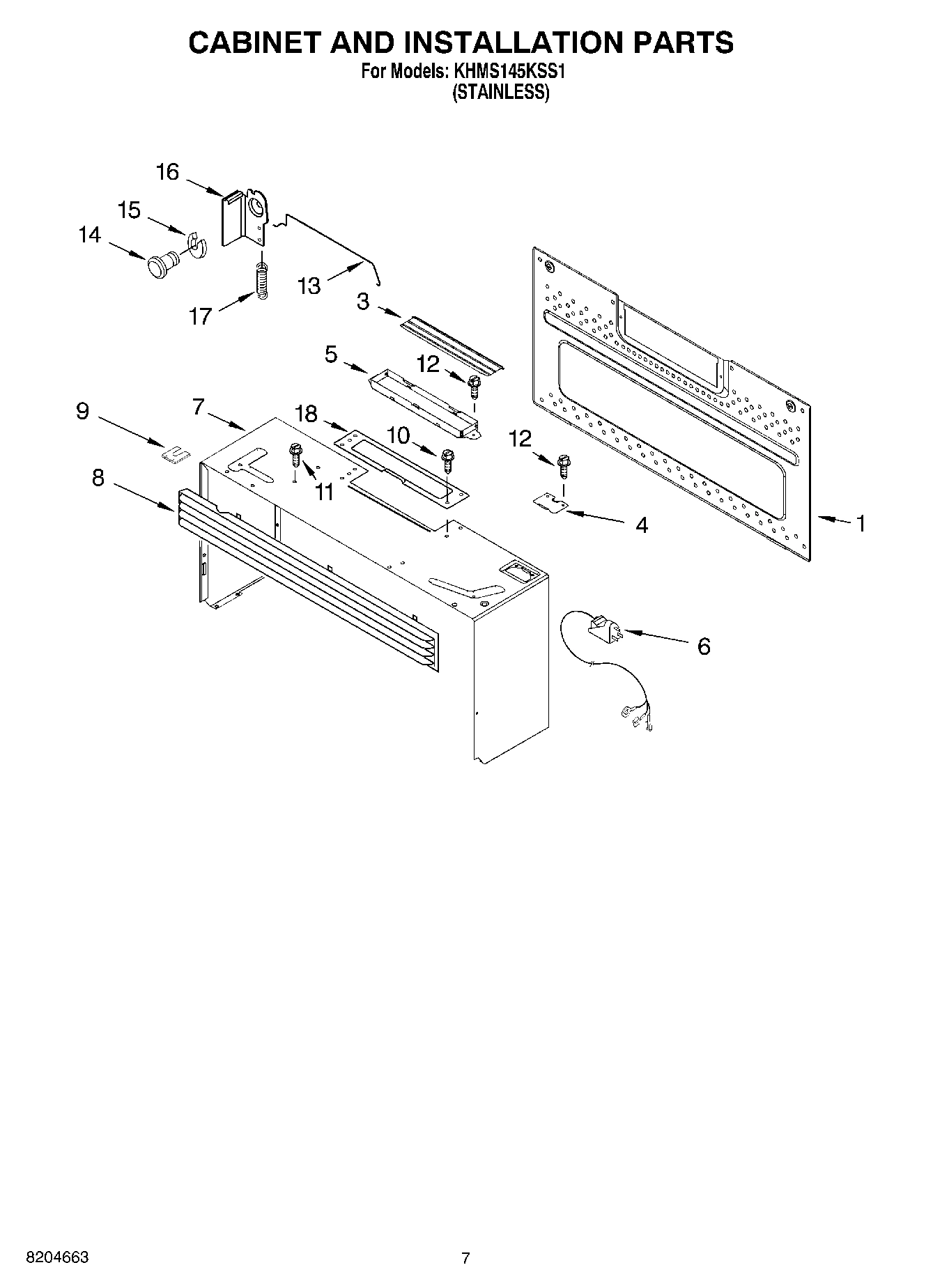

06 - CABINET AND INSTALLATION PARTS

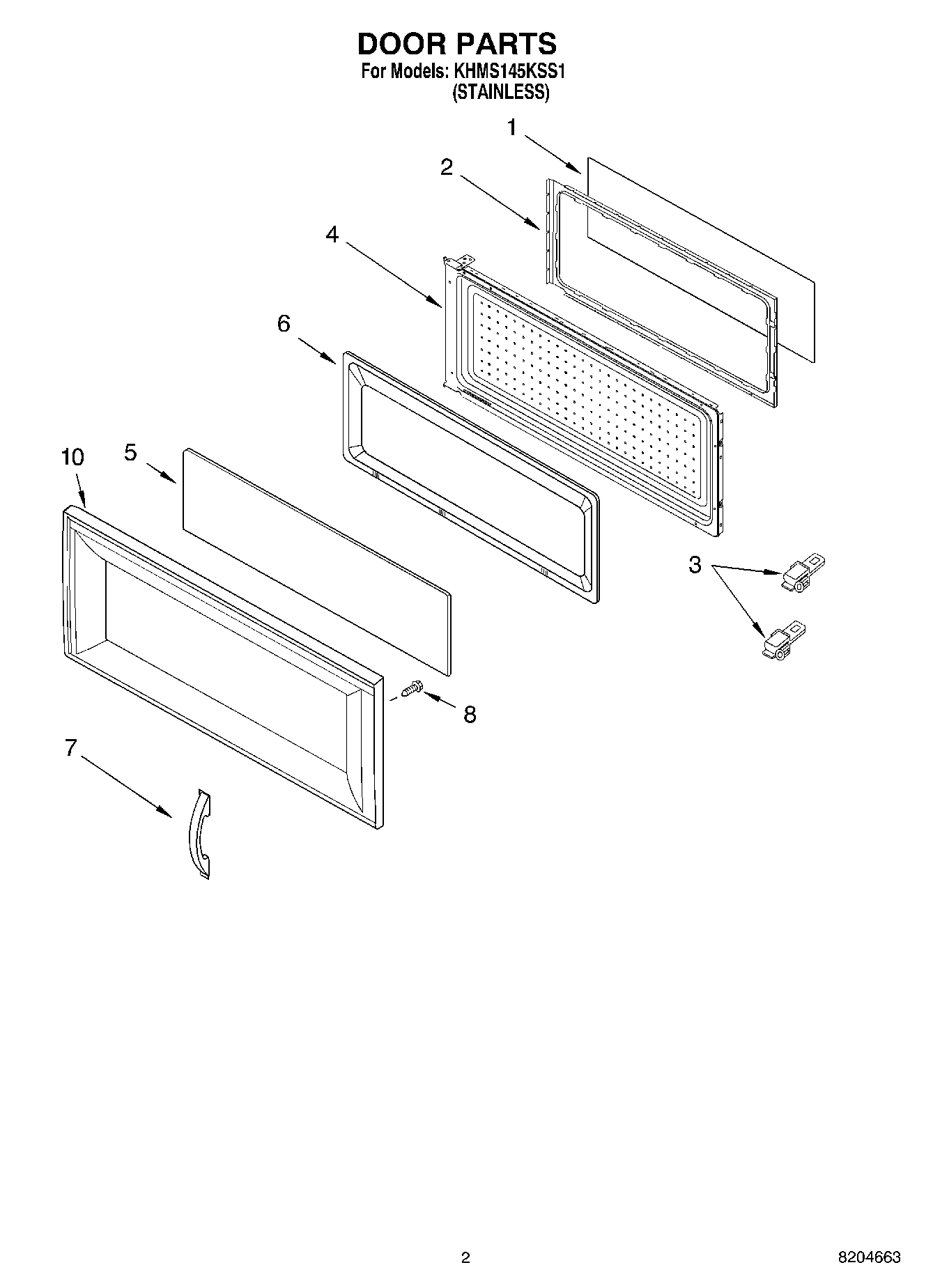

02 - DOOR PARTS

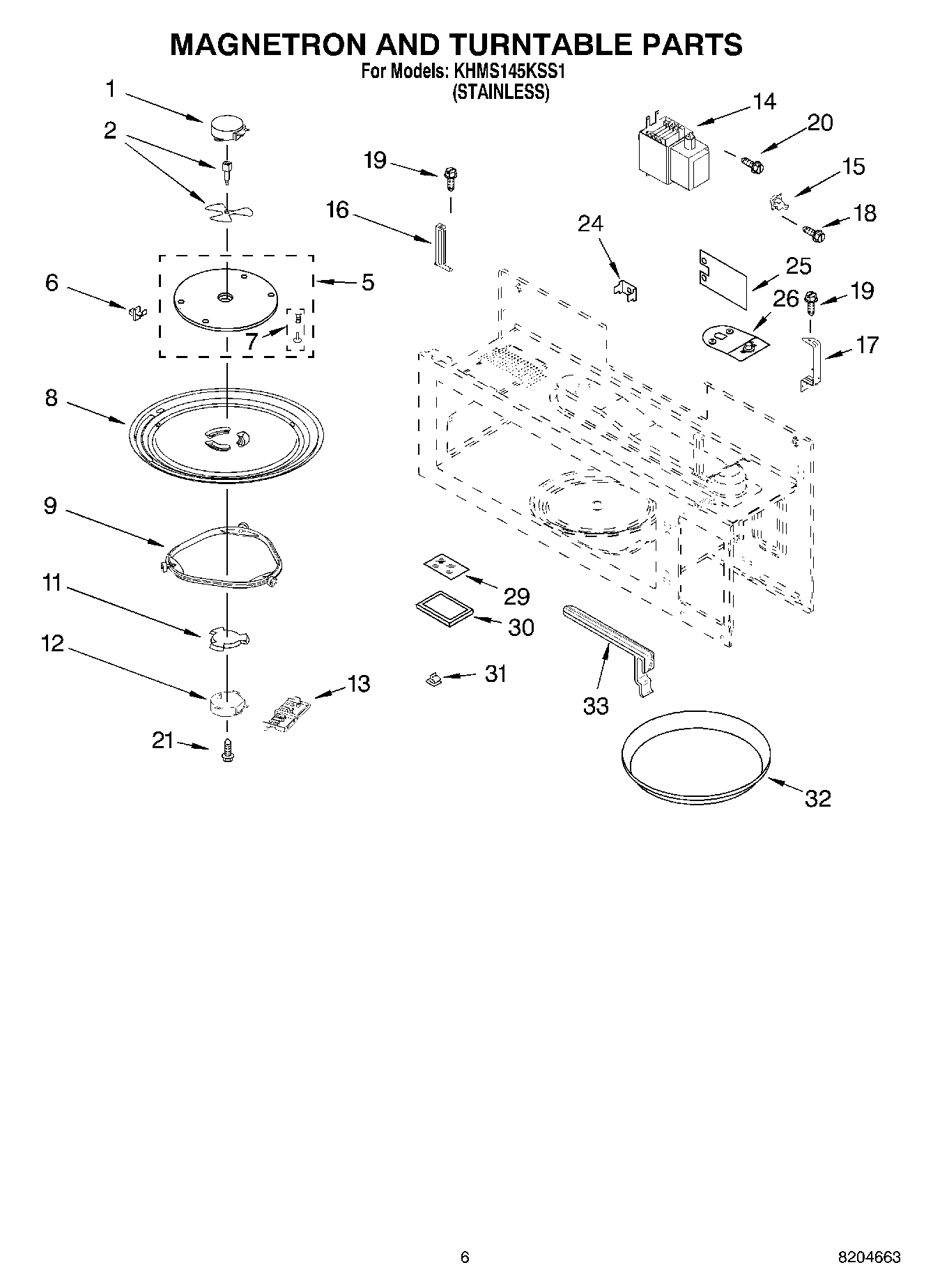

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool KHMS145KSS1 MICROWAVE OVEN 1.4 CU. FT.
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8169442 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8183731 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8183931 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184571 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Lens WPL 4393905 Contact Us For Availability
2
Shaft/Stirrer WPL 8184632 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
3
Panel, Control WPL 8169731 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
4
Body, Door WPL 8169460 Contact Us For Availability
5
Glass, Outer WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Microcomputer WPL 8169733 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
6
Panel, Door WPL 8185349 Contact Us For Availability
7
Case, Outer WPL 8169661 Contact Us For Availability
7
Nails/Bushings WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Screw WPL 4393833 Contact Us For Availability
8
Wheel, Fan WPL 4393960 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Grille, Vent WPL 8184317 Contact Us For Availability
9
Motor, Fan WPL 8169632 Contact Us For Availability
9
Switch, Membrane WPL 8169727 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame, Outer WPL 8184319 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI88524A7 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Screw WPL 4393316 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Nut WPL 8204655 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Transformer, L.V. WPL 8185003 Contact Us For Availability
18
Rack WPL 4393826 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Upper Cab Template WPL 8183985 Contact Us For Availability
18
Miscellaneous WPL ARI88525A8 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Holder, Lamp WPL 8185084 Contact Us For Availability
19
Screw WPL 4393828 Contact Us For Availability
21
Adapter, Motor WPL 8184000 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Terminal Bracket WPL 8183832 Contact Us For Availability
25
Insulation Shield WPL 8184485 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
26
Thermostat And Bracket WPL 8184585 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
31
Clip WPL 8169647 Contact Us For Availability
32
Pan, Crisping WPL 8169651 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
