Model Whirlpool KHMS105WWH0 – Common Parts & Diagrams

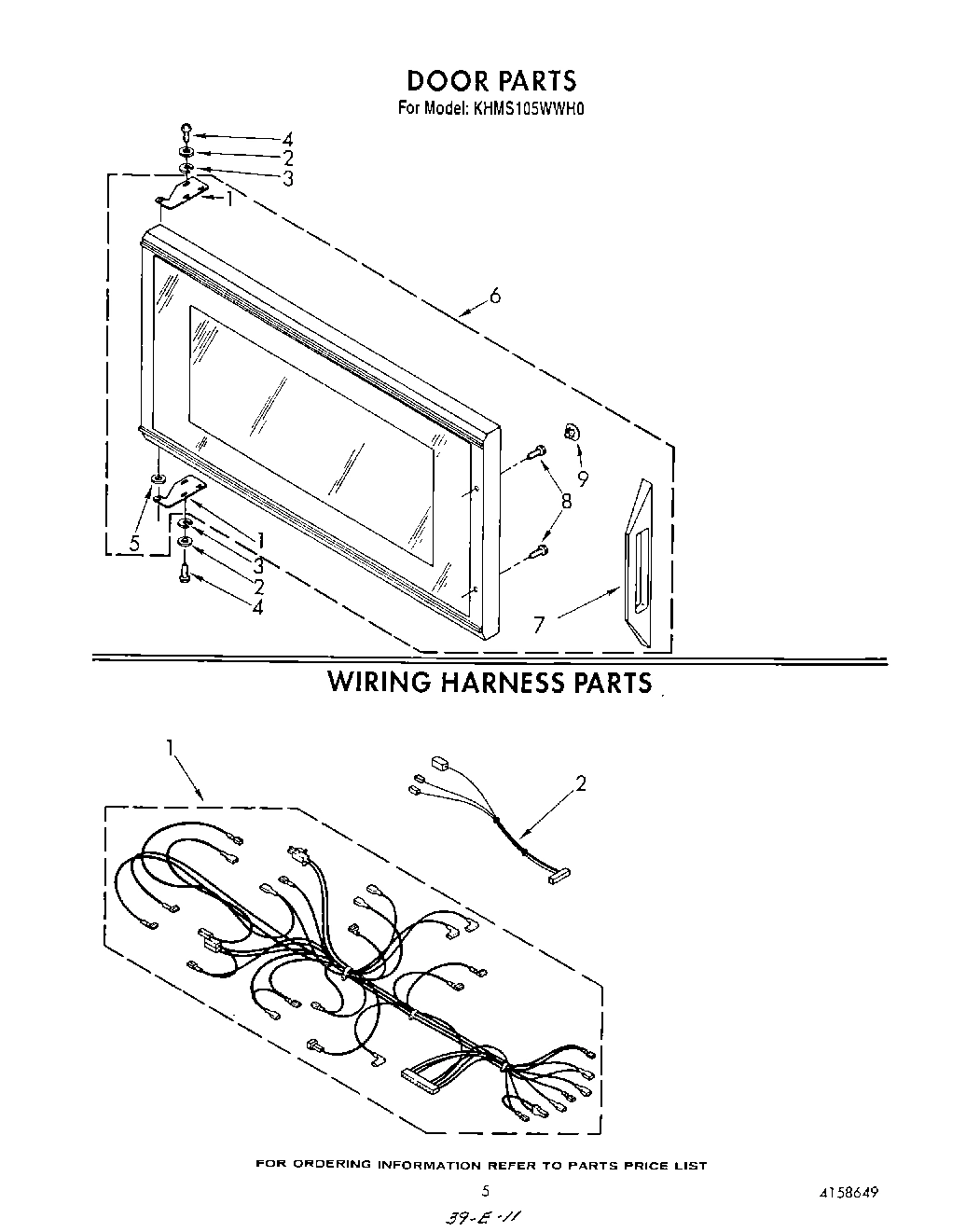

05 - DOOR , WIRING HARNESS , LIT/OPTIONAL

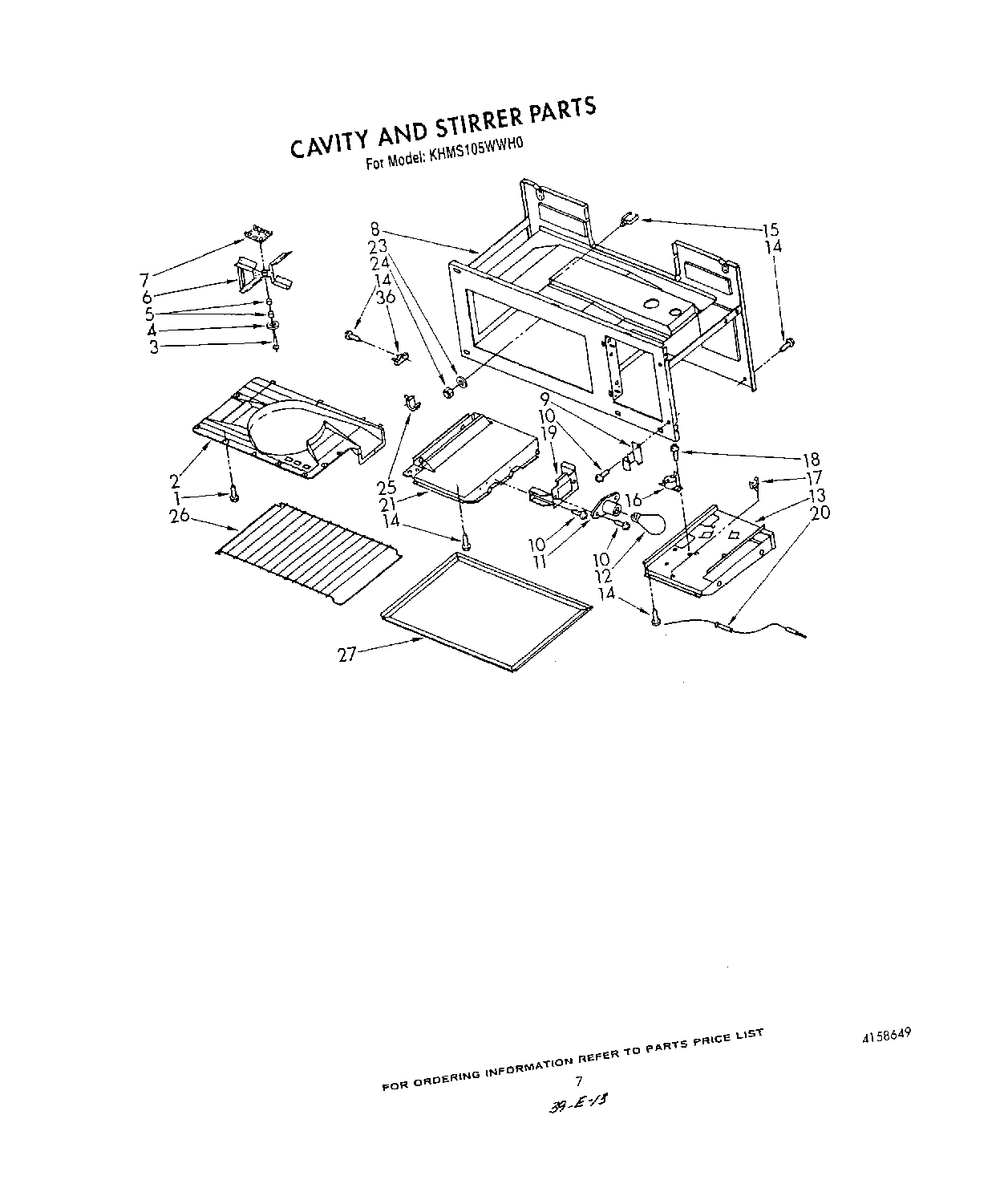

07 - CAVITY AND STIRRER
06 - CONTROL PANEL
08 - VENTILATION
02 - MAGNETRON AND AIR FLOW
04 - CABINET
03 - INSTALLATION
Common parts from model Whirlpool KHMS105WWH0
Instructions, Installation WPL LIT4158431 Contact Us For Availability
List, Repair Parts WPL LIT4158649 Contact Us For Availability
1
Main Wiring Harness WPL 4158388 Contact Us For Availability
1
Hinge Plate WPL 4158415 Contact Us For Availability
1
Screw (9) WPL 4158357 Contact Us For Availability
1
Control Panel WPL 4158557 Contact Us For Availability
1
Lamp Box WPL 4158340 Contact Us For Availability
1
Vent Duct WPL 4158375 Contact Us For Availability
1
Washer (2) WPL 4158314 Contact Us For Availability
2
Plain Washer WPL 4158087 Contact Us For Availability
2
Filler Kit WPL 4158311 Contact Us For Availability
2
Harness WPL 4158404 Contact Us For Availability
2
Smoke Deflector Kit WPL 4158440 Contact Us For Availability
2
Installation Hardware WPL 4158491 Contact Us For Availability
2
Screw (3) WPL 4158072 Contact Us For Availability
2
Stirrer Fan Cover WPL 4158358 Contact Us For Availability
2
Switch, Membrane WPL 4158994 Contact Us For Availability
2
Vent Duct WPL 4158341 Contact Us For Availability
2
Outer Case WPL 4158989 Contact Us For Availability
2
Cabinet Bolt (2) WPL 4158315 Contact Us For Availability
3
Spring Washer WPL 4158416 Contact Us For Availability
3
Stirrer Fan Shaft WPL 4158359 Contact Us For Availability
3
Digitron Window WPL 4158457 Contact Us For Availability
3
Screw (2) WPL 4158084 Contact Us For Availability
3
Motor Condenser WPL 4158376 Contact Us For Availability
3
Vent Fan Mounting Bracket WPL 4158421 Contact Us For Availability
4
Tapping Screw WPL 4158417 Contact Us For Availability
4
Sliding Washer WPL 4158252 Contact Us For Availability
4
Wire Holder WPL 4158267 Contact Us For Availability
4
Control Bracket WPL 4158409 Contact Us For Availability
4
Screw (8) WPL 4158353 Contact Us For Availability
4
Retainer Holder (2) WPL 4158316 Contact Us For Availability
5
Hinge Washer WPL 4158117 Contact Us For Availability
5
Shaft Bushing WPL 4158360 Contact Us For Availability
5
Digitron Cushion (6) WPL 4158410 Contact Us For Availability
5
Oven Lamp Cover Assy. WPL 4158343 Contact Us For Availability
5
Air Guide WPL 4158377 Contact Us For Availability
6
Complete Door WPL 4158656 Contact Us For Availability
6
Stirrer Fan Assy. WPL 4158361 Contact Us For Availability
6
Holder, Fuse WPL 4158059 Contact Us For Availability
6
Power Cord Assy. WPL 4158542 Contact Us For Availability
6
Cord Bushing WPL 4158318 Contact Us For Availability
7
Handle WPL 4158555 Contact Us For Availability
7
Fan Shaft Holder WPL 4158362 Contact Us For Availability
7
Lamp Holder WPL 4158364 Contact Us For Availability
7
Fuse WPL 4158378 Contact Us For Availability
7
Screw (2) WPL 4158561 Contact Us For Availability
8
Oven Cavity (Not Serviceable) WPL ARI88517A4 Contact Us For Availability
8
Lug (2) WPL 4158563 Contact Us For Availability
8
Front Vent Guide Assy. WPL 4158346 Contact Us For Availability
8
Motor Base WPL 4158379 Contact Us For Availability
8
Screw (3) WPL 4158425 Contact Us For Availability
8
Exhaust Damper WPL 4158319 Contact Us For Availability
9
Plug Button WPL 4158556 Contact Us For Availability
9
Cntl. Hinge Assy. (2) WPL 4158363 Contact Us For Availability
9
Screw (2) WPL 4158347 Contact Us For Availability
9
Air Guide WPL 4158380 Contact Us For Availability
9
Front Bracket WPL 4158426 Contact Us For Availability
9
Exhaust Adapter WPL 4158541 Contact Us For Availability
10
Lead Wire WPL 4158214 Contact Us For Availability
10
Ventilation Motor Assy. WPL 4158348 Contact Us For Availability
10
Air Guide WPL 4158381 Contact Us For Availability
10
Mounting Rod WPL 4158427 Contact Us For Availability
11
Lamp Glass Mounting (2) WPL 4158349 Contact Us For Availability
11
Fan Cover Bracket WPL 4158382 Contact Us For Availability
11
Sealed Plate R.H. WPL 4158428 Contact Us For Availability
11
Top Cabinet Nut (2) WPL 4158322 Contact Us For Availability
12
Holder, Wire WPL 4158413 Contact Us For Availability
12
Cooktop Lamp Glass WPL 4158350 Contact Us For Availability
12
Capacitor WPL 4158507 Contact Us For Availability
12
Sealed Plate L.H. WPL 4158422 Contact Us For Availability
12
Screw (4) WPL 4158323 Contact Us For Availability
13
Bottom Plate R.H. WPL 4158366 Contact Us For Availability
13
Microcomputer WPL 4158414 Contact Us For Availability
13
Base Plate WPL 4158559 Contact Us For Availability
13
Diode Cable WPL 4158540 Contact Us For Availability
13
Mounting Plate Assy. WPL 4158324 Contact Us For Availability
14
Air Filter (2) WPL 4158352 Contact Us For Availability
14
Capacitor Bracket WPL 4158384 Contact Us For Availability
14
Top Cabinet Template WPL 4158325 Contact Us For Availability
15
Screw (3) WPL 4158184 Contact Us For Availability
15
Toggle Wing (4) WPL 4158326 Contact Us For Availability
16
Base Thermostat WPL 4158368 Contact Us For Availability
16
Fan Motor WPL 4158385 Contact Us For Availability
16
Vent Cover WPL 4158327 Contact Us For Availability
17
Screw (2) WPL 4158076 Contact Us For Availability
17
Wire Holder (2) WPL 4158369 Contact Us For Availability
17
Air Guide WPL 4158354 Contact Us For Availability
17
Fan Cover WPL 4158386 Contact Us For Availability
18
Charcoal Filter Assy. WPL 4158355 Contact Us For Availability
18
Fan Cover Back WPL 4158387 Contact Us For Availability
18
Wall Template WPL 4158328 Contact Us For Availability
19
Cooktop Lamp Bracket WPL 4158370 Contact Us For Availability
20
Temp Probe WPL 4158371 Contact Us For Availability
20
Vent Duct WPL 4158356 Contact Us For Availability
20
E-Ring WPL 4158063 Contact Us For Availability
21
Bottom Plate L.H. WPL 4158372 Contact Us For Availability
21
Propeller WPL 4158389 Contact Us For Availability
22
Screw (2) WPL 4158187 Contact Us For Availability
23
Washer WPL 4158213 Contact Us For Availability
23
Micro Switch, Secondary WPL 4158651 Contact Us For Availability
24
Nut WPL 4158212 Contact Us For Availability
24
Screw WPL 4158208 Contact Us For Availability
26
Rack Assy. WPL 4158373 Contact Us For Availability
27
Ceramic Plate Assy. WPL 4158374 Contact Us For Availability
27
Lever, Switch WPL 4158390 Contact Us For Availability
28
Latch Board WPL 4158391 Contact Us For Availability
29
Micro Switch (Primary) WPL 4158652 Contact Us For Availability
30
Latch Board WPL 4158392 Contact Us For Availability
31
Special Screw (2) WPL 4158307 Contact Us For Availability
32
Toothed Washer WPL 4158393 Contact Us For Availability
33
Fan Guide WPL 4158394 Contact Us For Availability
35
Nut (2) WPL 4158053 Contact Us For Availability
36
Thermal Fuse WPL 4158562 Contact Us For Availability
36
Magnetron WPL 4158473 Contact Us For Availability
37
Thermo Insulator WPL 4158396 Contact Us For Availability
38
Thermostat WPL 4158539 Contact Us For Availability
39
Screw (2) WPL 4158082 Contact Us For Availability
40
Air Duct WPL 4158398 Contact Us For Availability
41
Cable Assy. WPL 4158551 Contact Us For Availability
42
Cable Assy. WPL 4153400 Contact Us For Availability
43
Transformer WPL 4158401 Contact Us For Availability
44
Screw (2) WPL 4158402 Contact Us For Availability
45
Magnetron Nut (4) WPL 4158403 Contact Us For Availability
47
Lead Wire WPL 4158405 Contact Us For Availability
× ![]()
