Model Whirlpool KHMS105S0 – Common Parts & Diagrams
02 - OVEN
04 - CABINET

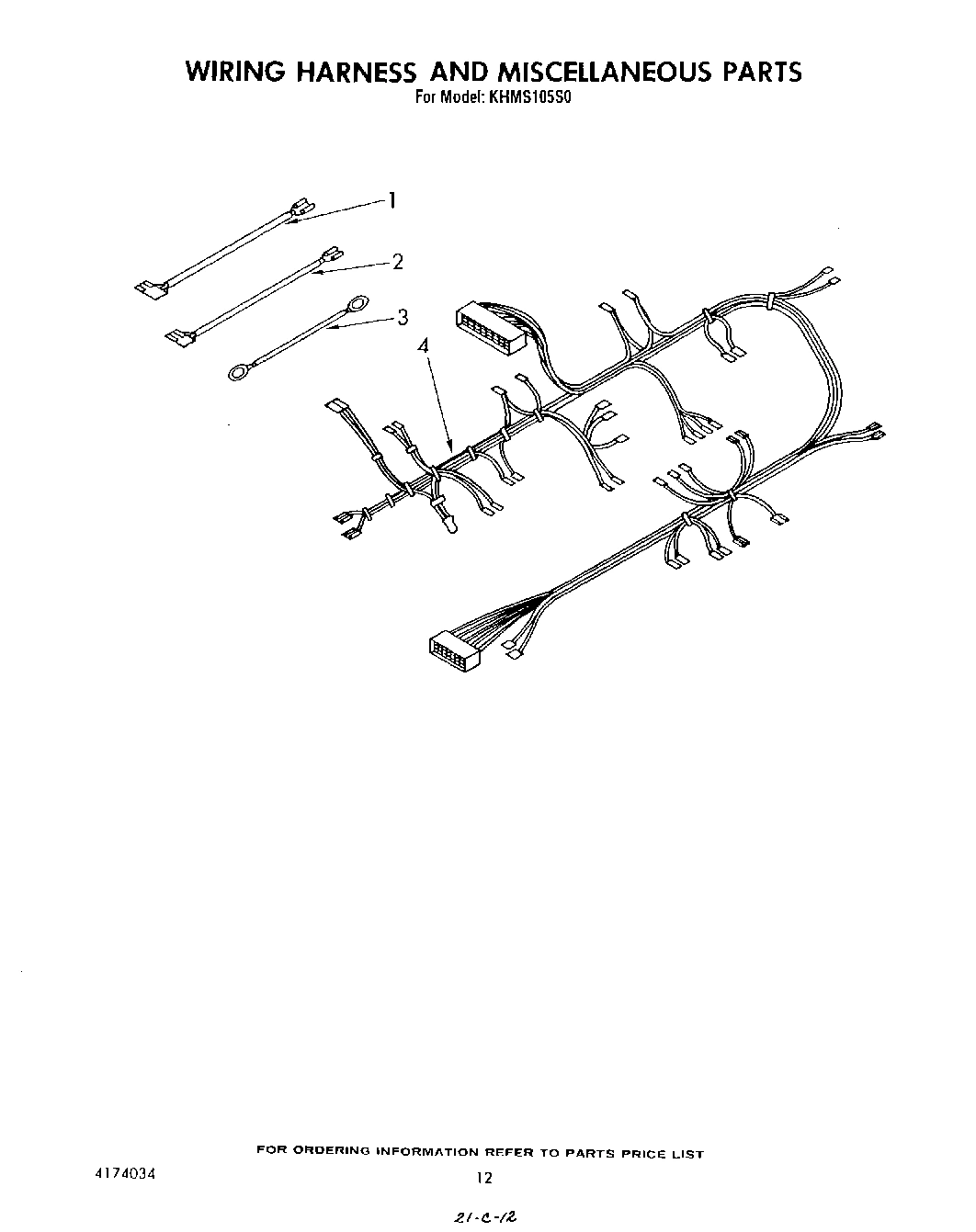

09 - WIRING HARNESS, MISCELLANEOUS, LIT/

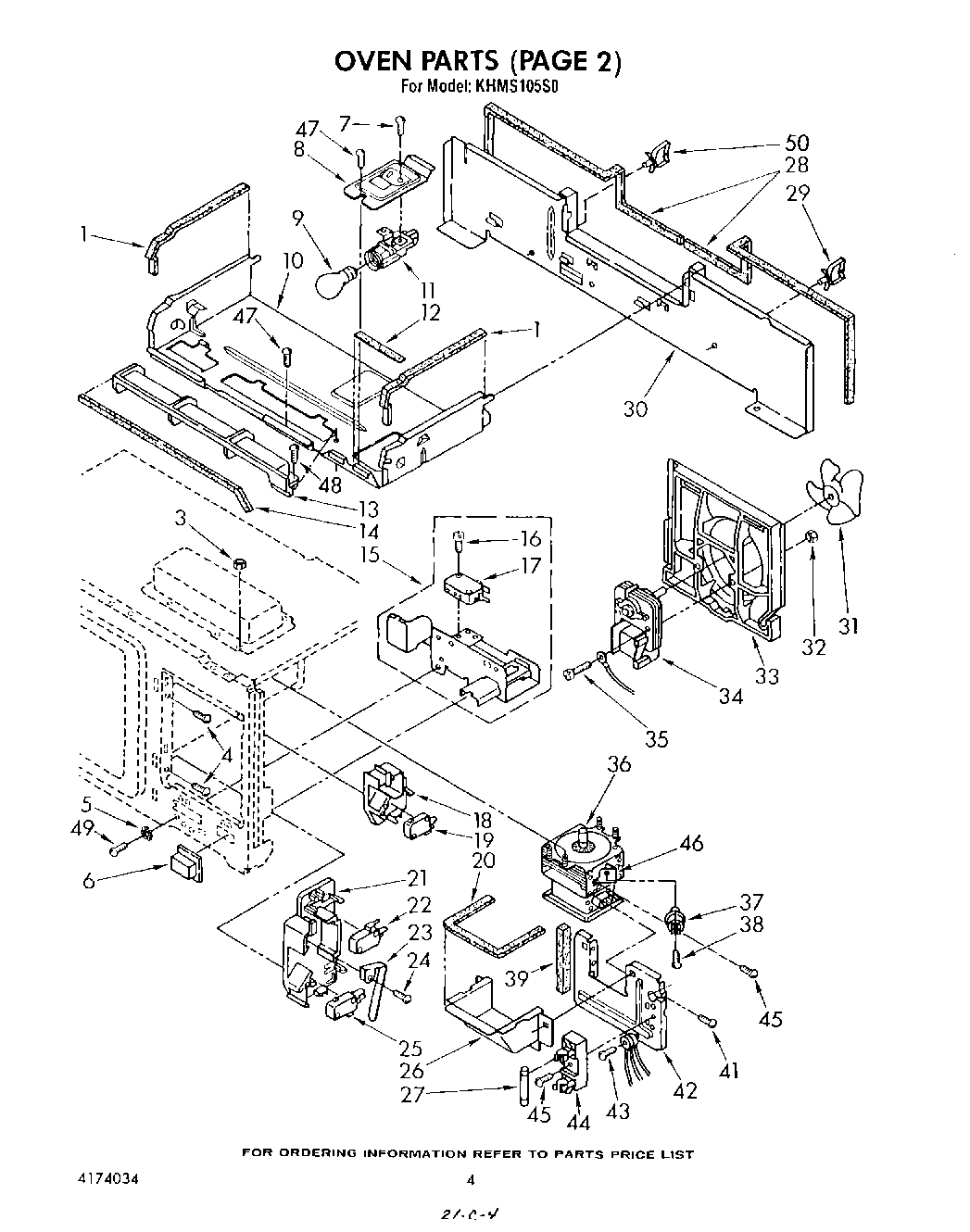

03 - SECTION

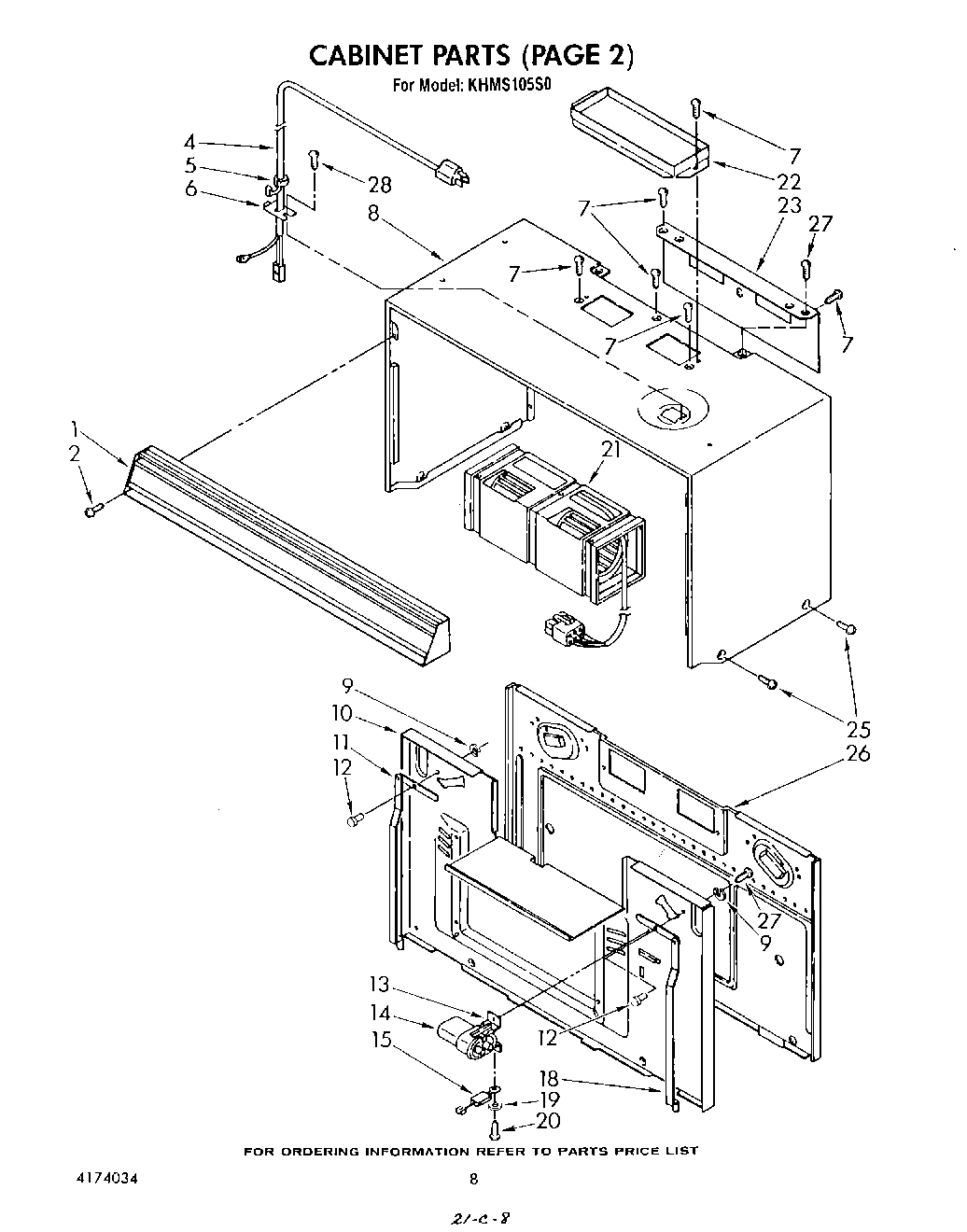

05 - SECTION

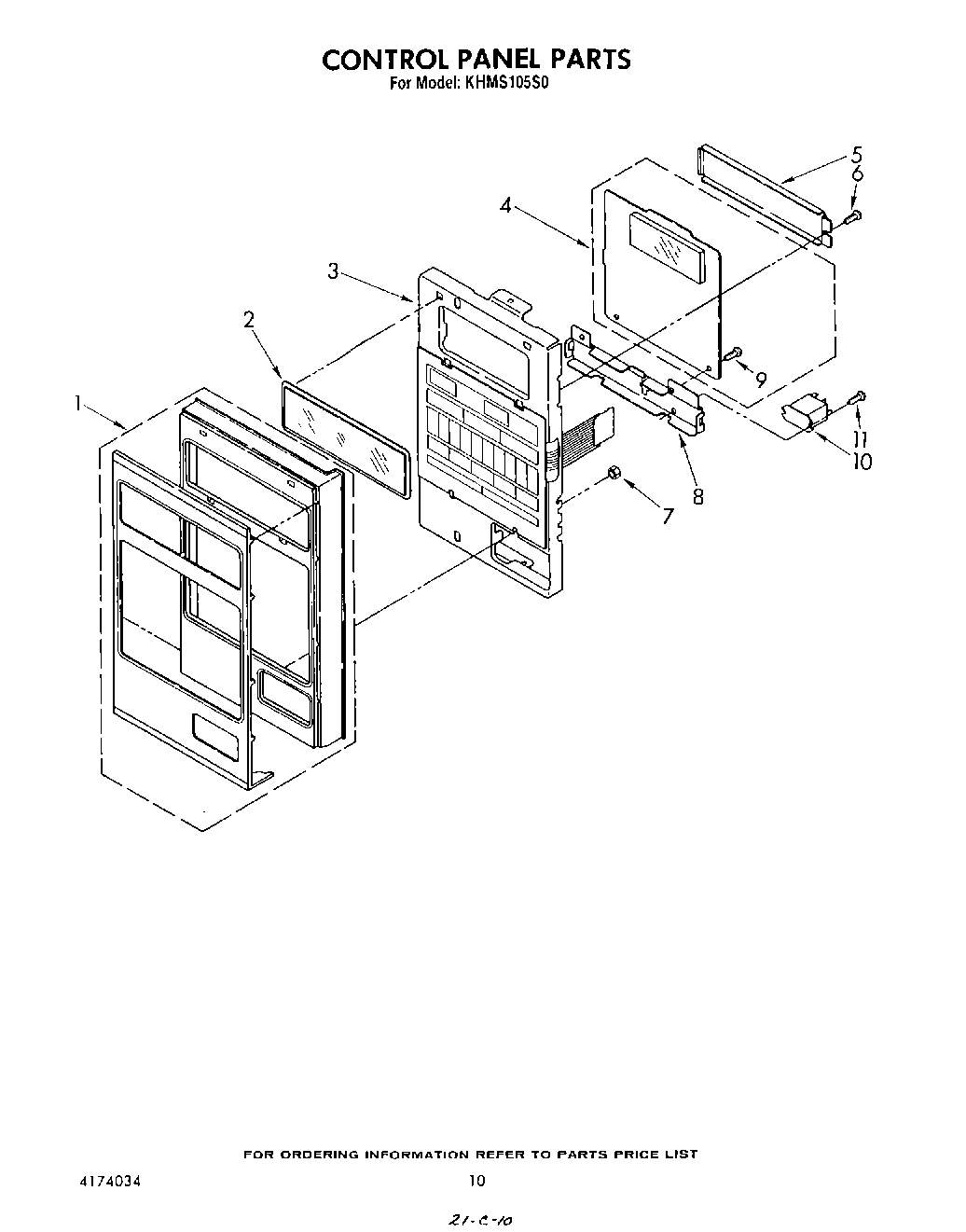

07 - CONTROL PANEL

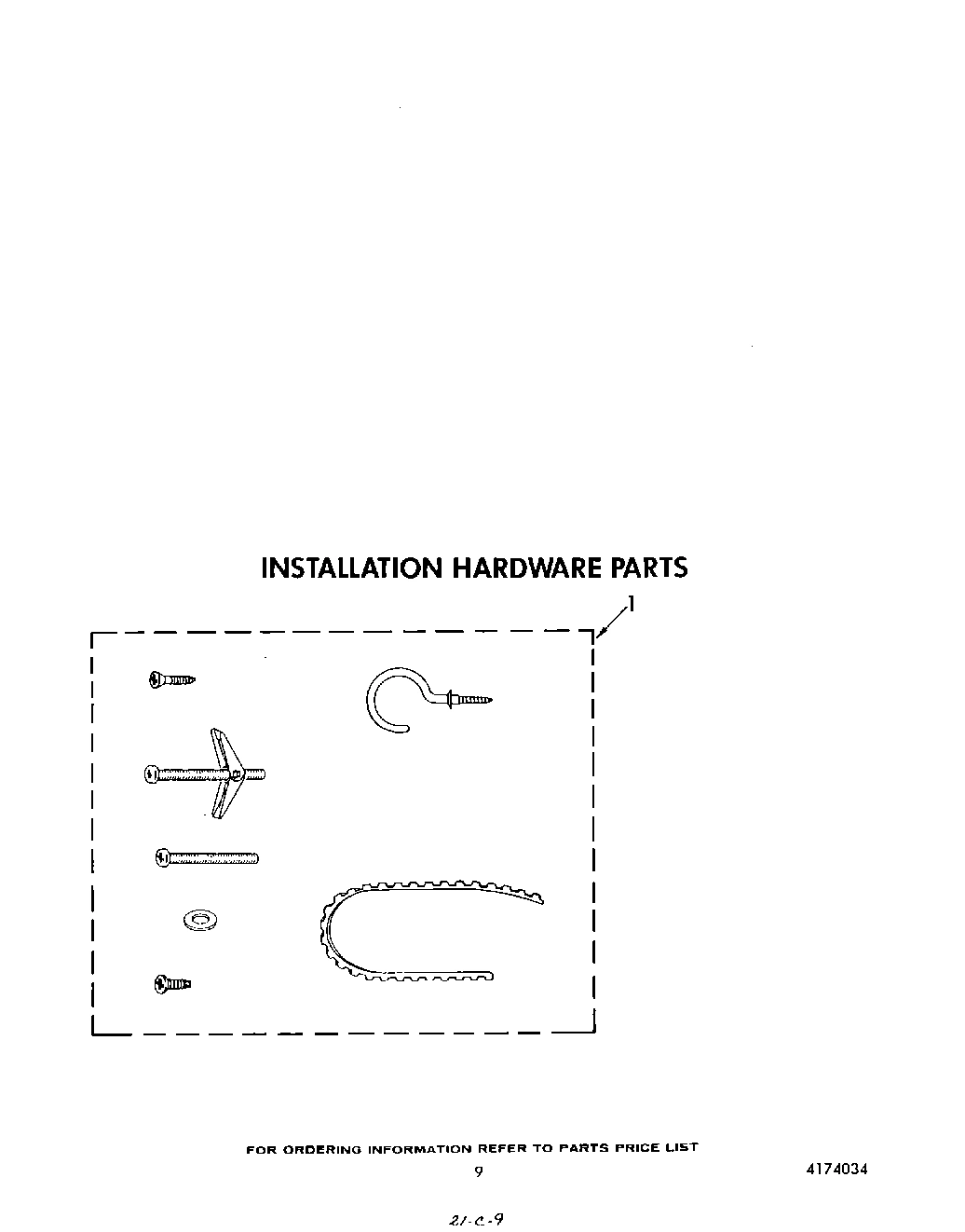

06 - INSTALLATION HARDWARE

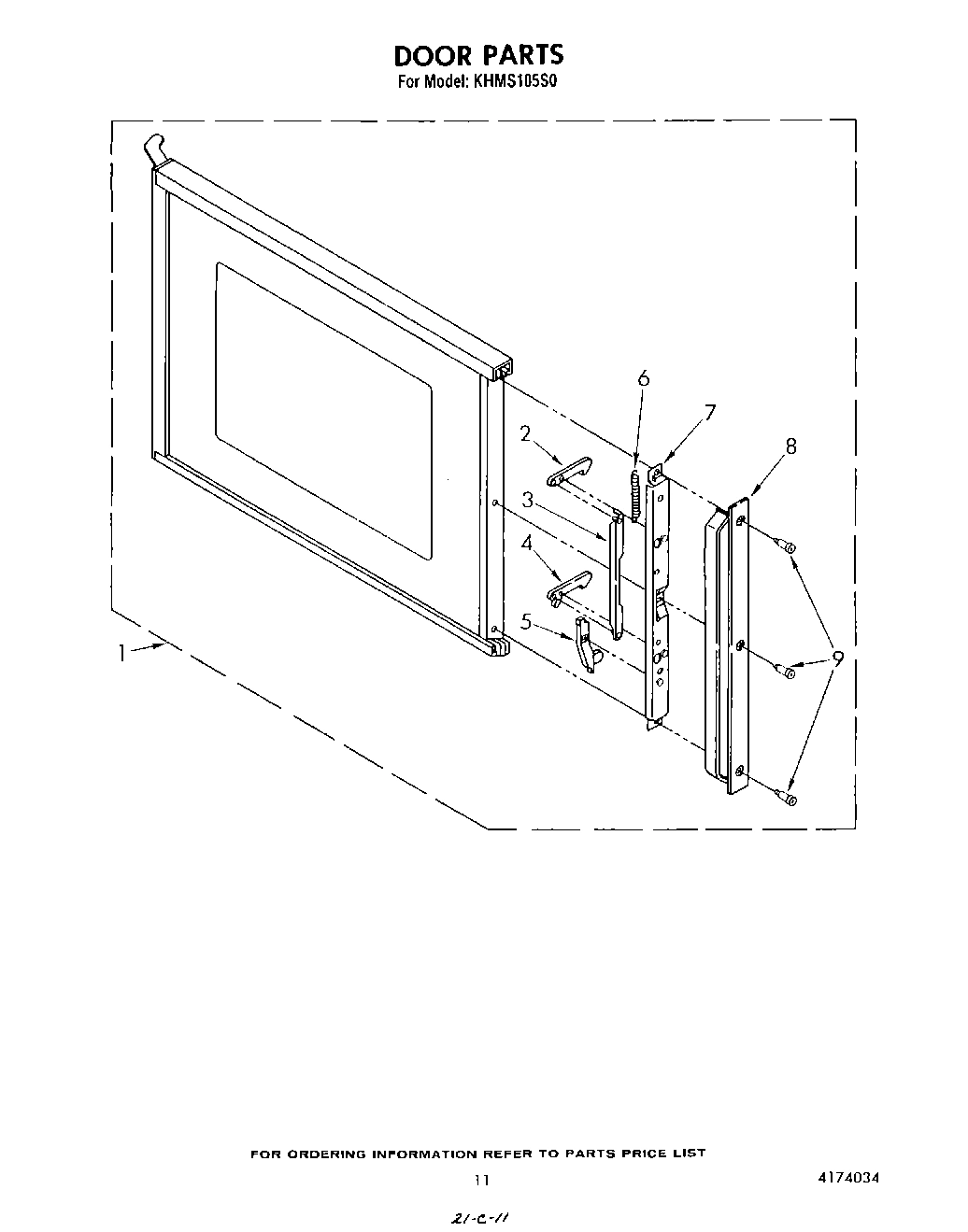

08 - DOOR
Common parts from model Whirlpool KHMS105S0
List, Repair Parts WPL LIT4174034 Contact Us For Availability
Cookbook WPL LIT4174728 Contact Us For Availability
Installation Instructions WPL LIT4174733 Contact Us For Availability
Operation Sheet, Touch Panel WPL LIT4174737 Contact Us For Availability
Use & Care Guide WPL LIT4174738 Contact Us For Availability
1
Switch, Hood WPL 4174604 Contact Us For Availability
1
Wire, High Voltage (Trans- former-Capacitor) WPL 4174674 Contact Us For Availability
1
Louver, Hood Exhaust WPL 4174719 Contact Us For Availability
1
Frame, Touch Panel WPL 4174741 Contact Us For Availability
1
Hardware, Installation WPL 4174619 Contact Us For Availability
1
Complete Door WPL 4174716 Contact Us For Availability
2
Screw, Hood Fan Switch Mounting WPL 4174767 Contact Us For Availability
2
Hood Thermal Cut- Out WPL 4174735 Contact Us For Availability
2
Wire, High Voltage (Magnetron- Capacitor) WPL 4174703 Contact Us For Availability
2
Screw, Hood Louver Mounting WPL 4174772 Contact Us For Availability
2
Filter, Display WPL 4174742 Contact Us For Availability
2
Head, Upper Latch WPL 4174626 Contact Us For Availability
3
Cushion, Hood Intake Duct WPL 4174632 Contact Us For Availability
3
Wire, Grounding (Cooling Fan Motor) WPL 4174671 Contact Us For Availability
3
Nut, Magnetron Mounting WPL 4174782 Contact Us For Availability
3
Touch Module WPL 4174740 Contact Us For Availability
3
Lever, Joint WPL 4174625 Contact Us For Availability
4
Screw, Door Mounting WPL 4174775 Contact Us For Availability
4
Duct, Hood Intake (Left) WPL 4174631 Contact Us For Availability
4
Wiring Harness WPL 4174718 Contact Us For Availability
4
Cord, Power Supply WPL 4174647 Contact Us For Availability
4
Microcomputer WPL 4174736 Contact Us For Availability
4
Head, Lower Latch WPL 4174627 Contact Us For Availability
5
Screw, Hood Light Switch Mounting WPL 4174766 Contact Us For Availability
5
Washer, Open Device Mounting (Outer Tooth) WPL 4174786 Contact Us For Availability
5
Baseplate WPL 4174652 Contact Us For Availability
5
Bushing, Power Power Cord WPL 4174791 Contact Us For Availability
5
Plate, Control Unit WPL 4174800 Contact Us For Availability
5
Lever, Door WPL 4174628 Contact Us For Availability
6
Panel, Hood Control WPL 4174748 Contact Us For Availability
6
Nut, Oven Thermo Cut-Out Mounting WPL 4174780 Contact Us For Availability
6
Button, Open Door WPL 4174683 Contact Us For Availability
6
Plate, Bushing Mounting WPL 4174684 Contact Us For Availability
6
Screw, Control Unit Mounting WPL 4174754 Contact Us For Availability
6
Spring, Latch WPL 4174629 Contact Us For Availability
7
Plate, Panel WPL 4174673 Contact Us For Availability
7
Screw, Oven Hood Light & Oven Thermo Cut-Out WPL 4174764 Contact Us For Availability
7
Screw, Baseplate Mounting WPL 4174758 Contact Us For Availability
7
Screw, Hood Fan Motor And Rear Stay WPL 4174811 Contact Us For Availability
7
Nut, Key Unit Mounting WPL 4174755 Contact Us For Availability
7
Plate, Latch WPL 4174624 Contact Us For Availability
8
Probe, Temperature WPL 4174708 Contact Us For Availability
8
Cover, Turntable Motor WPL 4174691 Contact Us For Availability
8
Plate, Oven Light Socket Mounting WPL 4174801 Contact Us For Availability
8
Cabinet Wrapper WPL 4174648 Contact Us For Availability
8
Plate, Control Unit Mounting WPL 4174799 Contact Us For Availability
8
Cover, Latch WPL 4174717 Contact Us For Availability
9
Duct, Hood Exhaust WPL 4174695 Contact Us For Availability
9
Cushion, Baseplate WPL 4174794 Contact Us For Availability
9
Bulb, Oven Light WPL 4174607 Contact Us For Availability
9
E-Ring, Lever Assembly Mounting WPL 4174788 Contact Us For Availability
9
Screw, Control Unit Mounting WPL 4174753 Contact Us For Availability
9
Screw, Latch Cover Mounting WPL 4174751 Contact Us For Availability
10
Duct, Hood Exhaust WPL 4174696 Contact Us For Availability
10
Cushion, Baseplate WPL 4174795 Contact Us For Availability
10
Duct, Hood Exhaust WPL 4174694 Contact Us For Availability
10
Back, Plate WPL 4174681 Contact Us For Availability
10
Relay, Cook WPL 4174713 Contact Us For Availability
11
Capacitor, Start WPL 4174705 Contact Us For Availability
11
Holder, Hood Light Screen WPL 4174649 Contact Us For Availability
11
Socket, Oven Light Hood Light WPL 4174712 Contact Us For Availability
11
Screw, Cook Relay Mounting WPL 4174774 Contact Us For Availability
12
Cushion, Oven Light WPL 4174805 Contact Us For Availability
12
Screen, Hood Light WPL 4174651 Contact Us For Availability
12
Pin, Mounting Lever WPL 4174797 Contact Us For Availability
13
Cushion, Hood Light Screen WPL 4174796 Contact Us For Availability
13
Duct, Cavity Exhaust (Top) WPL 4174723 Contact Us For Availability
13
Bracket, Capacitor WPL 4174792 Contact Us For Availability
14
Spacer, Coupling WPL 4174700 Contact Us For Availability
14
Cover, Bottom WPL 4174650 Contact Us For Availability
14
Cushion, Cavity Exhaust WPL 4174806 Contact Us For Availability
14
Capacitor, High Voltage WPL 4174704 Contact Us For Availability
15
Button, Hood Control Assembly WPL 4174721 Contact Us For Availability
15
Screw, Bottom Cover Mounting (5) WPL 4174776 Contact Us For Availability
15
Open Device WPL 4174603 Contact Us For Availability
15
Silicone Rectifier WPL 4174739 Contact Us For Availability
16
Filter, Grease (2) WPL 4174715 Contact Us For Availability
16
Screw, Stop Switch Mounting WPL 4174765 Contact Us For Availability
17
Tray, Turntable WPL 4174725 Contact Us For Availability
17
Socket, Oven And Hood Light WPL 4174730 Contact Us For Availability
17
Switch, Stop WPL 4174664 Contact Us For Availability
18
Coupling, Turntable WPL 4174710 Contact Us For Availability
18
Hook, Upper Latch WPL 4174640 Contact Us For Availability
18
Lever, Mounting WPL 4174663 Contact Us For Availability
19
Clip Bracket WPL 4174711 Contact Us For Availability
19
Washer, Silicone Rectifier WPL 4174785 Contact Us For Availability
20
Screw, Probe Jack Mounting WPL 4174756 Contact Us For Availability
20
Cushion, Air Guide WPL 4174793 Contact Us For Availability
20
Cushion, Hood Exhaust Duct & Magnetron Divide WPL 4174803 Contact Us For Availability
21
Screw, Turn- table Motor Mounting Bracket WPL 4174770 Contact Us For Availability
21
Screw, Lever Mounting WPL 4174763 Contact Us For Availability
21
Hook, Lower Latch WPL 4174643 Contact Us For Availability
21
Hood, Fan Motor WPL 4174706 Contact Us For Availability
22
Roller, Turntable (3) WPL 4174707 Contact Us For Availability
22
Exhaust Vent WPL 4174726 Contact Us For Availability
23
Shaft, Turntable Roller (3) WPL 4174722 Contact Us For Availability
23
Nut, Power Trans- former Mounting (2) WPL 4174783 Contact Us For Availability
23
Lever, Monitor Switch WPL 4174642 Contact Us For Availability
23
Rear Stay WPL 4174790 Contact Us For Availability
24
Filter, Oven Light WPL 4174724 Contact Us For Availability
24
Washer, Power Transformer Mounting (Outer Too WPL 4174787 Contact Us For Availability
24
Screw, Monitor Switch Lever Mounting WPL 4174759 Contact Us For Availability
25
Cover, Waveguide WPL 4174692 Contact Us For Availability
25
Transformer WPL 4174675 Contact Us For Availability
25
Screw, Outer Cabinet Wrapper Mounting WPL 4174773 Contact Us For Availability
26
Jack, Probe WPL 4174789 Contact Us For Availability
26
Duct, Hood Intake (Right) WPL 4174654 Contact Us For Availability
26
Duct, Magnetron Exhaust (Bottom) WPL 4174679 Contact Us For Availability
26
Plate, Wall Insulation WPL 4174682 Contact Us For Availability
27
Screw, Grounding (Power Cord) WPL 4174777 Contact Us For Availability
27
Fuse, Monitor WPL 4174701 Contact Us For Availability
27
Screw, Capapcitor Holder & Rear Stay WPL 4174760 Contact Us For Availability
28
Screw, Power Cord Ground Mounting WPL 4174762 Contact Us For Availability
28
Cushion, Hood Divider WPL 4174809 Contact Us For Availability
29
Holder, Wire WPL 4174688 Contact Us For Availability
30
Divider, Hood WPL 4174808 Contact Us For Availability
31
Fan, Cooling WPL 4174669 Contact Us For Availability
32
Holder, Coupling WPL 4174690 Contact Us For Availability
32
Nut, Cooling Fan Motor Mounting (2) WPL 4174781 Contact Us For Availability
33
Plate, Turntable Motor Mounting WPL 4174667 Contact Us For Availability
33
Duct, Cooling Fan WPL 4174720 Contact Us For Availability
34
Motor, Cooling Fan WPL 4174672 Contact Us For Availability
35
Motor, Turntable WPL 4174709 Contact Us For Availability
35
Screw, Cooling Fan Motor Mounting WPL 4174761 Contact Us For Availability
36
Cushion, Air Duct WPL 4174804 Contact Us For Availability
36
Magnetron WPL 4174680 Contact Us For Availability
37
Duct, Air WPL 4174655 Contact Us For Availability
37
Fuse, Temperature WPL 4174729 Contact Us For Availability
38
Screw, Fuse Mounting WPL 4174778 Contact Us For Availability
39
Cushion, Magnetron Divider WPL 4174802 Contact Us For Availability
39
Barrier WPL 4174693 Contact Us For Availability
41
Screw, Turntable Motor Mounting WPL 4174757 Contact Us For Availability
41
Screw, Magnetron Divider Mounting WPL 4174779 Contact Us For Availability
42
Divider, Magnetron WPL 4174678 Contact Us For Availability
43
WPL 4174769 WPL 4174769 Contact Us For Availability
44
WPL 4174702 WPL 4174702 Contact Us For Availability
45
WPL 4174771 WPL 4174771 Contact Us For Availability
46
WPL 4164676 WPL 4164676 Contact Us For Availability
48
WPL 4174812 WPL 4174812 Contact Us For Availability
50
WPL 4174689 WPL 4174689 Contact Us For Availability
× ![]()
