Model Whirlpool KHMC107YAL0 – Common Parts & Diagrams
05 - OVEN
08 - DOOR

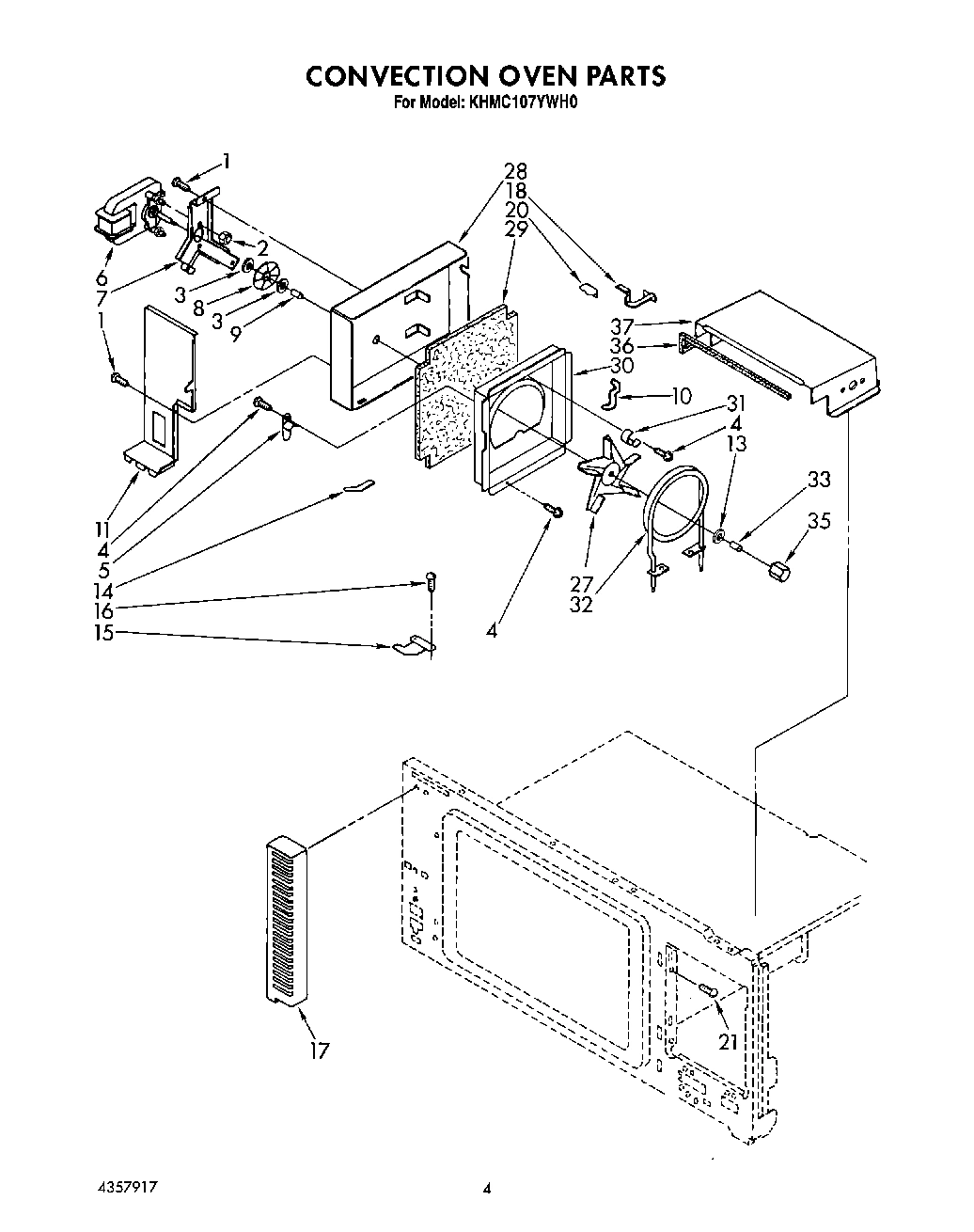

03 - CONVECTION OVEN

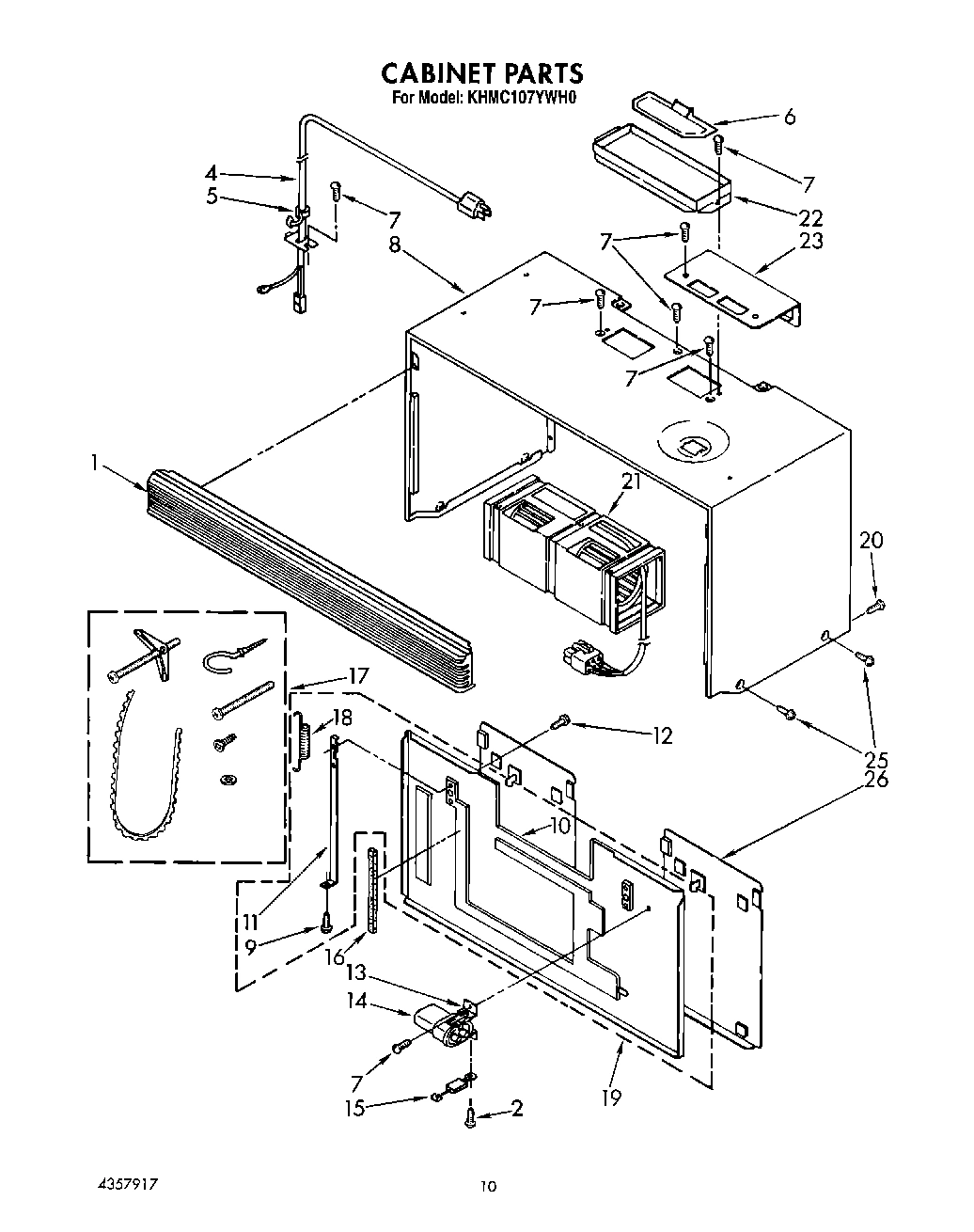

06 - CABINET

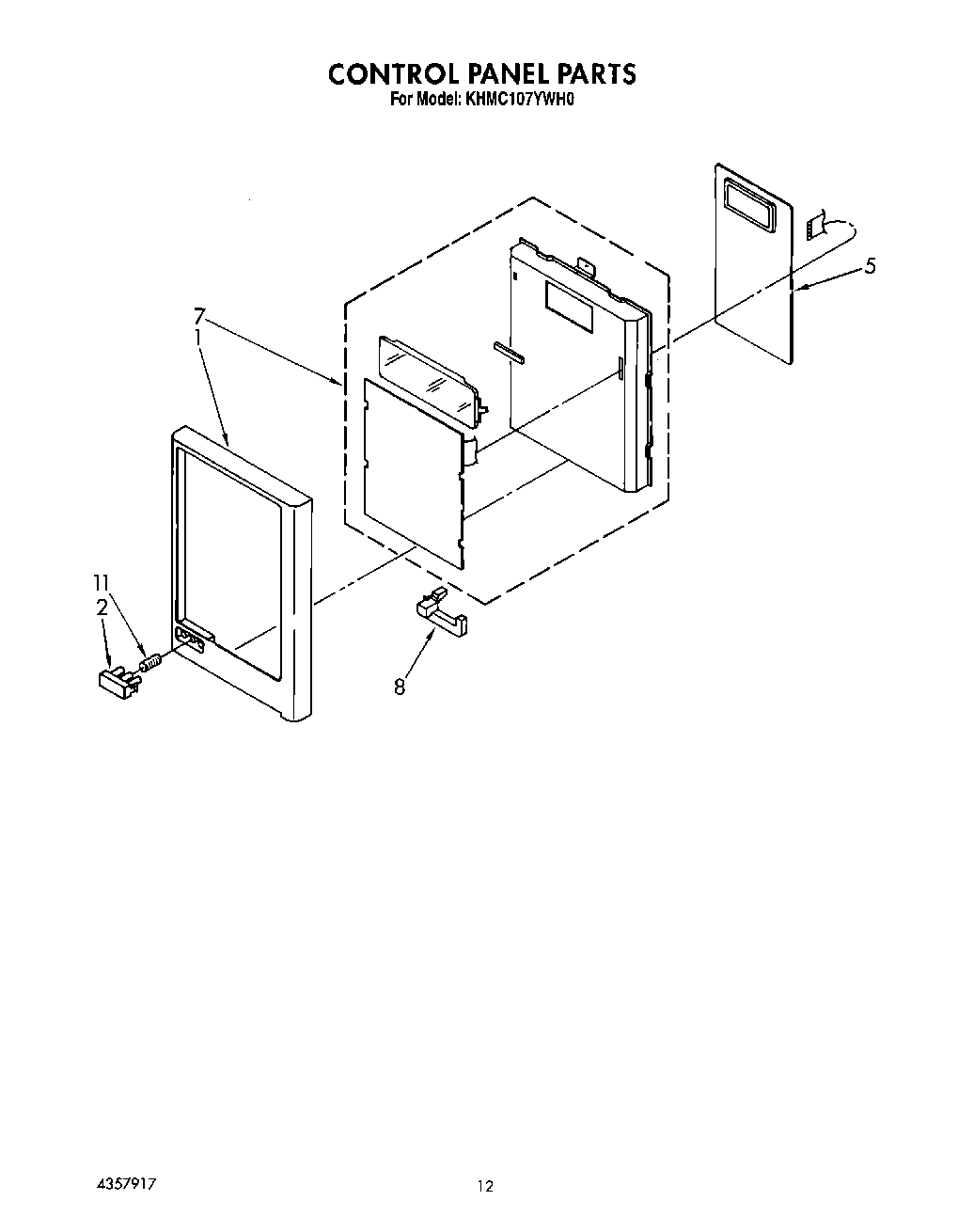

07 - CONTROL PANEL, LIT/OPTIONAL

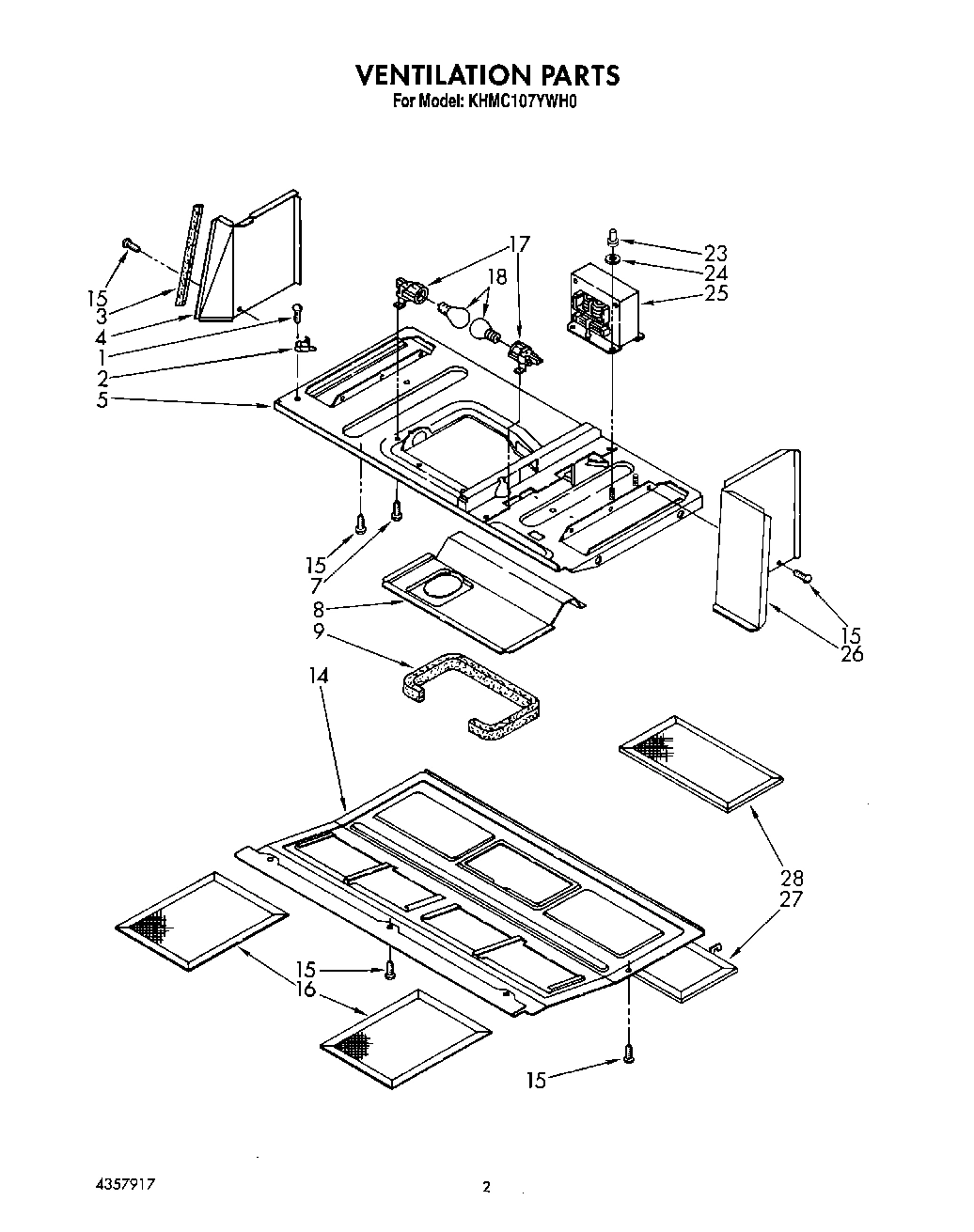

02 - VENTILATION PARTS

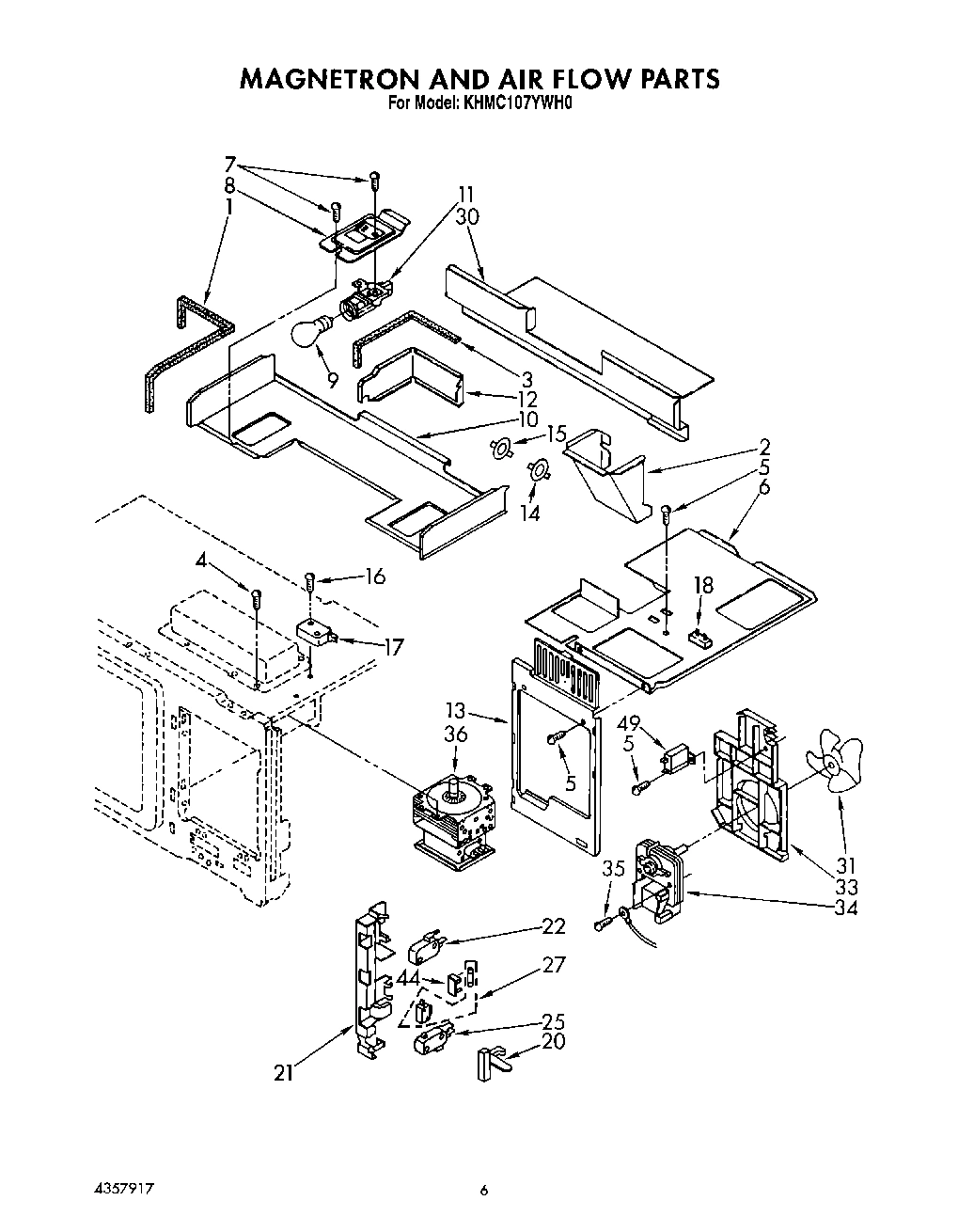

04 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool KHMC107YAL0
Installation, Instructions WPL LIT4174872 Contact Us For Availability
Cookbook WPL LIT4357300 Contact Us For Availability
Use & Care Guide WPL LIT4357903 Contact Us For Availability
List, Repair Parts WPL LIT4357917 Contact Us For Availability
1
Door, Complete (White) WPL 4357332 Contact Us For Availability
1
Door, Complete (Black) WPL 4357333 Contact Us For Availability
1
Door, Complete (Almond) WPL 4357334 Contact Us For Availability
1
Louver, Hood (Black) WPL 4174957 Contact Us For Availability
1
Louver, Hood (White) WPL 4174958 Contact Us For Availability
1
Louver, Hood (Almond) WPL 4174959 Contact Us For Availability
1
Frame, Panel (Black) WPL 4357368 Contact Us For Availability
1
Frame, Panel (White) WPL 4357369 Contact Us For Availability
1
Frame, Panel (Almond) WPL 4357370 Contact Us For Availability
1
Seal, Exhaust Hood (R.H.) WPL 4174938 Contact Us For Availability
1
Seal, Exhaust Hood (L.H.) WPL 4174939 Contact Us For Availability
2
Guide, Exhaust (Rear) WPL 4174968 Contact Us For Availability
2
Screw, Hood Louver Mounting WPL 4174811 Contact Us For Availability
2
Frame, Door (Black) WPL 4357337 Contact Us For Availability
2
Frame, Door (White) WPL 4357338 Contact Us For Availability
2
Frame, Door (Almond) WPL 4357339 Contact Us For Availability
2
Nut, (2) WPL 4174668 Contact Us For Availability
2
Button, Open (Black) WPL 4174884 Contact Us For Availability
2
Button, Open (White) WPL 4174885 Contact Us For Availability
2
Button, Open (Almond) WPL 4174886 Contact Us For Availability
2
Thermostat, Oven WPL 4174735 Contact Us For Availability
2
Duct, Magnetron WPL 4174962 Contact Us For Availability
3
Guide, Exhaust (Front) WPL 4174967 Contact Us For Availability
3
Latch, Door WPL 4174990 Contact Us For Availability
3
Washer, Convection Fan And Auxiliary Fan Moun WPL 4164555 Contact Us For Availability
3
Cushion, Hood (L.S.) WPL 4174955 Contact Us For Availability
3
Cushion, Hood (R.S.) WPL 4174956 Contact Us For Availability
3
Seal, Duct WPL 4174941 Contact Us For Availability
4
Rack, Broiling WPL 4357376 Contact Us For Availability
4
Cover, Choke WPL 4357375 Contact Us For Availability
4
Screw, Thermistor, Heater Element Holder, Con WPL 4174823 Contact Us For Availability
4
Cord, Power Supply WPL 4174894 Contact Us For Availability
4
Duct, Hood Intake (Left) WPL 4174961 Contact Us For Availability
4
Screw (4) WPL 4365500 Contact Us For Availability
5
Coupling, Turn- Table WPL 4174948 Contact Us For Availability
5
Screw (4) WPL 4357310 Contact Us For Availability
5
Thermistor WPL 4357314 Contact Us For Availability
5
Bushing, Power Power Cord WPL 4174791 Contact Us For Availability
5
Microcomputor WPL 4357364 Contact Us For Availability
5
Baseplate WPL 4174896 Contact Us For Availability
6
Cover, Oven Light WPL 4174934 Contact Us For Availability
6
Spring, Latch WPL 4174992 Contact Us For Availability
6
Motor, Convection WPL 4357316 Contact Us For Availability
6
Damper, Air Exhaust WPL 4357371 Contact Us For Availability
6
Divider, Hood WPL 4357373 Contact Us For Availability
7
Rack, Baking WPL 4357377 Contact Us For Availability
7
Plate, Latch WPL 4174989 Contact Us For Availability
7
Screw WPL 4357320 Contact Us For Availability
7
Bracket, Convection Motor Mounting WPL 4174949 Contact Us For Availability
7
Touch Panel (Black) WPL 4357365 Contact Us For Availability
7
Touch Panel (White) WPL 4357366 Contact Us For Availability
7
Touch Panel (Almond) WPL 4357367 Contact Us For Availability
7
Screw WPL 4174753 Contact Us For Availability
8
Tray, Turntable WPL 4174945 Contact Us For Availability
8
Sash, Door (Black) WPL 4174986 Contact Us For Availability
8
Sash, Door (White) WPL 4174987 Contact Us For Availability
8
Sash, Door (Almond) WPL 4174988 Contact Us For Availability
8
Fan, Convection WPL 4174947 Contact Us For Availability
8
Cabinet Wrapper (Black) WPL 4174908 Contact Us For Availability
8
Cabinet Wrapper (White) WPL 4174909 Contact Us For Availability
8
Cabinet Wrapper (Almond) WPL 4174910 Contact Us For Availability
8
Leveler, Open WPL 4174888 Contact Us For Availability
8
Cover, Turntable Motor WPL 4174923 Contact Us For Availability
8
Bracket, Oven Light WPL 4174952 Contact Us For Availability
9
Heat Shield Controls WPL 4174936 Contact Us For Availability
9
Cushion, Baseplate WPL 4174907 Contact Us For Availability
9
Screw, Latch Cover WPL 4357381 Contact Us For Availability
9
Screw (2) WPL 4174993 Contact Us For Availability
10
Probe, Temperature WPL 4174891 Contact Us For Availability
10
Glass, Door (Black) WPL 4174970 Contact Us For Availability
10
Glass, Door (White) WPL 4174971 Contact Us For Availability
10
Glass, Door (Almond) WPL 4174972 Contact Us For Availability
10
Guide, Air WPL 4174929 Contact Us For Availability
10
Back, Plate WPL 4357372 Contact Us For Availability
10
Duct, Hood Exhaust WPL 4174963 Contact Us For Availability
11
Shaft, Turntable WPL 4357335 Contact Us For Availability
11
Panel, Door Part Not Available (Complete Door WPL ARI88511A5 Contact Us For Availability
11
Duct, Convection WPL 4174965 Contact Us For Availability
11
Bracket, Support WPL 4174919 Contact Us For Availability
11
Spring, Button WPL 4174887 Contact Us For Availability
11
Cabinet Template WPL 4357302 Contact Us For Availability
11
Wall Template WPL 4357303 Contact Us For Availability
11
Socket, Oven And Hood Light WPL 4174901 Contact Us For Availability
12
Screw (3) WPL 4357322 Contact Us For Availability
12
Screw (2) WPL 4174950 Contact Us For Availability
12
Duct, Top Magnetron WPL 4174966 Contact Us For Availability
13
Screw, Probe Jack Mounting WPL 4357321 Contact Us For Availability
13
Hinge, Lower WPL 4357336 Contact Us For Availability
13
Washer WPL 4357380 Contact Us For Availability
13
Bracket, Capacitor WPL 4174792 Contact Us For Availability
13
Mounting Plate, Control Panel WPL 4174951 Contact Us For Availability
14
Cover, Waveguide WPL 4174932 Contact Us For Availability
14
Guide, Air M WPL 4174928 Contact Us For Availability
14
Capacitor, High Voltage WPL 4174892 Contact Us For Availability
14
Cover, Bottom (Black) WPL 4174911 Contact Us For Availability
14
Cover, Bottom (White) WPL 4174912 Contact Us For Availability
14
Cover, Bottom (Almond) WPL 4174913 Contact Us For Availability
14
Sensor, Humidity WPL 4357361 Contact Us For Availability
15
Wire, High Voltage WPL 4357307 Contact Us For Availability
15
Hinge, Upper Oven WPL 4174922 Contact Us For Availability
15
H.V. Diode Cable WPL 4174893 Contact Us For Availability
15
Holder, Sensor WPL 4357362 Contact Us For Availability
16
Filter, Grease (2) WPL 4174973 Contact Us For Availability
16
Screw WPL 4357323 Contact Us For Availability
16
Cushion, Cavity WPL 4174933 Contact Us For Availability
16
Screw (2) WPL 4174757 Contact Us For Availability
17
Jack, Meat Probe WPL 4174898 Contact Us For Availability
17
Panel, Decorative (Black) WPL 4174915 Contact Us For Availability
17
Panel, Decorative (White) WPL 4174916 Contact Us For Availability
17
Panel, Decorative (Almond) WPL 4174917 Contact Us For Availability
17
Bag, Hardware WPL 4174980 Contact Us For Availability
17
Thermostat Magnetron WPL 4357328 Contact Us For Availability
18
Wire, Low Voltage WPL 4357379 Contact Us For Availability
18
Guide, Air L WPL 4174926 Contact Us For Availability
18
Spring (2) WPL 4174920 Contact Us For Availability
18
Resistor, Hood Fan WPL 4357363 Contact Us For Availability
19
Cabinet, Rear (Complete) WPL 4174944 Contact Us For Availability
20
Seal, Control Mounting Plate WPL 4174795 Contact Us For Availability
20
Guide, Air S WPL 4174927 Contact Us For Availability
20
Screw WPL 4313665 Contact Us For Availability
20
Leveler, Switch WPL 4174903 Contact Us For Availability
21
Seal, Damper Plate WPL 4174931 Contact Us For Availability
21
Hood, Fan Motor WPL 4174895 Contact Us For Availability
21
Latch Board WPL 4174904 Contact Us For Availability
22
Exhaust Vent WPL 4174942 Contact Us For Availability
23
Rear Stay WPL 4174914 Contact Us For Availability
23
Screw, Transformer (2) WPL 4312914 Contact Us For Availability
24
Washer, Power Transformer Mounting (Outer Too WPL 4357327 Contact Us For Availability
25
Screw, Outer Cabinet Wrapper Mounting WPL 4357325 Contact Us For Availability
25
Transformer WPL 4174866 Contact Us For Availability
26
Motor, Turn- Table WPL 4357318 Contact Us For Availability
26
Plate, Wall Insulation (2) WPL 4174974 Contact Us For Availability
26
Duct, Hood Intake (Right) WPL 4174960 Contact Us For Availability
27
Screw, Damper Switch Mounting WPL 4174766 Contact Us For Availability
27
Fan, Convection WPL 4174946 Contact Us For Availability
27
Cover, Light WPL 4174906 Contact Us For Availability
27
Monitor Switch And Fuse Asm. WPL 4357360 Contact Us For Availability
28
Switch, Damper WPL 4174897 Contact Us For Availability
28
Shield, Heat WPL 4174930 Contact Us For Availability
28
Filter, Charcoal WPL 4357329 Contact Us For Availability
29
Cam, Damper WPL 4174657 Contact Us For Availability
29
Cover, Thermal Protection WPL 4174828 Contact Us For Availability
30
Shaft, Damper WPL 4174658 Contact Us For Availability
30
Duct, Convection WPL 4174924 Contact Us For Availability
30
Support, Duct WPL 4174969 Contact Us For Availability
31
Damper WPL 4174660 Contact Us For Availability
31
Clip, Heater Element WPL 4174635 Contact Us For Availability
31
Fan, Cooling WPL 4174669 Contact Us For Availability
32
Spring, Damper WPL 4174921 Contact Us For Availability
32
Element, Heating WPL 4357315 Contact Us For Availability
33
Plate, Damper Motor Mounting WPL 4174656 Contact Us For Availability
33
Bushing WPL 4174637 Contact Us For Availability
33
Duct, Cooling Fan WPL 4174937 Contact Us For Availability
34
Motor, Damper WPL 4357317 Contact Us For Availability
34
Motor, Cooling Fan WPL 4357319 Contact Us For Availability
35
Nut, Fan Mounting WPL 4164540 Contact Us For Availability
35
Screw, Cooling Fan Motor Mounting WPL 4357326 Contact Us For Availability
36
Screw, Damper Motor Mounting WPL 4174999 Contact Us For Availability
36
Seal, Cavity WPL 4174940 Contact Us For Availability
36
Magnetron WPL 4357330 Contact Us For Availability
37
Wiring Harness WPL 4357378 Contact Us For Availability
37
Duct, Air Exhaust WPL 4357374 Contact Us For Availability
44
Holder, Fuse WPL 4174899 Contact Us For Availability
49
Capacitor, Hood Motor WPL 4174872 Contact Us For Availability
× ![]()
