Model Whirlpool KHMC107EBL2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

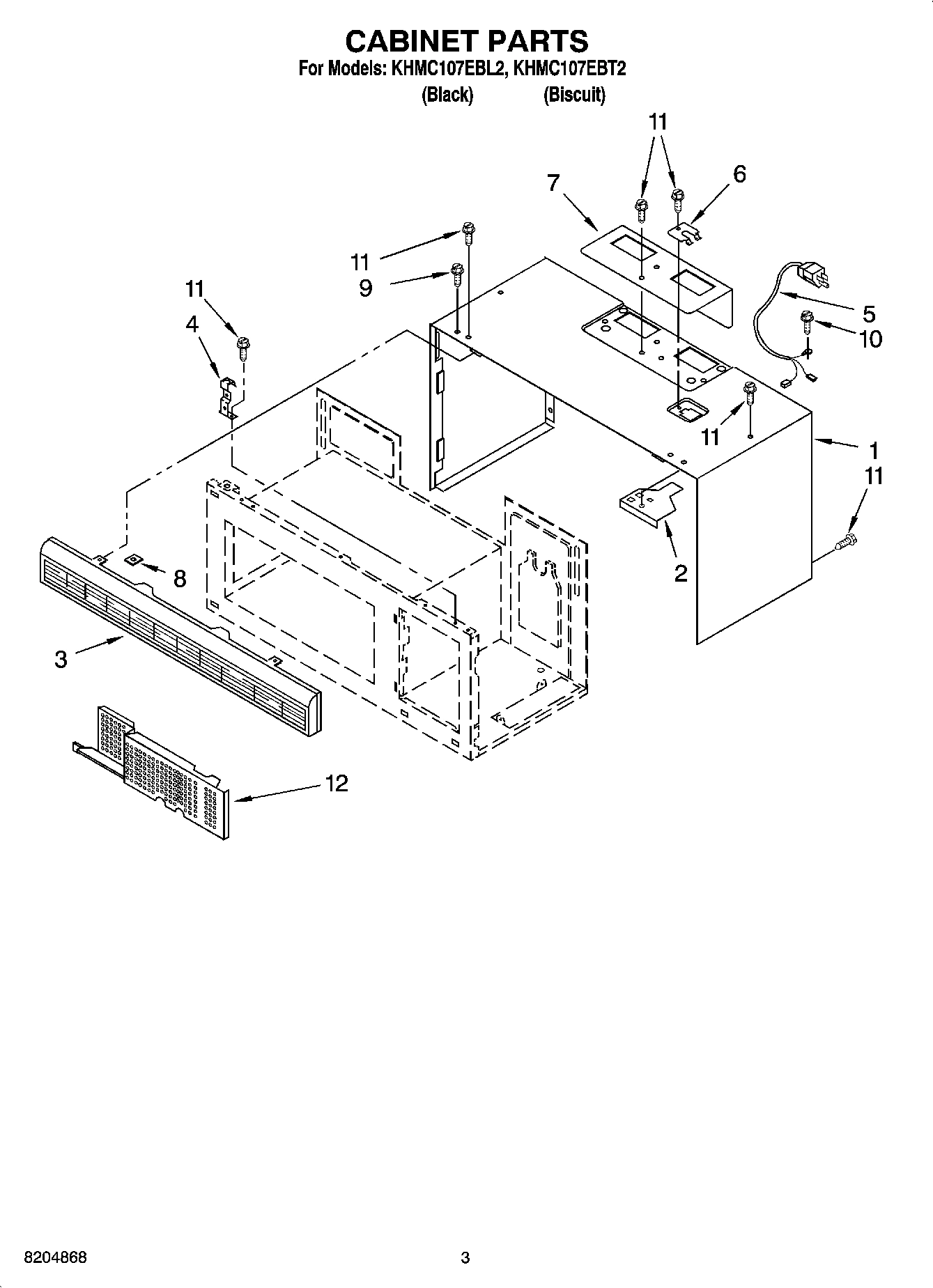

03 - CABINET PARTS

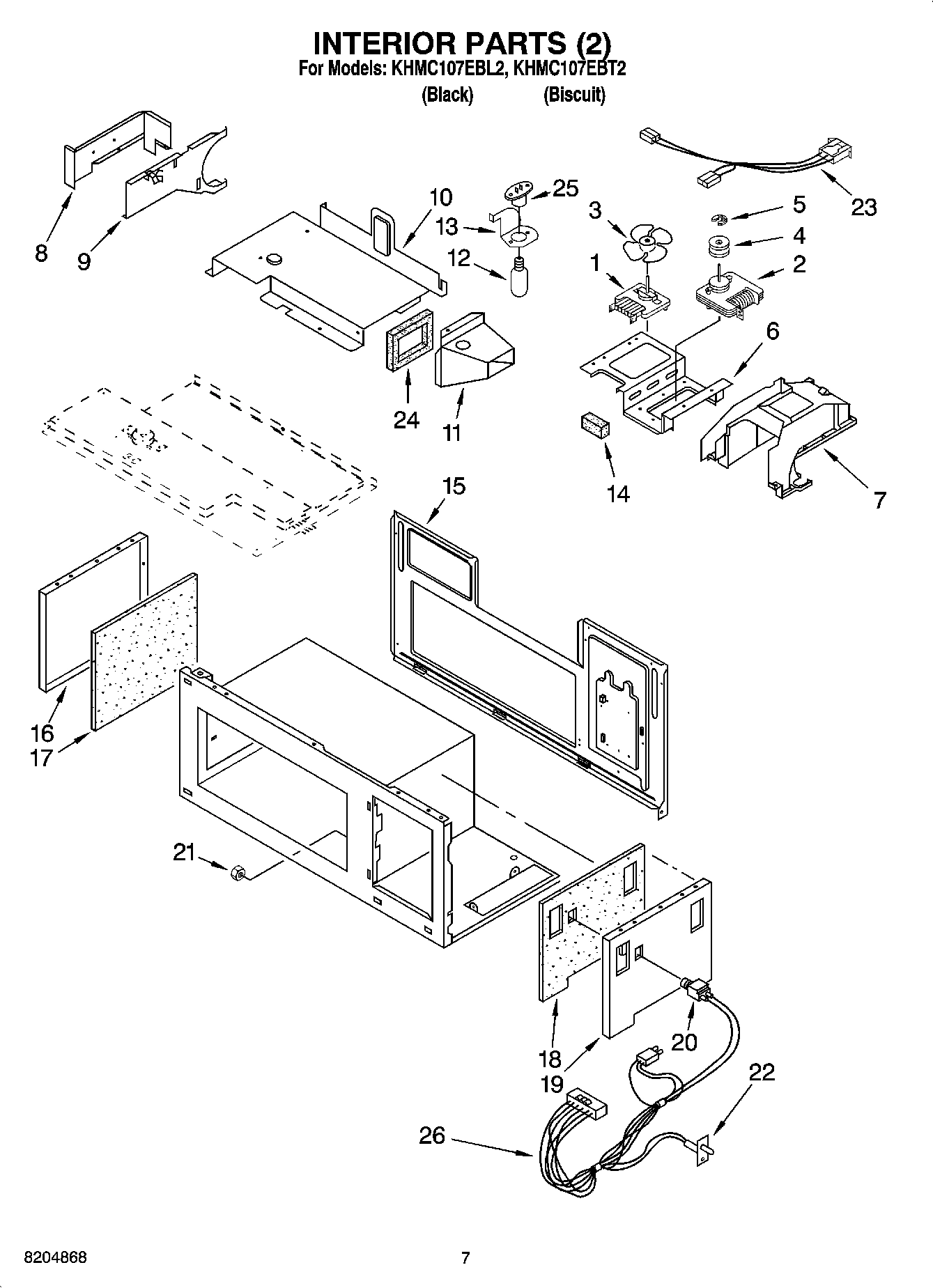

06 - INTERIOR PARTS (2)
08 - VENTILATION PARTS
10 - PLATE CHAMBER ASSEMBLY
07 - LATCH BOARD PARTS
09 - INSTALLATION PARTS
05 - INTERIOR PARTS (1)
01 - CONTROL PANEL PARTS
02 - DOOR PARTS
04 - MAGNETRON AND AIR FLOW PARTS
Common parts from model Whirlpool KHMC107EBL2 MICROWAVE HOOD COMBINATION
1
Motor, Fan WPL 4358784 Contact Us For Availability
1
Motor, Tower WPL 4358962 Contact Us For Availability
1
Base Plate WPL 4358929 Contact Us For Availability
1
Heater, Sheath WPL 4358983 Contact Us For Availability
1
Board, Latch WPL 4358794 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4358518 Contact Us For Availability
1
LIterature Parts (Cookbook) WPL LIT4359021 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT4359330 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT4359334 Contact Us For Availability
1
Door Assembly (Black) WPL 4359445 Contact Us For Availability
1
Door Assembly (Biscuit) WPL 4359958 Contact Us For Availability
1
Magnetron WPL 4359002 Contact Us For Availability
2
Motor, Circulation WPL 4358961 Contact Us For Availability
2
Cover Cooktop Glass WPL 4358533 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
Guide Suction WPL 4358564 Contact Us For Availability
2
Control Panel (Black) WPL 4358818 Contact Us For Availability
2
Control Panel (Biscuit) WPL 4359956 Contact Us For Availability
2
Frame, Door WPL 4358937 Contact Us For Availability
2
Thermostat WPL 4358443 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359446 Contact Us For Availability
3
Nut WPL 4358476 Contact Us For Availability
3
Blower Fan WPL 4358379 Contact Us For Availability
3
Bracket, Control WPL 4358821 Contact Us For Availability
3
Transformer WPL 4358774 Contact Us For Availability
4
Pulley, Motor WPL 4358963 Contact Us For Availability
4
Cushion, Glass WPL 4358767 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Fuse Holder WPL 4358785 Contact Us For Availability
4
Key Membrane (Black) WPL 4359036 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 4359955 Contact Us For Availability
4
Latch WPL 4359860 Contact Us For Availability
4
Capacitor WPL 8183884 Contact Us For Availability
5
E-Ring WPL 4358964 Contact Us For Availability
5
Lead Wire Assy. WPL 4358790 Contact Us For Availability
5
Fan WPL 4358984 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
5
Fuse WPL 4358704 Contact Us For Availability
5
PCB Sub Assy. WPL 8184882 Contact Us For Availability
5
Spring, Latch WPL 8183882 Contact Us For Availability
5
Thermostat WPL 8183694 Contact Us For Availability
6
Push Nut WPL 4358055 Contact Us For Availability
6
Bracket, Motor WPL 4358965 Contact Us For Availability
6
Cover, Wire WPL 4358769 Contact Us For Availability
6
Washer WPL 4358478 Contact Us For Availability
6
Lever Monitor WPL 4358795 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Screw (Biscuit) WPL 4358381 Contact Us For Availability
6
Screw (Black) WPL 4358762 Contact Us For Availability
6
Plate, Hinge WPL 4358820 Contact Us For Availability
6
Motor WPL 4358777 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Plate, Mount WPL 4359377 Contact Us For Availability
7
Air Duct WPL 4358966 Contact Us For Availability
7
Plate, Chamber WPL 4358985 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Panel, Door (Black) WPL 4359427 Contact Us For Availability
7
Panel, Door (Biscuit) WPL 4359961 Contact Us For Availability
7
Bracket WPL 4358778 Contact Us For Availability
8
Bracket, Grille WPL 4358816 Contact Us For Availability
8
Guide, Chamber WPL 4359003 Contact Us For Availability
8
Insulation WPL 4358986 Contact Us For Availability
8
Plate, Mounting Wing WPL 8185348 Contact Us For Availability
8
Motor, Ventilation WPL 4358960 Contact Us For Availability
8
Baffle, Door WPL 4359014 Contact Us For Availability
8
H.V. Cable WPL 4359421 Contact Us For Availability
9
Screw WPL 4359009 Contact Us For Availability
9
Guide, Chamber WPL 4358968 Contact Us For Availability
9
Plate, Chamber WPL 4358987 Contact Us For Availability
9
Glass, Door WPL 4358953 Contact Us For Availability
9
H.V. Diodle-Cable WPL 4359422 Contact Us For Availability
10
Guide, Chamber WPL 4358969 Contact Us For Availability
10
Plate, Bearing WPL 4358988 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
10
Deco, Door Handle (Black) WPL 4359441 Contact Us For Availability
10
Deco, Door Handle (Biscuit) WPL 4359960 Contact Us For Availability
11
Guide, Air Duct WPL 4358970 Contact Us For Availability
11
Lead Wire WPL 4358780 Contact Us For Availability
11
Bearing Assembly WPL 4358989 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359012 Contact Us For Availability
11
Choke Cover WPL 4358943 Contact Us For Availability
12
Bracket, Inlet WPL 4358958 Contact Us For Availability
12
Holder, Bearing WPL 4358990 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Motor Condenser WPL 4158376 Contact Us For Availability
12
Screw WPL 4358067 Contact Us For Availability
12
Plate, Bottom WPL 4358781 Contact Us For Availability
13
Cover, Oven Lamp WPL 4358972 Contact Us For Availability
13
Pulley, Chamber WPL 4358991 Contact Us For Availability
13
Guide Air WPL 4358536 Contact Us For Availability
13
Screw WPL 4358479 Contact Us For Availability
13
Stirrer Fan Disk WPL 4359447 Contact Us For Availability
14
Base Thermostat WPL 4158368 Contact Us For Availability
14
Cushion WPL 4158864 Contact Us For Availability
14
Air Tunnel WPL 4358992 Contact Us For Availability
15
Cover, Back WPL 4358974 Contact Us For Availability
15
Sensor WPL 4358993 Contact Us For Availability
15
Cover, Connector WPL 4358791 Contact Us For Availability
15
Ceramic Plate WPL 4158731 Contact Us For Availability
16
Filter, Charcoal WPL 4359331 Contact Us For Availability
16
Safety Rod WPL 4358933 Contact Us For Availability
16
Cover WPL 4358975 Contact Us For Availability
16
Hanger, Heater WPL 4358994 Contact Us For Availability
17
Insulation WPL 4358976 Contact Us For Availability
17
Lead Wire WPL 4358768 Contact Us For Availability
18
Insulation WPL 4358977 Contact Us For Availability
18
Cushion WPL 4358981 Contact Us For Availability
19
Cover WPL 4358978 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
19
Screw WPL 4358190 Contact Us For Availability
20
Lead Wire, Jack WPL 4358979 Contact Us For Availability
21
Nut WPL 4158212 Contact Us For Availability
21
Lug WPL 4358469 Contact Us For Availability
21
Screw WPL 4358188 Contact Us For Availability
22
Thermistor WPL 4359004 Contact Us For Availability
22
Belt WPL 4358995 Contact Us For Availability
23
Lead Wire WPL 4358980 Contact Us For Availability
23
Plate, Fan WPL 4359027 Contact Us For Availability
23
Probe WPL 4358430 Contact Us For Availability
24
Bracket, Thermo WPL 4359026 Contact Us For Availability
26
Wire Harness WPL 4358973 Contact Us For Availability
26
Rack WPL 4359242 Contact Us For Availability
27
Bushing WPL 4358956 Contact Us For Availability
28
Bushing WPL 4358957 Contact Us For Availability
× ![]()
