Model LG KHMC107EAL-1 MICROWAVE OVEN,OTR – Common Parts & Diagrams

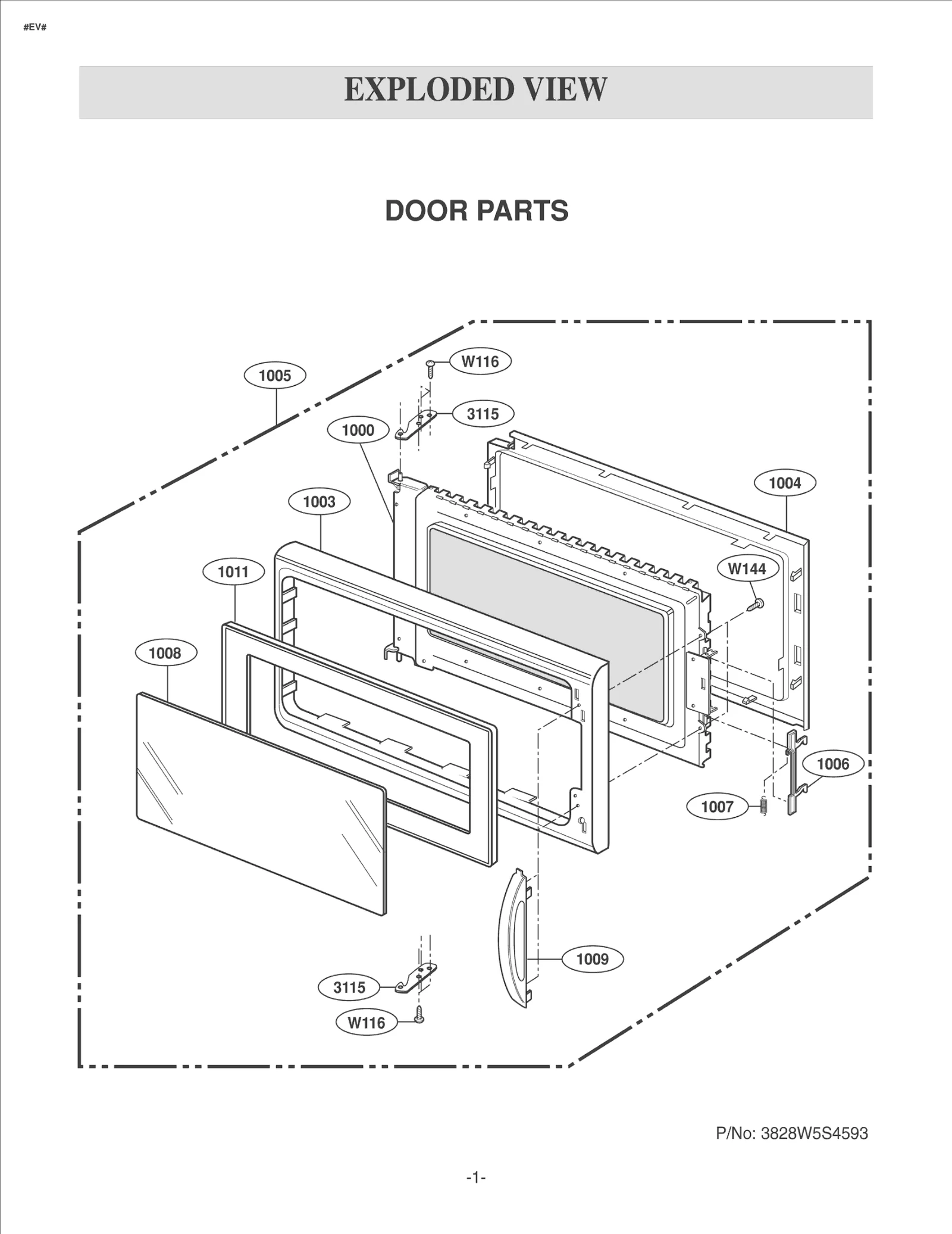

Diagram 0

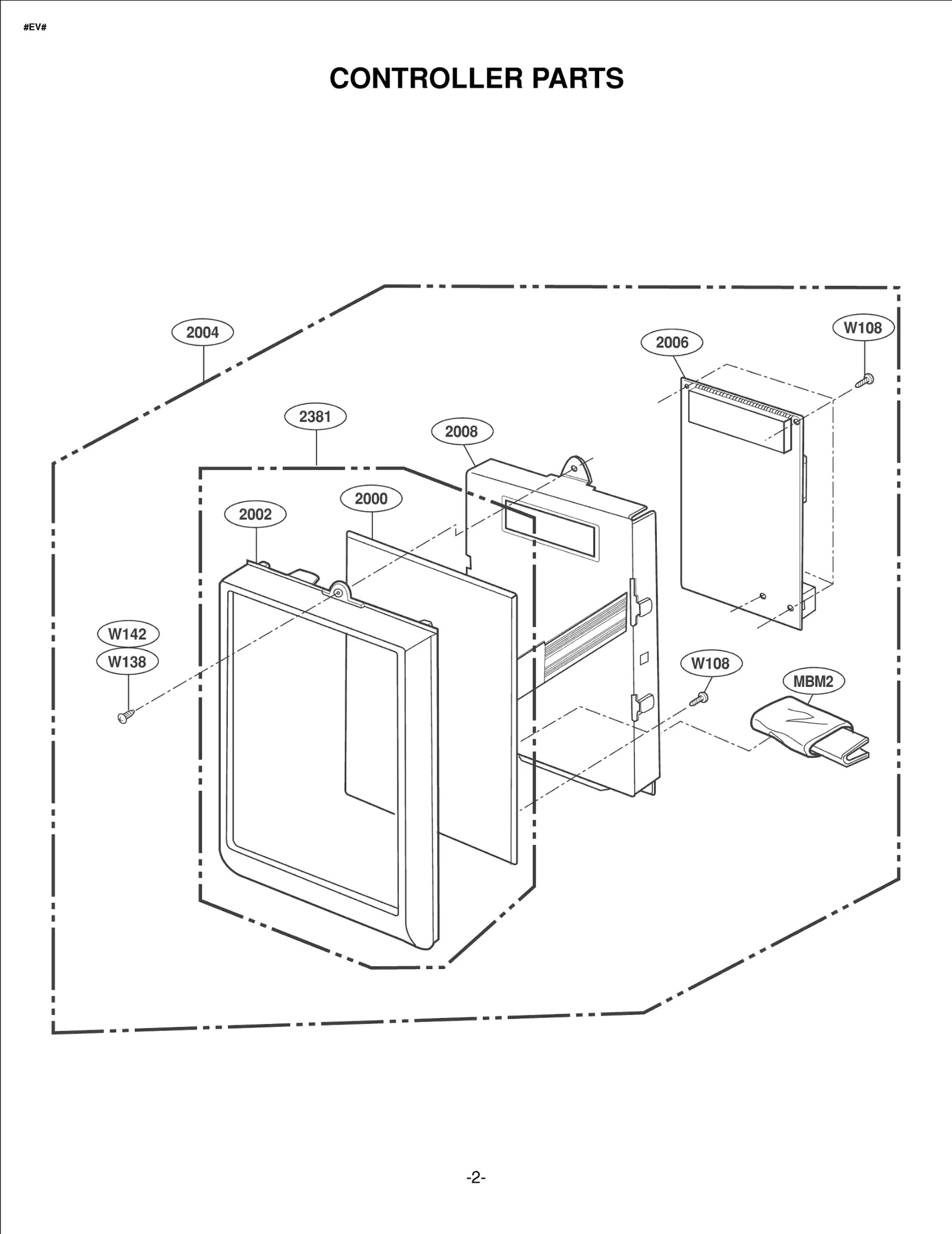

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Diagram 9
Common parts from model LG KHMC107EAL-1 MICROWAVE OVEN,OTR
2008
BRACKET ASSY CONTROL MV-1125 K LGE 4811W2A010A Contact Us For Availability
3001
Case,Flat LGE 3112W1F003F Contact Us For Availability
3009
MOTOR 120V 60HZ,34.(1122M-F/DA LGE 2B72754J Contact Us For Availability
3009
MOTOR-STIRRER LGE 6549WRS001F Contact Us For Availability
3010
MOUNT ALL MV-1120/1126S LGE 4960W2G023A Contact Us For Availability
3011
GLASS COOK TOP LAMP MV-1120 LGE 4890W4A001A Contact Us For Availability
3014
HARNS-WIRE MH6110XBBO W/POOL LGE 6877W2S003A Contact Us For Availability
3016
HARNESS-WIRE (WPOOL MH6110XBB0 LGE 6877W2S004A Contact Us For Availability
3018
SHELF ASSY CONVECTION ENAMELED LGE 5026W1A006C Contact Us For Availability
3024
Grille,Vent LGE 3530W1A006Q Contact Us For Availability
3027
MOTOR VENTILATION MV-1130SC,12 LGE 6549W1V002A Contact Us For Availability
3028
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3031
COVER PLATE MH6110XBBO W/POOL LGE 3550W4A025A Contact Us For Availability
3056
PLATE LGE 3301W1A005A Contact Us For Availability
3060
TEMPERATURE PROBE LGE 3B73075C Contact Us For Availability
3066
BRACKET-SUPPORT MH6110XBBO W/P LGE 4810W4G036A Contact Us For Availability
3067
HANGER HEATER MV-1130SC,1135SC LGE 4990W4A004A Contact Us For Availability
3090
COVER ASSY BACK MV-1130SC,1135 LGE 3551W0A008A Contact Us For Availability
3205
BRACKET INLET MV-1130SC MV-113 LGE 4810W3G047A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A030A Contact Us For Availability
4001
Holder Assembly,Locker LGE 3501W2A002R Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
4009
Switch,Micro LGE 3B73362H Contact Us For Availability
4009
MICRO SWITCH SZM-V01-FA-33 11 LGE 3B73362A Contact Us For Availability
4010
Switch,Micro LGE 3B73360C Contact Us For Availability
4010
MICRO SWITCH SZM-V16-FA-61, S LGE 3B73360D Contact Us For Availability
5000
CAPACITOR HIGH VOLTAGE MV-1121 LGE 6120W3H003F Contact Us For Availability
5000
Capacitor,High Voltage LGE 0CZZW1H001C Contact Us For Availability
5000
CAPACITOR[HIGH VOLTAGE] LGE 0CZZW1H002F Contact Us For Availability
5000
Drawing Capacitor LGE 6120WRH001E Contact Us For Availability
5001
Fuse,Non Time Delay LGE 3B74133F Contact Us For Availability
5001
FUSE LGE 3B70856G Contact Us For Availability
5003
SUCTION-GUIDE (WPOOL MH7110XBB LGE 4974W0S008A Contact Us For Availability
5006
AIR DUCT MV-1130SC PP,BLACK LGE 5262W1A015A Contact Us For Availability
5009
MAGNETRON 2M214-19F MV-1130SC LGE 2B71165E Contact Us For Availability
5011
SENSOR-H ASSY TGS-2180,MV-1130 LGE 6501W3A004F Contact Us For Availability
5012
MOTOR-FAN LGE 6549W2F005A Contact Us For Availability
5014
LEAD WIRE ASSEMBLY LGE 6877W1A001A Contact Us For Availability
5015
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
5016
THERMOSTAT LGE 6930W1A002J Contact Us For Availability
5016
Thermostat LGE 6930W1A003M Contact Us For Availability
5016
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
5017
FUSE HOLDER 65FB(SAMJOO) MV-10 LGE 4930W3B005A Contact Us For Availability
5018
H.V.DIODE-CABLE ASM HVR-1X SER LGE 3B73348S Contact Us For Availability
5019
LEAD WIRE ASSY-E LGE 6877W3A006A Contact Us For Availability
5023
THERMOSTAT,BIMETAL LGE 6930W1A002C Contact Us For Availability
5024
STIRRER FAN ASSY MWO MV-1130,O LGE 5893W3A001B Contact Us For Availability
5033
H.V.CABLE ASM-A UL 3249 AWG18, LGE 3B73347J Contact Us For Availability
5035
COVER-BOTTOM (MH6110XBB0) LGE 3300W1G018A Contact Us For Availability
5037
CHARCOAL FILTER ASSY 10.0*4.84 LGE 2B72706C Contact Us For Availability
5038
SOCKET-LMP MH6110XBBO W/POOL LGE 3B71048D Contact Us For Availability
5045
COVER OVEN LAMP MV-1130SC,1135 LGE 3550W3A040A Contact Us For Availability
5049
GUIDE-AIR (WPOOL MH7110XBB0) LGE 4974W2G011A Contact Us For Availability
5063
BRACKET SENSOR MV-1130SC STS43 LGE 4810W4G053A Contact Us For Availability
5067
THERMO-BRACKET SECC, T 0.6 LGE 4B74584A Contact Us For Availability
5073
BRACKET C-MOTOR MV-1130SC,1135 LGE 4810W2N013A Contact Us For Availability
5082
Cover Assembly,Heater LGE 3551W2A010A Contact Us For Availability
5083
Cover Assembly,Heater LGE 3551W2A011A Contact Us For Availability
5137
Tray,Ceramic LGE 3B72315A Contact Us For Availability
5149
GUIDE CHAMBER-A MV-1130SC 1135 LGE 4974W2G028B Contact Us For Availability
5150
GUIDE CHAMBER-B MV-1130SC,SECC LGE 4974W1G025A Contact Us For Availability
5151
GUIDE CHAMBER MV-1130SC SECC LGE 4974W1G026A Contact Us For Availability
5152
***NLA*** LGE 4974W2G029A Contact Us For Availability
5404
MOTOR CIRCULATION MV-1130SC,11 LGE 6549W2C001A Contact Us For Availability
5407
PROPELLER LGE 2B72125A Contact Us For Availability
5412
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
5431
PULLEY MOTOR LGE 4560W3A002A Contact Us For Availability
5432
PULLEY CHAMBER MV-1130SC,PPS LGE 4560W3A001A Contact Us For Availability
5444
MOTOR TOWER MV-1130SC,1135SC W LGE 6549W2A002A Contact Us For Availability
5523
BELT- SILICON RUBBER LGE 4400W3A001A Contact Us For Availability
5524
HOLDER BEARING MV-1130SC,STS LGE 4281W4A001A Contact Us For Availability
5525
BEARING ASSY MV-1130SC BEARING LGE 4281W3A003A Contact Us For Availability
5526
PLATE BEARING MV-1130SC,STA LGE 4281W4A002A Contact Us For Availability
5540
AIR TUNNEL ASSY MV-1130SC STS LGE 5263W2A012A Contact Us For Availability
6000
Plate,Base LGE 3302W0A005D Contact Us For Availability
6001
BASE PLATE ASSY MV-1120 W/POOL LGE 3303W1A005D Contact Us For Availability
6008
PLATE,MOUNTING LGE 3300W0G039D Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
6013
COVER COOK TOP GLASS MV-1120 LGE 3550W3A014A Contact Us For Availability
9000
CUSHION-GLASS (4158315) LGE 4B73230A Contact Us For Availability
MAX1
Book,Cook LGE 3878W500086 Contact Us For Availability
MAY1
BOX,[YELLOW] LGE 3890W3Y055A Contact Us For Availability
MBM2
Card,Technical LGE 3858W3T006C Contact Us For Availability
MFL1
OM: MV-1136SC K/AID ENGLISH LGE 3828W5A0166 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0002 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
W156
Electronic Part,Unclassified LGE 4B70181A Contact Us For Availability
W211
SPECIAL SCREW MV-1000M,1000T LGE 4B75675A Contact Us For Availability
W253
PUSH NUT MV-1000T/1000M MVH11 LGE 4B74694B Contact Us For Availability
× ![]()
