Model Whirlpool KHMC106S0 – Common Parts & Diagrams

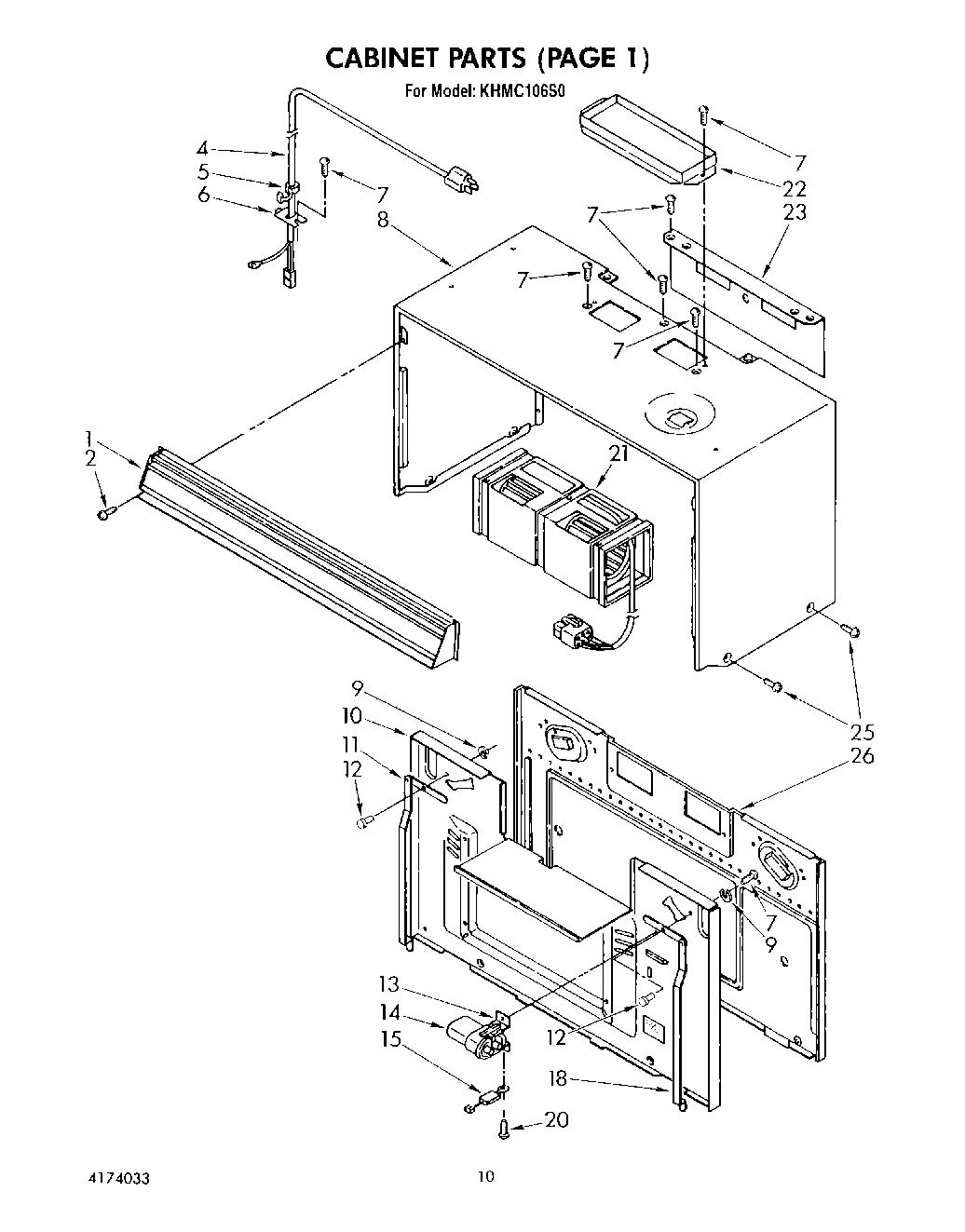

06 - CABINET

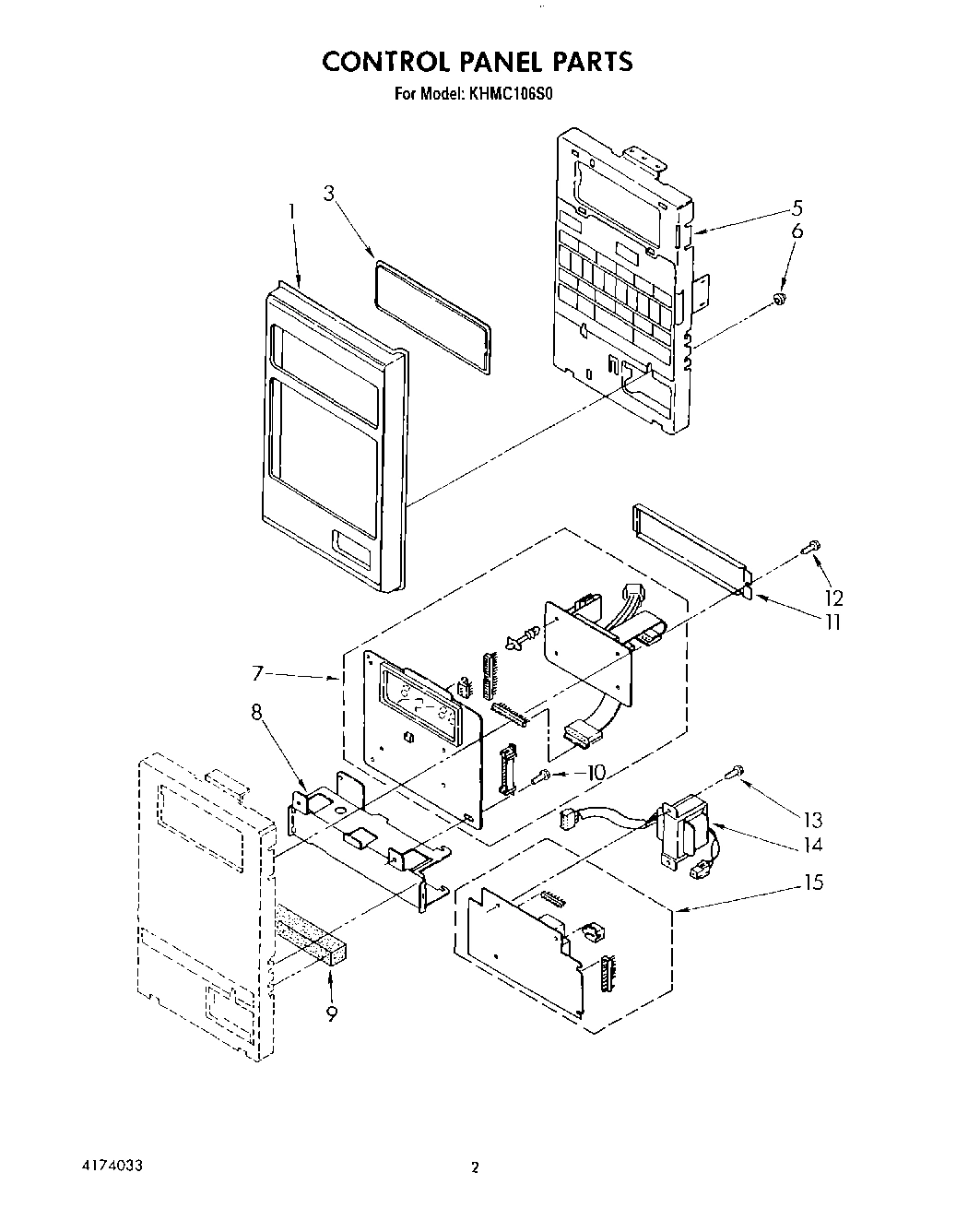

02 - CONTROL PANEL

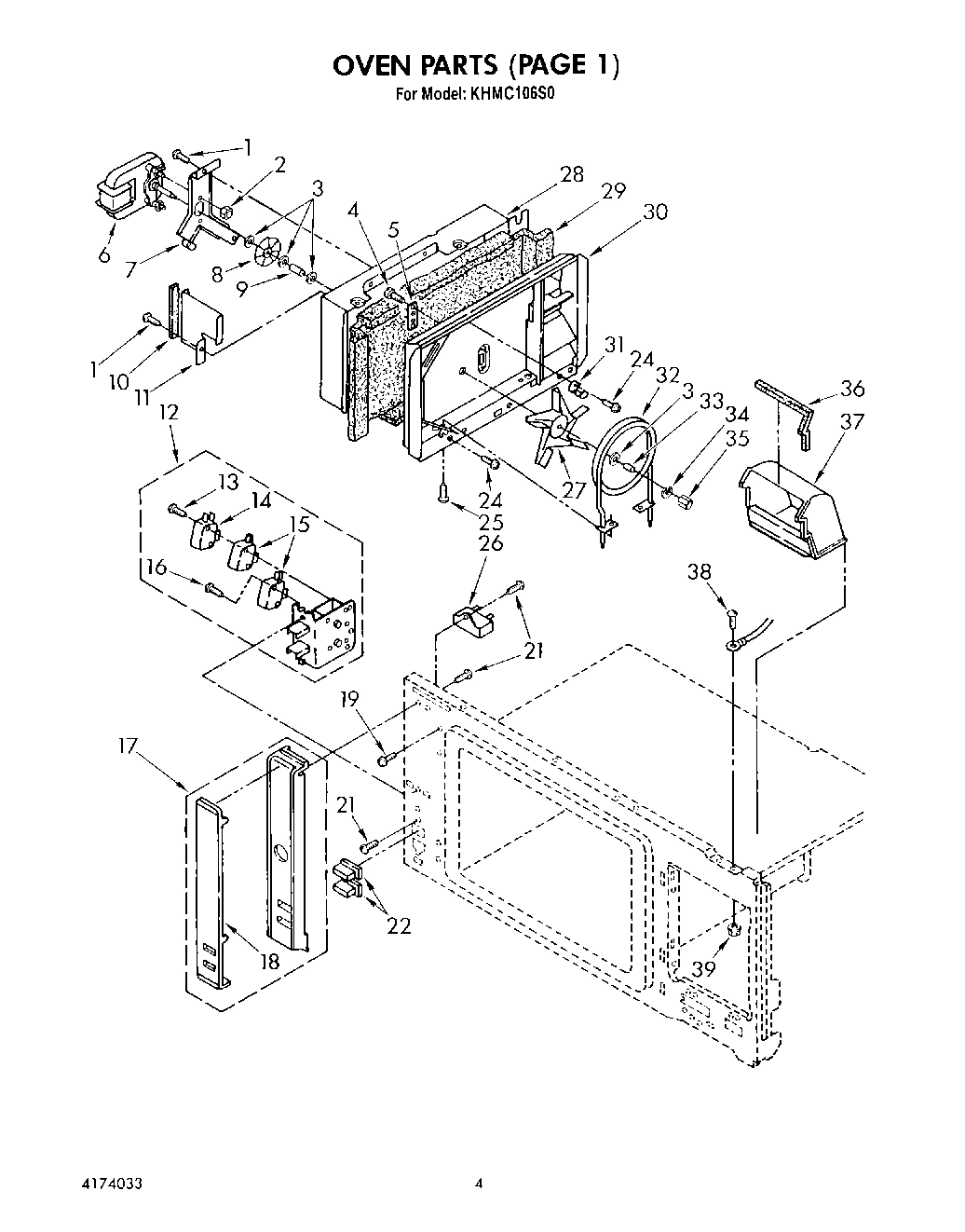

03 - OVEN

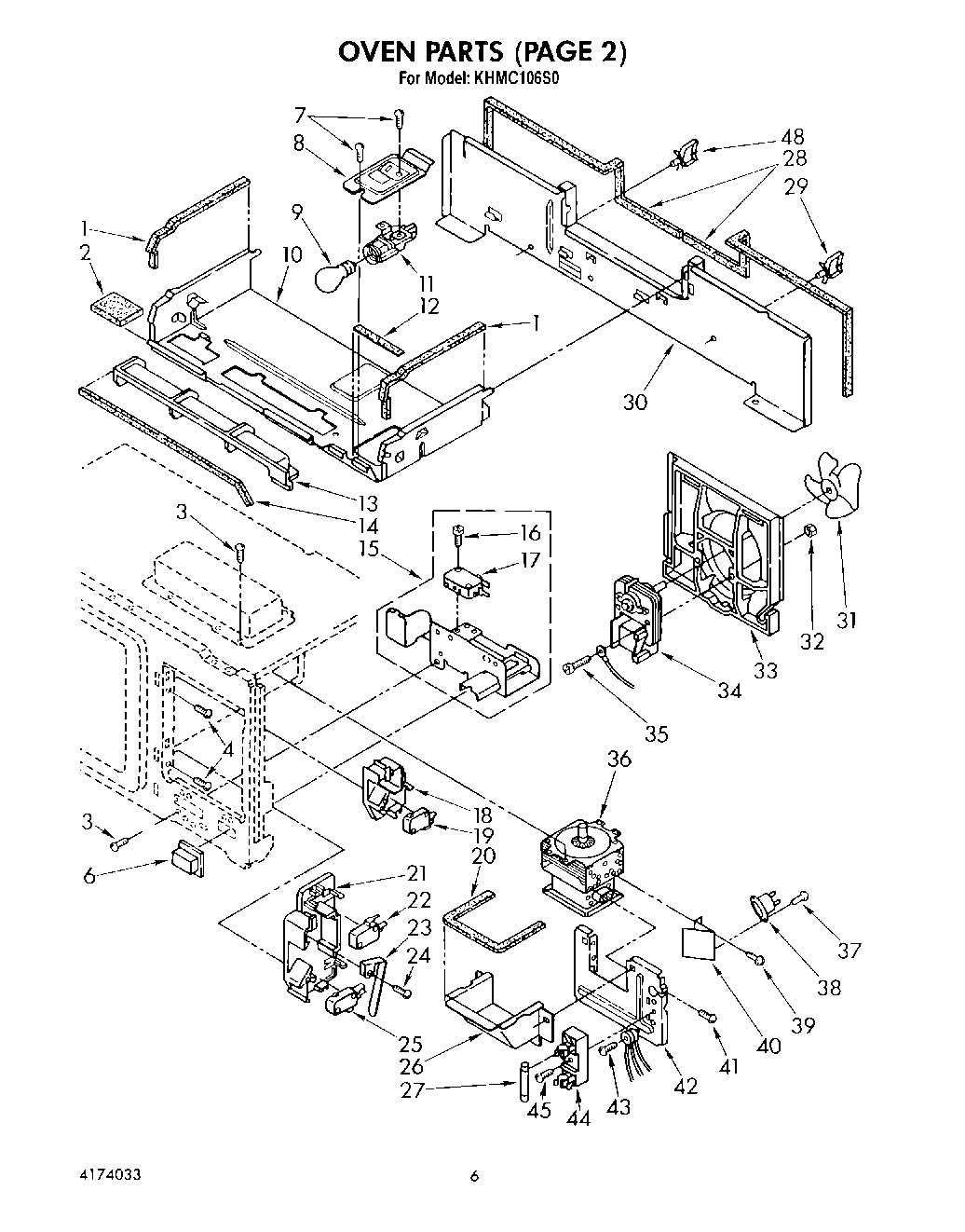

04 - SECTION

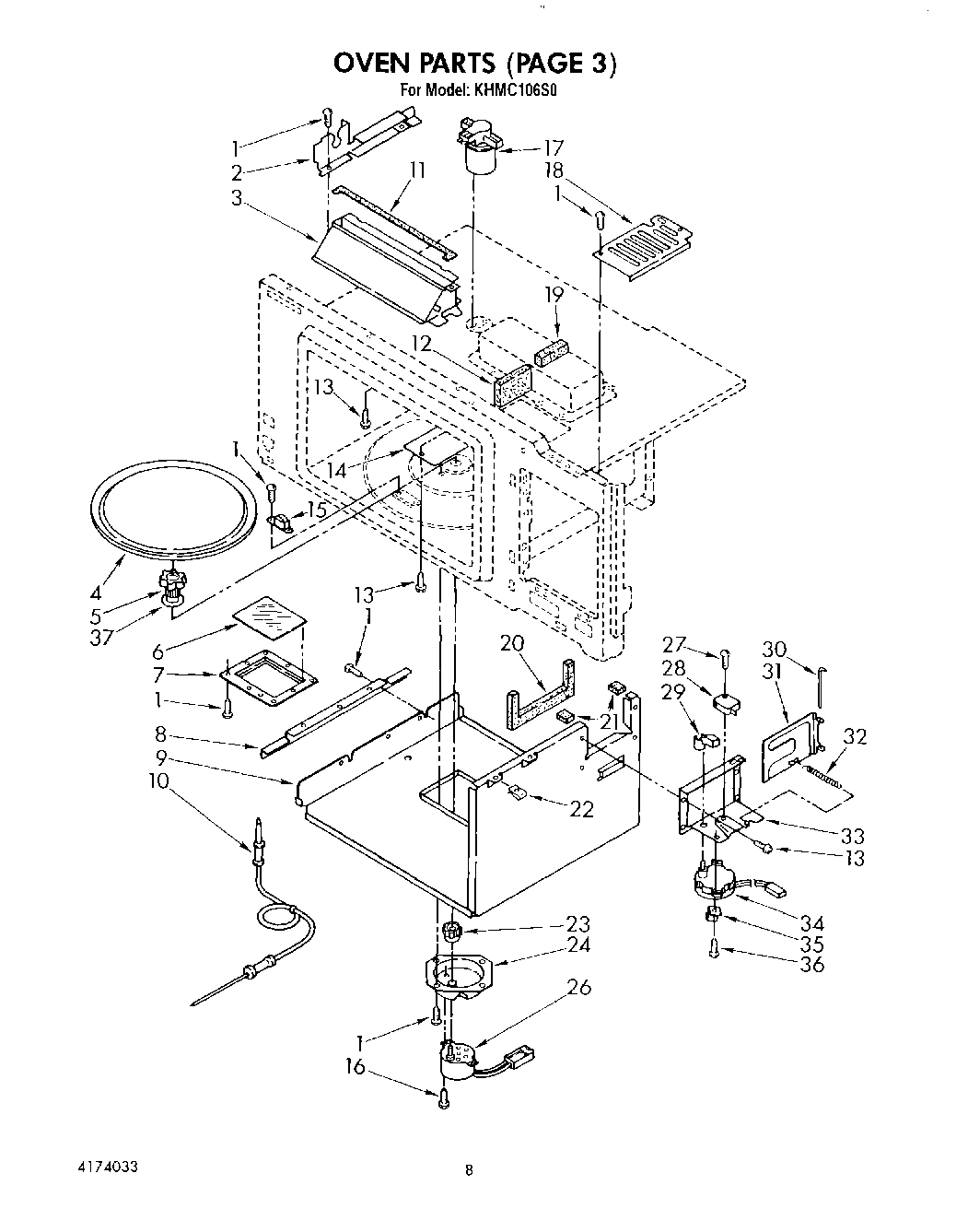

05 - SECTION

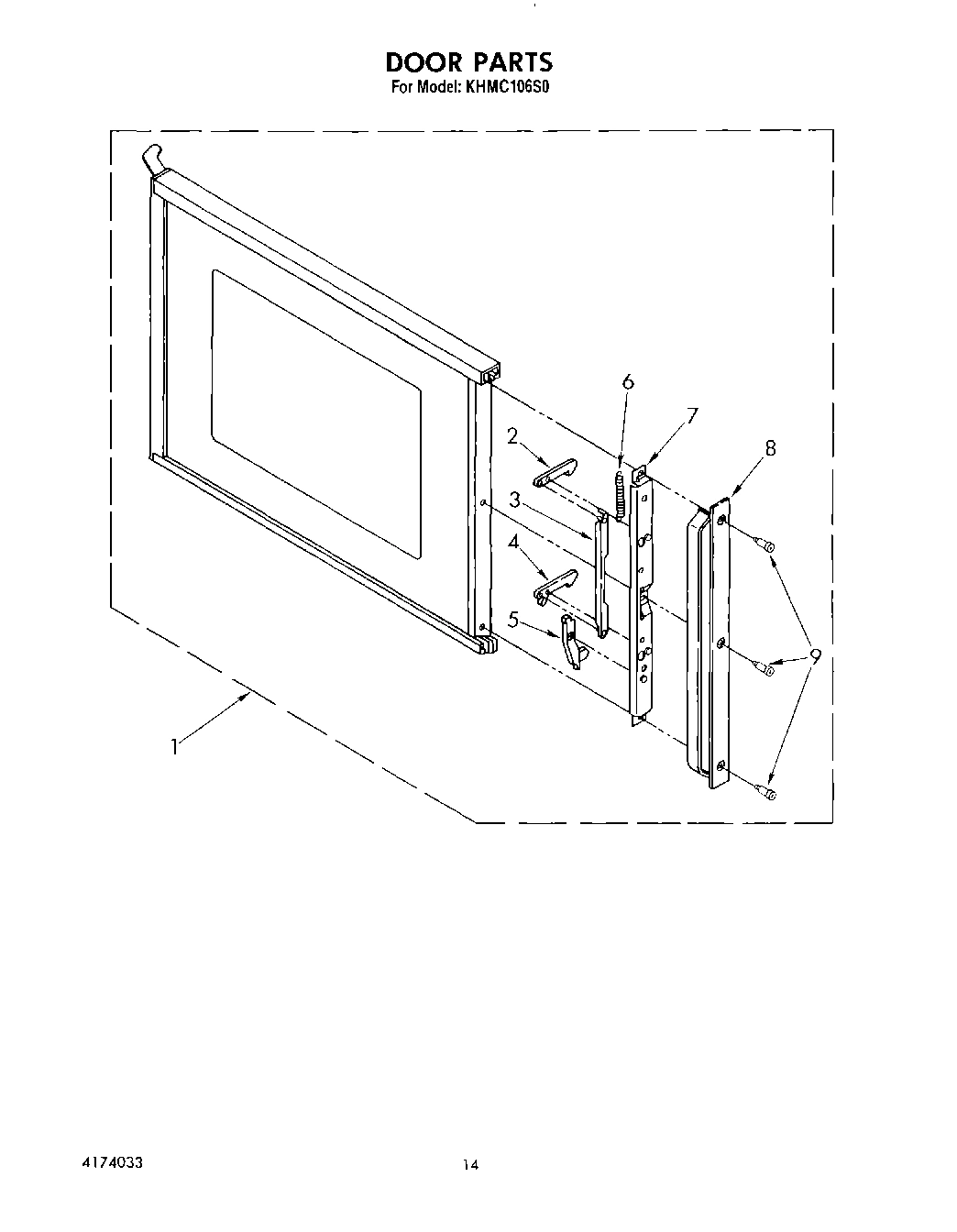

08 - DOOR

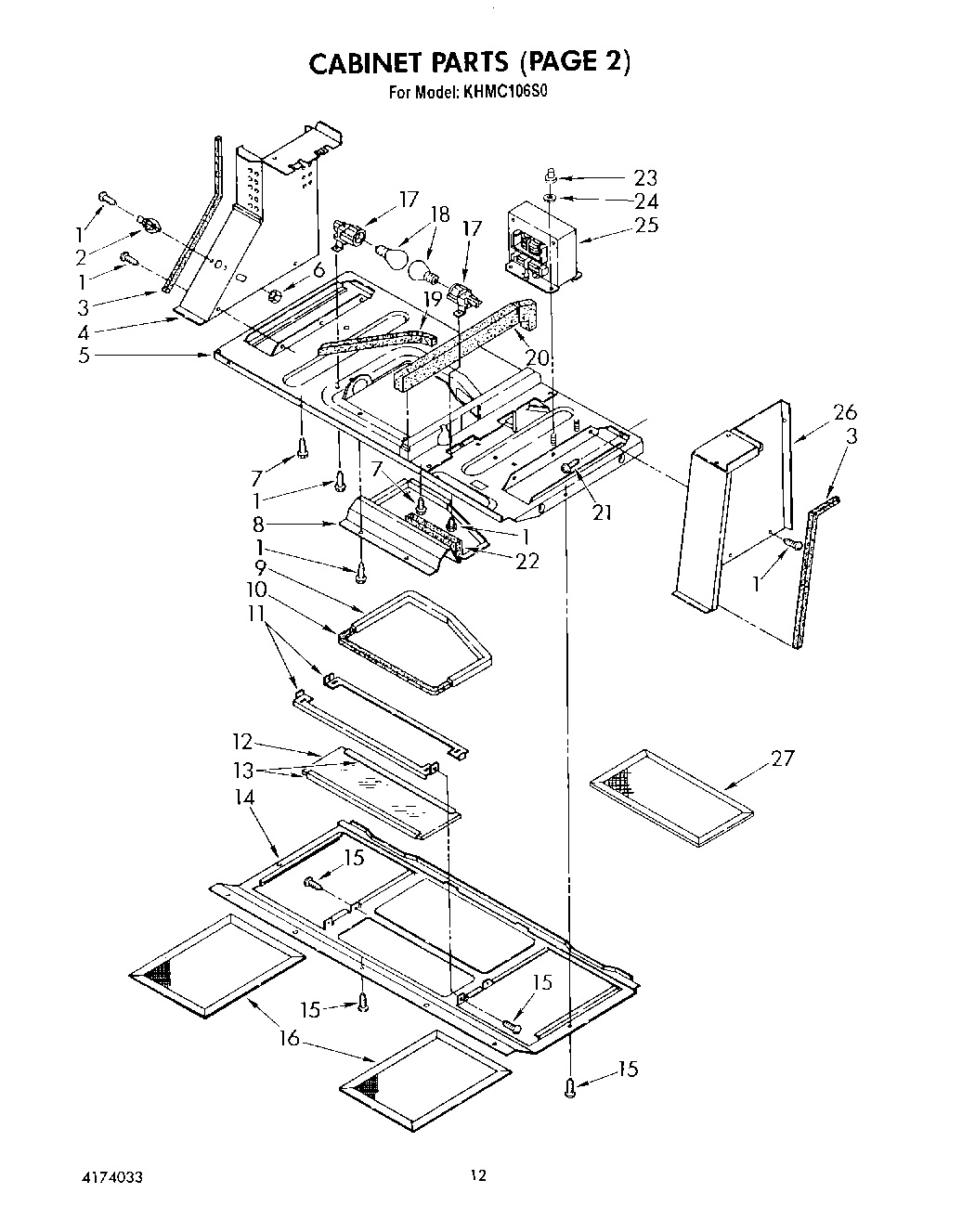

07 - SECTION

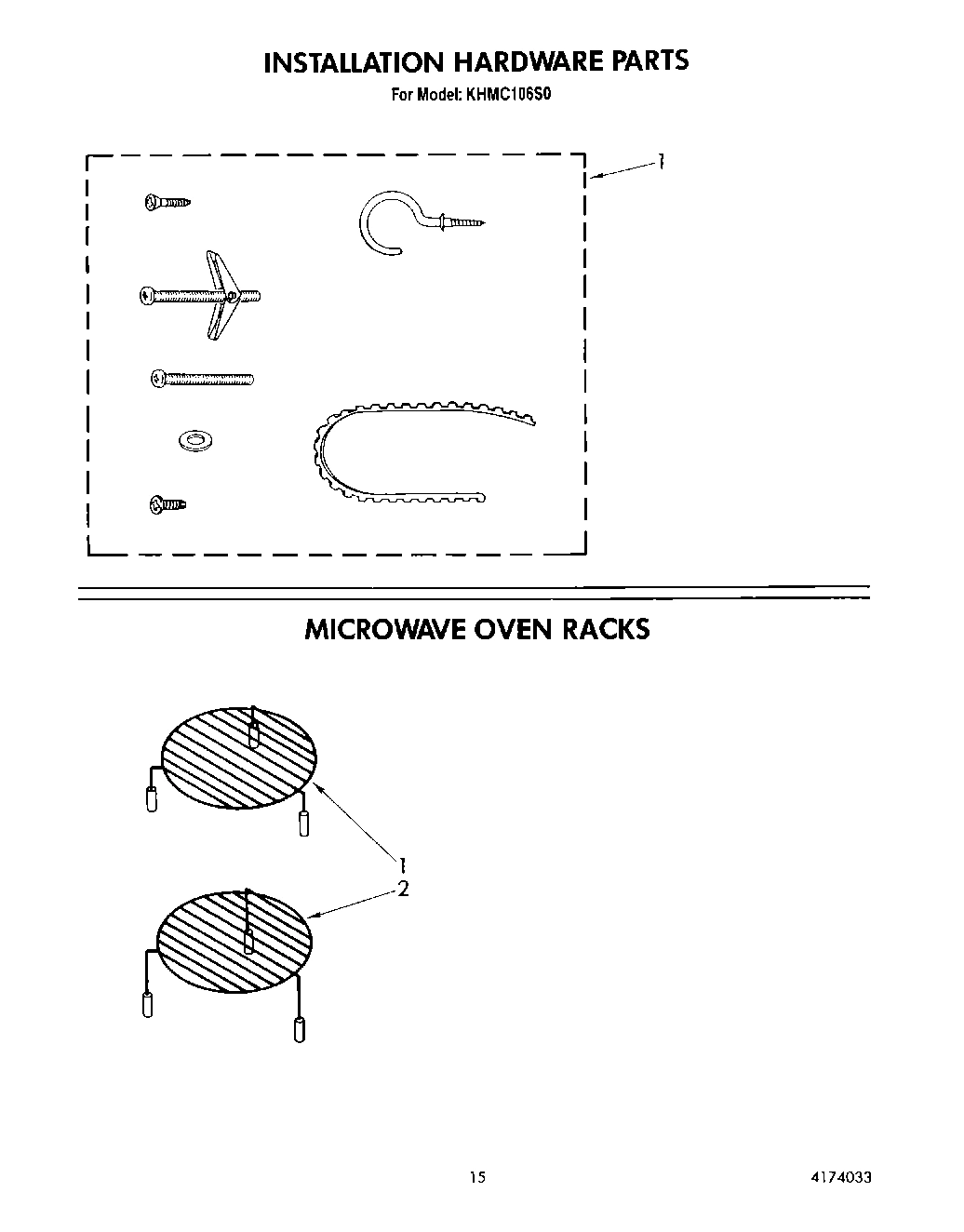

09 - INSTALLATION HARDWARE , MICROWAVE OVEN
Common parts from model Whirlpool KHMC106S0
List, Repair Parts WPL LIT4174033 Contact Us For Availability
Operation Sheet, Touch Panel WPL LIT4174732 Contact Us For Availability
Installation Instructions WPL LIT4174733 Contact Us For Availability
Use & Care Guide WPL LIT4174734 Contact Us For Availability
1
Louver, Hood Exhaust WPL 4174653 Contact Us For Availability
1
Frame, Touch Panel WPL 4174741 Contact Us For Availability
1
Screw, Heater Mounting Plate WPL 4174831 Contact Us For Availability
1
Complete Door WPL 4174623 Contact Us For Availability
1
Screw, Oven Light And Hood Socket, And Therma WPL 4174764 Contact Us For Availability
1
Rack, Broiling (Low) WPL 4174611 Contact Us For Availability
1
Hardware, Installation WPL 4174619 Contact Us For Availability
2
Screw, Hood Louver Mounting WPL 4174820 Contact Us For Availability
2
Cushion, Convection Divider WPL 4174841 Contact Us For Availability
2
Plate, Heater Mounting (Top) WPL 4174685 Contact Us For Availability
2
Rack, Baking (High) WPL 4174612 Contact Us For Availability
2
Head, Upper Latch WPL 4174626 Contact Us For Availability
2
Hood Thermal Cut- Out WPL 4174735 Contact Us For Availability
3
Filter, Display WPL 4174742 Contact Us For Availability
3
Washer, Convection Fan And Auxiliary Fan Moun WPL 4174822 Contact Us For Availability
3
Duct, Hood Exhaust WPL 4174696 Contact Us For Availability
3
Lever, Joint WPL 4174625 Contact Us For Availability
3
Cushion, Hood Intake Duct WPL 4174632 Contact Us For Availability
4
Cord, Power Supply WPL 4174647 Contact Us For Availability
4
Tray, Turntable WPL 4174614 Contact Us For Availability
4
Head, Lower Latch WPL 4174627 Contact Us For Availability
4
Duct, Hood Intake (Left) WPL 4174631 Contact Us For Availability
5
Bushing, Power Power Cord WPL 4174791 Contact Us For Availability
5
Touch Panel WPL 4174743 Contact Us For Availability
5
Thermistor WPL 4174602 Contact Us For Availability
5
Coupling, Turn- Table WPL 4174615 Contact Us For Availability
5
Lever, Door WPL 4174628 Contact Us For Availability
5
Baseplate WPL 4174652 Contact Us For Availability
6
Plate, Bushing Mounting WPL 4174684 Contact Us For Availability
6
Nut, Panel Frame Mounting WPL 4174755 Contact Us For Availability
6
Motor, Convection WPL 4174639 Contact Us For Availability
6
Button, Hood Control WPL 4174721 Contact Us For Availability
6
Glass, Oven Light WPL 4174605 Contact Us For Availability
6
Spring, Latch WPL 4174629 Contact Us For Availability
6
Nut, Oven Thermo Cut-Out Mounting WPL 4174780 Contact Us For Availability
7
Microcomputer Unit WPL 4174731 Contact Us For Availability
7
Bracket, Convection Motor Mounting WPL 4174634 Contact Us For Availability
7
Screw, LightSocket Mounting WPL 4174838 Contact Us For Availability
7
Flange, Oven Light Glass WPL 4174687 Contact Us For Availability
7
Plate, Latch WPL 4174624 Contact Us For Availability
7
Screw, Baseplate Mounting WPL 4174758 Contact Us For Availability
8
Cabinet Wrapper WPL 4174747 Contact Us For Availability
8
Bracket, Relay Unit Mounting WPL 4174842 Contact Us For Availability
8
Fan, Auxiliary WPL 4174616 Contact Us For Availability
8
Plate, Oven Light Socket Mounting WPL 4174801 Contact Us For Availability
8
Plate, Heater Mounting WPL 4174686 Contact Us For Availability
8
Cover, Latch WPL 4174630 Contact Us For Availability
8
Cover, Turntable Motor WPL 4174691 Contact Us For Availability
9
E-Ring, Lever Assembly Mounting WPL 4174788 Contact Us For Availability
9
Cushion, Control Frame & Bracket WPL 4174744 Contact Us For Availability
9
Bushing WPL 4174637 Contact Us For Availability
9
Bulb, Oven Light WPL 4174607 Contact Us For Availability
9
Plate, Thermal Protection (Bottom) WPL 4174699 Contact Us For Availability
9
Screw, Latch Cover Mounting WPL 4174837 Contact Us For Availability
9
Cushion, Baseplate WPL 4174815 Contact Us For Availability
10
Back, Plate WPL 4174681 Contact Us For Availability
10
Cushion, Convection Divider WPL 4174824 Contact Us For Availability
10
Duct, Hood Exhaust WPL 4174694 Contact Us For Availability
10
Probe, Temperature WPL 4174606 Contact Us For Availability
10
Cushion, Baseplate WPL 4174795 Contact Us For Availability
11
Plate, Control Unit Supporting WPL 4174800 Contact Us For Availability
11
Divider, Convection WPL 4174698 Contact Us For Availability
11
Cushion, Hood Exhaust Duct WPL 4174832 Contact Us For Availability
11
Holder, Hood Light Switch WPL 4174649 Contact Us For Availability
12
Pin, Mounting Lever WPL 4174797 Contact Us For Availability
12
Switch Device Assembly WPL 4174604 Contact Us For Availability
12
Cushion, Oven Light WPL 4174807 Contact Us For Availability
12
Cushion, Oven Light WPL 4174805 Contact Us For Availability
12
Screen, Hood Light WPL 4174651 Contact Us For Availability
13
Bracket, Capacitor WPL 4174792 Contact Us For Availability
13
Screw, Microcomputer Mounting WPL 4174813 Contact Us For Availability
13
Screw, Hood Fan Switch Mounting WPL 4174825 Contact Us For Availability
13
Screw, Probe Jack Mounting WPL 4174811 Contact Us For Availability
13
Duct, Top Cavity Exhaust WPL 4174697 Contact Us For Availability
13
Cushion, Hood Light Screen WPL 4174796 Contact Us For Availability
14
Capacitor, High Voltage WPL 4174704 Contact Us For Availability
14
Transformer WPL 4174746 Contact Us For Availability
14
Cushion, Cavity Exhaust WPL 4174806 Contact Us For Availability
14
Cover, Waveguide WPL 4174692 Contact Us For Availability
14
Cover, Bottom WPL 4174650 Contact Us For Availability
15
Screw, Bottom Cover Mounting (5) WPL 4174762 Contact Us For Availability
15
Silicone Rectifier WPL 4174739 Contact Us For Availability
15
Relay WPL 4174745 Contact Us For Availability
15
Open Device WPL 4174603 Contact Us For Availability
15
Roller, Turn- Table (3) WPL 4174613 Contact Us For Availability
16
Switch, Stop WPL 4174664 Contact Us For Availability
16
Screw, Turn- Table Mounting WPL 4174770 Contact Us For Availability
16
Filter, Grease (2) WPL 4174715 Contact Us For Availability
17
Panel, Hood Control WPL 4174748 Contact Us For Availability
17
Socket, Oven And Hood Light WPL 4174730 Contact Us For Availability
17
Jack, Meat Probe WPL 4174814 Contact Us For Availability
18
Lever, Mounting WPL 4174663 Contact Us For Availability
18
Plate, Hood Control Panel WPL 4174673 Contact Us For Availability
18
Hook, Upper Latch WPL 4174640 Contact Us For Availability
18
Barrier WPL 4174693 Contact Us For Availability
19
Cushion, Oven Light WPL 4174833 Contact Us For Availability
19
Cushion, Baseplate WPL 4174817 Contact Us For Availability
20
Cushion, Magnetron Exhaust Duct WPL 4174803 Contact Us For Availability
20
Cushion, Protection Plate (2) WPL 4174834 Contact Us For Availability
20
Cushion, Air Guide WPL 4174818 Contact Us For Availability
21
Hood, Fan Motor WPL 4174601 Contact Us For Availability
21
Hook, Lower Latch WPL 4174643 Contact Us For Availability
21
Cushion, Protection Plate WPL 4174835 Contact Us For Availability
21
Screw, Lever Mounting WPL 4174763 Contact Us For Availability
22
Exhaust Vent WPL 4174726 Contact Us For Availability
22
Nut, Thermal Protection Plate (Bottom Mountin WPL 4174836 Contact Us For Availability
22
Cushion, Turntable Cover WPL 4174819 Contact Us For Availability
23
Rear Stay WPL 4174790 Contact Us For Availability
23
Lever, Monitor Switch WPL 4174642 Contact Us For Availability
23
Holder, Coupling WPL 4174690 Contact Us For Availability
23
Nut, Power Trans- former Mounting (2) WPL 4174783 Contact Us For Availability
24
Screw, Convection Air Guide Mounting WPL 4174823 Contact Us For Availability
24
Screw, Monitor Switch Lever Mounting WPL 4174759 Contact Us For Availability
24
Plate, Turntable Motor Mounting WPL 4174667 Contact Us For Availability
24
Washer, Power Transformer Mounting (Outer Too WPL 4174787 Contact Us For Availability
25
Screw, Outer Cabinet Wrapper Mounting WPL 4174821 Contact Us For Availability
25
Screw, Heater Element Mounting WPL 4174827 Contact Us For Availability
25
Transformer WPL 4174675 Contact Us For Availability
26
Plate, Wall Insulation WPL 4174682 Contact Us For Availability
26
Capacitor, Start WPL 4174705 Contact Us For Availability
26
Duct, Magnetron Exhaust (Bottom) WPL 4174679 Contact Us For Availability
26
Motor, Turn- Table WPL 4174609 Contact Us For Availability
26
Duct, Hood Intake (Right) WPL 4174654 Contact Us For Availability
27
Screw, Damper Switch Mounting WPL 4174766 Contact Us For Availability
27
Fan, Convection WPL 4174617 Contact Us For Availability
27
Fuse, Monitor WPL 4174701 Contact Us For Availability
27
Filter, Charcoal WPL 4174812 Contact Us For Availability
28
Plate, Thermal Protection Side WPL 4174633 Contact Us For Availability
28
Cushion, Hood Divider WPL 4174809 Contact Us For Availability
28
Switch, Damper WPL 4174661 Contact Us For Availability
29
Sheet, Thermal Protection Side WPL 4174828 Contact Us For Availability
29
Holder, Wire WPL 4174689 Contact Us For Availability
29
Cam, Damper WPL 4174657 Contact Us For Availability
30
Duct, Convection WPL 4174600 Contact Us For Availability
30
Divider, Hood WPL 4174808 Contact Us For Availability
30
Shaft, Damper WPL 4174658 Contact Us For Availability
31
Holder, Heater Element WPL 4174635 Contact Us For Availability
31
Fan, Cooling WPL 4174669 Contact Us For Availability
31
Damper WPL 4174660 Contact Us For Availability
32
Nut, Cooling Fan Motor Mounting (2) WPL 4174668 Contact Us For Availability
32
Element, Heating WPL 4174638 Contact Us For Availability
32
Spring, Damper WPL 4174659 Contact Us For Availability
33
Bushing WPL 4174636 Contact Us For Availability
33
Duct, Cooling Fan WPL 4174670 Contact Us For Availability
33
Plate, Damper Motor Mounting WPL 4174656 Contact Us For Availability
34
Washer, Convection Fan Mounting WPL 4174829 Contact Us For Availability
34
Motor, Cooling Fan WPL 4174672 Contact Us For Availability
34
Motor, Damper WPL 4174610 Contact Us For Availability
35
Screw, Cooling Fan Motor Mounting WPL 4174839 Contact Us For Availability
36
Screw, Damper Motor Mounting WPL 4174826 Contact Us For Availability
36
Cushion, Air Duct WPL 4174804 Contact Us For Availability
36
Magnetron WPL 4174680 Contact Us For Availability
37
Duct, Air WPL 4174655 Contact Us For Availability
37
Screw, Temperature Fuse Mounting WPL 4174778 Contact Us For Availability
37
Spacer, Coupling WPL 4174700 Contact Us For Availability
38
Screw, Grounding (Power Supply Cord) WPL 4174830 Contact Us For Availability
38
Fuse, Temperature WPL 4174729 Contact Us For Availability
39
Nut, Grounding ( WPL 4174843 Contact Us For Availability
39
Screw, Temperature Fuse Angle Mounting WPL 4174840 Contact Us For Availability
40
Angle, Temperature Fuse WPL 4174676 Contact Us For Availability
41
Screw, Magnetron Divider Mounting (2) WPL 4174677 Contact Us For Availability
42
Divider, Magnet WPL 4174678 Contact Us For Availability
43
WPL 4174754 WPL 4174754 Contact Us For Availability
44
WPL 4174702 WPL 4174702 Contact Us For Availability
48
WPL 4174688 WPL 4174688 Contact Us For Availability
× ![]()
