Model Whirlpool KHM5TWH – Common Parts & Diagrams

Use and Care Guide
Use and Care Guide WPL LIT3181124 Contact Us For Availability
View on Model

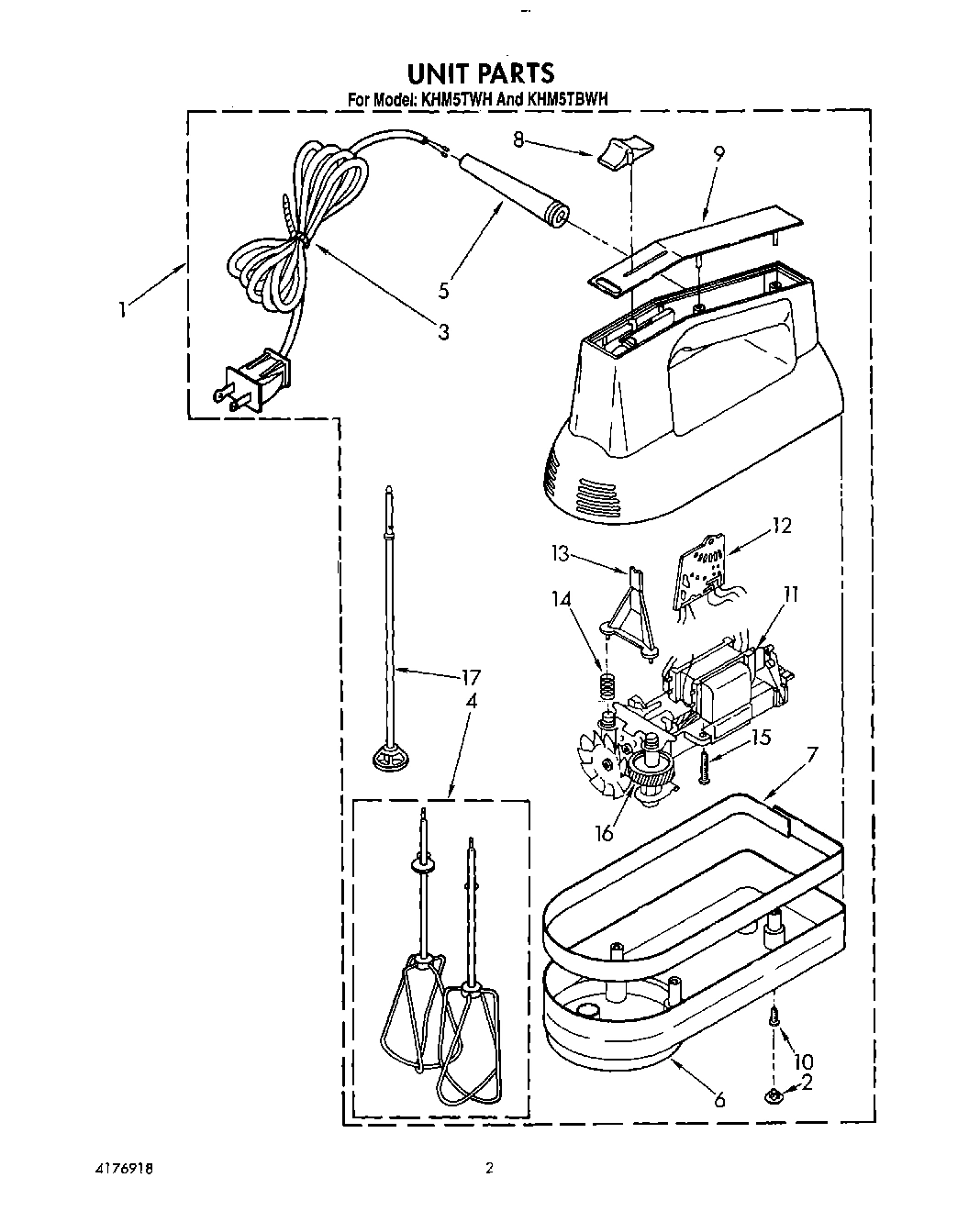

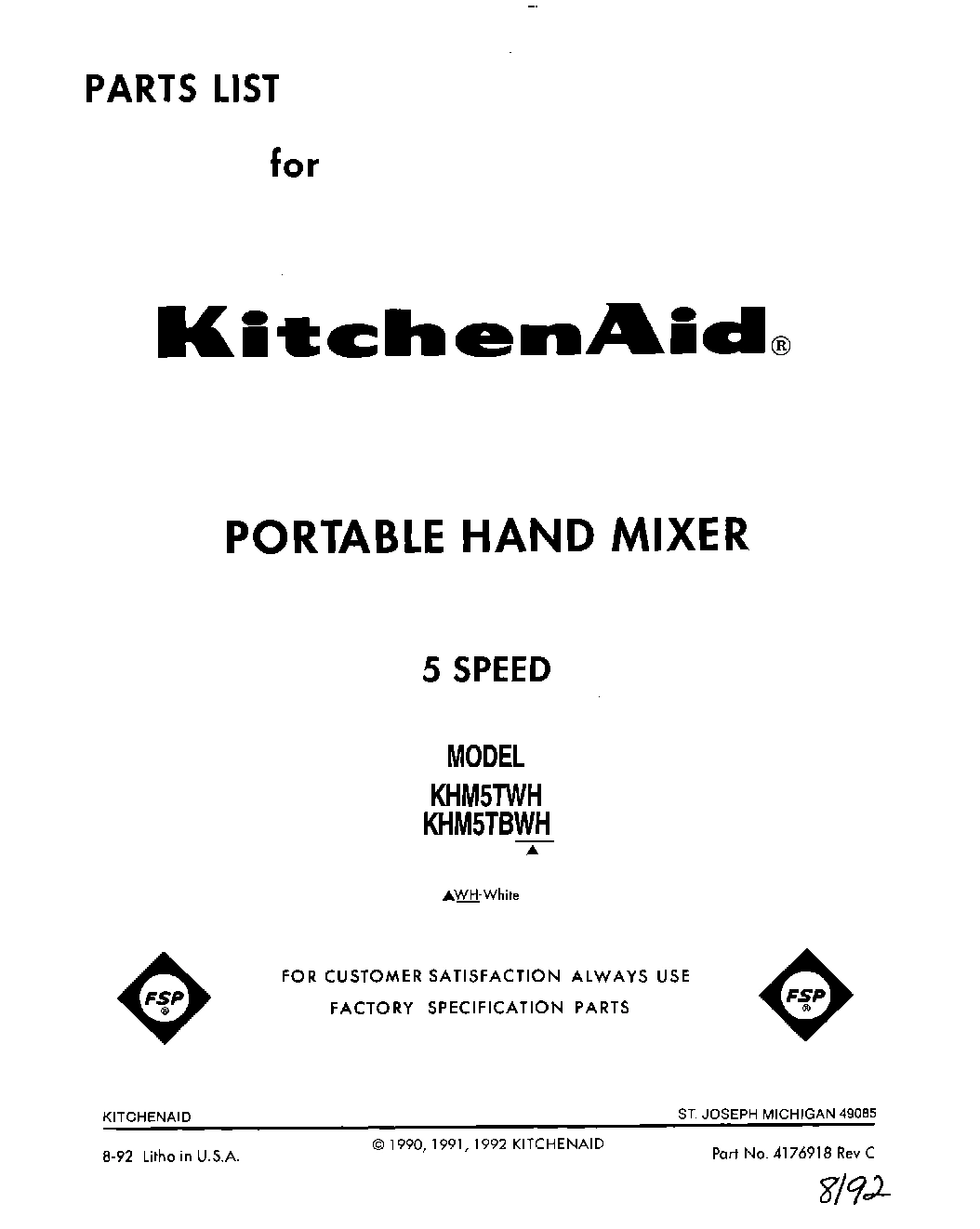

Repair Parts List
Repair Parts List WPL LIT4176918 Contact Us For Availability
View on Model
1
Unit, Complete
Unit, Complete WPL 4176931 Contact Us For Availability
View on Model
2
Cover, Screw (4)
Cover, Screw (4) WPL 3181104 Contact Us For Availability
View on Model
3
Cord and Plug Assembly
Cord and Plug Assembly WPL 3181105 Contact Us For Availability
View on Model
5
Sleeve, Power Cord
Sleeve, Power Cord WPL 3181107 Contact Us For Availability
View on Model
6
Cover, Lower Housing (Includes No. 2)
Cover, Lower Housing (Includes No. 2) WPL 3181108 Contact Us For Availability
View on Model
7
Trim Band (Black)
Trim Band (Black) WPL 3181110 Contact Us For Availability
View on Model
8
Knob, Speed Control
Knob, Speed Control WPL 3181112 Contact Us For Availability
View on Model
9
Insert, Handle (5-Speed)
Insert, Handle (5-Speed) WPL 3181114 Contact Us For Availability
View on Model
10
Screw (4) No.6-19 x 1 1/4
Screw (4) No.6-19 x 1 1/4 WPL 3181125 Contact Us For Availability
View on Model
11
Motor Asm. W/Wire Leads - 5 Speed
Motor Asm. W/Wire Leads - 5 Speed WPL 3181130 Contact Us For Availability
View on Model
12
Circuit Board, W/Leads - 5 Speed
Circuit Board, W/Leads - 5 Speed WPL 3181132 Contact Us For Availability
View on Model
13
Ejector
Ejector WPL 3181133 Contact Us For Availability
View on Model
14
Spring, Ejector
Spring, Ejector WPL 3181134 Contact Us For Availability
View on Model
15
Screw, Motor Mounting
Screw, Motor Mounting WPL 3181126 Contact Us For Availability
View on Model
16
Gear Set
Gear Set WPL 4176219 Contact Us For Availability
View on Model
17
Blender Rod (Mdl.KHM5TBWH)
Blender Rod (Mdl.KHM5TBWH) WPL 3182492 Contact Us For Availability
View on Model
17
Carton, 4-Pack
Carton, 4-Pack WPL 4176920 Contact Us For Availability
View on Model
