Model Whirlpool KHLU162MSS0 36`` HOOD LINER – Common Parts & Diagrams

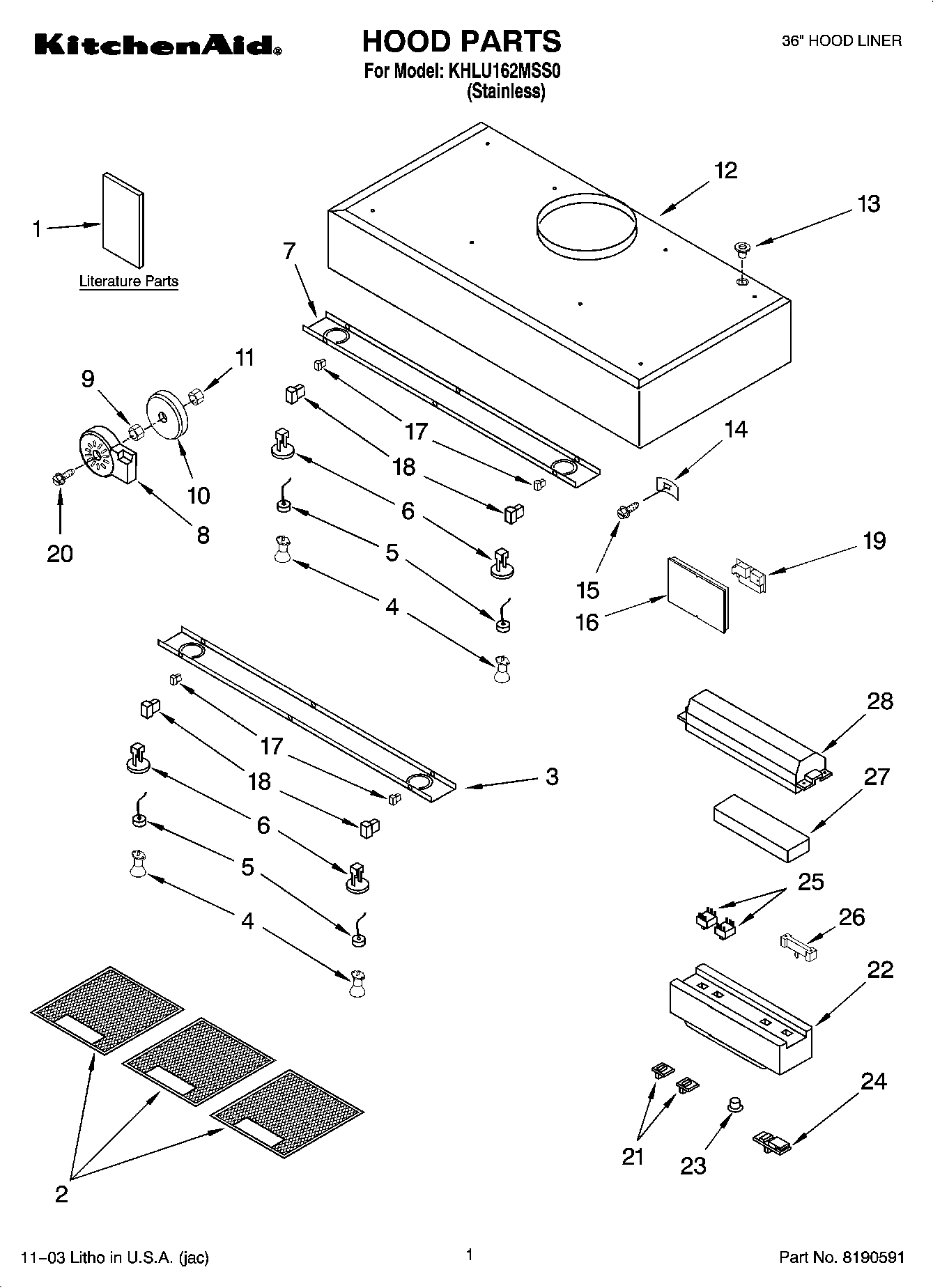

01 - HOOD PARTS
Common parts from model Whirlpool KHLU162MSS0 36`` HOOD LINER
3
Support, Light WPL 8190550 Contact Us For Availability
5
Holder, Bulb (4) WPL 8190542 Contact Us For Availability
6
Support, Bulb (4) WPL 8189598 Contact Us For Availability
7
Support, Light WPL 8190551 Contact Us For Availability
8
Blower WPL 8190545 Contact Us For Availability
9
NUT WPL 8190411 Contact Us For Availability
10
Transformer WPL 8189856 Contact Us For Availability
11
NUT WPL 8190414 Contact Us For Availability
12
Hoodliner WPL 8190552 Contact Us For Availability
13
Relief, Strain WPL 4360147 Contact Us For Availability
14
Nut WPL 4360146 Contact Us For Availability
15
Screw WPL 4360006 Contact Us For Availability
16
Cover, Dist Box WPL 4360303 Contact Us For Availability
17
Connector, Male WPL 4360161 Contact Us For Availability
18
Connector, Female WPL 4360162 Contact Us For Availability
19
Control, Motor WPL 4360252 Contact Us For Availability
20
SCREW WPL 8190403 Contact Us For Availability
21
Button, On/Off WPL 8189618 Contact Us For Availability
22
Box, Control WPL 8190547 Contact Us For Availability
23
Lens, Light WPL 4360028 Contact Us For Availability
24
Button, Mtr Speed WPL 8189620 Contact Us For Availability
26
Switch, Mtr Speed WPL 8190548 Contact Us For Availability
27
Support WPL 8189623 Contact Us For Availability
28
Cover, Switch WPL 8189624 Contact Us For Availability
× ![]()
