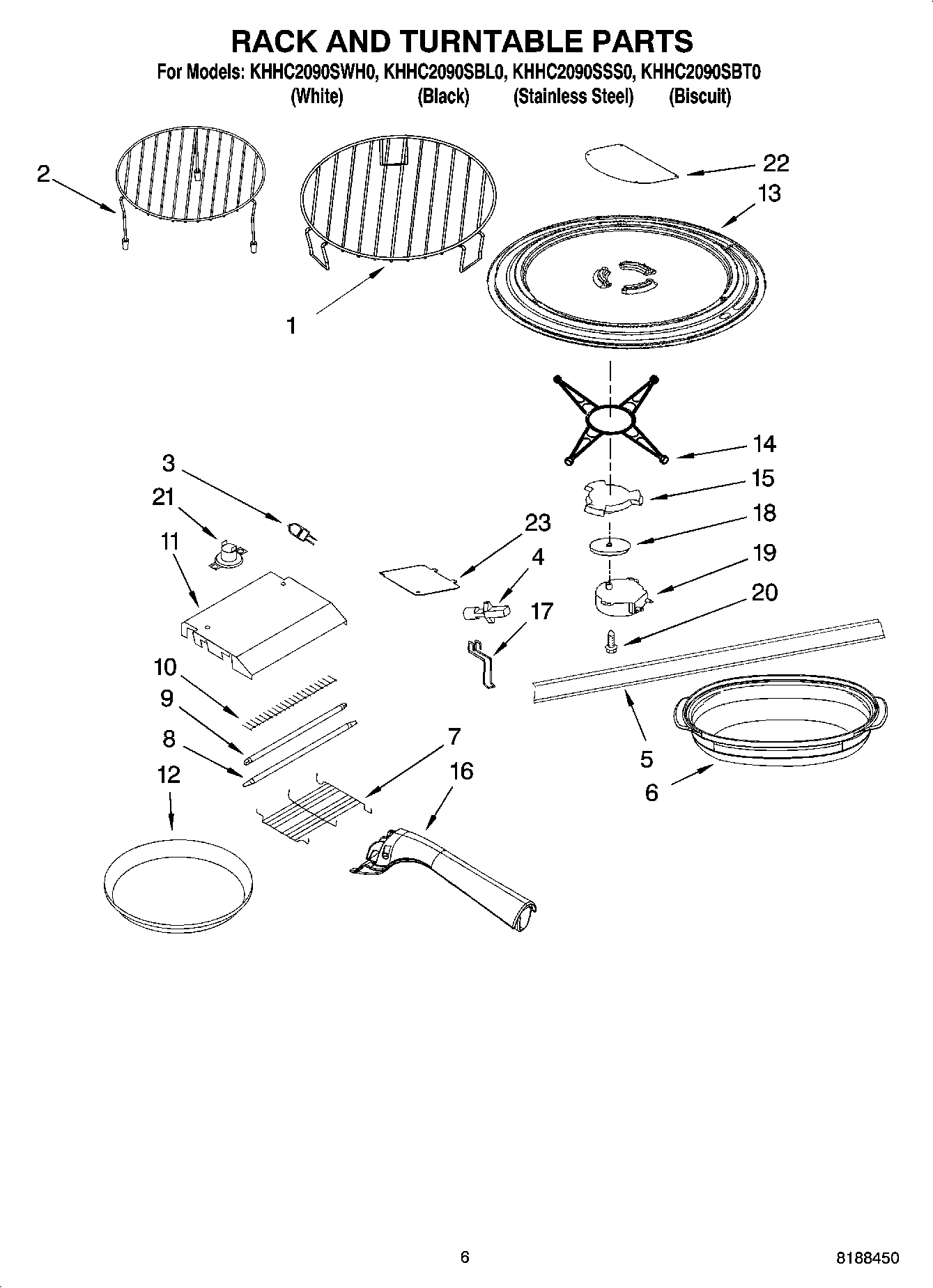

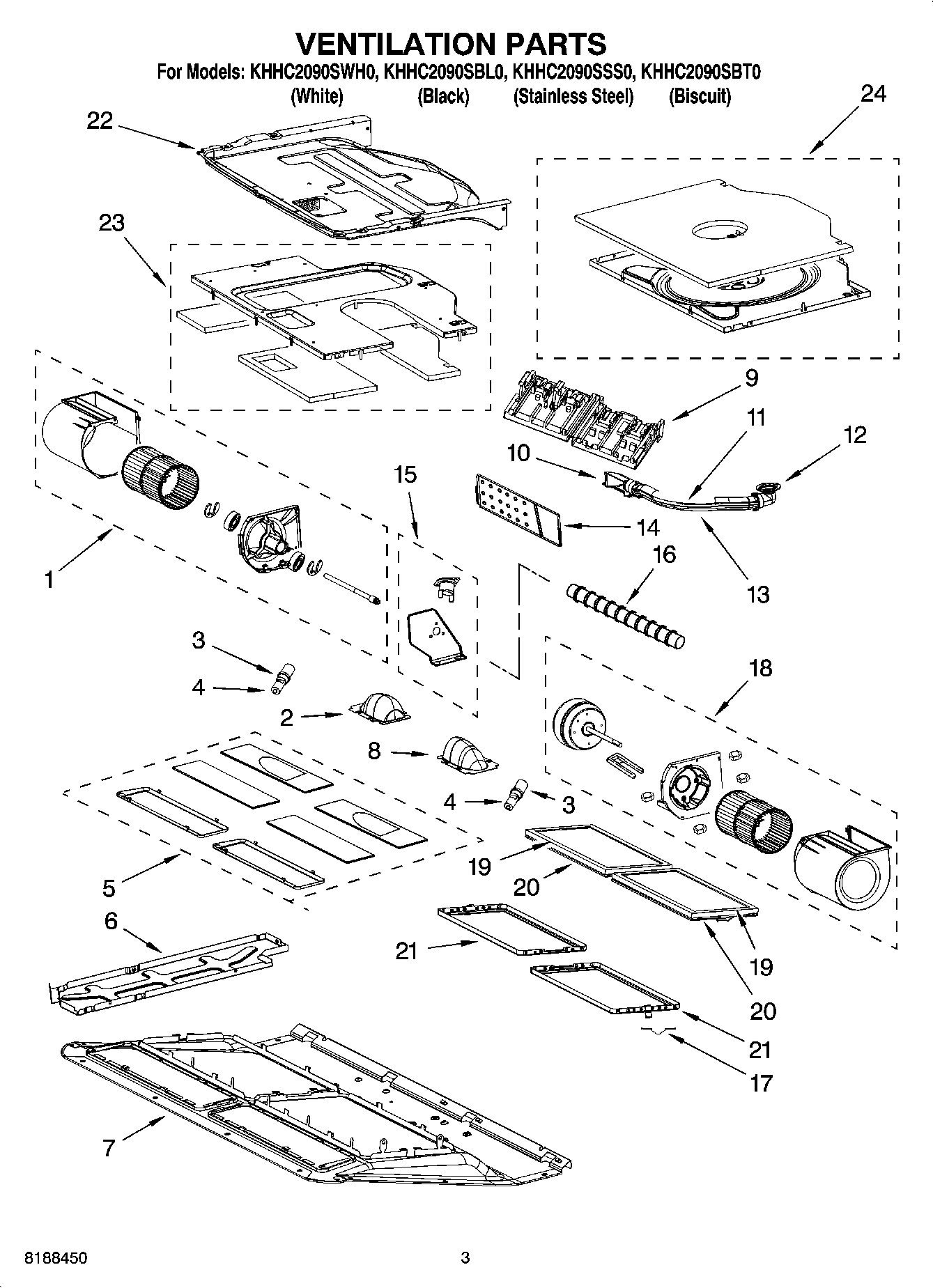

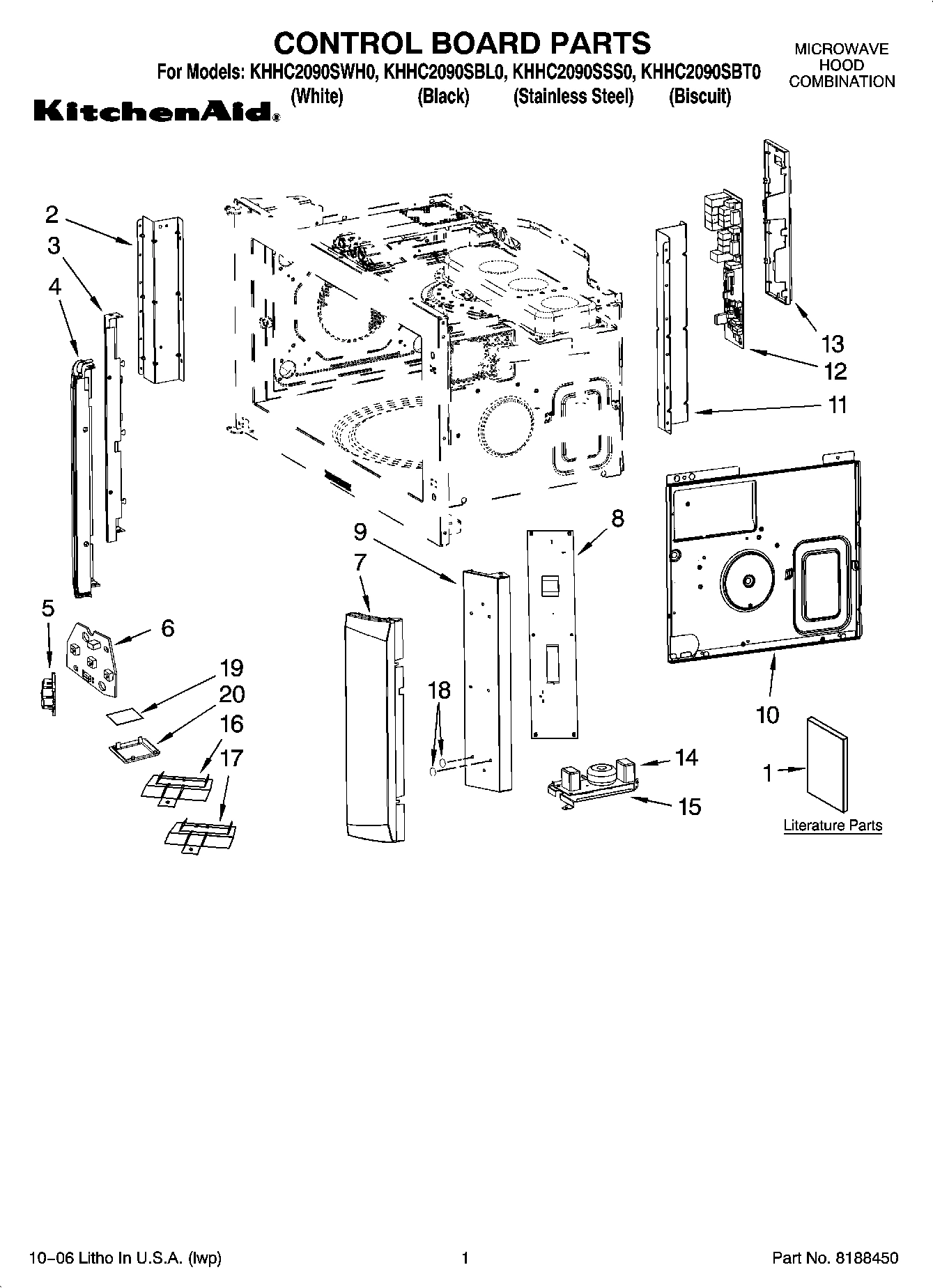

Model Whirlpool KHHC2090SWH0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

W10110267 Whirlpool Microwave Door Handle Backorder WPL W10110267 $102.90

1

W10599629 Whirlpool Microwave Thermostat Fix Backorder WPL W10599629 $11.95

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (White) WPL 8206501 Contact Us For Availability

1

Rack, Convection WPL 8205995 Contact Us For Availability

1

Handle (Biscuit) WPL 8206503 Contact Us For Availability

1

Use & Care Guide WPL 8205291 Contact Us For Availability

1

Tech Sheet WPL 8205293 Contact Us For Availability

1

Quick Reference WPL 8205743 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $55.48

2

Reflector, Lamp WPL 8184194 Contact Us For Availability

2

Support, Cavity (Left) WPL 8206039 Contact Us For Availability

3

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.58

3

WPW10116267 Whirlpool Microwave Electronic Co Backorder WPL WPW10116267 $130.40

3

Plate, Protection (Left) WPL 8206040 Contact Us For Availability

4

W10115577 Whirlpool Microwave Sensor Backorder WPL W10115577 $56.29

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $6.09

4

Outer Door Frame (White) WPL 8206518 Contact Us For Availability

4

Heater Assembly WPL 8206071 Contact Us For Availability

4

Holder, Lamp WPL W10113781 Contact Us For Availability

4

Side Panel, Left (White) WPL 8206478 Contact Us For Availability

4

Side Panel, Left (Black) WPL 8206479 Contact Us For Availability

4

Side Panel, Left (Biscuit) WPL 8206480 Contact Us For Availability

4

Side Panel, Left (Stainless Steel) WPL 8206481 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron In Stock WPL 8206079 $148.65

5

Button (Stainless Steel) WPL 8206485 Contact Us For Availability

5

Deflector, Air WPL 8205980 Contact Us For Availability

5

Button (Biscuit) WPL 8206484 Contact Us For Availability

5

LCD Frame WPL W10116269 Contact Us For Availability

5

Button (White) WPL 8206482 Contact Us For Availability

5

Button (Black) WPL 8206483 Contact Us For Availability

5

Frame, Glass (Left) WPL W10113788 Contact Us For Availability

5

Frame, Glass (Right) WPL W10113789 Contact Us For Availability

6

W10660052 Whirlpool Microwave Steamer Cookwar Backorder WPL W10660052 $9.96

6

WPW10403040-includeCORE Whirlpool WPW10403040 Backorder WPL WPW10403040-includeCORE $197.20

6

Motor, Capacitor WPL 8206080 Contact Us For Availability

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

Support, Vent Screen (Stainless Steel) WPL W10116263 Contact Us For Availability

6

Support, Vent Screen (Biscuit) WPL 8206015 Contact Us For Availability

6

Support, Vent Screen (Black) WPL W10115568 Contact Us For Availability

6

Plate, Separator (Left) WPL 8206097 Contact Us For Availability

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

7

Side Panel, Right (White) WPL 8206489 Contact Us For Availability

7

Side Panel, Right (Black) WPL 8206490 Contact Us For Availability

7

Side Panel, Right (Biscuit) WPL 8206491 Contact Us For Availability

7

Side Panel, Right (Stainless Steel) WPL 8206492 Contact Us For Availability

7

Plate, Bottom WPL 8206497 Contact Us For Availability

8

WPW10510203 Whirlpool Microwave Heater Backorder WPL WPW10510203 $100.31

8

Control Board, (Relay) WPL 8206602 Contact Us For Availability

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

Reflector, Lamp WPL 8184132 Contact Us For Availability

8

Cntrl Panel Plate WPL 8206511 Contact Us For Availability

8

Plate, Back WPL 8206051 Contact Us For Availability

9

Cntrl Panel Cover WPL 8206512 Contact Us For Availability

9

Plate, Mounting WPL 8206319 Contact Us For Availability

9

Plate, Protection (Right) WPL 8206061 Contact Us For Availability

9

Cover, Terminal WPL 8206103 Contact Us For Availability

10

Cord, Power WPL 8206182 Contact Us For Availability

10

Plate, Chassis WPL W10113785 Contact Us For Availability

10

Diffuser WPL 8206104 Contact Us For Availability

11

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

11

Support, Cavity (Right) WPL 8206065 Contact Us For Availability

11

Cover, Duct WPL 8206105 Contact Us For Availability

12

Board, Relay WPL 8206603 Contact Us For Availability

12

Vent Screen (Right) WPL 8206206 Contact Us For Availability

12

Connector, Duct WPL 8206106 Contact Us For Availability

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $2.51

Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability

Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability

Insulation Assy WPL W10115570 Contact Us For Availability

Holder, Microcomputer WPL 8206053 Contact Us For Availability

Holder, Duct WPL 8206107 Contact Us For Availability

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $45.57

8206185 Whirlpool Microwave Wire Harness Backorder WPL 8206185 $33.53

W10470173 Whirlpool Microwave Wire Harness Backorder WPL W10470173 $8.02

W10470175 Whirlpool Microwave Wire Harness Backorder WPL W10470175 $7.69

W10470176 Whirlpool Microwave Wire Harness Backorder WPL W10470176 $7.47

W10470191 Whirlpool Microwave Wire Harness As Backorder WPL W10470191 $54.55

W10554449 Whirlpool Microwave Wire Harness Backorder WPL W10554449 $124.99

W10596040 Whirlpool Microwave Nut In Stock WPL W10596040 $2.85

Ring, Turntable WPL 8206222 Contact Us For Availability

Installation, Magnetron Hardware WPL 8205979 Contact Us For Availability

Template, Upper WPL 8205274 Contact Us For Availability

Harns-Wire, HV WPL 8206186 Contact Us For Availability

Miscellaneous WPL ARI88360A3 Contact Us For Availability

Harns-Wire, RCB - Inverter WPL W10113777 Contact Us For Availability

Harns-Wire 75 P64 RCB WPL W10113779 Contact Us For Availability

Harns-Wire 76 P2 RCB WPL W10113780 Contact Us For Availability

Harns-Wire, P56-P66 WPL W10115595 Contact Us For Availability

AC Line Filter WPL 8206062 Contact Us For Availability

Shield WPL W10115582 Contact Us For Availability

8205994 Whirlpool Microwave Support Backorder WPL 8205994 $11.93

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

Holder, Inverter WPL 8206089 Contact Us For Availability

Holder, Filter WPL 8206060 Contact Us For Availability

16

Connector Shaft WPL 8206263 Contact Us For Availability

16

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

16

Resistor (50W) WPL W10113782 Contact Us For Availability

17

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $37.06

17

SPRING WPL 8206499 Contact Us For Availability

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

Door Plate Assy WPL W10112215 Contact Us For Availability

Spring, Interlock WPL 8206091 Contact Us For Availability

Spacer (6) WPL W10113784 Contact Us For Availability

19

W10120840A Whirlpool Microwave Microwave Vent In Stock WPL W10120840A $9.99

19

Hinge Screw WPL 8206181 Contact Us For Availability

19

Glass, Lamp WPL 8169499 Contact Us For Availability

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

W10120839A Whirlpool Oven Microwave Range Ven In Stock WPL W10120839A $10.07

Frame, Glass WPL 8169646 Contact Us For Availability

Dr Innr Frm Assy WPL 8206531 Contact Us For Availability

21

Spring, Hook WPL W10113792 Contact Us For Availability

22

Air Guide, Center Hood WPL 8206020 Contact Us For Availability

23

Lid, Lamp WPL 8206476 Contact Us For Availability

23

Plate, Insltn Top WPL 8206007 Contact Us For Availability

24

Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available

24

Plate, Insltn Bttm WPL 8206099 Contact Us For Availability

29

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $3.70

30

Piston Assembly WPL 8206210 Contact Us For Availability

35

Sensor, Temp WPL 8206023 Contact Us For Availability
