Model Whirlpool KHEV01RSS0 ELECTRIC DRYER – Common Parts & Diagrams

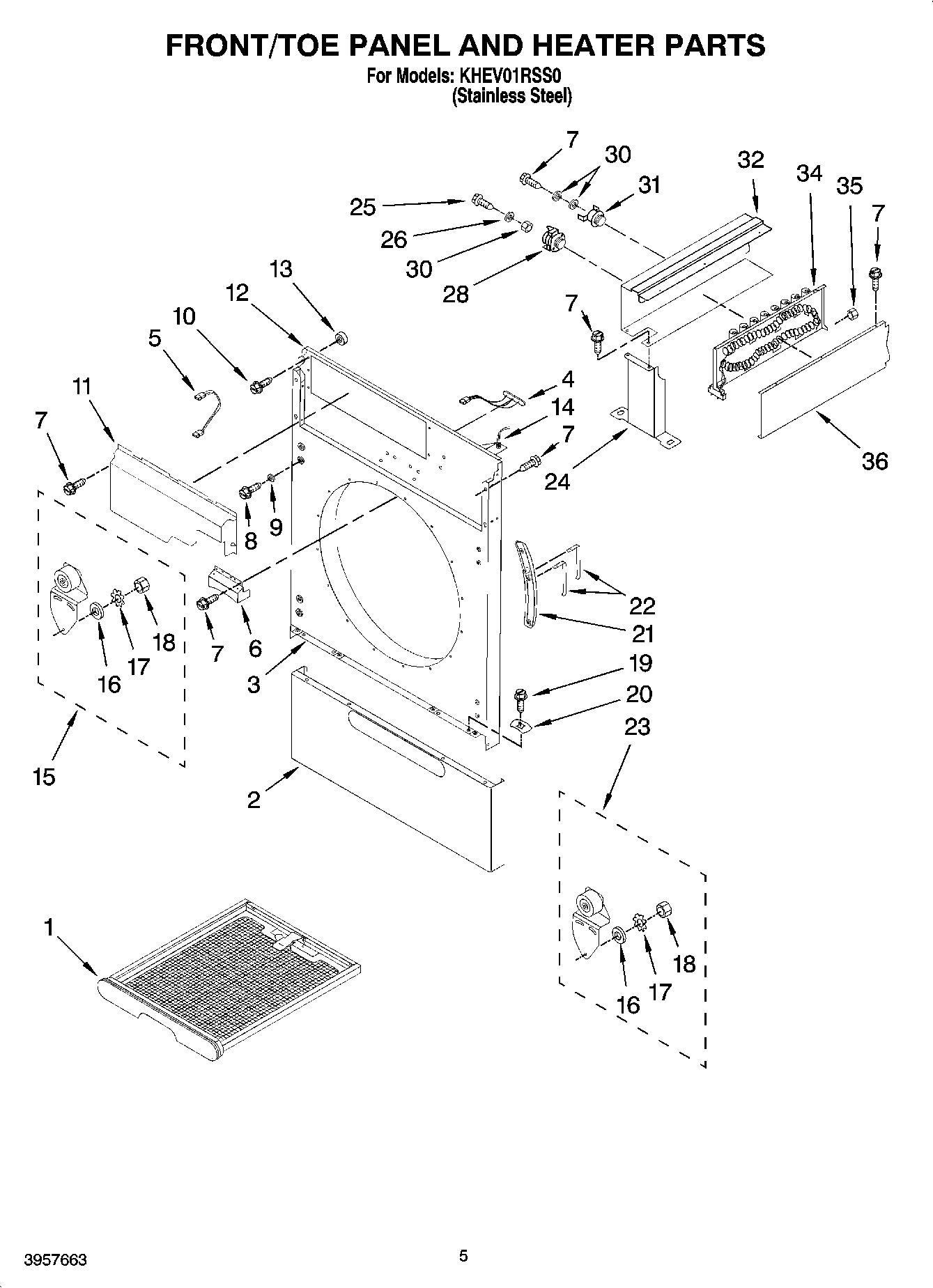

03 - FRONT/TOE PANEL AND HEATER PARTS

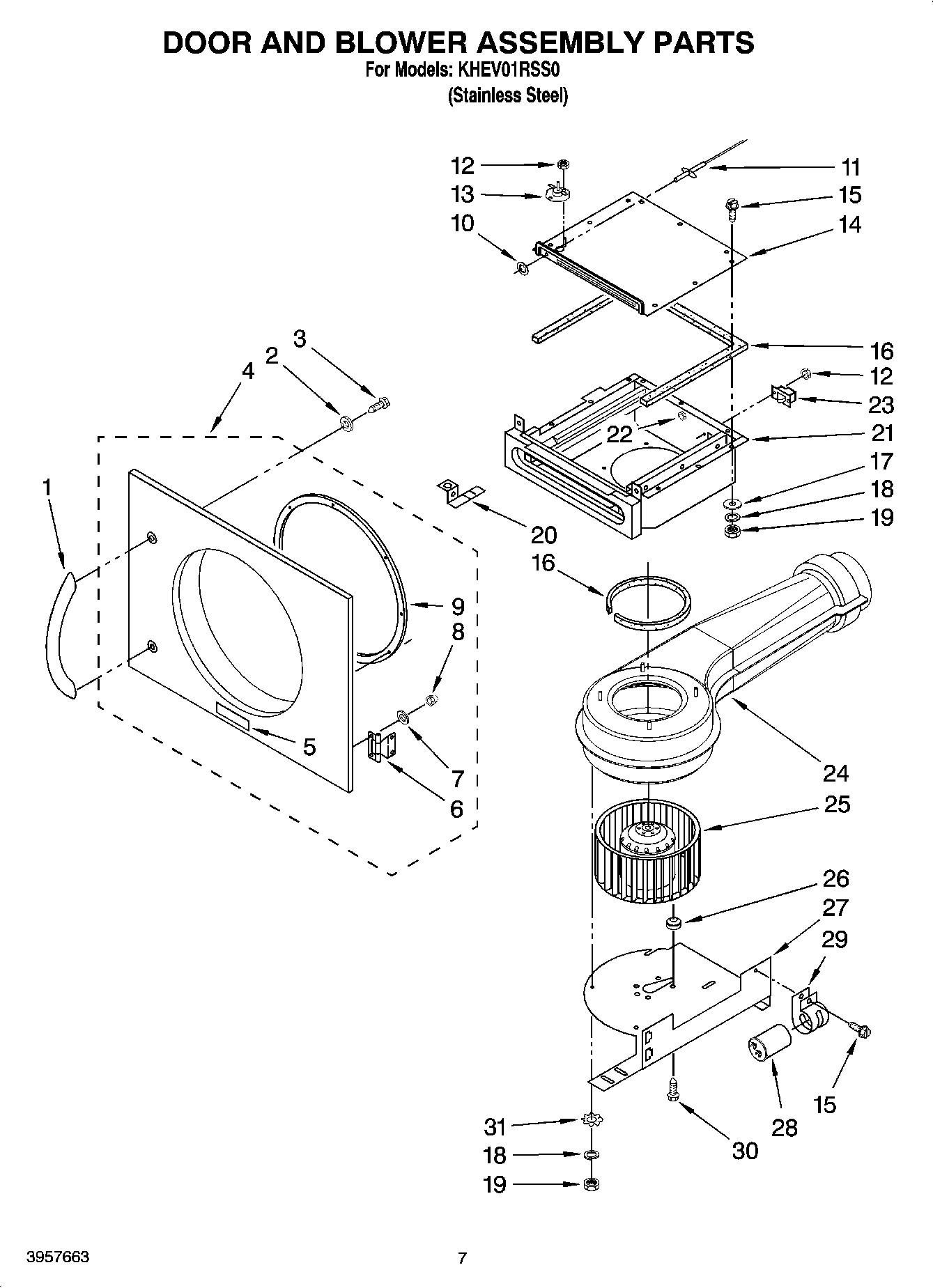

04 - DOOR AND BLOWER ASSEMBLY PARTS, OPTIONAL PARTS (NOT INCLUDED)

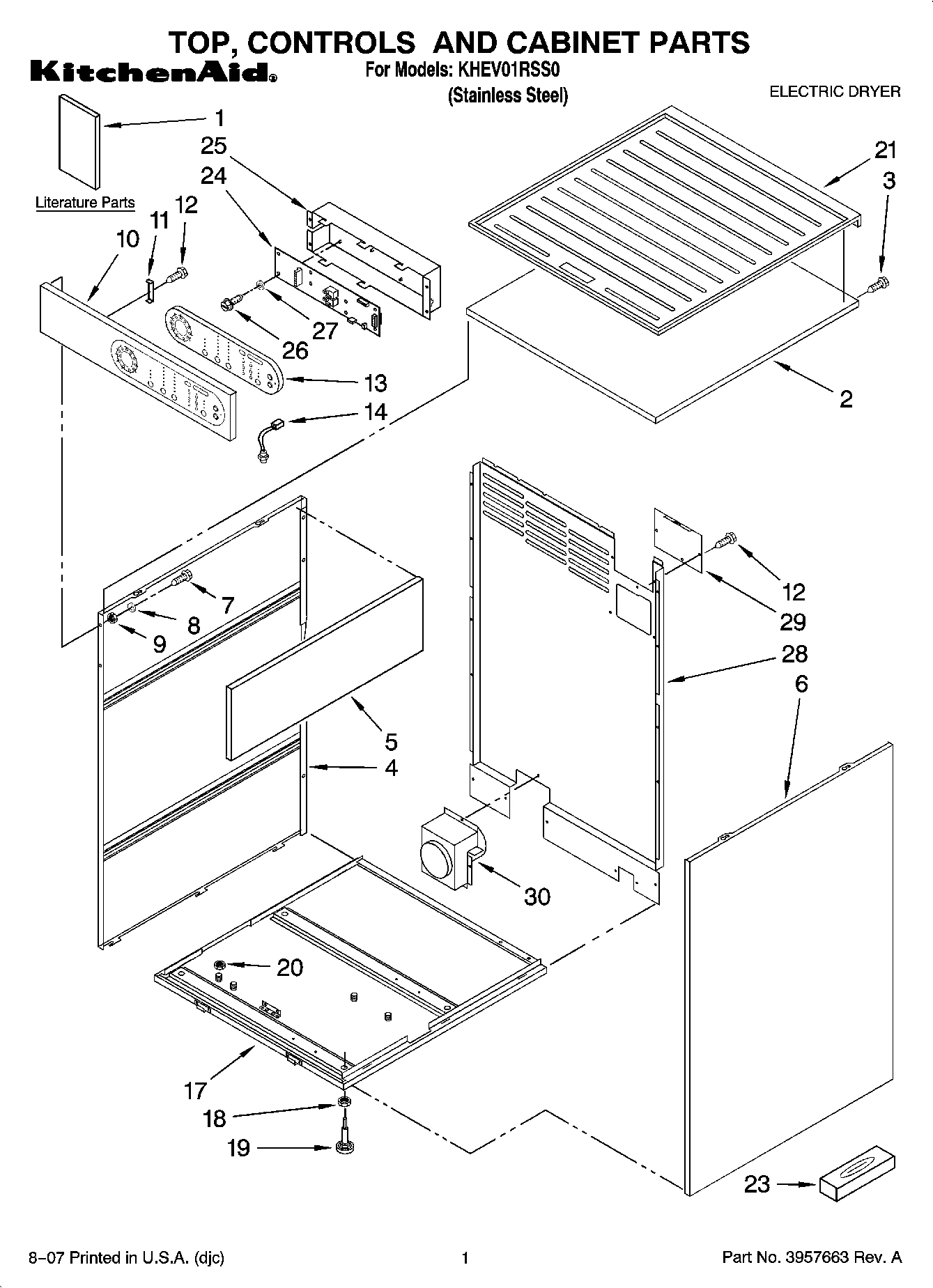

01 - TOP, CONTROLS AND CABINET PARTS

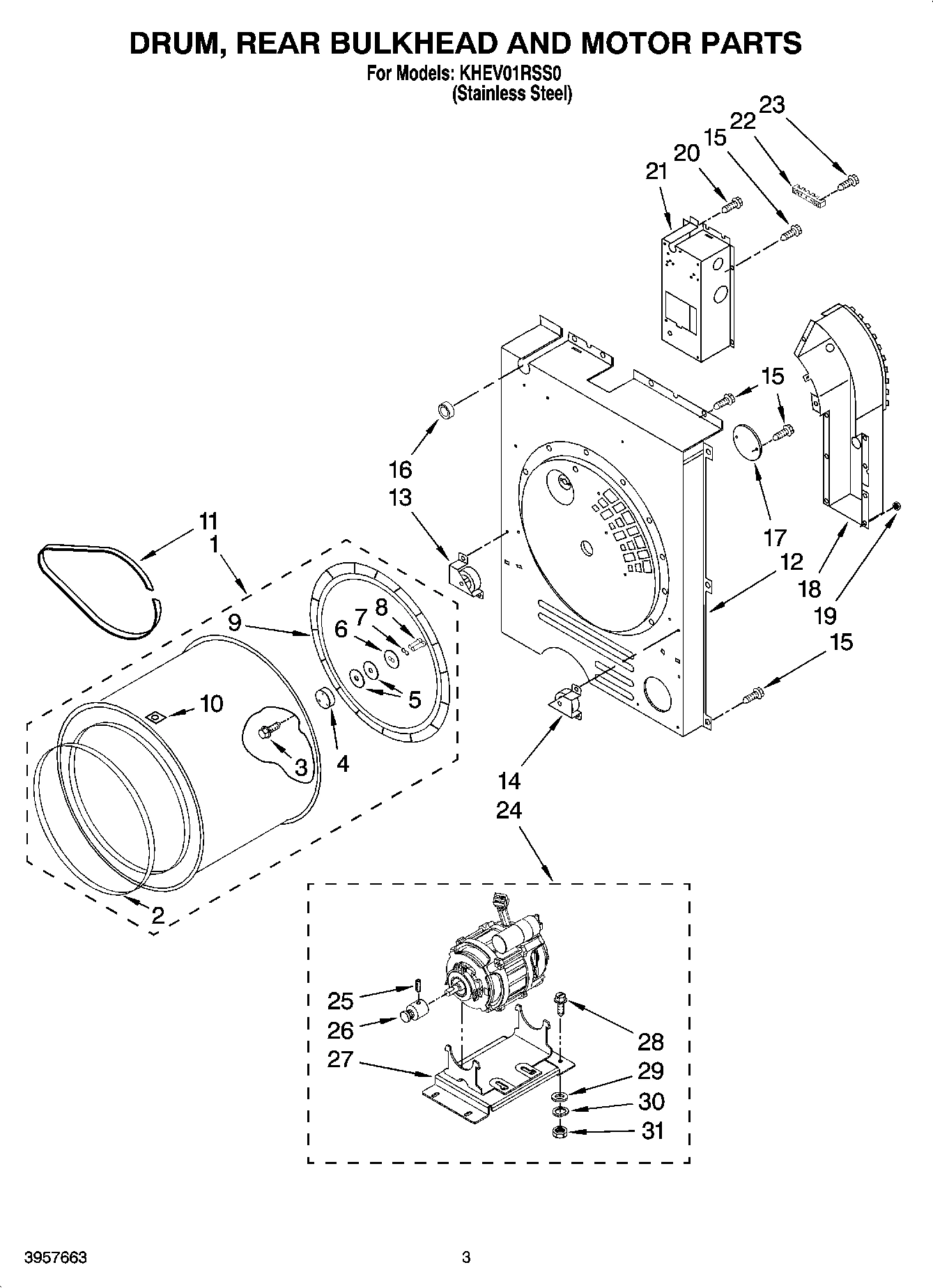

02 - DRUM, REAR BULKHEAD AND MOTOR PARTS
Common parts from model Whirlpool KHEV01RSS0 ELECTRIC DRYER
Dry Rack WPL 8182983 Contact Us For Availability
DRY RACK WPL ARI88351A3 Contact Us For Availability
1
Handle, Door WPL 2252312 Contact Us For Availability
1
Guide, Use & Care WPL 3957654 Contact Us For Availability
1
Instructions, Installation (Dryer) WPL 3957658 Contact Us For Availability
1
Tech Sheet WPL 3957662 Contact Us For Availability
1
Instructions, Installation (Decorative Mat) WPL W10109961 Contact Us For Availability
1
Drum Assembly WPL 8182805 Contact Us For Availability
2
Washer, Nylon WPL 8182936 Contact Us For Availability
2
Top Assembly WPL 8182866 Contact Us For Availability
2
Seal, Drum Front (Includes Illus. 9) WPL 8182806 Contact Us For Availability
3
Screw, W/Nylon Patch WPL 8182930 Contact Us For Availability
3
Screw, W/Patch WPL 8182808 Contact Us For Availability
4
Door Assembly Complete WPL 8182892 Contact Us For Availability
4
Side Panel, (LH) (Includes Illus. 5) WPL 8182833 Contact Us For Availability
4
Shaft, Hub WPL 8182822 Contact Us For Availability
5
Harness, Light WPL 8182901 Contact Us For Availability
5
Badge, Kitchen Aid (Not Serviceable) WPL ARI88349A2 Contact Us For Availability
5
Insulation WPL 8182832 Contact Us For Availability
5
Pad, Friction Inner (2) WPL 8182813 Contact Us For Availability
6
Enclosure, Light (Top) WPL 8182861 Contact Us For Availability
6
Hinge, Door WPL 8182856 Contact Us For Availability
6
Side Panel, (RH) (Includes Illus. 5) WPL 8182831 Contact Us For Availability
6
Washer, Back-Up WPL 8182823 Contact Us For Availability
7
WASHER WPL 8182937 Contact Us For Availability
7
Screw, Phillips WPL 8182929 Contact Us For Availability
7
Washer, Lock WPL 8182947 Contact Us For Availability
8
Screw, Torx WPL 8182966 Contact Us For Availability
8
Nut, Acorn WPL 8182965 Contact Us For Availability
8
Washer, Star WPL 8182941 Contact Us For Availability
8
Screw, Black (Socket Head) WPL 8182809 Contact Us For Availability
9
Magnet, Door Closure WPL 8182908 Contact Us For Availability
9
Seal, Door WPL 8182893 Contact Us For Availability
9
Locknut, Nylon WPL 8182955 Contact Us For Availability
9
Seal, Drum Rear (Includes Illus. 2) WPL 8182807 Contact Us For Availability
10
Fastener, Push-On WPL 8182949 Contact Us For Availability
10
Panel, Control (Includes Bevel) WPL 8182896 Contact Us For Availability
10
Magnet, Drum Rotation (Not Serviceable) WPL ARI88348A8 Contact Us For Availability
11
Cover, Electronic Box WPL 8182838 Contact Us For Availability
11
Harness, Temperature Sensor WPL 8182871 Contact Us For Availability
11
Support, Stiffener (Control Panel) WPL 8182897 Contact Us For Availability
11
Belt, Drum WPL 8182802 Contact Us For Availability
12
Nut, Keps WPL 8182984 Contact Us For Availability
12
Panel, Rear Bulkhead/Support WPL 8182898 Contact Us For Availability
13
Thermostat, Temperature Sensor WPL 8182868 Contact Us For Availability
13
User Interface WPL 8182895 Contact Us For Availability
13
Roller Assembly (Left Rear) WPL 8182886 Contact Us For Availability
14
Switch, Door Sensor WPL 8182839 Contact Us For Availability
14
Top, Lint Box WPL 8182877 Contact Us For Availability
14
Roller Assembly (Right Rear) WPL 8182885 Contact Us For Availability
15
SCREW WPL 8182931 Contact Us For Availability
15
Roller Assembly (Left/Front) WPL 8182843 Contact Us For Availability
16
Tape, Sponge WPL 8182835 Contact Us For Availability
16
Grommet, Large WPL 8182894 Contact Us For Availability
16
Washer, Flat WPL 8182944 Contact Us For Availability
17
Washer, Split/Lock WPL 8182940 Contact Us For Availability
17
WASHER WPL 8182946 Contact Us For Availability
17
Base Assembly WPL 8182824 Contact Us For Availability
17
Cover, Rear Access WPL 8182887 Contact Us For Availability
18
Nut, Hex WPL 8182932 Contact Us For Availability
18
Washer, Split/Lock WPL 8182945 Contact Us For Availability
18
Duct, Heater WPL 8182889 Contact Us For Availability
19
Nut, Keps WPL 8182948 Contact Us For Availability
19
Nut, Hex WPL 8182934 Contact Us For Availability
20
Screw, Ground WPL 8182803 Contact Us For Availability
20
Nut, Retainer (Tinnerman) WPL 8182950 Contact Us For Availability
20
Nut, Hex WPL 8182935 Contact Us For Availability
21
Pad, Sensor Strips WPL 8182846 Contact Us For Availability
21
Lint Box Body (Includes Illus. 22) WPL 8182876 Contact Us For Availability
21
Mat, Decorative WPL 8182905 Contact Us For Availability
21
Box, Electrical WPL 8182888 Contact Us For Availability
22
Electrode, Sensor WPL 8182845 Contact Us For Availability
22
Magnet (Not Serviceable) WPL ARI88350A1 Contact Us For Availability
23
SCREW WPL 8182954 Contact Us For Availability
23
Roller Assembly (Right/Front) WPL 8182842 Contact Us For Availability
23
Switch & Bracket, Lint Drawer WPL 8182878 Contact Us For Availability
23
Wipe, Stainless Steel WPL 8212510 Contact Us For Availability
24
Motor Assembly WPL 8182899 Contact Us For Availability
24
Bracket, Heater Box WPL 8182882 Contact Us For Availability
24
Housing, Blower WPL 8182874 Contact Us For Availability
24
Control Board WPL 8182840 Contact Us For Availability
25
Motor, Blower Assembly WPL 8182875 Contact Us For Availability
25
Front, Electrical Box WPL 8182841 Contact Us For Availability
25
Screw, Set WPL 8182952 Contact Us For Availability
26
Screw, Phillips WPL 8182928 Contact Us For Availability
26
GROMMET WPL 8182872 Contact Us For Availability
26
Pulley WPL 8182910 Contact Us For Availability
27
Washer, Star WPL 8182942 Contact Us For Availability
27
Plate, Blower Mount WPL 8182873 Contact Us For Availability
27
Base, Motor WPL 8182909 Contact Us For Availability
28
Thermostat, Hi-Limit WPL 8182881 Contact Us For Availability
28
CAPACITOR WPL 8182867 Contact Us For Availability
28
Panel, Rear WPL 8182828 Contact Us For Availability
28
BOLT WPL 8182951 Contact Us For Availability
29
Bracket, Capacitor WPL 8182870 Contact Us For Availability
29
Cover, Terminal WPL 8182829 Contact Us For Availability
29
Washer, Flat WPL 8182938 Contact Us For Availability
30
Washer, Flat WPL 8182953 Contact Us For Availability
30
Bolt, Shoulder WPL 8182927 Contact Us For Availability
30
Outlet, Blower Housing WPL 8182825 Contact Us For Availability
30
Harness, Main Control WPL 8182879 Contact Us For Availability
30
Harness, Main Power WPL 8182880 Contact Us For Availability
30
Harness, U/I Control Board WPL 8182890 Contact Us For Availability
30
Following Parts Not Illustrated WPL ARI88347A7 Contact Us For Availability
30
Washer, Lock WPL 8182939 Contact Us For Availability
31
Thermal Cut-Off (TCO) WPL 8182900 Contact Us For Availability
31
Nut, Hex WPL 8182933 Contact Us For Availability
32
Heater Box (Top & Left Side) WPL 8182883 Contact Us For Availability
36
Heater Box (Right Side) WPL 8182884 Contact Us For Availability
× ![]()
