Model Whirlpool KGRT600HAL3 GAS RANGE – Common Parts &amp; Diagrams

1

WP8053421 Whirlpool Oven Spark Module Backorder WPL WP8053421 $99.35

1

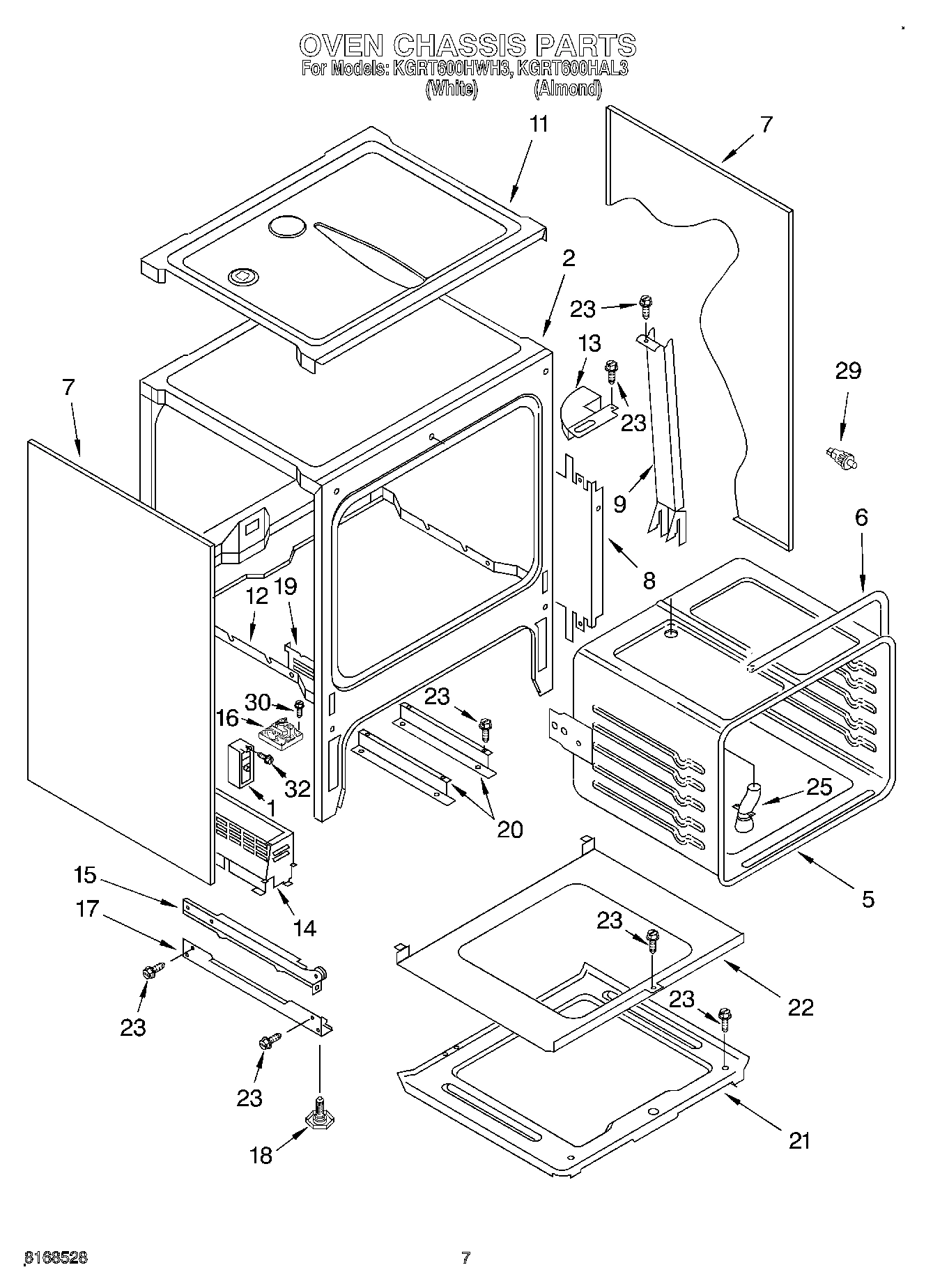

Back, Chassis WPL 9751051 Contact Us For Availability

1

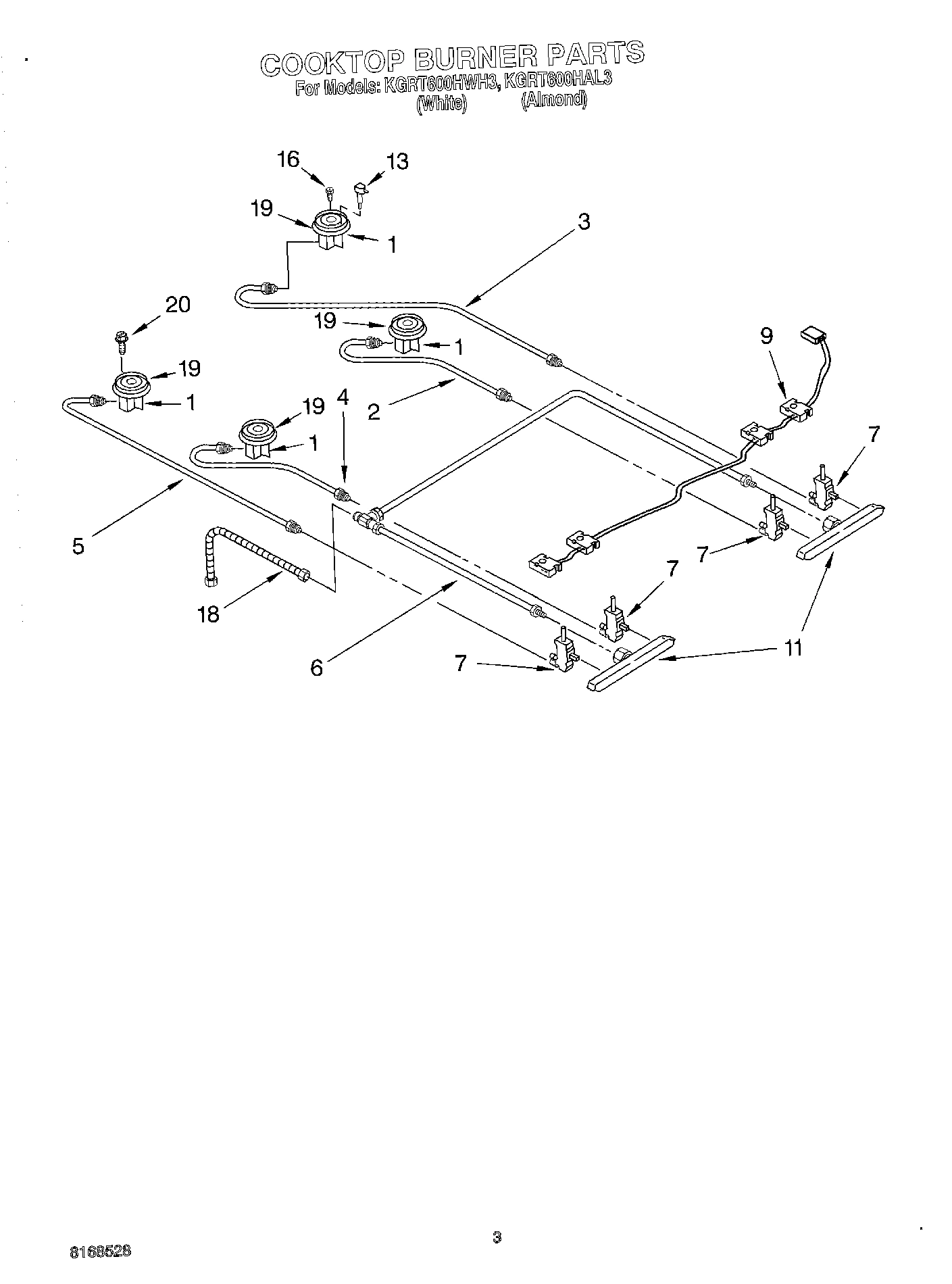

Burner Base W/Orifices (6K RF-LR) WPL 9754183 Contact Us For Availability

1

Burner Base W/Orifices (12K RR) WPL 9754189 Contact Us For Availability

1

Burner Base W/Orifices (14K LF) WPL 9754192 Contact Us For Availability

1

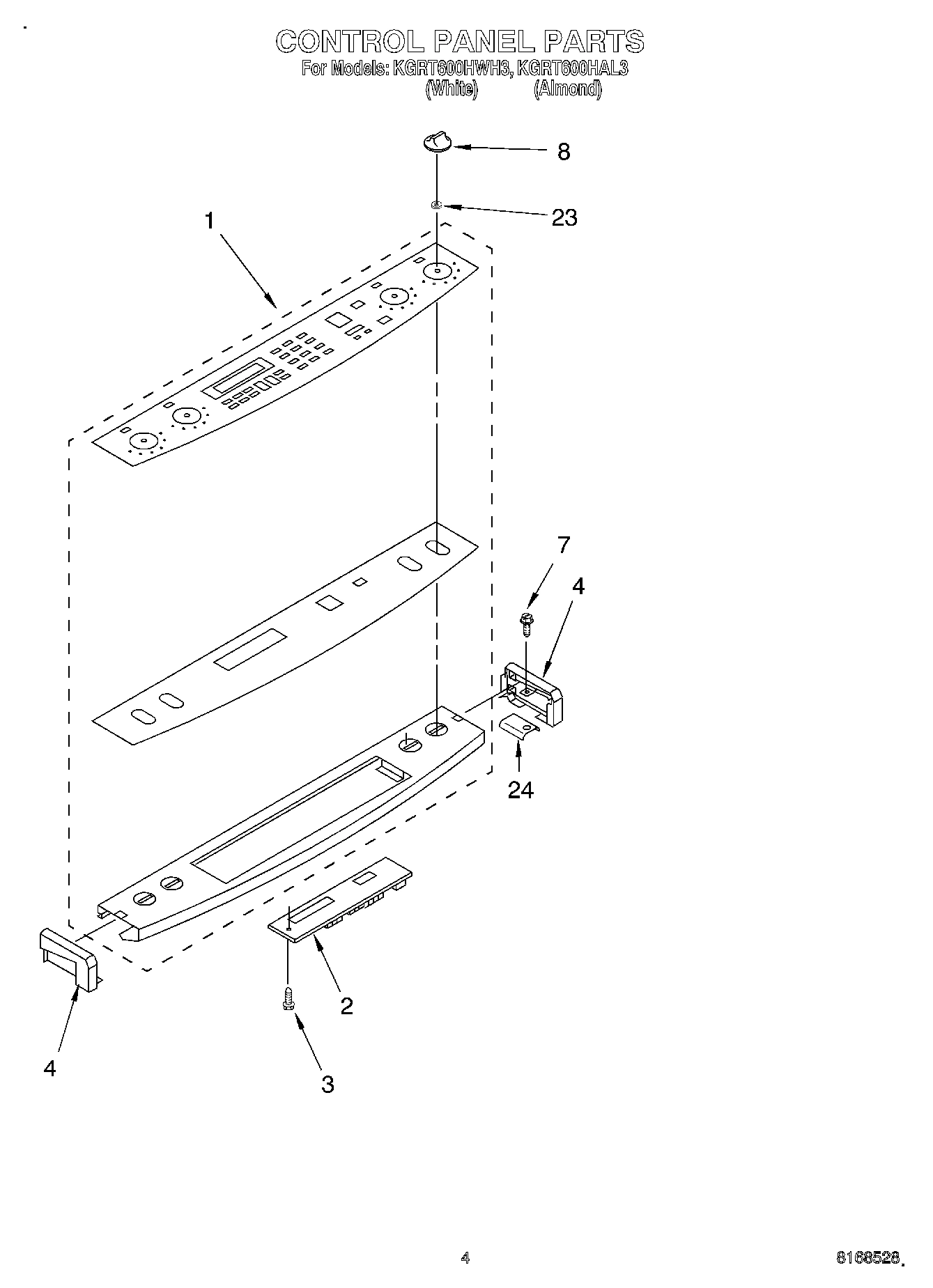

Console, Glass (Almond) WPL 9781972CT Contact Us For Availability

1

Console, Glass (White) WPL 9781972CW Contact Us For Availability

1

Shield, Oven (2) WPL 9752737 Contact Us For Availability

2

340184 Whirlpool Screw Backorder WPL 340184 $9.59

2

Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability

2

Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

2

Tubing, Burner (RF) WPL 9753610 Contact Us For Availability

2

Timer, Electronic WPL 9781981 Contact Us For Availability

2

Flame Shield, Bake WPL 9752738 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

3

Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability

3

Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability

3

Tubing, Burner (RR) WPL 9753611 Contact Us For Availability

3

Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability

3

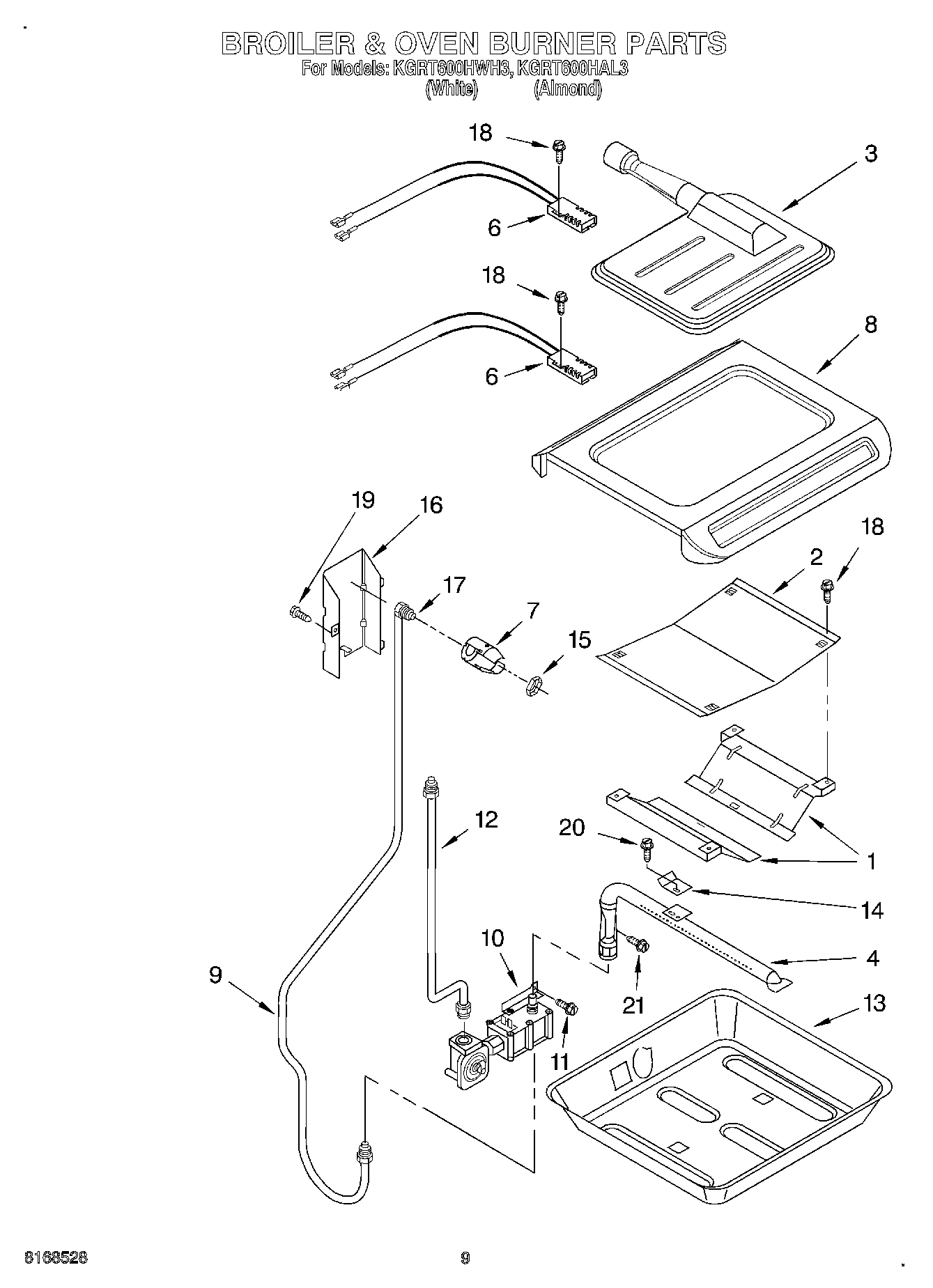

Burner, Broiler WPL 9752922 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

Screw, 10-16 x 3/8 WPL 423247 Contact Us For Availability

4

Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability

4

Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability

4

Tubing, Burner (LF) WPL 9753608 Contact Us For Availability

4

End Cap (Almond (Left)) WPL 9751279FT Contact Us For Availability

4

End Cap (White (Left)) WPL 9751279FW Contact Us For Availability

4

End Cap (Almond (Right)) WPL 9751280FT Contact Us For Availability

4

End Cap (White, Right) WPL 9751280FW Contact Us For Availability

5

Bracket, Lock WPL 9751418 Contact Us For Availability

5

Glass, Door (Almond) WPL 9781627PT Contact Us For Availability

5

Glass, Door (White) WPL 9781627PW Contact Us For Availability

5

Oven Liner WPL 9753340GM Contact Us For Availability

5

Tubing, Burner (LR) WPL 9753609 Contact Us For Availability

6

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Vent, Door (Almond) WPL 9753498GT Contact Us For Availability

6

Vent, Door (White) WPL 9753498GW Contact Us For Availability

6

Vent, Door (Seal, Door) WPL 9781490 Contact Us For Availability

6

Vent, Door (Gasket, Vent) WPL 9781659 Contact Us For Availability

6

Gasket, Oven WPL 3191649 Contact Us For Availability

6

Tubing, Manifold WPL 9752996 Contact Us For Availability

7

Valve, Burner (6K RF-LR Red Stem) WPL 9753045 Contact Us For Availability

7

Valve, Burner (14K LF Plain Stem) WPL 9753614 Contact Us For Availability

7

Oven Lock Assembly WPL 9751439 Contact Us For Availability

7

Oven, Side L or R (Almond) WPL 9781907PT Contact Us For Availability

7

Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability

7

Valve, Burner (Bolt, Gas Valve (4)) WPL 3185829 Contact Us For Availability

7

Valve, Burner (12K RR Black Stem) WPL 9753044 Contact Us For Availability

7

Bracket, Broil Shooter WPL 9752858 Contact Us For Availability

8

Knobs, Control (White) WPL 9751199FW Contact Us For Availability

8

Solenoid WPL 9751590 Contact Us For Availability

8

Handle, Door (Almond) WPL 9780523PT Contact Us For Availability

8

Handle, Door (White) WPL 9780523PW Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

8

Knobs, Control (Almond) WPL 9751199FT Contact Us For Availability

8

Pan, Oven Bottom WPL 9752736GM Contact Us For Availability

9

Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability

9

Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability

9

Gasket, Door Glass WPL 9781449 Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

9

Tubing, Broil WPL 9751173 Contact Us For Availability

10

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

10

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $118.92

10

Washer, No.10 Lock WPL 424238 Contact Us For Availability

Baffle, Glass WPL 9781592 Contact Us For Availability

Burner Box WPL 9752637 Contact Us For Availability

Manifold WPL 9753613 Contact Us For Availability

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Switch, Interlock WPL 9751763 Contact Us For Availability

Frame, Window WPL 9781602 Contact Us For Availability

Retainer, Insulation WPL 9752735 Contact Us For Availability

Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability

WP9754215 Whirlpool Surface Igniter In Stock WPL WP9754215 $26.47

Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability

Shield, Door WPL 9781586 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

Pan Support, Bake WPL 9752734 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

Nut (2) WPL 9750888 Contact Us For Availability

Support, Fan WPL 9751060 Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP9781593 Whirlpool Door Glass In Stock WPL WP9781593 $66.03

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 $95.75

WP9753928 Whirlpool Orifice Assembly Backorder WPL WP9753928 $32.56

WP9753929 Whirlpool Orifice Backorder WPL WP9753929 $29.55

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $34.72

WP9755177 Whirlpool Wind Gasket Backorder WPL WP9755177 $78.59

Motor, Fan WPL 9751020 Contact Us For Availability

Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Thermo-Disc WPL 341196 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

Orifice No.54 WPL 9752716 Contact Us For Availability

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Screw, 10-16 x 1 WPL 98884 Contact Us For Availability

Insulation WPL 9754006 Contact Us For Availability

Tubing, Flex WPL 9751854 Contact Us For Availability

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP9755428 Whirlpool Orifice Spud In Stock WPL WP9755428 $14.68

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Liner, Door WPL 9781600GM Contact Us For Availability

WPL 9751745 WPL 9751745 Contact Us For Availability

WPL 9752717 WPL 9752717 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9750376 WPL 9750376 Contact Us For Availability

WPL 9751868 WPL 9751868 Contact Us For Availability

WPL 9752769 WPL 9752769 Contact Us For Availability

WPL 9753101 WPL 9753101 Contact Us For Availability

WPL 9753808 WPL 9753808 Contact Us For Availability

WPL 9754004 WPL 9754004 Contact Us For Availability

WPL 9754005 WPL 9754005 Contact Us For Availability

WPL 9754011 WPL 9754011 Contact Us For Availability

WPL 9754036 WPL 9754036 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Hinge, Door L or R WPL 9750149 Contact Us For Availability

Head, Burner (14K - LF) WPL 9754181 Contact Us For Availability

20

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

20

Drawer & Roller WPL 9780583 Contact Us For Availability

20

Support Rail, Pan WPL 9781904 Contact Us For Availability

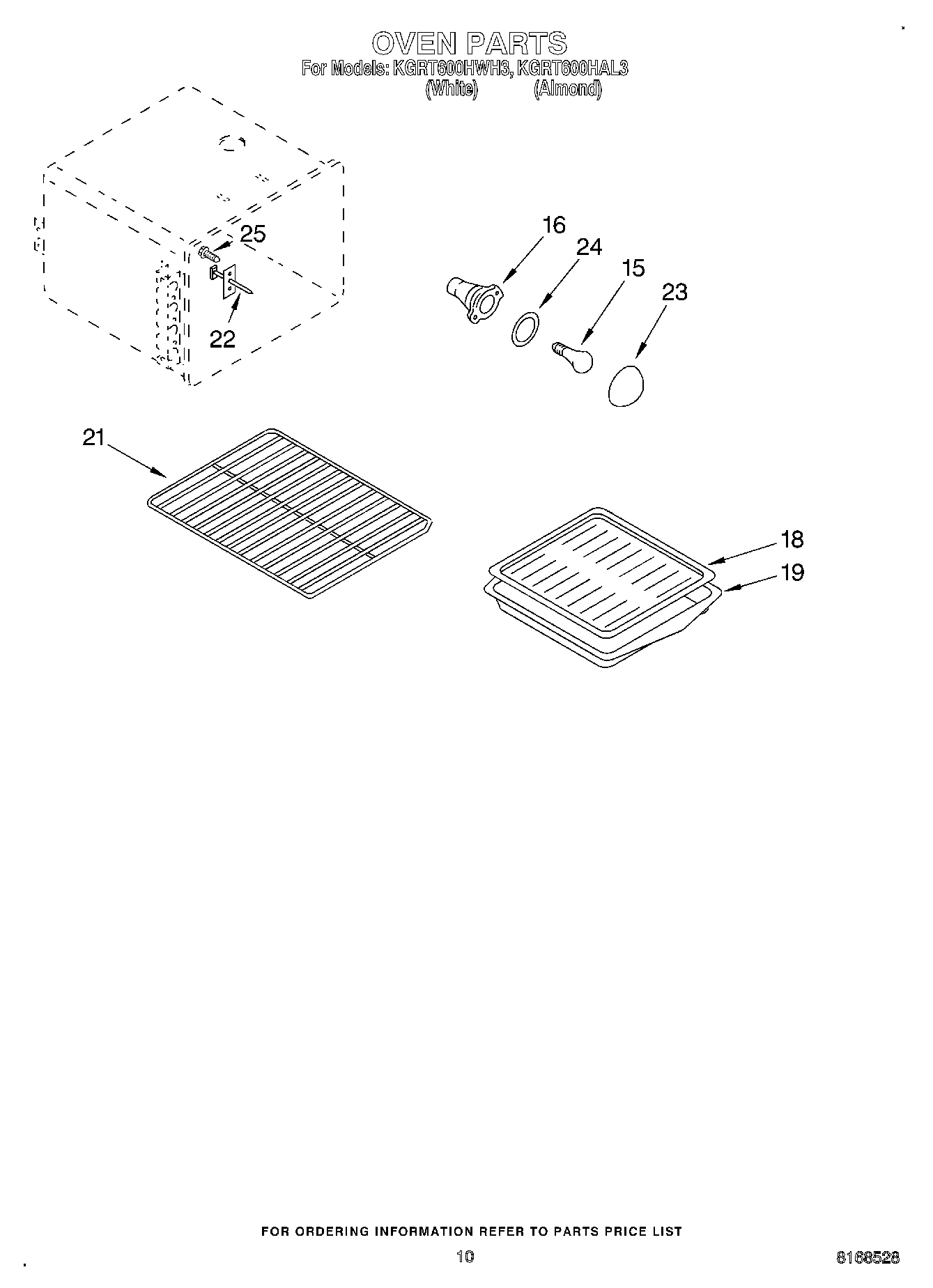

Rack, Standard (3) WPL 9750498 Contact Us For Availability

Bracket, Drawer WPL 9750169 Contact Us For Availability

Shield, Drawer WPL 9781025 Contact Us For Availability

Screw, 10-32 x 1/2 WPL 9781910 Contact Us For Availability

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

Sensor WPL 8053344 Contact Us For Availability

Thermostat, Fixed WPL 9752006 Contact Us For Availability

Plate, Reflectance WPL 9751641 Contact Us For Availability

23

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

23

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

23

Retainer, Door WPL 9750676 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

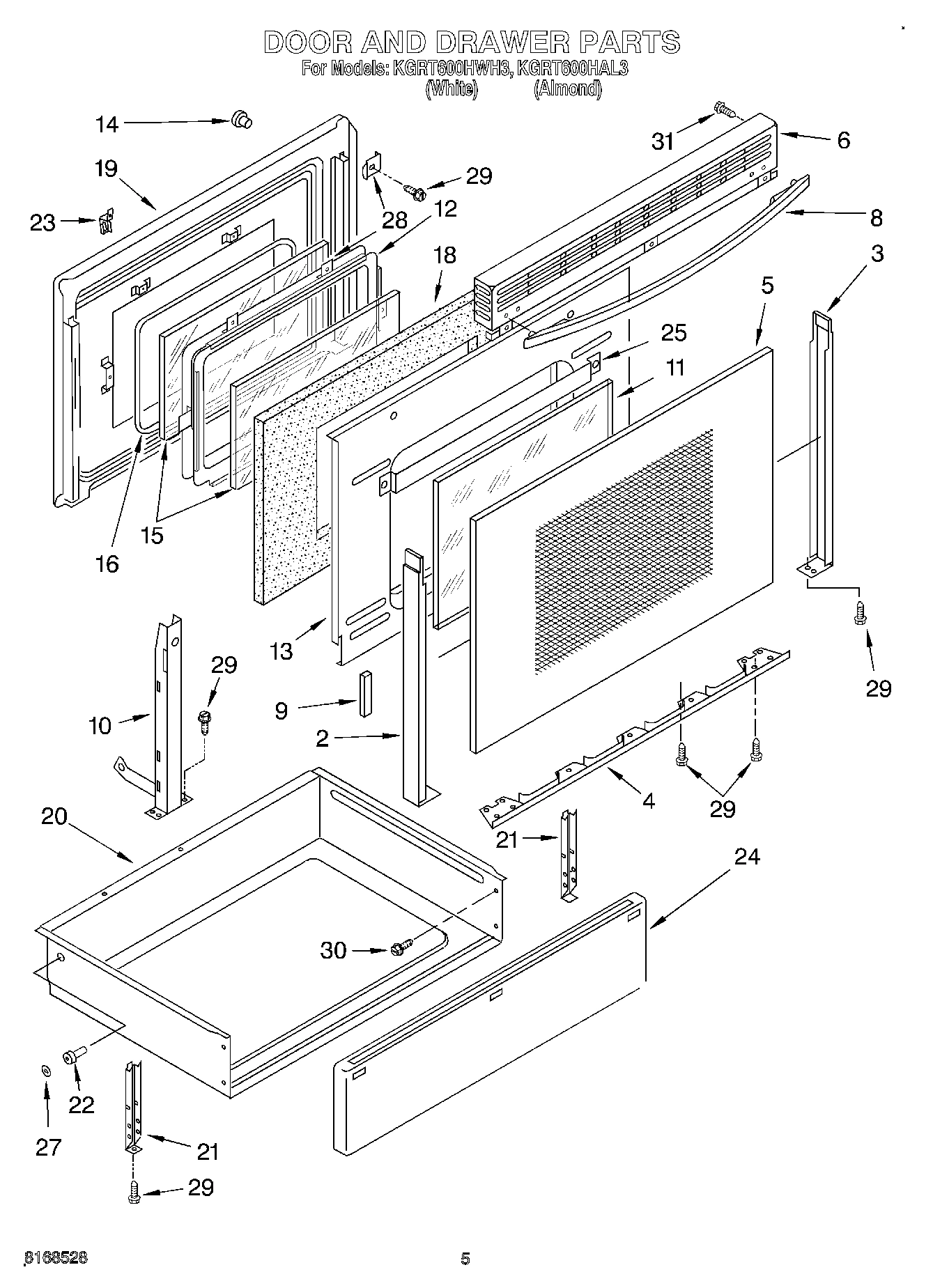

Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability

Front, Drawer (White) WPL 9750168PW Contact Us For Availability

Spacer, Bottom Trim WPL 9781488 Contact Us For Availability

25

Channel, Heat WPL 9750693 Contact Us For Availability

25

Vent Tube WPL 9751592 Contact Us For Availability

25

Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability

27

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

28

WPL 9753910CW WPL 9753910CW Contact Us For Availability

28

Retainer, Glass WPL 9781502 Contact Us For Availability

29

Door Switch WPL 9781581 Contact Us For Availability

30

Screw WPL 9780272 Contact Us For Availability

30

Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability

31

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $2.38

33

WPL 3149333 WPL 3149333 Contact Us For Availability

34

WPL 9751871 WPL 9751871 Contact Us For Availability

34

WPL 9754136 WPL 9754136 Contact Us For Availability
