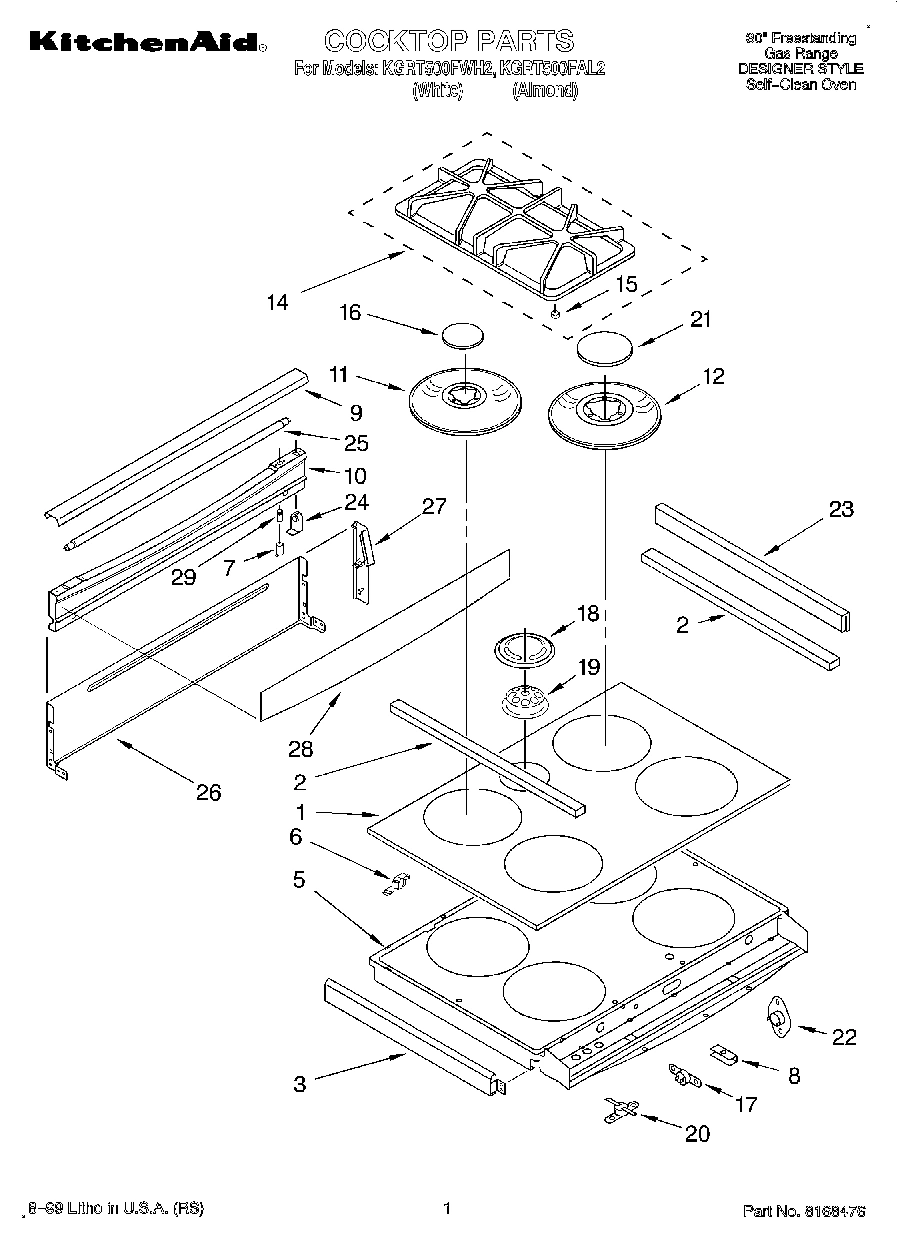

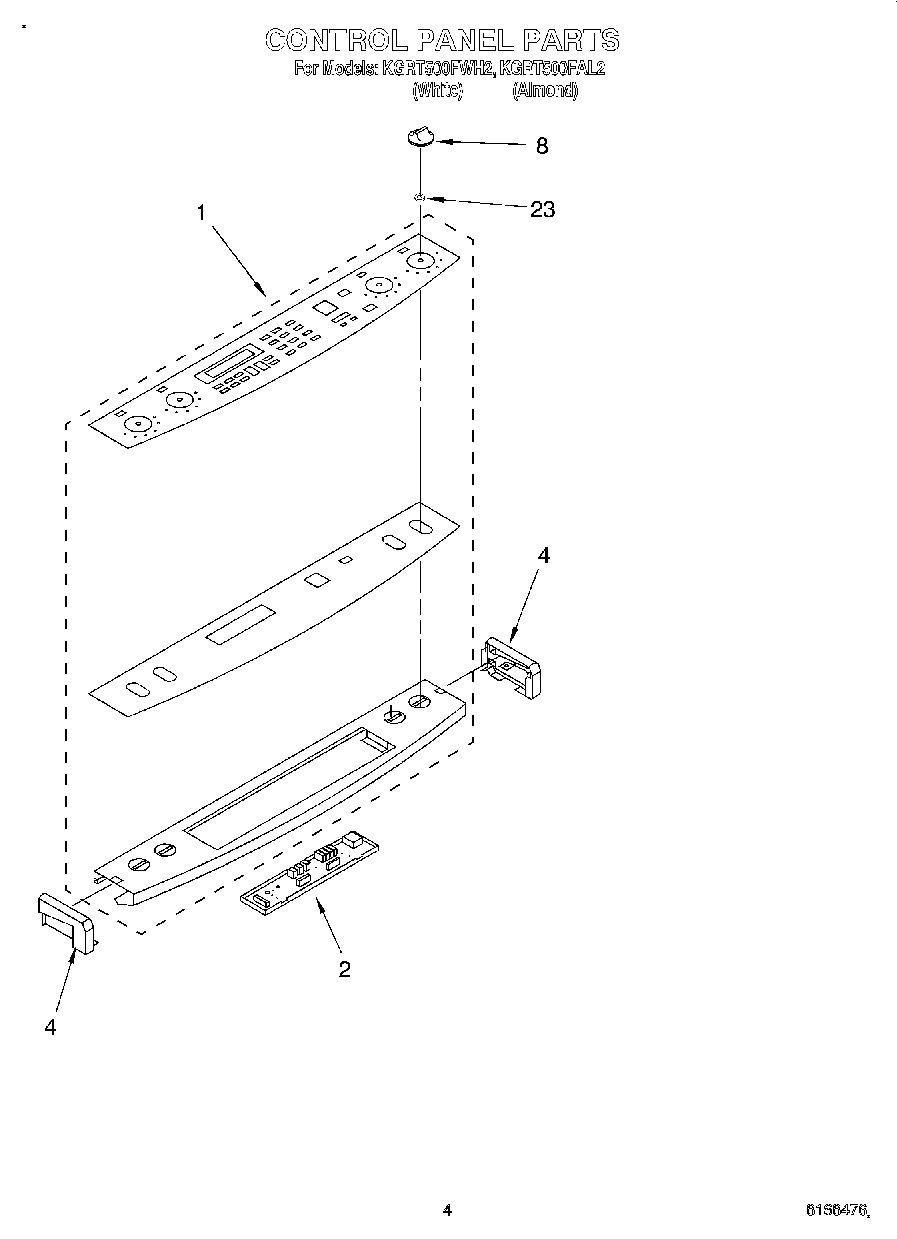

Model Whirlpool KGRT500FWH2 GAS RANGE – Common Parts &amp; Diagrams

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPL 3190208 WPL 3190208 Contact Us For Availability

WPL 9750376 WPL 9750376 Contact Us For Availability

WPL 9750984 WPL 9750984 Contact Us For Availability

WPL 9751750 WPL 9751750 Contact Us For Availability

WPL 9751868 WPL 9751868 Contact Us For Availability

WPL 9751875 WPL 9751875 Contact Us For Availability

WPL 9752769 WPL 9752769 Contact Us For Availability

WPL 9752770 WPL 9752770 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 9781638 WPL 9781638 Contact Us For Availability

WPL LIT3191638 WPL LIT3191638 Contact Us For Availability

WPL LIT9752397 WPL LIT9752397 Contact Us For Availability

WPL LIT9752399 WPL LIT9752399 Contact Us For Availability

WPL LIT9752669 WPL LIT9752669 Contact Us For Availability

WPL LIT9752686 WPL LIT9752686 Contact Us For Availability

WPL LIT9752775 WPL LIT9752775 Contact Us For Availability

WPL LIT9752969 WPL LIT9752969 Contact Us For Availability

WPL LIT9753312 WPL LIT9753312 Contact Us For Availability

1

340184 Whirlpool Screw Backorder WPL 340184 $9.59

1

WP4454392 Whirlpool Spark Module Backorder WPL WP4454392 $155.89

1

Console, Glass (White Mdl.) WPL 9751886 Contact Us For Availability

1

Console, Glass (Almond Mdl.) WPL 9751890 Contact Us For Availability

1

Burner, Cooktop (Large (2)) WPL 9752640 Contact Us For Availability

1

Burner, Cooktop (Small (2)) WPL 9752641 Contact Us For Availability

1

Retainer, Glass WPL 9750676 Contact Us For Availability

1

Shield, Oven (2) WPL 9752737 Contact Us For Availability

1

Back, Chassis WPL 9751051 Contact Us For Availability

2

WP9780939 Whirlpool Cooktop Gasket Backorder WPL WP9780939 $28.80

2

Timer, Electronic WPL 3191107 Contact Us For Availability

2

Screw, (2) WPL 9780271 Contact Us For Availability

2

Tubing, Burner (RF) WPL 9752649 Contact Us For Availability

2

Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability

2

Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability

2

Flame Shield, Bake WPL 9752738 Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

3

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

3

Tubing, Burner (RR) WPL 9752650 Contact Us For Availability

3

Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability

3

Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability

3

Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability

3

Burner, Broiler WPL 9752922 Contact Us For Availability

3

Screw (2) WPL 423247 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

End Cap (Left Hand) (Almond) WPL 9751279FT Contact Us For Availability

4

End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability

4

End Cap Right Hand (Almond) WPL 9751280FT Contact Us For Availability

4

End Cap (White, Right) WPL 9751280FW Contact Us For Availability

4

Tubing, Burner (LF) WPL 9752647 Contact Us For Availability

4

Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability

4

Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability

5

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

5

Tubing, Burner (LR) WPL 9752648 Contact Us For Availability

5

Glass, Door (Almond) WPL 9781784PT Contact Us For Availability

5

Glass, Door (White) WPL 9781784PW Contact Us For Availability

5

Oven Liner WPL 9753340GM Contact Us For Availability

5

Bracket, Lock WPL 9751418 Contact Us For Availability

6

Tubing, Manifold WPL 9752996 Contact Us For Availability

6

Vent, Door (Almond) WPL 9753498GT Contact Us For Availability

6

Vent, Door (White) WPL 9753498GW Contact Us For Availability

6

Vent, Door (Seal, Door) WPL 9781490 Contact Us For Availability

6

Vent, Door (Gasket, Vent) WPL 9781659 Contact Us For Availability

6

Gasket, Oven WPL 3191649 Contact Us For Availability

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

7

Valve, Burner (Small (2)) WPL 9751333 Contact Us For Availability

7

Bracket, Broiler WPL 9752858 Contact Us For Availability

7

Oven, Side L or R (Almond) WPL 9781907PT Contact Us For Availability

7

Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability

7

Oven Lock Assembly WPL 9751439 Contact Us For Availability

8

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $2.38

8

Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability

8

Knobs, Control (Almond Mdl.) WPL 9751199FT Contact Us For Availability

8

Valve, Burner (Bolt, Gas Valve (4)) WPL 3185829 Contact Us For Availability

8

Valve, Burner (Large (2)) WPL 9751334 Contact Us For Availability

8

Handle, Door (Almond) WPL 9780523PT Contact Us For Availability

8

Handle, Door (White) WPL 9780523PW Contact Us For Availability

8

Pan, Oven Bottom WPL 9752736GM Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

8

Screw (2) WPL 422222 Contact Us For Availability

8

Washer WPL 424238 Contact Us For Availability

8

Solenoid WPL 9751590 Contact Us For Availability

9

Switch, Ignitor (4) WPL 9751325 Contact Us For Availability

9

Gasket, Door Glass WPL 9781449 Contact Us For Availability

9

Tubing, Broil WPL 9751173 Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $118.92

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Manifold (2) WPL 9753399 Contact Us For Availability

Screw, No.8-32 x 3/8 WPL 9780269 Contact Us For Availability

Burner Box WPL 9752637 Contact Us For Availability

Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability

Frame, Window WPL 9781601 Contact Us For Availability

Tubing, Valve WPL 9781015 Contact Us For Availability

Retainer, Insulation WPL 9752735 Contact Us For Availability

Screw, (2) WPL 9750887 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Switch, Interlock WPL 9751763 Contact Us For Availability

Electrode WPL 3185804 Contact Us For Availability

Speed Nut WPL 9753497 Contact Us For Availability

Shield Door WPL 9781588 Contact Us For Availability

Pan Support, Bake WPL 9752734 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

Support, Fan WPL 9751060 Contact Us For Availability

WP9781654 Whirlpool Door Glass Backorder WPL WP9781654 $55.35

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability

Screw (2) 10 X 3/8 WPL 9780270 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

Orifice, Small No.56 WPL 3185947 Contact Us For Availability

Orifice, Large No.52 WPL 3185948 Contact Us For Availability

Seal, Glass WPL 9781591 Contact Us For Availability

Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability

Motor, Fan WPL 9751020 Contact Us For Availability

Screw, (3) No.8 x 1`` WPL 9751808 Contact Us For Availability

Ballast, Lamp WPL 9780881 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Thermo-Disc WPL 341196 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 9751745 WPL 9751745 Contact Us For Availability

WPL 9752717 WPL 9752717 Contact Us For Availability

Orifice No.54 WPL 9752716 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9750221 WPL 9750221 Contact Us For Availability

WPL 9751164 WPL 9751164 Contact Us For Availability

WPL 9751323 WPL 9751323 Contact Us For Availability

WPL 9751844 WPL 9751844 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 98884 WPL 98884 Contact Us For Availability

18

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

18

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

18

Tubing, Flex WPL 9751854 Contact Us For Availability

Bracket, Manifold WPL 9781457 Contact Us For Availability

Liner, Door WPL 9781599GM Contact Us For Availability

Screw, (2) 10 x 1/2 WPL 9780272 Contact Us For Availability

Hinge, Door L or R WPL 9750149 Contact Us For Availability

20

Bracket, Burner WPL 9752627 Contact Us For Availability

20

Drawer & Roller WPL 9780583 Contact Us For Availability

20

Support Rail, Pan WPL 9781904 Contact Us For Availability

21

Bracket, Drawer WPL 9750169 Contact Us For Availability

21

Shield, Drawer WPL 9781025 Contact Us For Availability

22

Thermostat, Fixed WPL 9752006 Contact Us For Availability

22

Plate, Reflectance WPL 9751641 Contact Us For Availability

23

Washer, Console (4) (White Mdl.) WPL 9751450 Contact Us For Availability

23

Washer, Console (4) (Almond Mdl.) WPL 9751451 Contact Us For Availability

Sensor, Oven WPL 8053344 Contact Us For Availability

Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability

Front, Drawer (White) WPL 9750168PW Contact Us For Availability

Screw WPL 9781509 Contact Us For Availability

25

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

25

WP95292 Whirlpool Fluorescent Light Bulb Backorder WPL WP95292 $48.64

25

Vent Tube WPL 9751592 Contact Us For Availability

26

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

26

Screw (4) 10 x 1/2 WPL 3149333 Contact Us For Availability

26

Cover, Backsplash WPL 9751664 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Endcap, Backsplash (Almond (Left)) WPL 9781884FT Contact Us For Availability

Endcap, Backsplash (White, Left) WPL 9781884FW Contact Us For Availability

Endcap, Backsplash (Almond ( WPL 9781885FT Contact Us For Availability

WPL 9781885FW WPL 9781885FW Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Rack, Standard (2) WPL 9750498 Contact Us For Availability

WPL 9781154 WPL 9781154 Contact Us For Availability

Retainer, Glass (8) WPL 9781502 Contact Us For Availability

29

Door Switch WPL 9781581 Contact Us For Availability

29

WPL 9781118 WPL 9781118 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48
