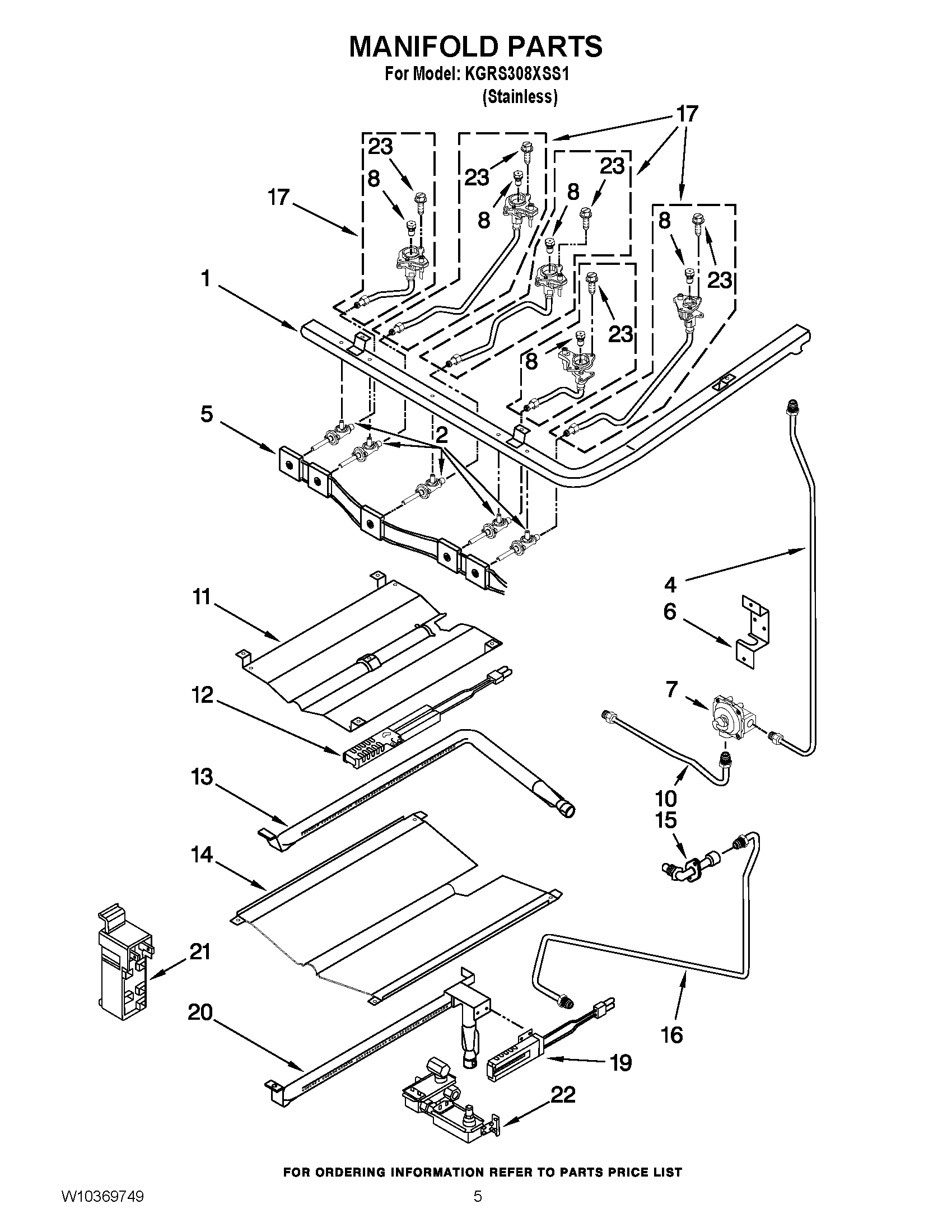

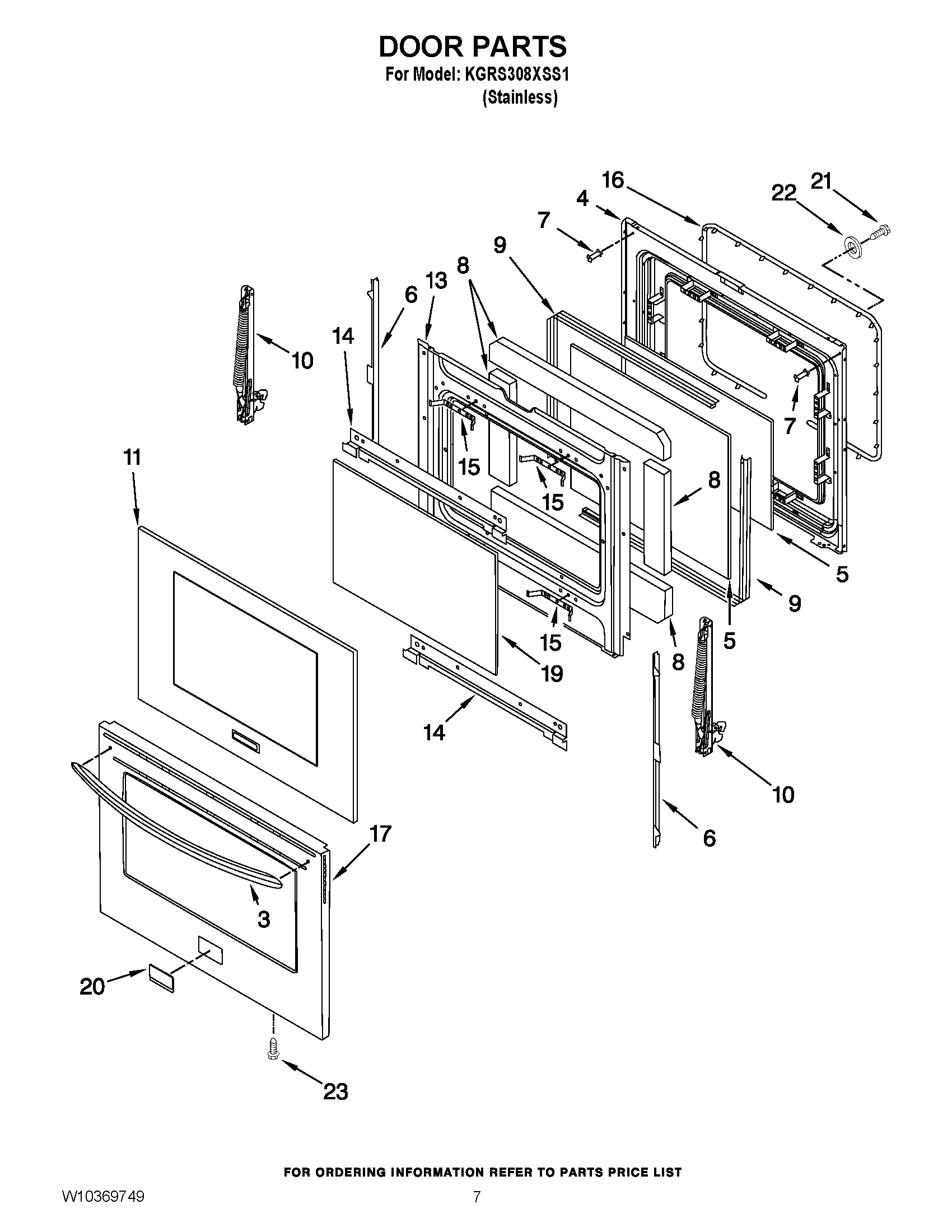

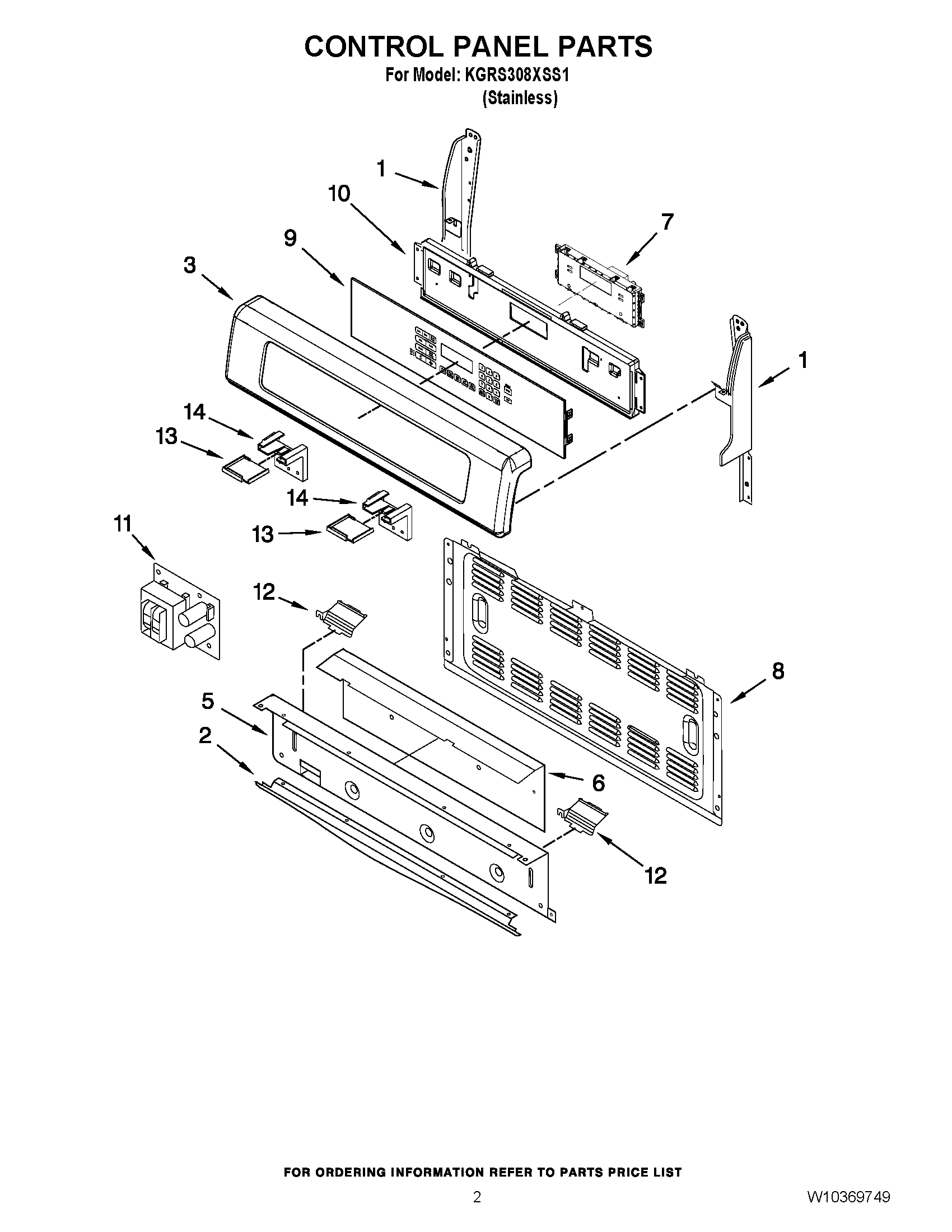

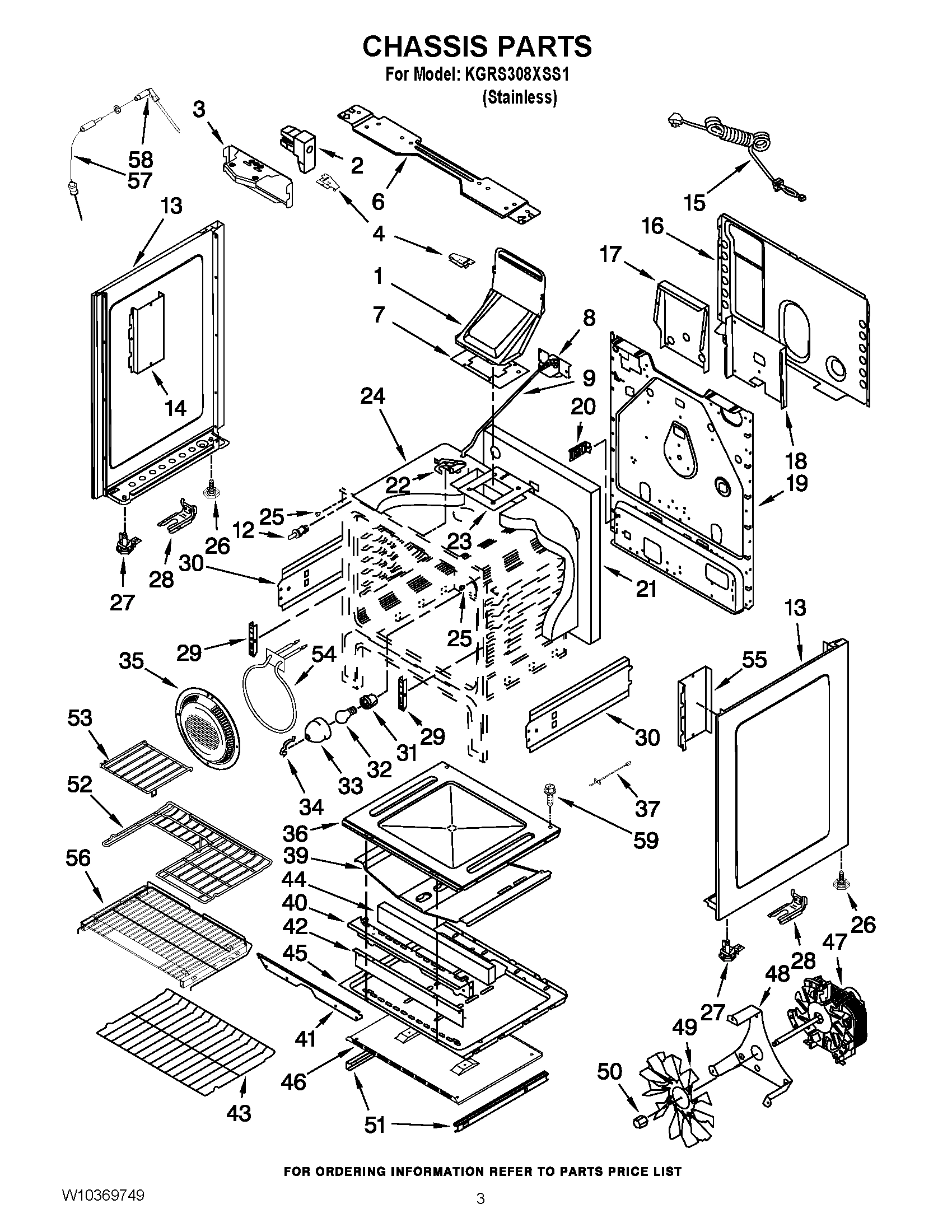

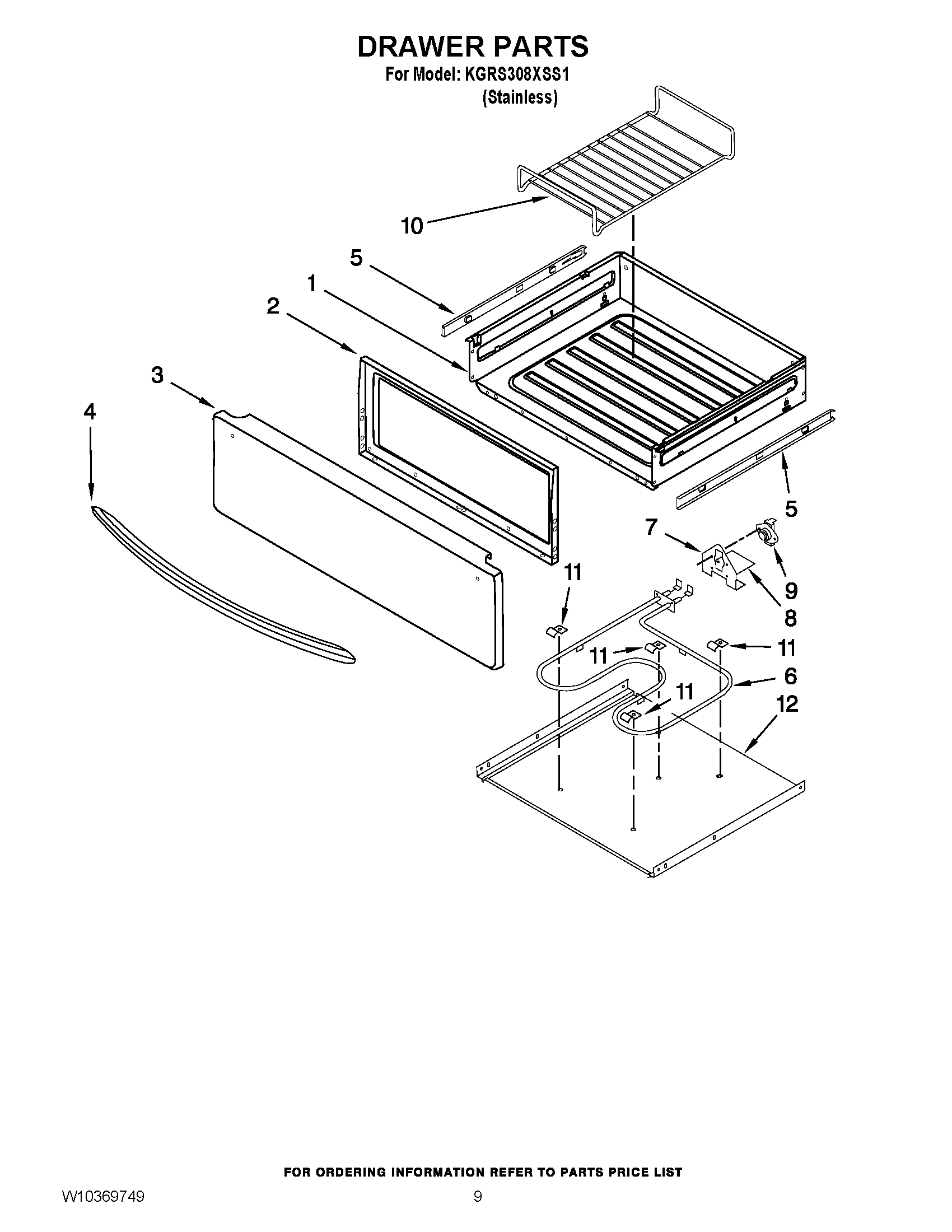

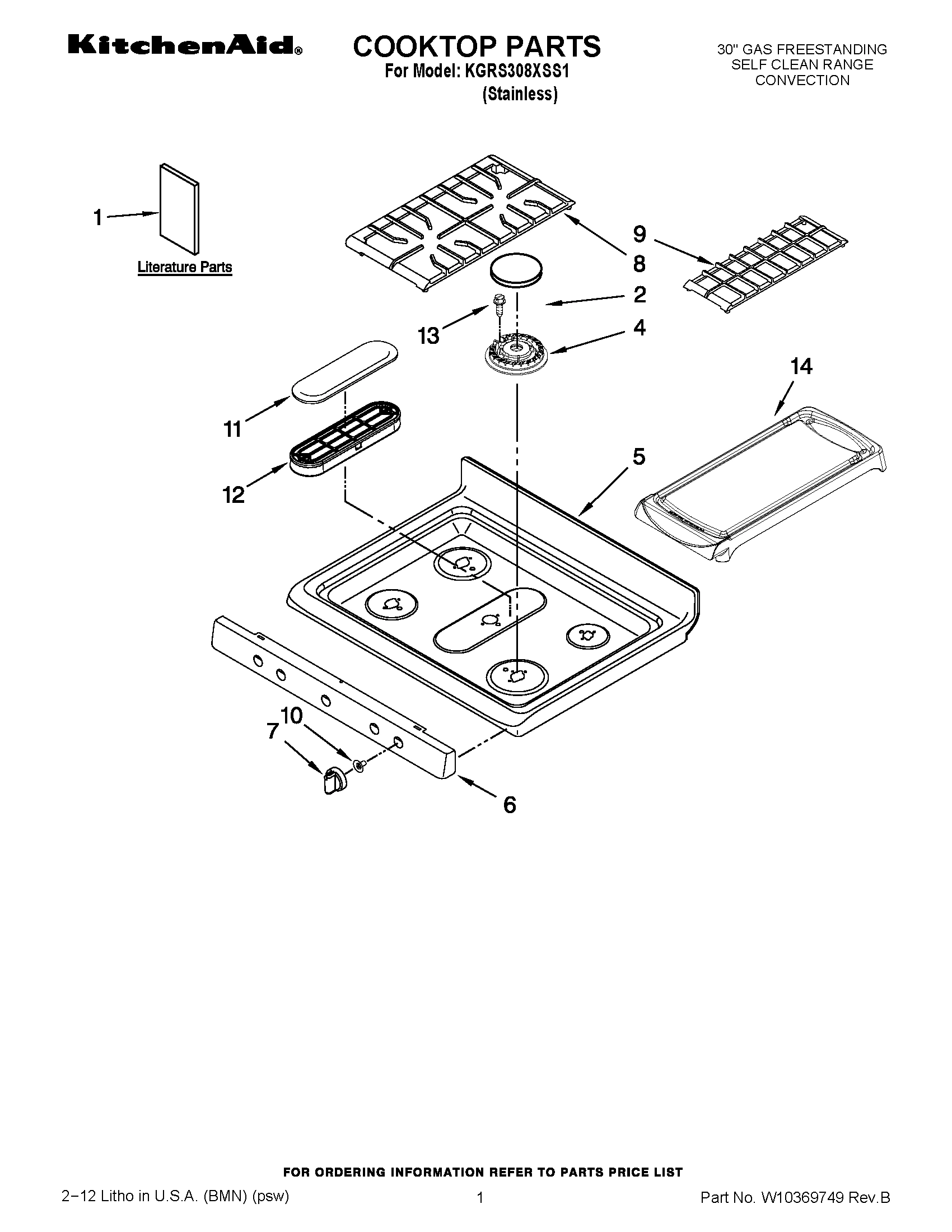

Model Whirlpool KGRS308XSS1 30`` GAS FREESTANDING SELF CLEAN RANGE CONVECTION – Common Parts &amp; Diagrams

1

OVEN FLUE WPL W10347158 Contact Us For Availability

1

ENDCAP, RIGHT HAND (BLACK) WPL W10340735 Contact Us For Availability

1

ENDCAP, LEFT HAND (BLACK) WPL W10340740 Contact Us For Availability

2

W10315171 Whirlpool Burner Valve Backorder WPL W10315171 $127.20

2

W10315175 Whirlpool Burner Valve Backorder WPL W10315175 $131.77

2

WPW10347764 Whirlpool Burner Cap Backorder WPL WPW10347764 $73.58

2

VALVE, BURNER (12/14K (LR) WPL W10315168 Contact Us For Availability

2

CLIP, SIDE WPL W10346958 Contact Us For Availability

2

HEAT SHIELD,VISOR (BLACK) WPL W10340823 Contact Us For Availability

2

VALVE, BURNER (14/17K (RF) WPL W10355923 Contact Us For Availability

2

VALVE, BURNER (CENTER) WPL W10361221 Contact Us For Availability

3

BRACKET, SUPPORT OVEN FRONT WPL W10357267 Contact Us For Availability

3

PANEL, BACKGUARD (STAINLESS) WPL W10356237 Contact Us For Availability

3

HANDLE, DOOR (S.STEEL) WPL W10350605 Contact Us For Availability

4

W10345845 Whirlpool Burner Head Backorder WPL W10345845 $47.89

4

BURNER (9.5K(LF & CENTER) WPL W10345848 Contact Us For Availability

4

BURNER (5K (RR) WPL W10345846 Contact Us For Availability

4

BRACKET, LOCKDOWN (RH) WPL W10369888 Contact Us For Availability

4

BRACKET, LOCKDOWN (LH) WPL W10369890 Contact Us For Availability

4

TUBING, GAS WPL W10346002 Contact Us For Availability

4

LINER, DOOR WPL W10347855 Contact Us For Availability

5

HARNESS, IGNITER INCLUDES SWITCHES WPL W10345838 Contact Us For Availability

5

HEAT SHIELD WPL W10340844 Contact Us For Availability

5

GLASS, INNER WPL W10347853 Contact Us For Availability

6

PANEL, MANIFOLD (STAINLESS) WPL W10369983 Contact Us For Availability

6

BRACKET, SUPPORT CHASSIS WPL W10347003 Contact Us For Availability

6

REAR COVER WPL W10340724 Contact Us For Availability

6

BRACKET, REGULATOR WPL W10346033 Contact Us For Availability

6

BRACKET, GLASS (STAINLESS MODEL ONLY) WPL W10352006 Contact Us For Availability

7

SPACER, DOOR HANDLE STAINLESS MODEL ONLY) WPL W10350610 Contact Us For Availability

7

KNOB, CONTROL STAINLESS (4) WPL W10351694 Contact Us For Availability

7

KNOB, CONTROL STAINLESS (1) WPL W10351695 Contact Us For Availability

7

GASKET, FLUE WPL W10347008 Contact Us For Availability

7

CONTROL WPL W10356238 Contact Us For Availability

7

REGULATOR, WPL W10346004 Contact Us For Availability

8

W10346170 Whirlpool Orifice Backorder WPL W10346170 $39.36

8

WPW10350466 Whirlpool Latch Motor Backorder WPL WPW10350466 $193.78

8

WPW10356900 Whirlpool Orifice Assembly Backorder WPL WPW10356900 $113.24

8

GRATE, BURNER BLACK, SIDE WPL W10347694 Contact Us For Availability

8

COVER, MAIN WIRE WPL W10315160 Contact Us For Availability

8

ORIFICE (5K (RR) WPL W10346165 Contact Us For Availability

8

ORIFICE (4K (LR)) WPL W10356899 Contact Us For Availability

8

INSULATION, DOOR WPL W10347852 Contact Us For Availability

9

WPW10361694 Whirlpool Control Panel Backorder WPL WPW10361694 $453.43

9

GRATE, BURNER BLACK, CENTER WPL W10347695 Contact Us For Availability

9

ROD-LATCH WPL W10347435 Contact Us For Availability

9

FRAME, DOOR GLASS WPL W10348012 Contact Us For Availability

SHIELD, HEAT-KNOB (STAINLESS MODEL ONLY) WPL W10351722 Contact Us For Availability

SUPPORT, CONTROL WPL W10356231 Contact Us For Availability

TUBE, VALVE TO REGULATOR WPL W10346034 Contact Us For Availability

HINGE, DOOR (STAINLESS) WPL W10352004 Contact Us For Availability

WPW10355192 Whirlpool Electronic Control Boar In Stock WPL WPW10355192 $122.39

CAP, BURNER BLACK-OVAL WPL W10356126 Contact Us For Availability

BAFFLE, BROIL BURNER WPL W10346068 Contact Us For Availability

GLASS, OUTER DOOR (STAINLESS STEEL) WPL W10351948 Contact Us For Availability

W11084521 Whirlpool Range Igniter Backorder WPL W11084521 $211.55

BURNER, OVAL WPL W10355925 Contact Us For Availability

SWITCH, OVEN LIGHT WPL W10346267 Contact Us For Availability

BRACKET, MOUNT WPL W10355162 Contact Us For Availability

W10346063 Whirlpool Burner - Broiler Backorder WPL W10346063 $179.66

SCREW, BURNER HEAD WPL W10345998 Contact Us For Availability

SIDE PANEL (BLACK, RH) WPL W10346237 Contact Us For Availability

SIDE PANEL (BLACK, LH) WPL W10346238 Contact Us For Availability

BRACKET, MOUNT WPL W10355148 Contact Us For Availability

RETAINER, SHIELD-WOOL WPL W10347850 Contact Us For Availability

GRIDDLE WPL W10356128 Contact Us For Availability

SHIELD, SIDE RH WPL W10347457 Contact Us For Availability

BRACKET, SUPPORT WPL W10356243 Contact Us For Availability

BAFFLE, OVEN BURNER WPL W10346057 Contact Us For Availability

BRACKET, AIRWASH GLASS WPL W10348015 Contact Us For Availability

15

CORD, POWER WPL W10347248 Contact Us For Availability

15

ELBOW, FITTING WPL W10346064 Contact Us For Availability

15

BRACKET, GLASS SPACER-DOOR GLASS (STAINLESS M WPL W10350617 Contact Us For Availability

16

SHIELD, REAR WALL WPL W10347007 Contact Us For Availability

16

TUBE, VALVE TO MIXER WPL W10346062 Contact Us For Availability

16

SEAL, DOOR WPL W10348010 Contact Us For Availability

WPW10345919 Whirlpool Orifice Holder Backorder WPL WPW10345919 $63.89

SHIELD, FLUE WPL W10347289 Contact Us For Availability

IGNITOR/ORIFICE ASSEMBLY (5K (RR) WPL W10345910 Contact Us For Availability

IGNITOR/ORIFICE ASSEMBLY (9.5K (LF) WPL W10345917 Contact Us For Availability

IGNITOR/ORIFICE ASSEMBLY (18K (RF) WPL W10355926 Contact Us For Availability

IGNITOR/ORIFICE ASSEMBLY (14K (LR) WPL W10356898 Contact Us For Availability

DOOR PANEL (STAINLESS MODEL ONLY) WPL W10362108 Contact Us For Availability

18

SHIELD, HEAT WPL W10347288 Contact Us For Availability

19

GLASS, DOOR INNER WPL W10348011 Contact Us For Availability

19

COVER, REAR MAIN WPL W10346230 Contact Us For Availability

19

IGNITOR, OVEN BURNER WPL W10346130 Contact Us For Availability

20

W10346052 Whirlpool Range Burner Backorder WPL W10346052 $177.88

20

W10852683 Whirlpool Nameplate Backorder WPL W10852683 $78.45

20

BRACKET, HARNESS WPL W10347323 Contact Us For Availability

21

W11084522 Whirlpool Spark Module Backorder WPL W11084522 $171.56

21

SCREW, DOOR WPL W10370041 Contact Us For Availability

21

INSULATION, OVEN BACK WPL W10347310 Contact Us For Availability

22

LATCH, OVEN DOOR WPL W10346955 Contact Us For Availability

22

VALVE, SAFETY WPL W10346047 Contact Us For Availability

22

WASHER, DOOR WPL W10370042 Contact Us For Availability

23

SCREW, DOOR PANEL WPL W10370043 Contact Us For Availability

23

BRACE, OVEN TOP WPL W10346234 Contact Us For Availability

23

SCREW, IGNITOR/ORIFICE WPL W10346140 Contact Us For Availability

24

INSULATION, OVEN WRAPPER WPL W10347308 Contact Us For Availability

25

SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability

26

FOOT-LEVEL REAR PLASTIC WPL W10346263 Contact Us For Availability

27

FOOT-LEVEL FRONT METAL WPL W10346264 Contact Us For Availability

28

W10544996 Whirlpool Anchor Tip Backorder WPL W10544996 $58.14

29

BRACKET, HINGE WPL W10347318 Contact Us For Availability

30

SHIELD, SIDE (RH) WPL W10356076 Contact Us For Availability

30

SHIELD, SIDE (LH) WPL W10356077 Contact Us For Availability

31

SOCKET, LIGHT WPL W10346268 Contact Us For Availability

32

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

LENS, OVEN LIGHT WPL W10346874 Contact Us For Availability

34

RETAINER, LENS WPL W10346877 Contact Us For Availability

35

COVER, FAN WPL W10347448 Contact Us For Availability

36

BOTTOM, OVEN WPL W10346266 Contact Us For Availability

37

SENSOR, OVEN WPL W10347247 Contact Us For Availability

39

BAFFLE, BAKE BURNER WPL W10347314 Contact Us For Availability

40

SHIELD, FRONT BURNER WPL W10347441 Contact Us For Availability

41

BRACKET, AIR DAM WPL W10347661 Contact Us For Availability

42

SHIELD-MAIN FRONT WPL W10347440 Contact Us For Availability

43

RACK, OVEN WPL W10346265 Contact Us For Availability

44

INSULATION, MAIN FRONT WPL W10359189 Contact Us For Availability

45

SHIELD, WOOL LOWER WPL W10347271 Contact Us For Availability

46

SHIELD, HEAT LOWER WPL W10356075 Contact Us For Availability

47

WPW10347449 Whirlpool Fan Motor Backorder WPL WPW10347449 $148.90

48

BRACKET, MOTOR MOUNT WPL W10347442 Contact Us For Availability

49

WPW10355276 Whirlpool Appliance Fan Blade Backorder WPL WPW10355276 $45.07

50

NUT, FAN BLADE WPL W10347453 Contact Us For Availability

51

GLIDE, OUTER FOR RH & LH) WPL W10355274 Contact Us For Availability

52

RACK, HALF-OVEN WPL W10355045 Contact Us For Availability

53

RACK, HALF-INSERT WPL W10355043 Contact Us For Availability

54

ELEMENT, CONVECT WPL W10354972 Contact Us For Availability

55

SHIELD, SIDE LH WPL W10356912 Contact Us For Availability

56

RACK, SLIDE WPL W10355218 Contact Us For Availability

57

PROBE, MEAT WPL W10355210 Contact Us For Availability

58

RECEPTACLE, PROBE WPL W10355238 Contact Us For Availability

59

SCREW, OVEN BOTTOM WPL W10347275 Contact Us For Availability

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

HARNS-WIRE Backorder WPL W10356915 $183.66

SPUDS, LP GAS (KIT OF 5) WPL W10356903 Contact Us For Availability

BRACKET, SUPPORT SPARK MODULE WPL W10345844 Contact Us For Availability

COVER, BROIL IGNITOR WPL W10346138 Contact Us For Availability

HARNESS, IGNITOR WPL W10346229 Contact Us For Availability

HARNESS-WIRING WARM BASE WPL W10355283 Contact Us For Availability
