Model Whirlpool KGRS206XBL0 30`` GAS FREESTANDING SELF CLEAN RANGE CONVECTION – Common Parts & Diagrams

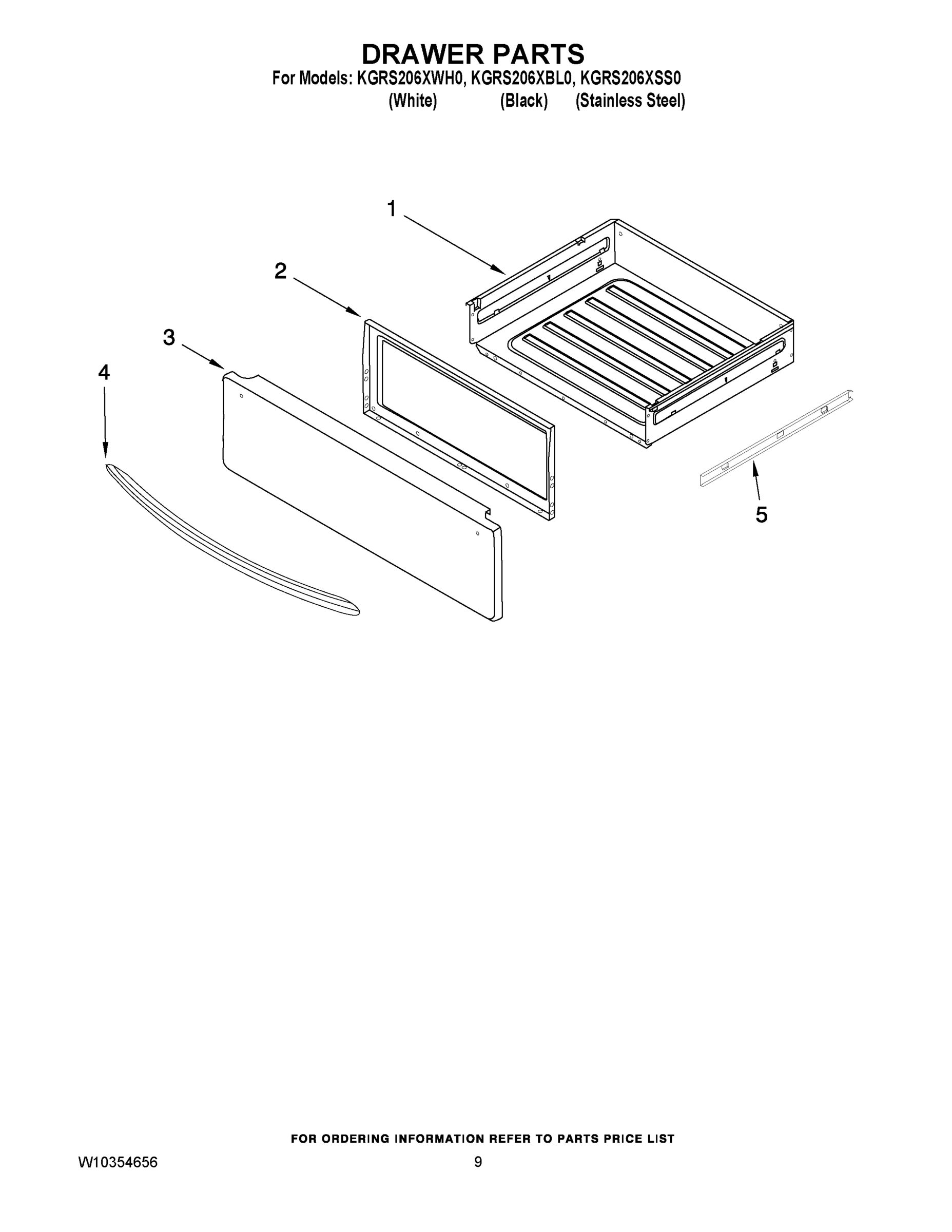

06 - DRAWER PARTS

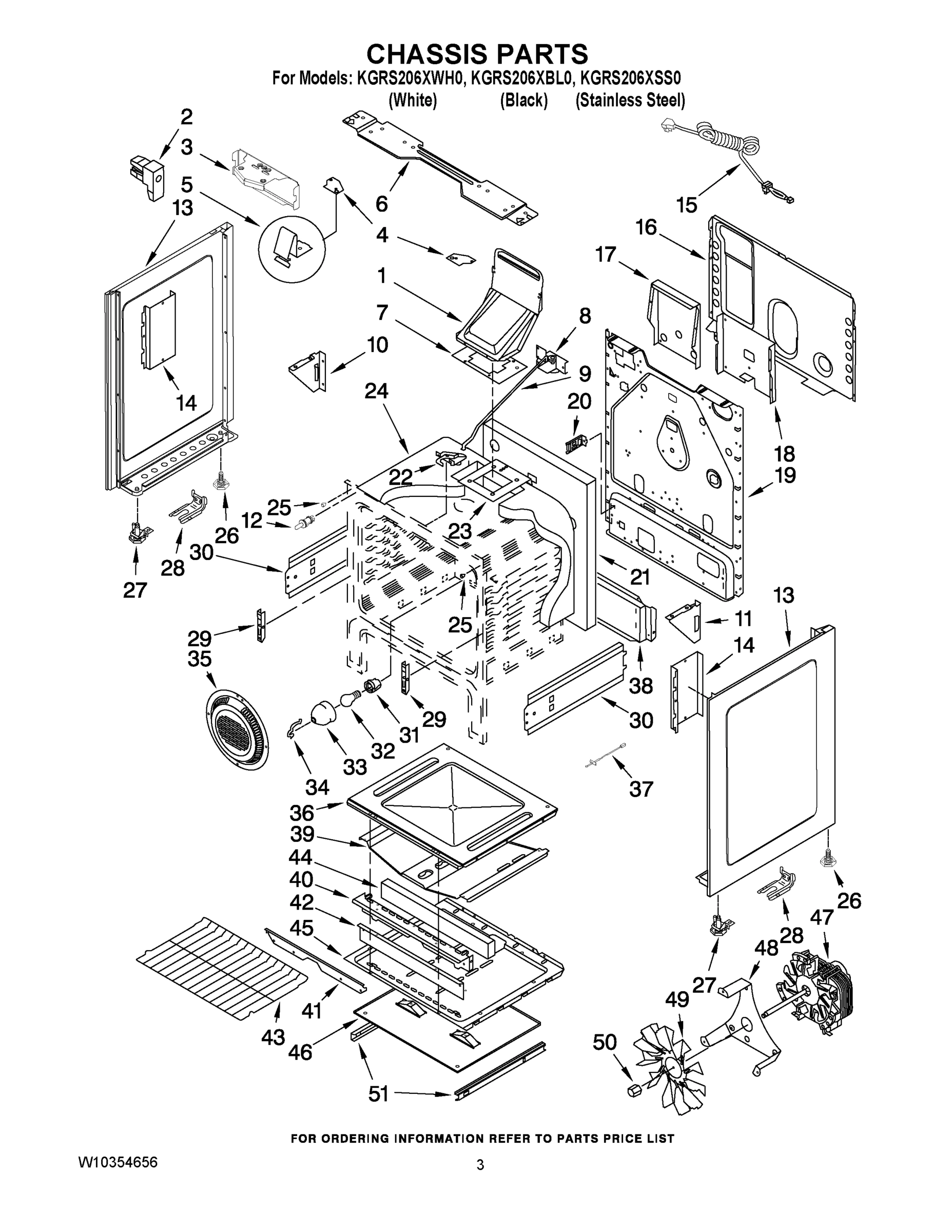

03 - CHASSIS PARTS
05 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
02 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
04 - MANIFOLD PARTS
Common parts from model Whirlpool KGRS206XBL0 30`` GAS FREESTANDING SELF CLEAN RANGE CONVECTION
1
TRIM, DOOR (WHITE) WPL W10348025 Contact Us For Availability
1
TRIM, DOOR (BLACK) WPL W10348026 Contact Us For Availability
1
ENDCAP, RIGHT HAND (BLACK) WPL W10340735 Contact Us For Availability
1
ENDCAP, RIGHT HAND (WHITE) WPL W10340736 Contact Us For Availability
1
ENDCAP, LEFT HAND (BLACK) WPL W10340740 Contact Us For Availability
1
ENDCAP, LEFT HAND (WHITE) WPL W10340744 Contact Us For Availability
1
OWNERS MANUAL WPL W10328280 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10344643 Contact Us For Availability
1
TECH SHEET WPL W10346742 Contact Us For Availability
2
VALVE, BURNER (12K (LR)) WPL W10315168 Contact Us For Availability
2
HEAT SHIELD,VISOR (BLACK) WPL W10340823 Contact Us For Availability
2
HEAT SHIELD,VISOR (GRAY) WPL W10340824 Contact Us For Availability
2
CAP, BURNER (5K(RR) WPL W10347754 Contact Us For Availability
3
PANEL, BACKGUARD (STAINLESS STEEL) WPL W10351683 Contact Us For Availability
3
HANDLE, DOOR (WHITE) WPL W10347824 Contact Us For Availability
3
HANDLE, DOOR (BLACK) WPL W10347826 Contact Us For Availability
3
HANDLE, DOOR (S.STEEL) WPL W10350605 Contact Us For Availability
3
PANEL, BACKGUARD (BLACK) WPL W10340759 Contact Us For Availability
3
PANEL, BACKGUARD (WHITE) WPL W10340763 Contact Us For Availability
4
BURNER (9.5K(LF & CENTER) WPL W10345848 Contact Us For Availability
4
BURNER (5K (RR) WPL W10345846 Contact Us For Availability
4
LINER, DOOR WPL W10347855 Contact Us For Availability
4
TUBING, GAS WPL W10346002 Contact Us For Availability
5
HARNESS, IGNITER INCLUDES SWITCHES WPL W10345838 Contact Us For Availability
5
GLASS, INNER WPL W10347853 Contact Us For Availability
5
HEAT SHIELD WPL W10340844 Contact Us For Availability
5
COOKTOP (BLACK) WPL W10347690 Contact Us For Availability
5
COOKTOP (WHITE) WPL W10347693 Contact Us For Availability
6
BRACKET, GLASS (STAINLESS MODEL ONLY) WPL W10352006 Contact Us For Availability
6
REAR COVER WPL W10340724 Contact Us For Availability
6
PANEL, MANIFOLD (BLACK) WPL W10340817 Contact Us For Availability
6
PANEL, MANIFOLD (WHITE) WPL W10340819 Contact Us For Availability
6
PANEL, MANIFOLD (STAINLESS STEEL) WPL W10351699 Contact Us For Availability
6
BRACKET, REGULATOR WPL W10346033 Contact Us For Availability
7
CONTROL WPL W10340766 Contact Us For Availability
7
KNOB, CONTROL WHITE (4) WPL W10340813 Contact Us For Availability
7
KNOB, CONTROL BLACK (1) WPL W10340815 Contact Us For Availability
7
KNOB, CONTROL BLACK (4) WPL W10340812 Contact Us For Availability
7
SPACER, DOOR HANDLE STAINLESS MODEL ONLY) WPL W10350610 Contact Us For Availability
7
KNOB, CONTROL S.STEEL (4) WPL W10351694 Contact Us For Availability
7
KNOB, CONTROL S.STEEL (1) WPL W10351695 Contact Us For Availability
7
REGULATOR, WPL W10346004 Contact Us For Availability
8
GRATE, BURNER BLACK, SIDE WPL W10347694 Contact Us For Availability
8
INSULATION, DOOR WPL W10347852 Contact Us For Availability
8
COVER, MAIN WIRE WPL W10315160 Contact Us For Availability
8
ORIFICE (17K (RF)) WPL W10346164 Contact Us For Availability
8
ORIFICE (5K (RR) WPL W10346165 Contact Us For Availability
9
OVERLAY WPL W10340771 Contact Us For Availability
9
GRATE, BURNER BLACK, CENTER WPL W10347695 Contact Us For Availability
9
FRAME, DOOR GLASS WPL W10348012 Contact Us For Availability
10
HINGE, DOOR (BLACK) WPL W10348013 Contact Us For Availability
10
HINGE, DOOR (STAINLESS) WPL W10352004 Contact Us For Availability
10
TUBE, VALVE TO REGULATOR WPL W10346034 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) WPL W10347842 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) WPL W10347845 Contact Us For Availability
11
GLASS, OUTER DOOR (STAINLESS STEEL) WPL W10351948 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL W10346068 Contact Us For Availability
12
TRIM, DOOR SIDE (WHITE) WPL W10347832 Contact Us For Availability
12
TRIM, DOOR SIDE (BLACK) WPL W10347833 Contact Us For Availability
12
IGNITOR, BURNER WPL W10346130 Contact Us For Availability
13
RETAINER, SHIELD-WOOL WPL W10347850 Contact Us For Availability
14
BRACKET, AIRWASH GLASS WPL W10348015 Contact Us For Availability
14
BAFFLE, OVEN BURNER WPL W10346057 Contact Us For Availability
15
BRACKET, GLASS SPACER-DOOR GLASS (STAINLESS M WPL W10350617 Contact Us For Availability
15
ELBOW, FITTING WPL W10346064 Contact Us For Availability
16
SEAL, DOOR WPL W10348010 Contact Us For Availability
16
TUBE, VALVE TO MIXER WPL W10346062 Contact Us For Availability
17
SHIELD, FLUE WPL W10347289 Contact Us For Availability
17
DOOR PANEL (STAINLESS MODEL ONLY) WPL W10357317 Contact Us For Availability
17
IGNITOR/ORIFICE ASSEMBLY (17K (RF)) WPL W10345909 Contact Us For Availability
17
IGNITOR/ORIFICE ASSEMBLY (12K (LR)) WPL W10345914 Contact Us For Availability
17
IGNITOR/ORIFICE ASSEMBLY (9.5K (LF) WPL W10345917 Contact Us For Availability
18
SHIELD, HEAT WPL W10347288 Contact Us For Availability
19
GLASS, DOOR INNER WPL W10348011 Contact Us For Availability
19
COVER, REAR MAIN WPL W10346230 Contact Us For Availability
20
Nameplate (Black) WPL 3191514 Contact Us For Availability
20
BRACKET, HARNESS WPL W10347323 Contact Us For Availability
20
Nameplate (White) WPL 3191516 Contact Us For Availability
22
LATCH, OVEN DOOR WPL W10346955 Contact Us For Availability
22
VALVE, SAFETY WPL W10346047 Contact Us For Availability
23
BRACE, OVEN TOP WPL W10346234 Contact Us For Availability
24
INSULATION, OVEN WRAPPER WPL W10347308 Contact Us For Availability
25
SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability
26
FOOT-LEVEL REAR PLASTIC WPL W10346263 Contact Us For Availability
27
FOOT-LEVEL FRONT METAL WPL W10346264 Contact Us For Availability
29
BRACKET, HINGE WPL W10347318 Contact Us For Availability
30
SHIELD, SIDE (RH) WPL W10356076 Contact Us For Availability
30
SHIELD, SIDE (LH) WPL W10356077 Contact Us For Availability
31
SOCKET, LIGHT WPL W10346268 Contact Us For Availability
33
LENS, OVEN LIGHT WPL W10346874 Contact Us For Availability
34
RETAINER, LENS WPL W10346877 Contact Us For Availability
35
COVER, FAN WPL W10347448 Contact Us For Availability
36
BOTTOM, OVEN WPL W10346266 Contact Us For Availability
37
SENSOR, OVEN WPL W10347247 Contact Us For Availability
38
SHIELD, REAR WPL W10355050 Contact Us For Availability
39
BAFFLE, BAKE BURNER WPL W10347314 Contact Us For Availability
40
SHIELD, FRONT BURNER WPL W10347441 Contact Us For Availability
41
BRACKET, AIR DAM WPL W10347661 Contact Us For Availability
42
SHIELD-MAIN FRONT WPL W10347440 Contact Us For Availability
43
RACK, OVEN WPL W10346265 Contact Us For Availability
44
INSULATION, MAIN FRONT WPL W10347310 Contact Us For Availability
45
SHIELD, WOOL LOWER WPL W10347271 Contact Us For Availability
46
SHIELD, HEAT LOWER WPL W10346993 Contact Us For Availability
48
BRACKET, MOTOR MOUNT WPL W10347442 Contact Us For Availability
50
NUT, FAN BLADE WPL W10347453 Contact Us For Availability
51
GLIDE, OUTER FOR RH & LH) WPL W10355274 Contact Us For Availability
NI
SPUDS, LP GAS (KIT OF 5) WPL W10346171 Contact Us For Availability
NI
SHIELD, GAS KNOB WPL W10351722 Contact Us For Availability
NI
BRACKET, SUPPORT SPARK MODULE WPL W10345844 Contact Us For Availability
NI
COVER, BROIL IGNITOR WPL W10346138 Contact Us For Availability
NI
HARNESS, IGNITOR WPL W10346229 Contact Us For Availability
× ![]()
