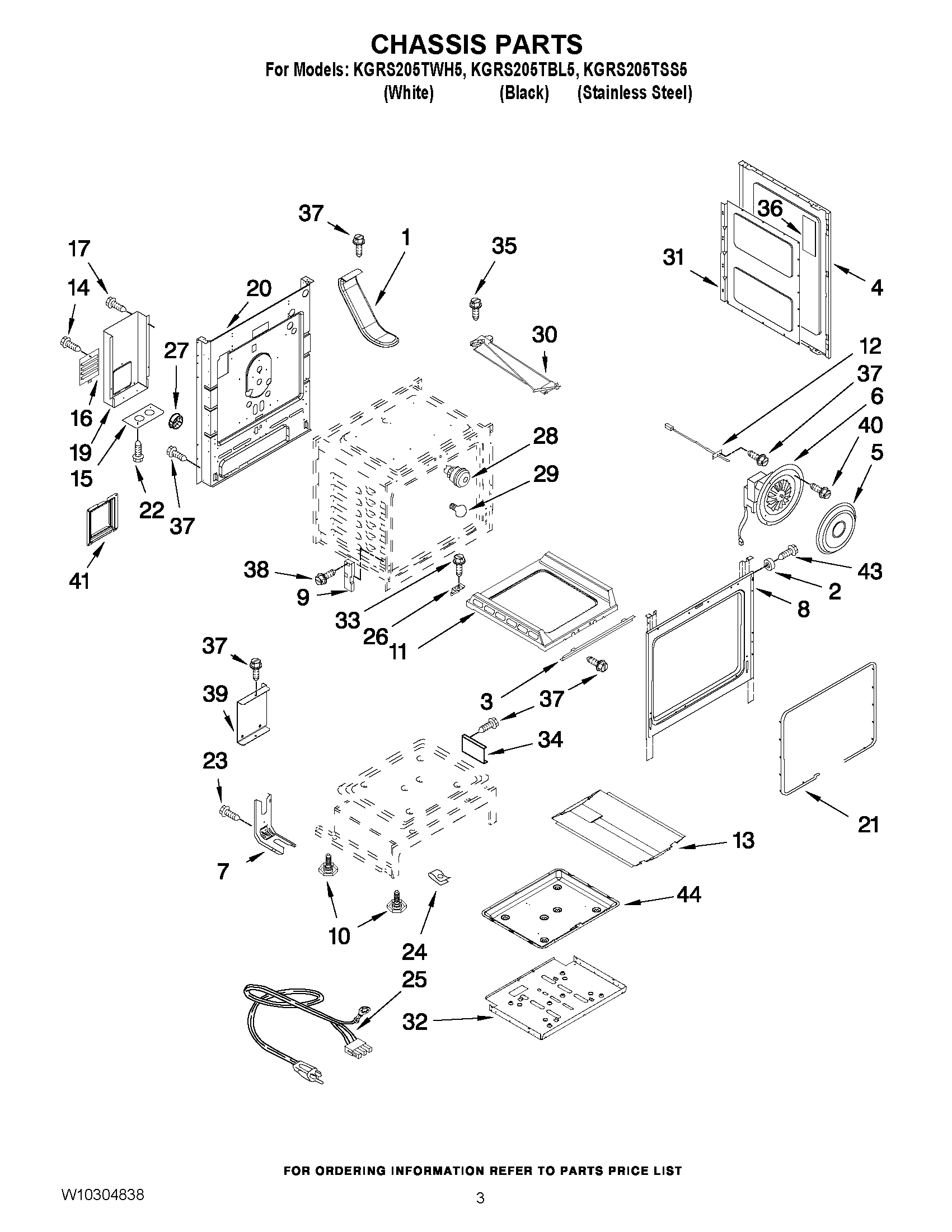

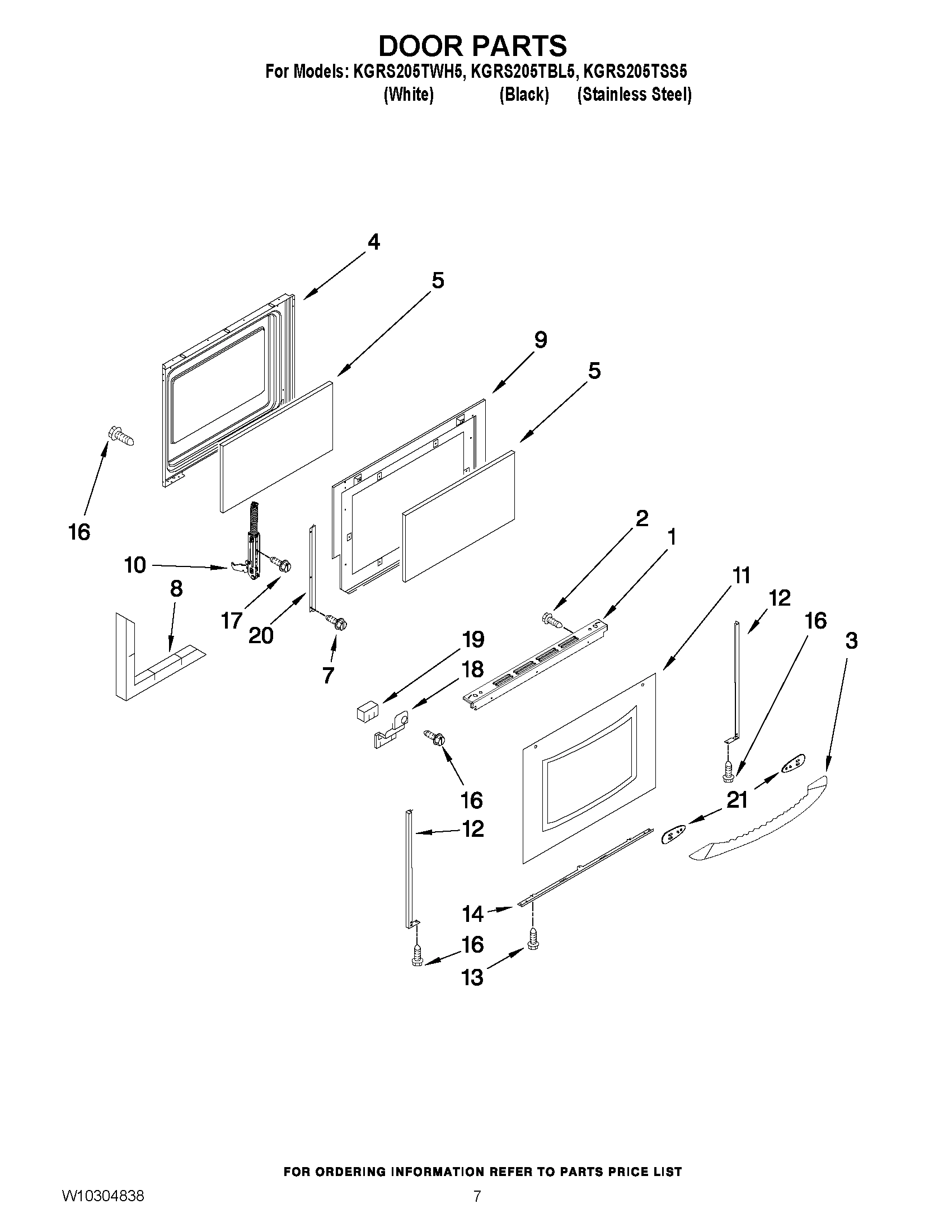

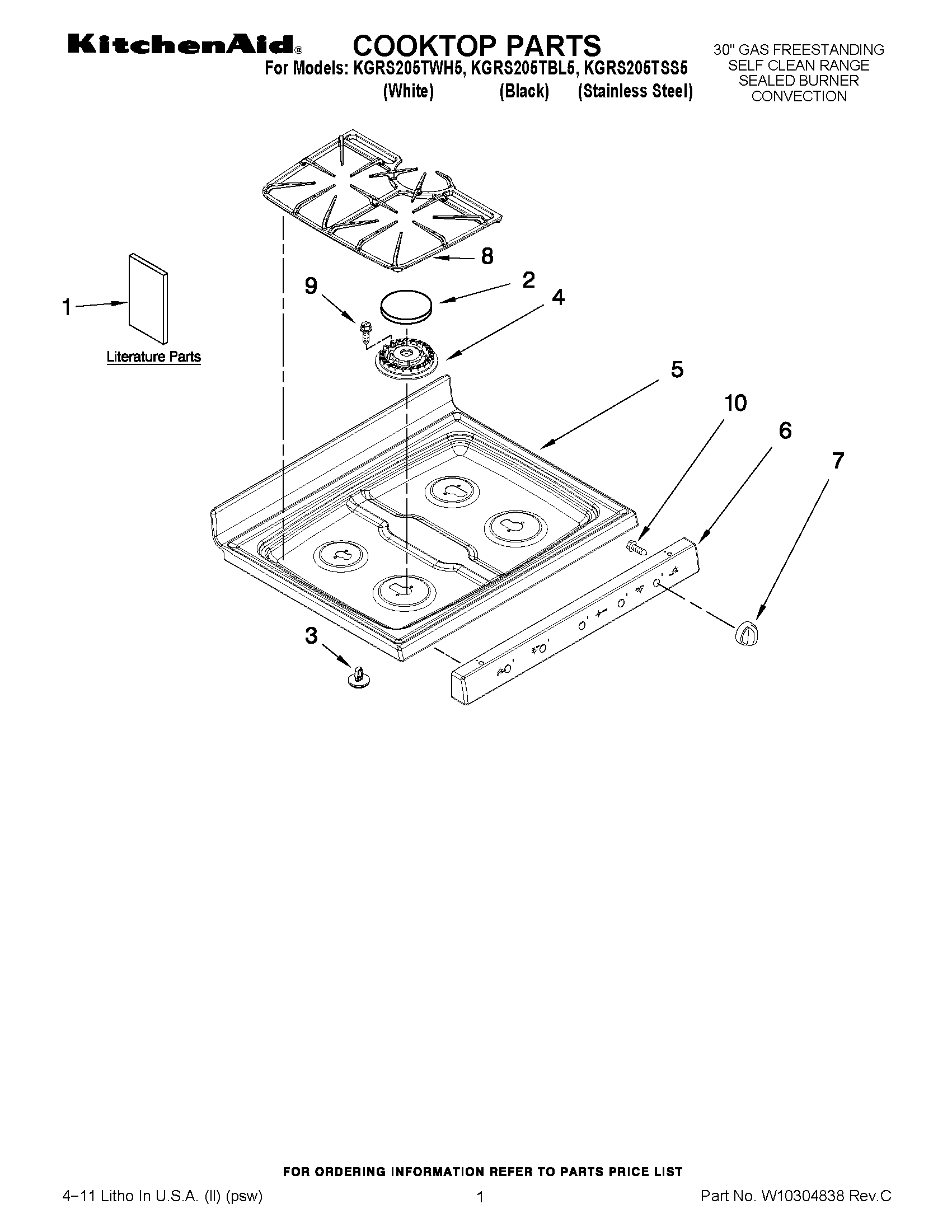

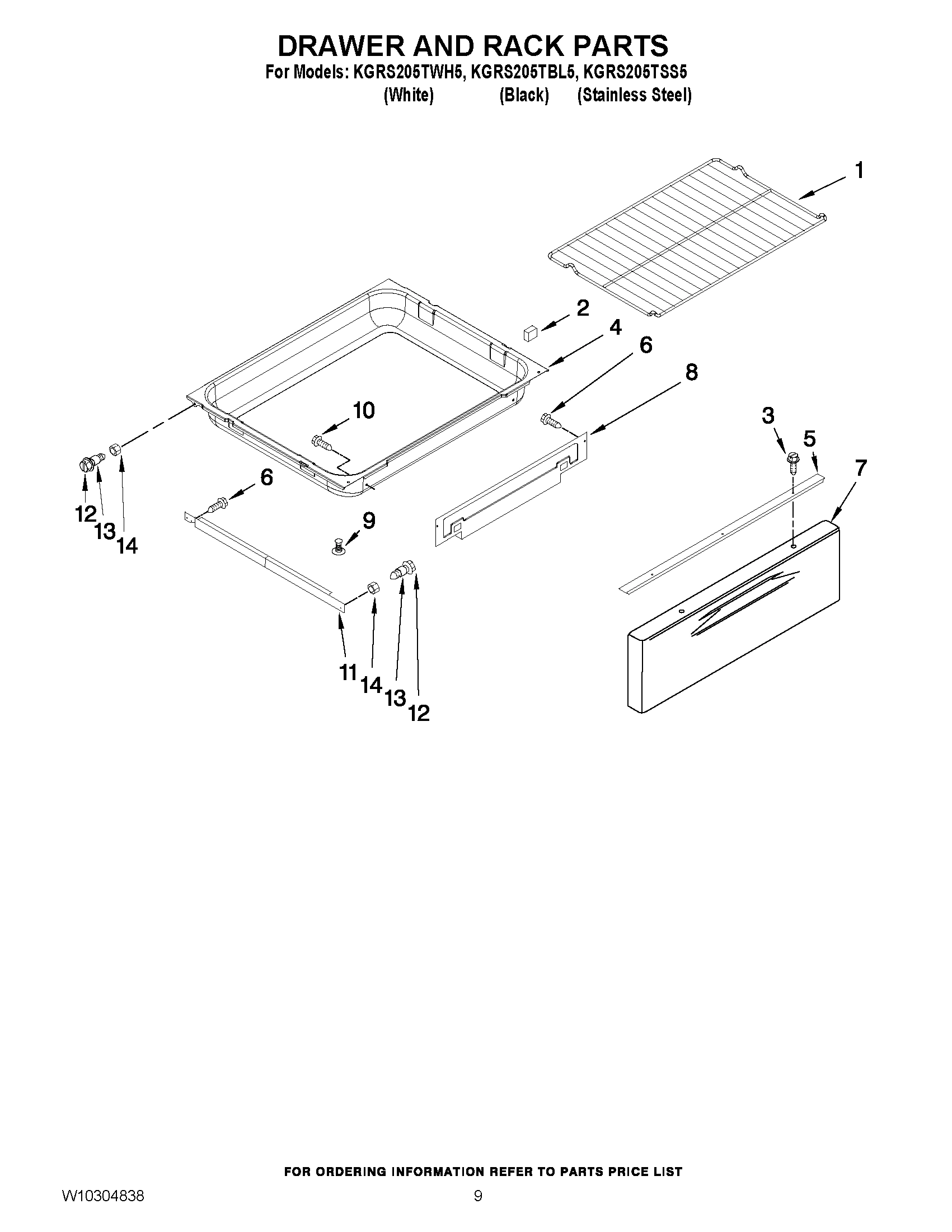

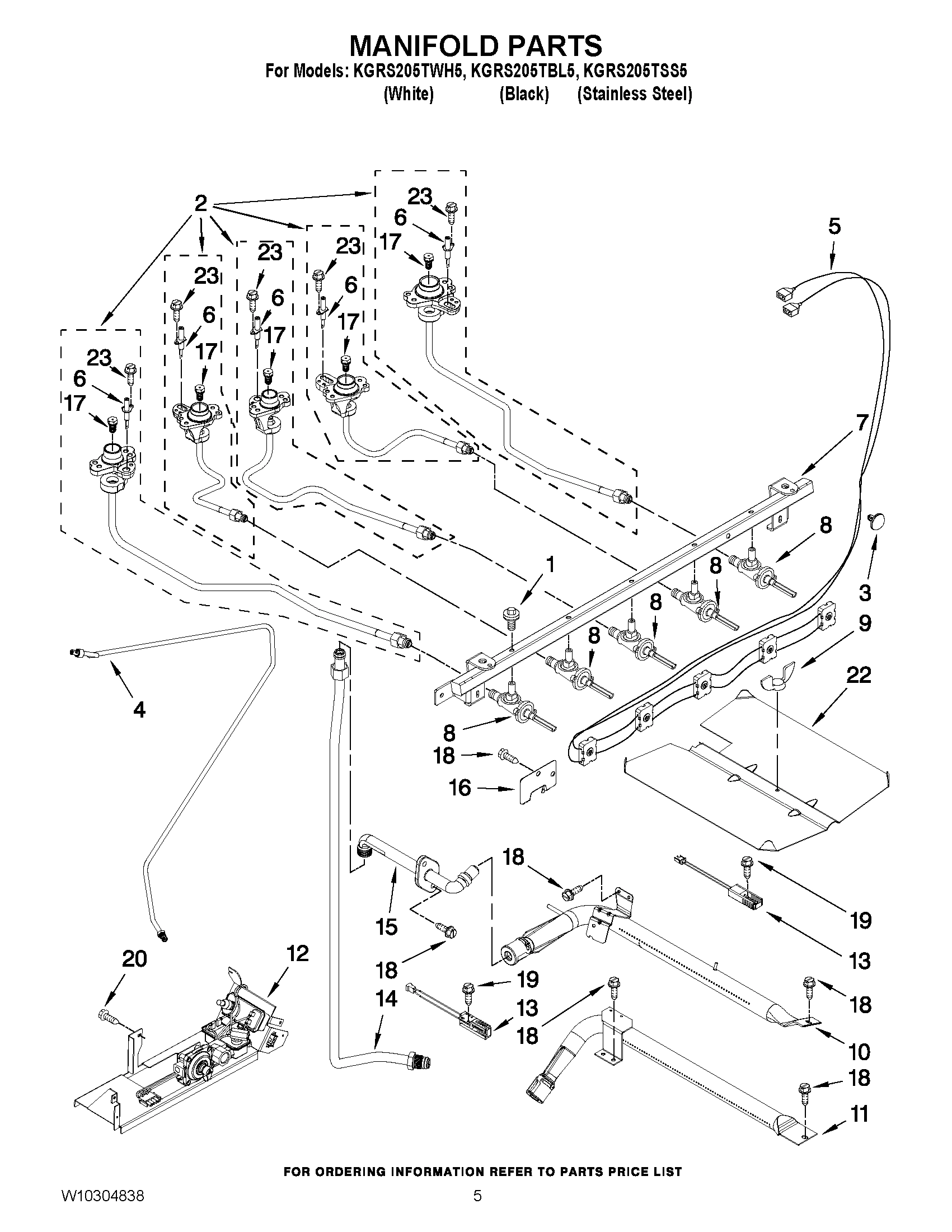

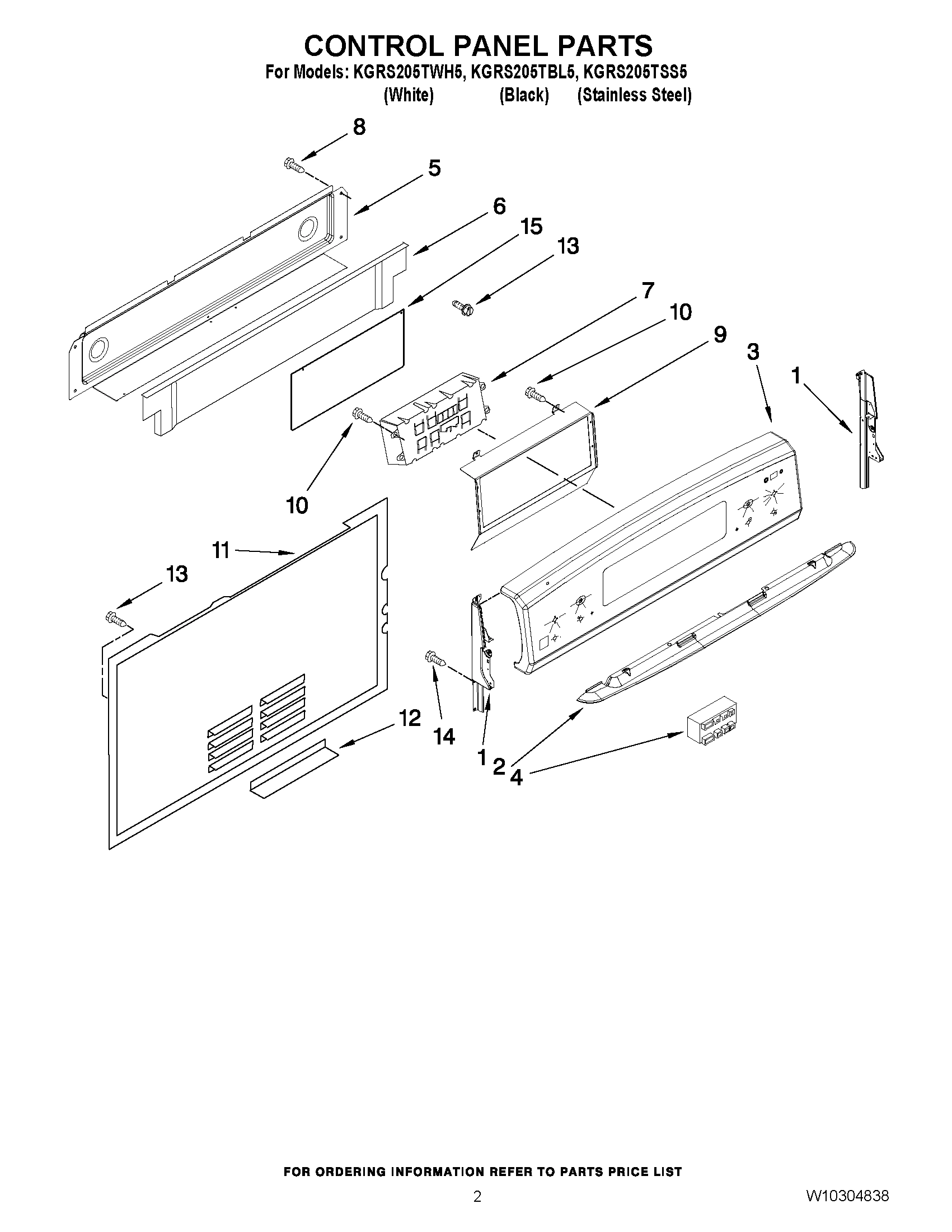

Model Whirlpool KGRS205TBL5 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts &amp; Diagrams

1

Trim, Top (Black) WPL 3608F13970 Contact Us For Availability

1

Trim, Top (White) WPL 3608F13971 Contact Us For Availability

1

ENDCAP, RIGHT HAND (BLACK) WPL 3807F70270 Contact Us For Availability

1

ENDCAP, RIGHT HAND (WHITE) WPL 3807F70271 Contact Us For Availability

1

ENDCAP, LEFT HAND (BLACK) WPL 3807F70370 Contact Us For Availability

1

ENDCAP, LEFT HAND (WHITE) WPL 3807F70371 Contact Us For Availability

1

VENT, OVEN WPL 8026P08060 Contact Us For Availability

2

W10169901 Whirlpool Orifice Holder Backorder WPL W10169901 $41.01

2

W10169902 Whirlpool Orifice Holder Backorder WPL W10169902 $42.36

2

W10169903 Whirlpool Orifice Holder Backorder WPL W10169903 $42.00

2

W10169906 Whirlpool Orifice Holder Backorder WPL W10169906 $41.83

2

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.91

2

HOLDER, ORIFICE (RIGHT FRONT) WPL W10169907 Contact Us For Availability

2

HEAT SHIELD,VISOR (BLACK) WPL 3604F38209 Contact Us For Availability

2

HEAT SHIELD,VISOR (WHITE) WPL 3604F38281 Contact Us For Availability

2

SPACER, SIDE PANEL WPL 8010P14860 Contact Us For Availability

2

SPACER, BUMPER WPL 8010P14660 Contact Us For Availability

3

WPW10160634 Whirlpool Membrane Switch Backorder WPL WPW10160634 $143.66

3

SPACER, SNAP-IN WPL 8010P14960 Contact Us For Availability

3

Handle, Door (White) WPL W10153013 Contact Us For Availability

3

Handle, Door (Black) WPL W10153015 Contact Us For Availability

3

Handle, Door (S.Steel) WPL W10153016 Contact Us For Availability

3

Support, Oven Bottom WPL 3807P68045 Contact Us For Availability

4

TUBING, MAIN SUPPLY WPL 7506P36160 Contact Us For Availability

4

LINER, DOOR WPL 2402W29719 Contact Us For Availability

4

MODULE, SPARK WPL 7431P05360 Contact Us For Availability

4

Panel, Side (White) WPL 2618F17258 Contact Us For Availability

4

Panel, Side (Black) WPL 2618F17269 Contact Us For Availability

4

DRAWER WPL 3405F03780 Contact Us For Availability

5

Harness, Igniter Includes Switches WPL 7403P98360 Contact Us For Availability

5

GLASS, INNER WPL 7902P43660 Contact Us For Availability

5

COVER, UPPER WPL 4005F80451 Contact Us For Availability

5

PLATE, CONVECT WPL 3605F30519 Contact Us For Availability

5

HANDLE, DRAWER WPL 7701P54760 Contact Us For Availability

6

WPW10216419 Whirlpool Surface Igniter In Stock WPL WPW10216419 $12.90

6

PANEL, MANIFOLD (STAINLESS STEEL) WPL W10168678 Contact Us For Availability

6

Shield, Vent WPL 3604F38119 Contact Us For Availability

6

FAN, CONVECT WPL 7427P10860 Contact Us For Availability

6

SCREW WPL 7101P65260 Contact Us For Availability

7

WPW10160372 Whirlpool Knob Backorder WPL WPW10160372 $24.05

7

WPW10160374 Whirlpool Knob Backorder WPL WPW10160374 $19.98

7

WPW10160375 Whirlpool Oven Control Knob In Stock WPL WPW10160375 $25.58

7

Pipe, Manifold WPL 7513P49960 Contact Us For Availability

7

CONTROL WPL 8507P35160 Contact Us For Availability

7

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

7

PANEL, DRAWER FRNT (BLACK) WPL 2416F10470 Contact Us For Availability

7

PANEL, DRAWER FRNT (WHITE) WPL 2416F10471 Contact Us For Availability

8

VALVE (CENTER) WPL W10269504 Contact Us For Availability

8

VALVE (LR) WPL 7502P49960 Contact Us For Availability

8

VALVE (LR & RR) WPL 7502P50060 Contact Us For Availability

8

VALVE (RF) WPL 7502P50160 Contact Us For Availability

8

Insulation, Door WPL 7002P24660 Contact Us For Availability

8

FRAME, FRONT (NOT SERVICED) WPL NP Contact Us For Availability

8

PANEL, INNER WPL 3605P33751 Contact Us For Availability

9

Nut WPL 7103P03060 Contact Us For Availability

9

Retainer, Insulation WPL 3601F38051 Contact Us For Availability

9

Bracket, Control WPL 3801F94551 Contact Us For Availability

9

HINGE, RECEIVER WPL 7106P12560 Contact Us For Availability

9

DRAWER, STOP WPL 8038P03760 Contact Us For Availability

W10160904 Whirlpool Broiler Burner Backorder WPL W10160904 $89.40

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

HINGE, DOOR WPL 7106P12460 Contact Us For Availability

FOOT, LEVELER WPL 7101P50760 Contact Us For Availability

WPW10211368 Whirlpool Oven Bottom Backorder WPL WPW10211368 $169.56

GLASS, OUTER DOOR (BLACK) WPL W10160908 Contact Us For Availability

BURNER, BAKE WPL 7505P33160 Contact Us For Availability

GLASS, OUTER DOOR (WHITE) WPL W10160906 Contact Us For Availability

GLASS, OUTER DOOR (STAINLESS STEEL) WPL W10160909 Contact Us For Availability

COVER, MAIN WIRE WPL W10243047 Contact Us For Availability

Rail, Drawer WPL 3406P03451 Contact Us For Availability

WPW10131827 Whirlpool Sensor Backorder WPL WPW10131827 $105.74

VALVE/REGULATOR WPL 7501P23360 Contact Us For Availability

Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability

Trim, Door Side (White) WPL 3608F12671 Contact Us For Availability

BOTTOM, WIRE COVER WPL 4005P70451 Contact Us For Availability

SHAFT, STORAGE WPL 7118P03260 Contact Us For Availability

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

ROLLER, DRAWER WPL W10272883 Contact Us For Availability

IGNITER (BROIL) WPL 7432P10660 Contact Us For Availability

IGNITER (BAKE) WPL 7432P13660 Contact Us For Availability

BAFFLE, BURNER WPL 3601P35645 Contact Us For Availability

TUBING (BROILER FITTING TO VALVE) WPL 7506P36860 Contact Us For Availability

TRIM, LOWER DOOR (BLACK) WPL 3608F09270 Contact Us For Availability

TRIM, LOWER DOOR (WHITE) WPL 3608F09271 Contact Us For Availability

NUT WPL 7103P19060 Contact Us For Availability

15

FITTING, BROILER WPL W10247148 Contact Us For Availability

15

EXENTION, SHIELD WPL 360P37251 Contact Us For Availability

16

Cover, Igniter WPL 4005F42145 Contact Us For Availability

16

PANEL, ACCESS WPL 3605P14651 Contact Us For Availability

W10178934 Whirlpool Orifice Assembly Backorder WPL W10178934 $35.81

W10251991 Whirlpool Orifice Spud Backorder WPL W10251991 $32.90

W10853607 Whirlpool Orifice Backorder WPL W10853607 $39.36

WPW10170506 Whirlpool Orifice Spud In Stock WPL WPW10170506 $32.56

WPW10170508 Whirlpool Orifice Spud Backorder WPL WPW10170508 $38.81

18

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

18

Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability

18

Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability

19

Insulation, Corner WPL 7002P48460 Contact Us For Availability

19

COVER, LOWER WIRE WPL W10243045 Contact Us For Availability

20

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

20

BRACKET, WINDOW WPL 3801F88651 Contact Us For Availability

20

BACK, MAIN WPL W10205618 Contact Us For Availability

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $35.63

SPACER, HANDLE (STAINLESS STEEL) WPL 3823F01745 Contact Us For Availability

Spacer, Handle (Black) WPL W10169552 Contact Us For Availability

Spacer, Handle (White) WPL W10169553 Contact Us For Availability

22

BAFFLE, BROIL BURNER WPL 3601P33645 Contact Us For Availability

22

Screw WPL 7101P33660 Contact Us For Availability

23

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

24

CLIP WPL 7112P15860 Contact Us For Availability

25

CORD, POWER WPL 7402P10960 Contact Us For Availability

26

BRACKET, OVEN BOTTOM WPL 3801P82245 Contact Us For Availability

27

BUSHING, WIRE WPL 8007P04760 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

29

Bulb, Oven Light WPL 7407P10360 Contact Us For Availability

30

Latch, Door Lock WPL 8002P10460 Contact Us For Availability

31

Retainer, Insulation WPL 3804F31651 Contact Us For Availability

32

Shield, Heat WPL 3604P40951 Contact Us For Availability

35

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

36

INSULATION WPL 7002P48060 Contact Us For Availability

38

Screw WPL 7101P28260 Contact Us For Availability

39

Bracket, Oven Support WPL 3801P79851 Contact Us For Availability

40

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

41

RETAINER, INSUL. WPL 3804F30051 Contact Us For Availability

43

SCREW WPL 7101P61860 Contact Us For Availability

44

PAN, BAKE WPL 3401F08245 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10182346 Whirlpool Insulation Assembly Backorder WPL W10182346 $61.94

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

SPUDS, LP GAS (KIT OF 5) WPL W10271869 Contact Us For Availability

INSULATION, WRAP WPL 7002P42460 Contact Us For Availability

INSULATION, BACK WPL W10243056 Contact Us For Availability
