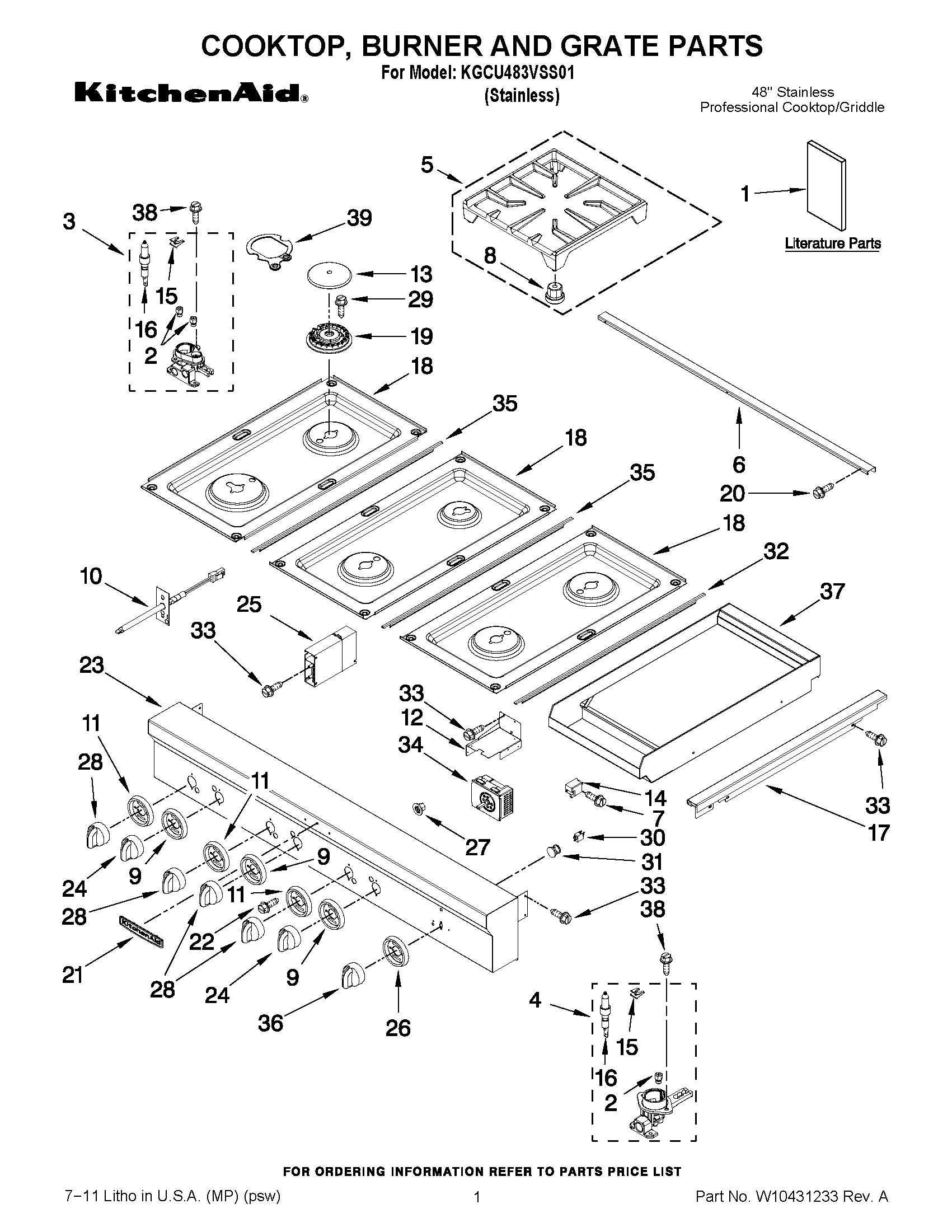

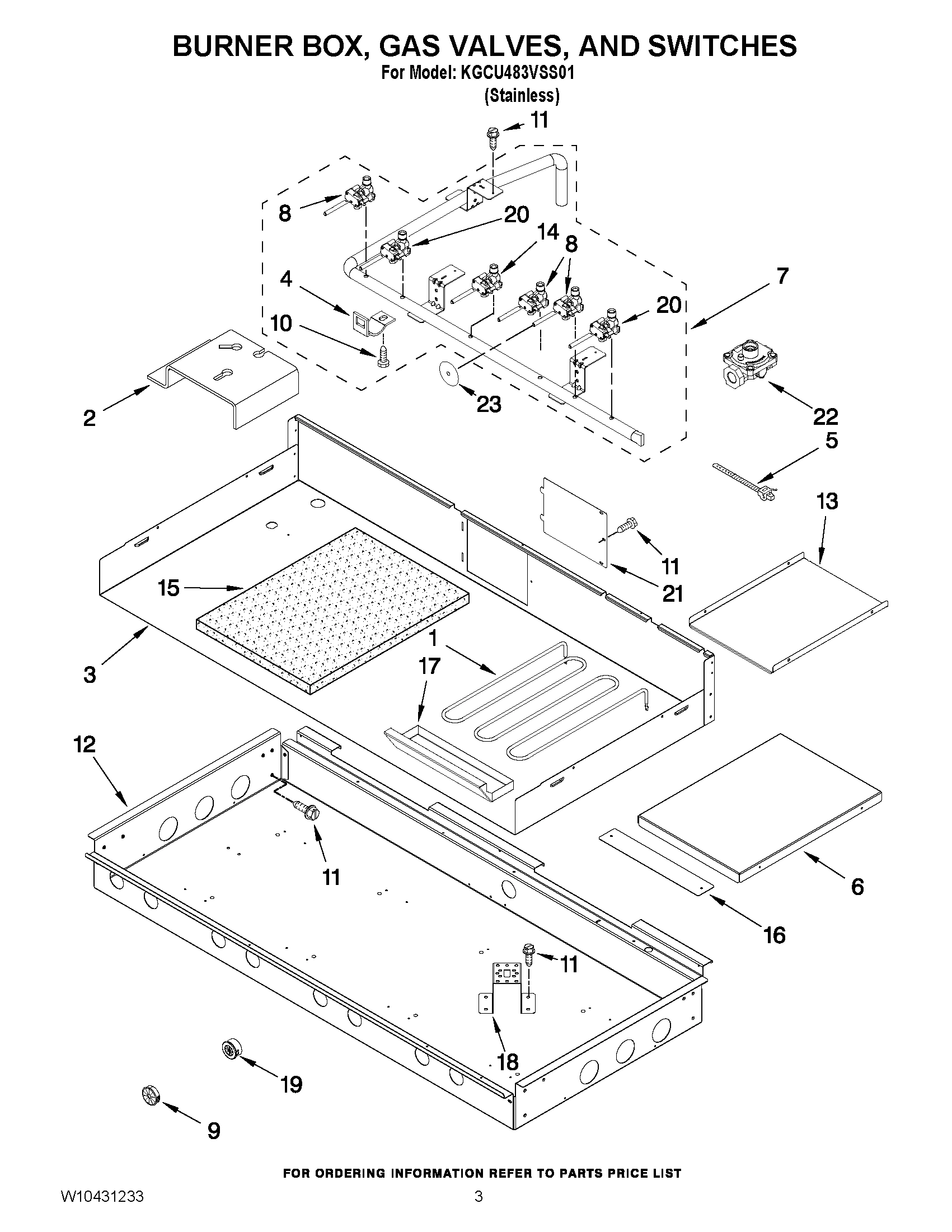

Model Whirlpool KGCU483VSS01 48`` STAINLESS PROFESSIONAL COOKTOP/GRIDDLE – Common Parts & Diagrams

1
ELEMENT, GRIDDLE
ELEMENT, GRIDDLE WPL W10193014 Contact Us For Availability
View on Model
2
ORIFICE (LF, RF (17K))
ORIFICE (LF, RF (17K)) WPL W10340424 Contact Us For Availability
View on Model
4
ORIFICE HOLDER (CR)
ORIFICE HOLDER (CR) WPL W10282659 Contact Us For Availability
View on Model
4
BRACKET, VALVE
BRACKET, VALVE WPL W10189107 Contact Us For Availability
View on Model
6
TRIM, ISLAND
TRIM, ISLAND WPL W10269216 Contact Us For Availability
View on Model
9
BEZEL, FRONT
BEZEL, FRONT WPL W10261510 Contact Us For Availability
View on Model
10
SENSOR
SENSOR WPL W10319835 Contact Us For Availability
View on Model
13
TRAY, GREASE
TRAY, GREASE WPL W10145620 Contact Us For Availability
View on Model
15
SPRING, ELECTRODE (LF,RF,LR,CF,RR)
SPRING, ELECTRODE (LF,RF,LR,CF,RR) WPL W10256046 Contact Us For Availability
View on Model
15
SPRING, ELECTRODE (CR)
SPRING, ELECTRODE (CR) WPL 8286863 Contact Us For Availability
View on Model
17
DRIP TRAY, GRIDDLE
DRIP TRAY, GRIDDLE WPL W10276497 Contact Us For Availability
View on Model
17
TRIM, SIDE (RIGHT)
TRIM, SIDE (RIGHT) WPL W10226012 Contact Us For Availability
View on Model
17
TRIM, SIDE (LEFT)
TRIM, SIDE (LEFT) WPL W10226013 Contact Us For Availability
View on Model
18
COOKTOP (LEFT)
COOKTOP (LEFT) WPL W10352969 Contact Us For Availability
View on Model
18
COOKTOP (CENTER)
COOKTOP (CENTER) WPL W10352966 Contact Us For Availability
View on Model
18
COOKTOP (RIGHT)
COOKTOP (RIGHT) WPL W10352963 Contact Us For Availability
View on Model
21
NAMEPLATE
NAMEPLATE WPL W10201187 Contact Us For Availability
View on Model
23
ASSEMBLY, CONSOLE
ASSEMBLY, CONSOLE WPL W10131243 Contact Us For Availability
View on Model
30
LIGHT, INDICATOR HOUSING
LIGHT, INDICATOR HOUSING WPL W10116114 Contact Us For Availability
View on Model
32
TRIM, L-STRIP
TRIM, L-STRIP WPL W10291193 Contact Us For Availability
View on Model
35
TRIM, T-STRIP
TRIM, T-STRIP WPL W10271524 Contact Us For Availability
View on Model
36
KNOB, GRIDDLE
KNOB, GRIDDLE WPL W10250390 Contact Us For Availability
View on Model
39
GASKET, ORIFICE HOLDER
GASKET, ORIFICE HOLDER WPL 8286930 Contact Us For Availability
View on Model
NI
WOK RING
WOK RING WPL W10216179 Contact Us For Availability
View on Model
NI
COVER, GRIDDLE
COVER, GRIDDLE WPL W10160195 Contact Us For Availability
View on Model
NI
ALL PURPOSE APPLIANCE CLEANER
ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
View on Model
NI
TUBING, GAS (CENTER REAR)
TUBING, GAS (CENTER REAR) WPL W10280797 Contact Us For Availability
View on Model
NI
BACKGUARD W/ SHELF (22`` HIGH)
BACKGUARD W/ SHELF (22`` HIGH) WPL W10225948 Contact Us For Availability
View on Model
NI
TUBING, GAS RIGHT FRONT
TUBING, GAS RIGHT FRONT WPL W10353141 Contact Us For Availability
View on Model
NI
TUBING, GAS LEFT FRONT
TUBING, GAS LEFT FRONT WPL W10353154 Contact Us For Availability
View on Model
NI
BACKGUARD, 9`` HIGH
BACKGUARD, 9`` HIGH WPL W10115777 Contact Us For Availability
View on Model
NI
HARNESS, GRIDDLE
HARNESS, GRIDDLE WPL W10116096 Contact Us For Availability
View on Model
NI
HARNESS, SWITCH
HARNESS, SWITCH WPL W10399615 Contact Us For Availability
View on Model
NI
CLEANING WIPES, STAINLESS STEEL
CLEANING WIPES, STAINLESS STEEL WPL 8212510 Contact Us For Availability
View on Model
NI
BACKGUARD, ADJUSTIBLE
BACKGUARD, ADJUSTIBLE WPL 8284755 Contact Us For Availability
View on Model
NI
KNOBS, SS (6 BURNER/ 1 GRILL/ 1 GRIDDLE)
KNOBS, SS (6 BURNER/ 1 GRILL/ 1 GRIDDLE) WPL W10231704 Contact Us For Availability
View on Model
NI
LP CONVERSION KIT
LP CONVERSION KIT WPL W10393255 Contact Us For Availability
View on Model
