Model Whirlpool KGCU482VSS00 48`` STAINLESS PROFESSIONAL COOKTOP/GRILL – Common Parts & Diagrams

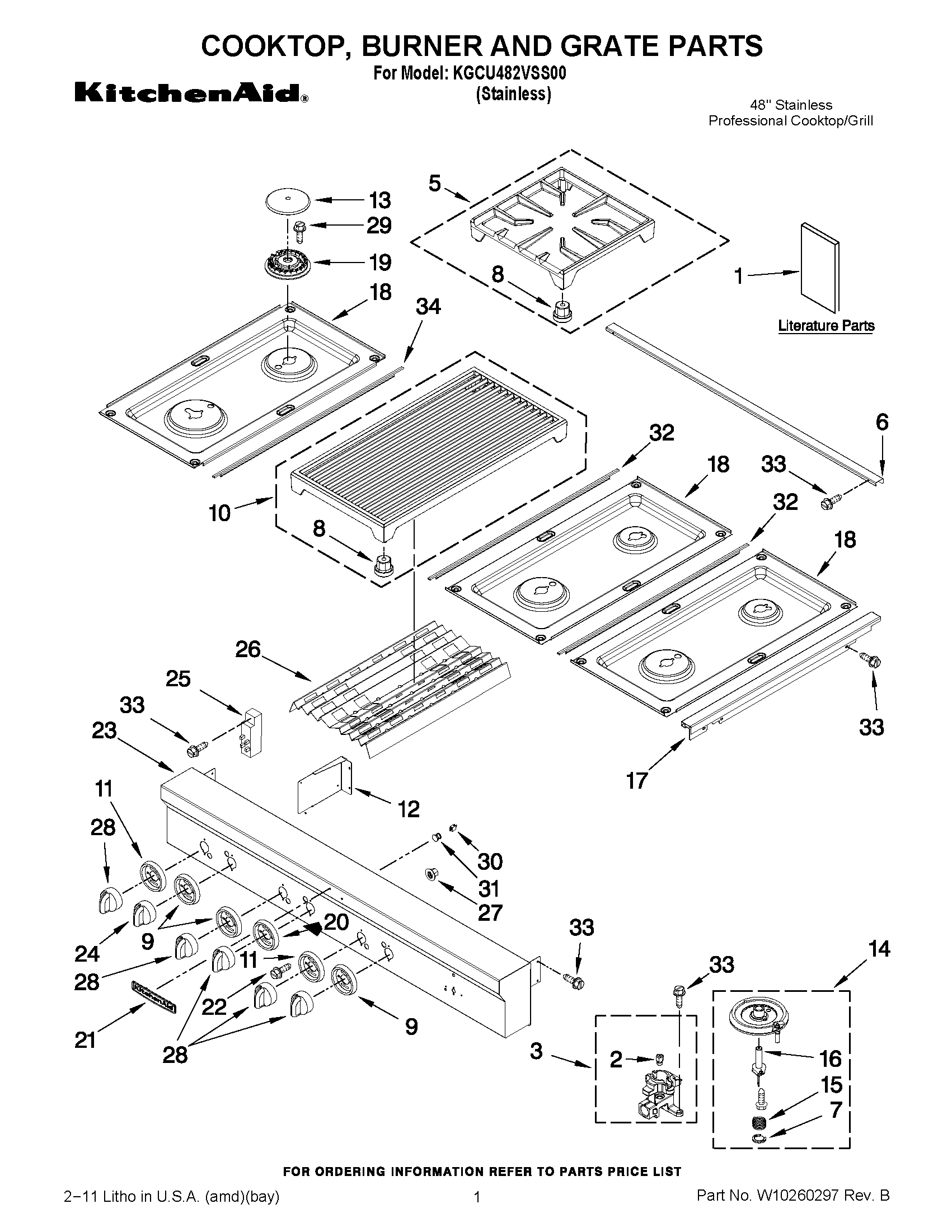

Common parts from model Whirlpool KGCU482VSS00 48`` STAINLESS PROFESSIONAL COOKTOP/GRILL

02 - BURNER BOX, GAS VALVES, AND SWITCHES

Print

• This Diagram
• All Diagrams

1

W10250473 Whirlpool Drip Tray Backorder WPL W10250473 View Details $91.33

View on Model

2

4456495 Whirlpool Oven Orifice Backorder WPL 4456495 View Details $37.84

View on Model

2

ORIFICE (LF & RF - LOW) WPL W10160185 Contact Us For Availability

View on Model

2

ORIFICE (LF & RF - HIGH) WPL W10160179 Contact Us For Availability

View on Model

2

ORIFICE (LR,CF,RR) WPL W10160232 Contact Us For Availability

View on Model

3

WP9759091 Whirlpool Regulator Backorder WPL WP9759091 View Details $128.39

View on Model

3

WPW10160187 Whirlpool Orifice Holder Backorder WPL WPW10160187 View Details $44.76

View on Model

3

ORIFICE HOLDER (LR,CF,RR) WPL W10160234 Contact Us For Availability

View on Model

4

W10189107 Whirlpool Mounting Bracket Backorder WPL W10189107 View Details $28.80

View on Model

5

WPW10115928 Whirlpool Burner Grate Backorder WPL WPW10115928 View Details $127.61

View on Model

5

DEFLECTOR, GRILL WPL W10269564 Contact Us For Availability

View on Model

6

W10223569 Whirlpool Burner Grille Backorder WPL W10223569 View Details $108.36

View on Model

6

W10269216 Whirlpool Top Trim Backorder WPL W10269216 View Details $123.48

View on Model

7

CLIP, ELECTRODE WPL W10160825 Contact Us For Availability

View on Model

9

W10261510 Whirlpool Knob Bezel Backorder WPL W10261510 View Details $26.59

View on Model

13

WP8286816 Whirlpool Burner Cap Backorder WPL WP8286816 View Details $46.48

View on Model

13

WPW10115952 Whirlpool Burner Cap Backorder WPL WPW10115952 View Details $59.48

View on Model

13

WPW10160229 Whirlpool Burner Cap In Stock WPL WPW10160229 View Details $49.21

View on Model

14

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 View Details $15.70

View on Model

14

WPW10320937 Whirlpool Burner Top Backorder WPL WPW10320937 View Details $62.92

View on Model

14

WPW10326645 Whirlpool Burner Valve Backorder WPL WPW10326645 View Details $135.01

View on Model

15

8286863 Whirlpool Oven Clip Backorder WPL 8286863 View Details $26.21

View on Model

16

WPW10145991 Whirlpool Surface Igniter Backorder WPL WPW10145991 View Details $30.47

View on Model

16

WPW10160235 Whirlpool Surface Igniter Backorder WPL WPW10160235 View Details $15.70

View on Model

16

WPW10250406 Whirlpool Surface Igniter In Stock WPL WPW10250406 View Details $15.59

View on Model

17

W10226012 Whirlpool Cooktop Trim Backorder WPL W10226012 View Details $97.07

View on Model

17

W10226013 Whirlpool Cooktop Trim Assembly Backorder WPL W10226013 View Details $160.68

View on Model

18

W10189101 Whirlpool Cooktop Backorder WPL W10189101 View Details $175.33

View on Model

18

COOKTOP (LEFT) WPL W10189104 Contact Us For Availability

View on Model

19

WPW10250459 Whirlpool Burner Head Backorder WPL WPW10250459 View Details $84.51

View on Model

19

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 View Details $64.06

View on Model

20

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 View Details $129.17

View on Model

21

W10201187 Whirlpool Nameplate Backorder WPL W10201187 View Details $46.46

View on Model

23

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 View Details $6.28

View on Model

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 View Details $42.95

View on Model

26

WAVE, TRAY WPL W10250469 Contact Us For Availability

View on Model

27

W11601369 Whirlpool Spark Module In Stock WPL W11601369 View Details $38.10

View on Model

28

W11177673 Whirlpool Knob Backorder WPL W11177673 View Details $47.25

View on Model

29

W11404293 Whirlpool Screw In Stock WPL W11404293 View Details $9.59

View on Model

30

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 View Details $31.66

View on Model

30

FLAME SPREADER WPL W10250462 Contact Us For Availability

View on Model

34

W10268770 Whirlpool Surface Igniter Backorder WPL W10268770 View Details $72.56

View on Model

34

W10271524 Whirlpool Trim Top Backorder WPL W10271524 View Details $88.85

View on Model

NI

W10115911 Whirlpool Gas Tubing Backorder WPL W10115911 View Details $66.75

View on Model

NI

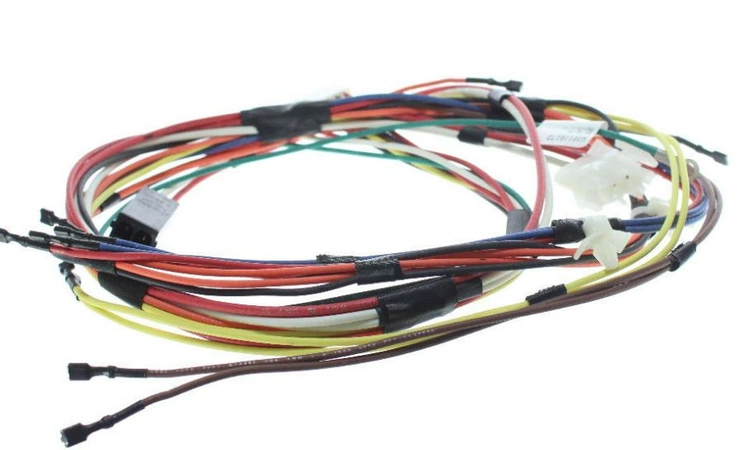

W10116173 Whirlpool Wire Harness Backorder WPL W10116173 View Details $73.96

View on Model

NI

W10225949 Whirlpool Range Hood Backsplash, St Backorder WPL W10225949 View Details $650.09

View on Model

NI

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 View Details $29.41

View on Model

NI

W10624584 Whirlpool Power Cord Backorder WPL W10624584 View Details $71.21

View on Model

NI

LP CONVERSION KIT WPL W10221288 Contact Us For Availability

View on Model

NI

HARNESS, IGNITION WPL W10145986 Contact Us For Availability
