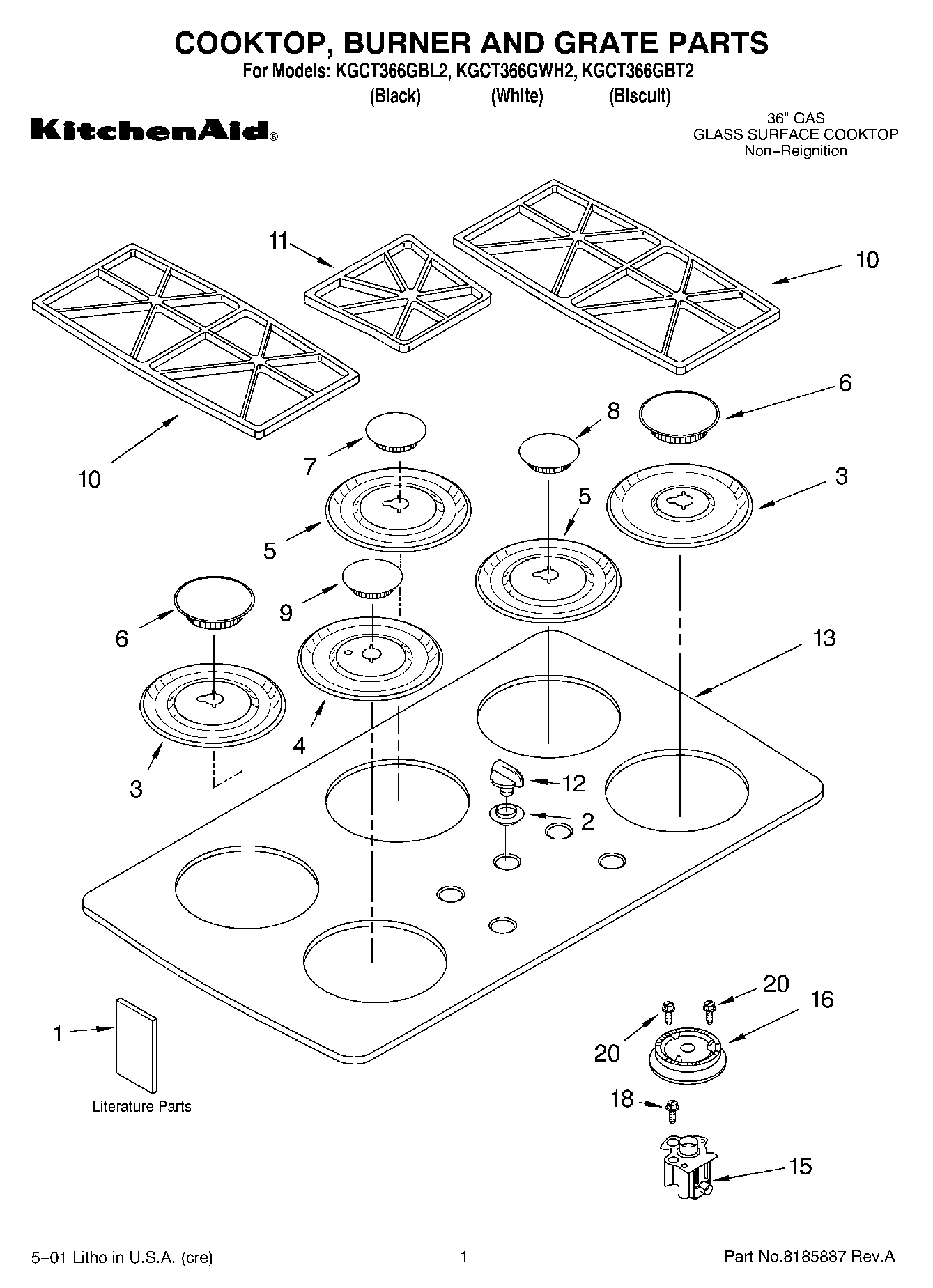

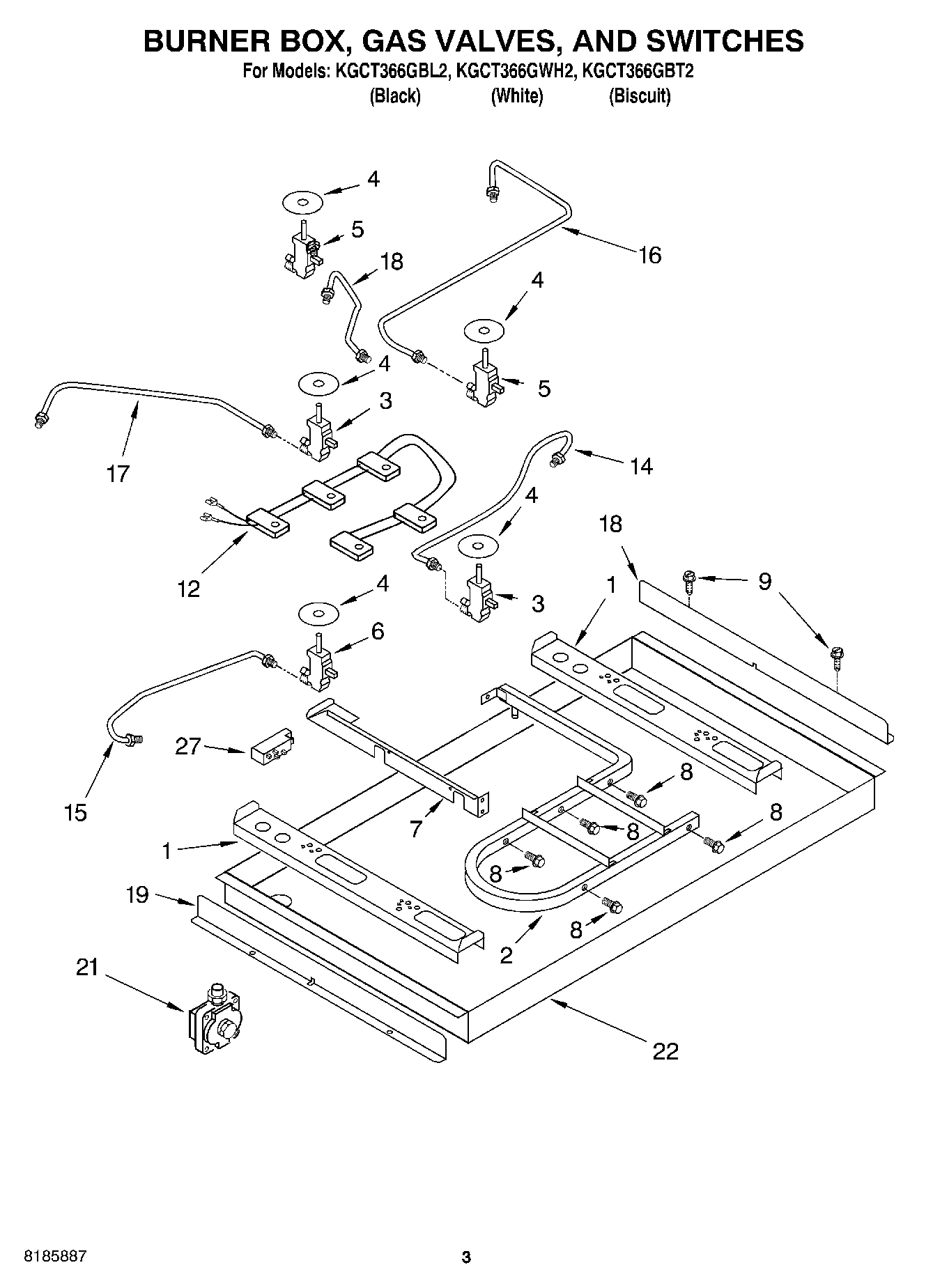

Model Whirlpool KGCT366GBL2 GAS COOKTOP – Common Parts & Diagrams

1
Safer Cooking Tips
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
View on Model
1
LITERATURE PARTS (Wiring Diagram)
LITERATURE PARTS (Wiring Diagram) WPL LIT3192099 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT3193071 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT4455834 Contact Us For Availability
View on Model
2
Grommet, Glass (Biscuit)
Grommet, Glass (Biscuit) WPL 3191817 Contact Us For Availability
View on Model
3
Valve, Gas Burner Burner, (RF) (LR)
Valve, Gas Burner Burner, (RF) (LR) WPL 3191292 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (LR) (Black)
Bezel, Cooktop (RF) (LR) (Black) WPL 3191307 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (LR) (White)
Bezel, Cooktop (RF) (LR) (White) WPL 3191308 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (LR) (Biscuit)
Bezel, Cooktop (RF) (LR) (Biscuit) WPL 3191819 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (Black)
Bezel, Cooktop (LF) (Black) WPL 3191498 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (White)
Bezel, Cooktop (LF) (White) WPL 3191499 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (Biscuit)
Bezel, Cooktop (LF) (Biscuit) WPL 3191826 Contact Us For Availability
View on Model
5
Valve, Gas Burner (RR) (Center)
Valve, Gas Burner (RR) (Center) WPL 3191293 Contact Us For Availability
View on Model
5
Bezel, Cooktop (RR) (Center) (Black)
Bezel, Cooktop (RR) (Center) (Black) WPL 3191302 Contact Us For Availability
View on Model
5
Bezel, Cooktop (RR) (Center) (White)
Bezel, Cooktop (RR) (Center) (White) WPL 3191303 Contact Us For Availability
View on Model
5
Bezel, Cooktop (RR) (Center) (Biscuit)
Bezel, Cooktop (RR) (Center) (Biscuit) WPL 3191818 Contact Us For Availability
View on Model
6
Cap, (RF) (LR) (Black)
Cap, (RF) (LR) (Black) WPL 3191728 Contact Us For Availability
View on Model
6
Cap, (RF) (LR) (White)
Cap, (RF) (LR) (White) WPL 3191729 Contact Us For Availability
View on Model
6
Cap, (RF) (LR) (Biscuit)
Cap, (RF) (LR) (Biscuit) WPL 3191730 Contact Us For Availability
View on Model
7
Cap, (Center) (White)
Cap, (Center) (White) WPL 3191732 Contact Us For Availability
View on Model
7
Cap, (Center) (Biscuit)
Cap, (Center) (Biscuit) WPL 3191733 Contact Us For Availability
View on Model
8
Cap, (RR) (Black)
Cap, (RR) (Black) WPL 3191734 Contact Us For Availability
View on Model
8
Cap, (RR) (White)
Cap, (RR) (White) WPL 3191735 Contact Us For Availability
View on Model
8
Cap, (RR) (Biscuit)
Cap, (RR) (Biscuit) WPL 3191736 Contact Us For Availability
View on Model
9
Cap, (LF) (Black)
Cap, (LF) (Black) WPL 3191737 Contact Us For Availability
View on Model
9
Cap, (LF) (White)
Cap, (LF) (White) WPL 3191738 Contact Us For Availability
View on Model
9
Cap, (LF) (Biscuit)
Cap, (LF) (Biscuit) WPL 3191739 Contact Us For Availability
View on Model
10
Grate, Burner (Black)
Grate, Burner (Black) WPL 3191485 Contact Us For Availability
View on Model
10
Grate, Burner (White)
Grate, Burner (White) WPL 3191486 Contact Us For Availability
View on Model
10
Grate, Burner (Biscuit)
Grate, Burner (Biscuit) WPL 3191487 Contact Us For Availability
View on Model
11
Grate, Filler (Black)
Grate, Filler (Black) WPL 3191280 Contact Us For Availability
View on Model
11
Grate, Filler (White)
Grate, Filler (White) WPL 3191281 Contact Us For Availability
View on Model
11
Grate, Filler (Biscuit)
Grate, Filler (Biscuit) WPL 3191282 Contact Us For Availability
View on Model
12
Knob, Control (4) (White)
Knob, Control (4) (White) WPL 3191923 Contact Us For Availability
View on Model
12
Knob, Control (4) (Biscuit)
Knob, Control (4) (Biscuit) WPL 3191925 Contact Us For Availability
View on Model
12
Harness & Switches
Harness & Switches WPL 3191336 Contact Us For Availability
View on Model
13
Cooktop, Glass (Black)
Cooktop, Glass (Black) WPL 3192146 Contact Us For Availability
View on Model
13
Cooktop, Glass (White)
Cooktop, Glass (White) WPL 3192147 Contact Us For Availability
View on Model
13
Cookto
Cookto WPL 3192149 Contact Us For Availability
View on Model
15
WPL 9754188
WPL 9754188 WPL 9754188 Contact Us For Availability
View on Model
15
WPL 9754182
WPL 9754182 WPL 9754182 Contact Us For Availability
View on Model
15
WPL 9754187
WPL 9754187 WPL 9754187 Contact Us For Availability
View on Model
16
WPL 4455849
WPL 4455849 WPL 4455849 Contact Us For Availability
View on Model
16
Tubing, Gas Burner (RR)
Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability
View on Model
27
Seal, Foam-Cooktop
Seal, Foam-Cooktop WPL 3191933 Contact Us For Availability
View on Model
