Model Whirlpool KGCT365XWH0 GAS COOKTOP – Common Parts & Diagrams

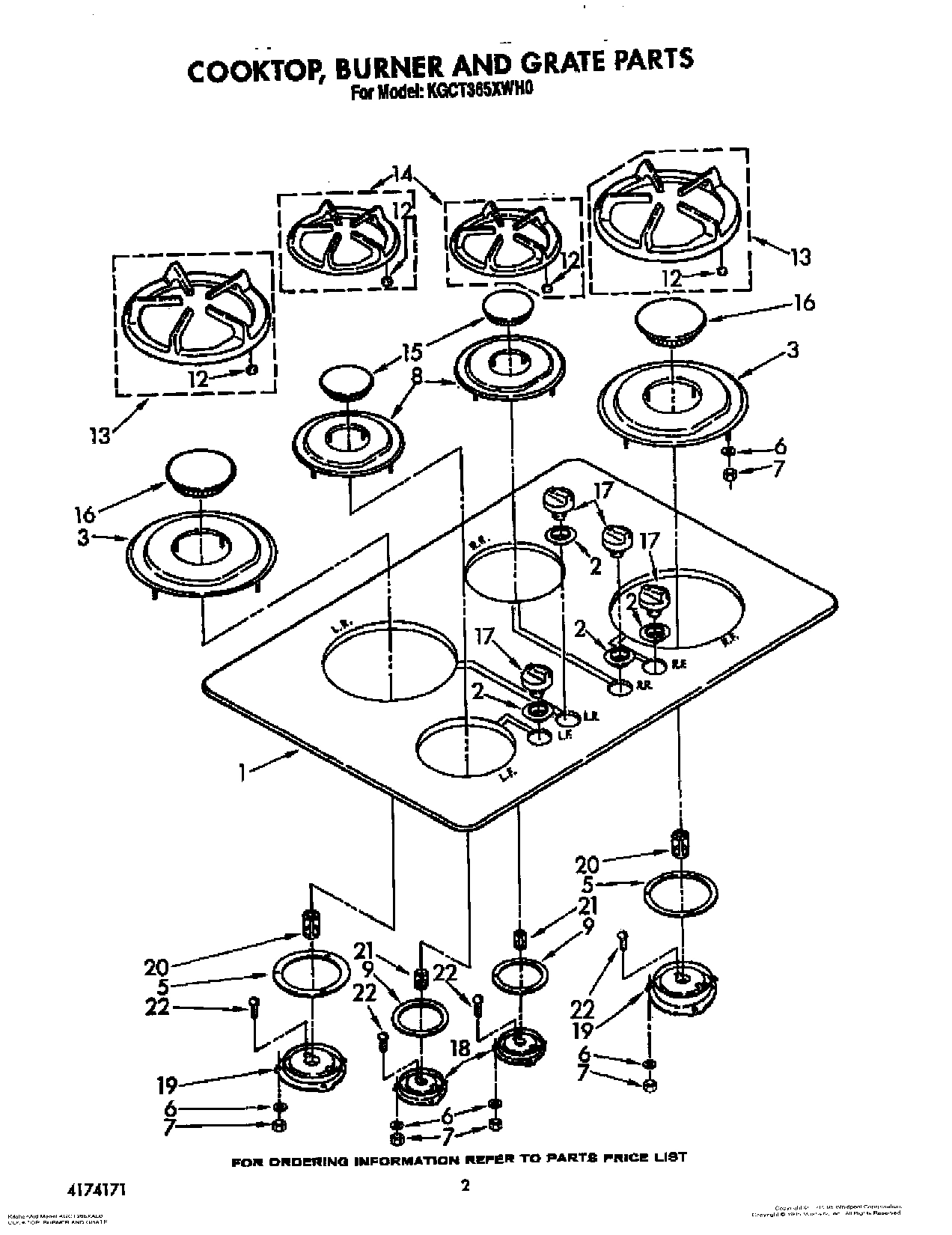

02 - COOKTOP, BURNER AND GRATE

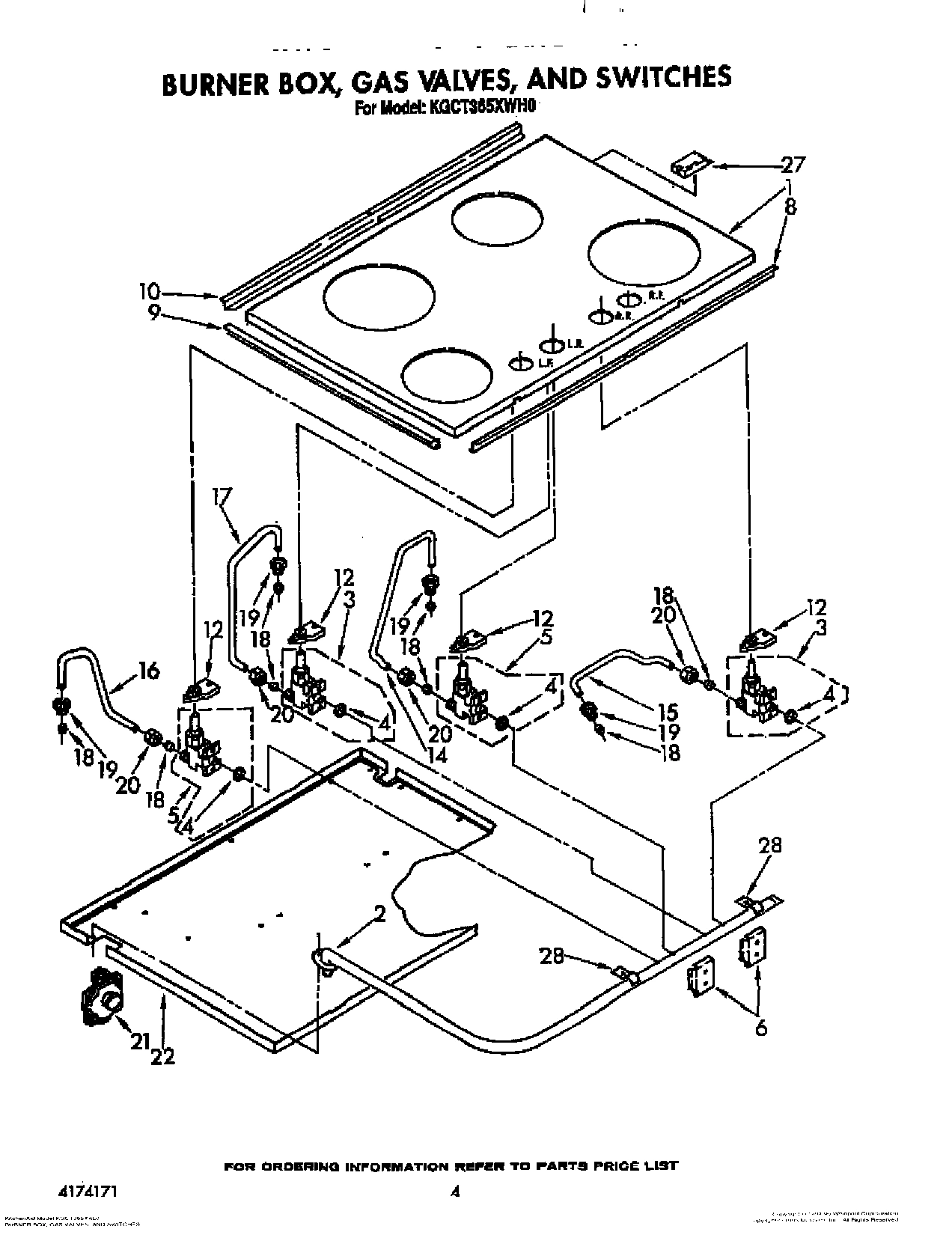

03 - BURNER BOX, GAS VALVES, AND SWITCHES
04 - COMPLETE SEALED GAS BURNER
Common parts from model Whirlpool KGCT365XWH0 GAS COOKTOP
Installation Instructions WPL LIT3177316 Contact Us For Availability
Use & Care Guide WPL LIT3180602 Contact Us For Availability
Repair Parts List WPL LIT4174171 Contact Us For Availability
1
Burner, Gas (Complete) (Small) WPL 3180265 Contact Us For Availability
1
Burner, Gas (Complete) (Large) WPL 3180266 Contact Us For Availability
1
Cover, Top Assy. WPL 3180913 Contact Us For Availability
2
Shutter, Air (For Large Burner) WPL 3180288 Contact Us For Availability
2
Shutter, Air (For Small Burner) WPL 3180267 Contact Us For Availability
2
Pipe, Manifold WPL 3180427 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3180087 Contact Us For Availability
3
Screw, Burner WPL 3180235 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) (Includes Illus. WPL 3180430 Contact Us For Availability
4
Washer, Gas Valve Sealing Washer (4) WPL 3180431 Contact Us For Availability
4
Clip, Burner Jet Lighter WPL 3180387 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 3180429 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3180291 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3180292 Contact Us For Availability
6
Jet Lighter WPL 3180233 Contact Us For Availability
6
Screw (8) WPL 3180435 Contact Us For Availability
6
Bracket, Clamp (4) (Gas Valve) WPL 3181205 Contact Us For Availability
6
Tape, Foam WPL 3179164 Contact Us For Availability
6
Tape, Foam (106``) WPL 3179166 Contact Us For Availability
6
Tie, Wire WPL 3179589 Contact Us For Availability
6
Wire Assy. White 12`` Spark Module Term.2 To WPL 3180462 Contact Us For Availability
6
Wire Assy. White 16`` Spark Module Term.1 To WPL 3180463 Contact Us For Availability
6
Wire Assy. White 29`` Spark Module Term.3 To WPL 3180465 Contact Us For Availability
6
Wire Assy. White 33`` Spark Module Term.4 To WPL 3180466 Contact Us For Availability
6
Wire Assy. Red 18`` Spark Module Term.12 To L WPL 3180471 Contact Us For Availability
6
Wire Assy. Red 20.5`` Spark Module Term.10 To WPL 3180472 Contact Us For Availability
6
Wire Assy. Red 24`` Spark Module Term.9 To Ri WPL 3180473 Contact Us For Availability
6
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
6
Hardware, Mounting WPL 3180600 Contact Us For Availability
6
Harness, Wire Sealed Gas Cooktop WPL 3181197 Contact Us For Availability
6
Wire Assy. Red 18`` Spark Module Term.11 To L WPL 3181668 Contact Us For Availability
6
Cord, Power WPL 4169261 Contact Us For Availability
6
Conversion Kit Natural Gas To L.P. WPL 4175444 Contact Us For Availability
7
Nut, Hex (3) WPL 4159072 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black (Includes Illus WPL 3180088 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 3180089 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3180090 Contact Us For Availability
8
Frame, Front WPL 3180697 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
9
Frame, Side (2) WPL 3181257 Contact Us For Availability
10
Frame, Rear WPL 3180672 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 4173550 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Blac WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Taup WPL 3180922 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Shad WPL 3180923 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Bl WPL 3180927 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Ta WPL 3180928 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Sh WPL 3180929 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3180425 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black (KGCT365XBL0)) WPL 3180082 Contact Us For Availability
15
Cap, Rapid Burner (2) (Taupe (KGCT365XAL0)) WPL 3180083 Contact Us For Availability
15
Cap, Rapid Burner (2) ( WPL 3180084 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3180419 Contact Us For Availability
16
WPL 3180091 WPL 3180091 Contact Us For Availability
16
WPL 3180092 WPL 3180092 Contact Us For Availability
16
WPL 3180093 WPL 3180093 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3180423 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3180421 Contact Us For Availability
18
Sleeving, Gas Tube (8) WPL 3180436 Contact Us For Availability
19
Nut, Gas Tubing (Burner End) 4 WPL 3180438 Contact Us For Availability
20
Nut, Gas Tubing (Gas Valve End) 4 WPL 3180437 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Cover, Burner Box WPL 3180668 Contact Us For Availability
27
Screw (3) WPL 4159461 Contact Us For Availability
28
Clamp, Manifold WPL 3180608 Contact Us For Availability
× ![]()
