Model Whirlpool KGCT365XBL1 GAS COOKTOP – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION

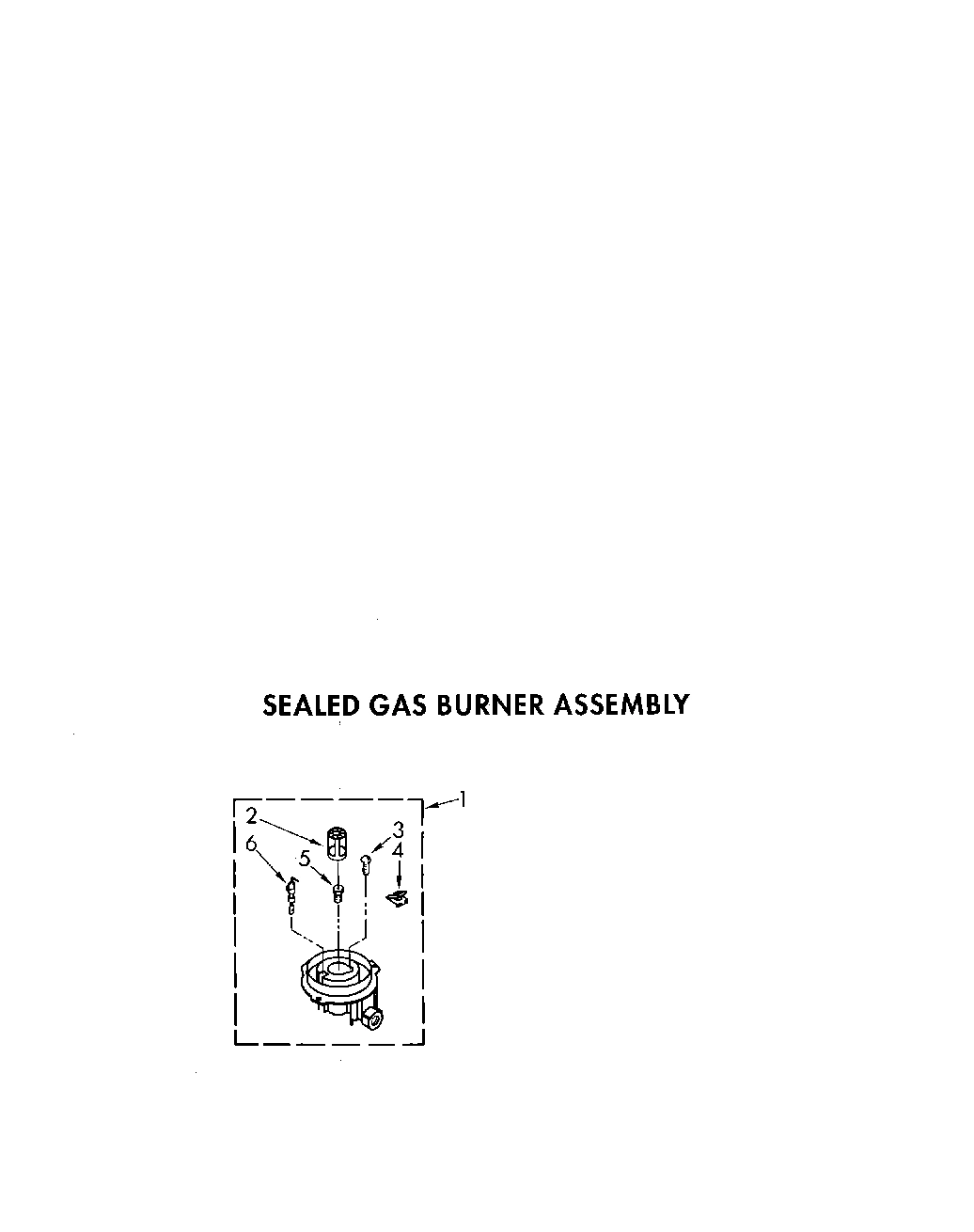

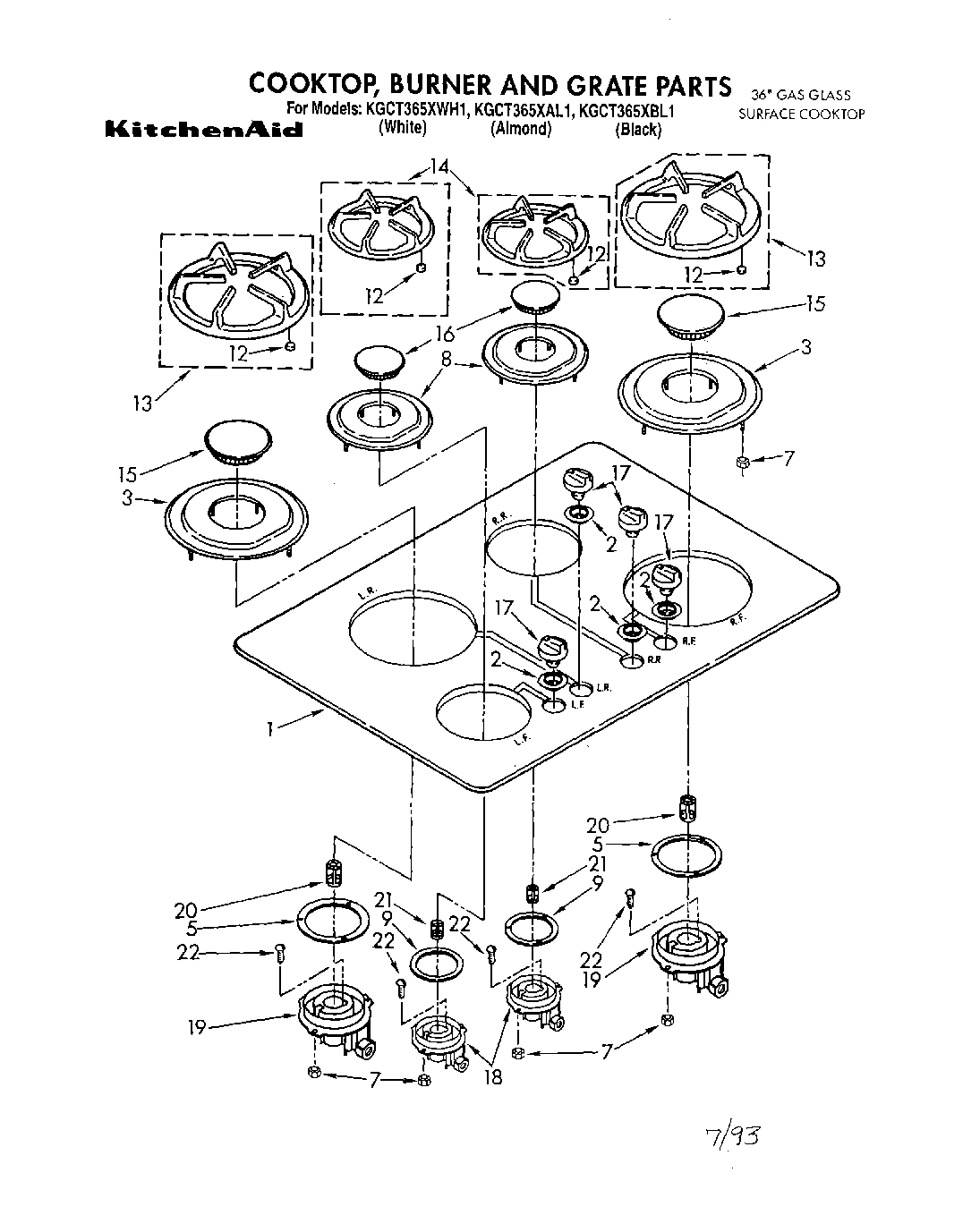

Common parts from model Whirlpool KGCT365XBL1 GAS COOKTOP
Tape, Foam WPL 3179164 Contact Us For Availability
Tape, Foam (106``) WPL 3179166 Contact Us For Availability
Tie, Wire WPL 3179589 Contact Us For Availability
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
Hardware, Mounting WPL 3180600 Contact Us For Availability
Harness, Wire Sealed Gas Cooktop WPL 3181197 Contact Us For Availability
Wire Assy. White 12`` Spark Module Term.2 To WPL 3185243 Contact Us For Availability
Wire Assy. Red 16`` Spark Module Term.1 To Le WPL 3185244 Contact Us For Availability
Wire Assy. Blue 29`` Spark Module Term.3 To R WPL 3185246 Contact Us For Availability
Wire Assy. Yellow 35`` Spark Module Term.4 To WPL 3185247 Contact Us For Availability
Wire Assy. Yellow 18`` Spark Module Term.12 T WPL 3185249 Contact Us For Availability
Wire Assy. White 20.5`` WPL 3185250 Contact Us For Availability
WPL 3185251 WPL 3185251 Contact Us For Availability
WPL 3185253 WPL 3185253 Contact Us For Availability
WPL 4159465 WPL 4159465 Contact Us For Availability
WPL 4169261 WPL 4169261 Contact Us For Availability
WPL 4175444 WPL 4175444 Contact Us For Availability
WPL LIT3177316 WPL LIT3177316 Contact Us For Availability
WPL LIT3180602 WPL LIT3180602 Contact Us For Availability
WPL LIT4174185 WPL LIT4174185 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3181345 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3181346 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3181347 Contact Us For Availability
1
Cover, Top Assy. WPL 3180913 Contact Us For Availability
2
Pipe, Manifold WPL 3180427 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black (Includes Illus WPL 3180085 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 3180086 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3180087 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) (Includes Illus. WPL 3180430 Contact Us For Availability
4
Washer, Gas Valve Sealing Washer (4) WPL 3183487 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3180291 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3180292 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 3180429 Contact Us For Availability
6
JET LIGHTER WPL ARI87716A4 Contact Us For Availability
6
Screw (8) WPL 3180435 Contact Us For Availability
6
Bracket, Clamp (4) (Gas Valve) WPL 3181205 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black (Includes Illus WPL 3180088 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 3180089 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3180090 Contact Us For Availability
8
Frame, Front WPL 3180697 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
10
Frame, Rear WPL 3180672 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 4173550 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Blac WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Taup WPL 3180922 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Shad WPL 3180923 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Bl WPL 3180927 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Ta WPL 3180928 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Sh WPL 3180929 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3185302 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black (KGCT365XBL1)) WPL 3180082 Contact Us For Availability
15
Cap, Rapid Burner (2) (Taupe (KGCT365XAL1)) WPL 3180083 Contact Us For Availability
15
Cap, Rapid Burner (2) (Shadow Grey (KGCT365XW WPL 3180084 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3185301 Contact Us For Availability
16
WPL 3180091 WPL 3180091 Contact Us For Availability
16
WPL 3180092 WPL 3180092 Contact Us For Availability
16
WPL 3180093 WPL 3180093 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3185300 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3185299 Contact Us For Availability
18
WPL ARI87712A8 WPL ARI87712A8 Contact Us For Availability
19
WPL ARI87713A1 WPL ARI87713A1 Contact Us For Availability
20
WPL ARI87714A4 WPL ARI87714A4 Contact Us For Availability
21
WPL ARI87715A9 WPL ARI87715A9 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
WPL 3180235 WPL 3180235 Contact Us For Availability
22
Cover, Burner Box WPL 3180668 Contact Us For Availability
27
Screw (3) WPL 4159461 Contact Us For Availability
28
Screw (2) WPL 3148443 Contact Us For Availability
28
Clip WPL 311506 Contact Us For Availability
28
Clamp, Manifold WPL 3180609 Contact Us For Availability
× ![]()
