Model Whirlpool KGCT365XAL3 GAS COOKTOP – Common Parts & Diagrams

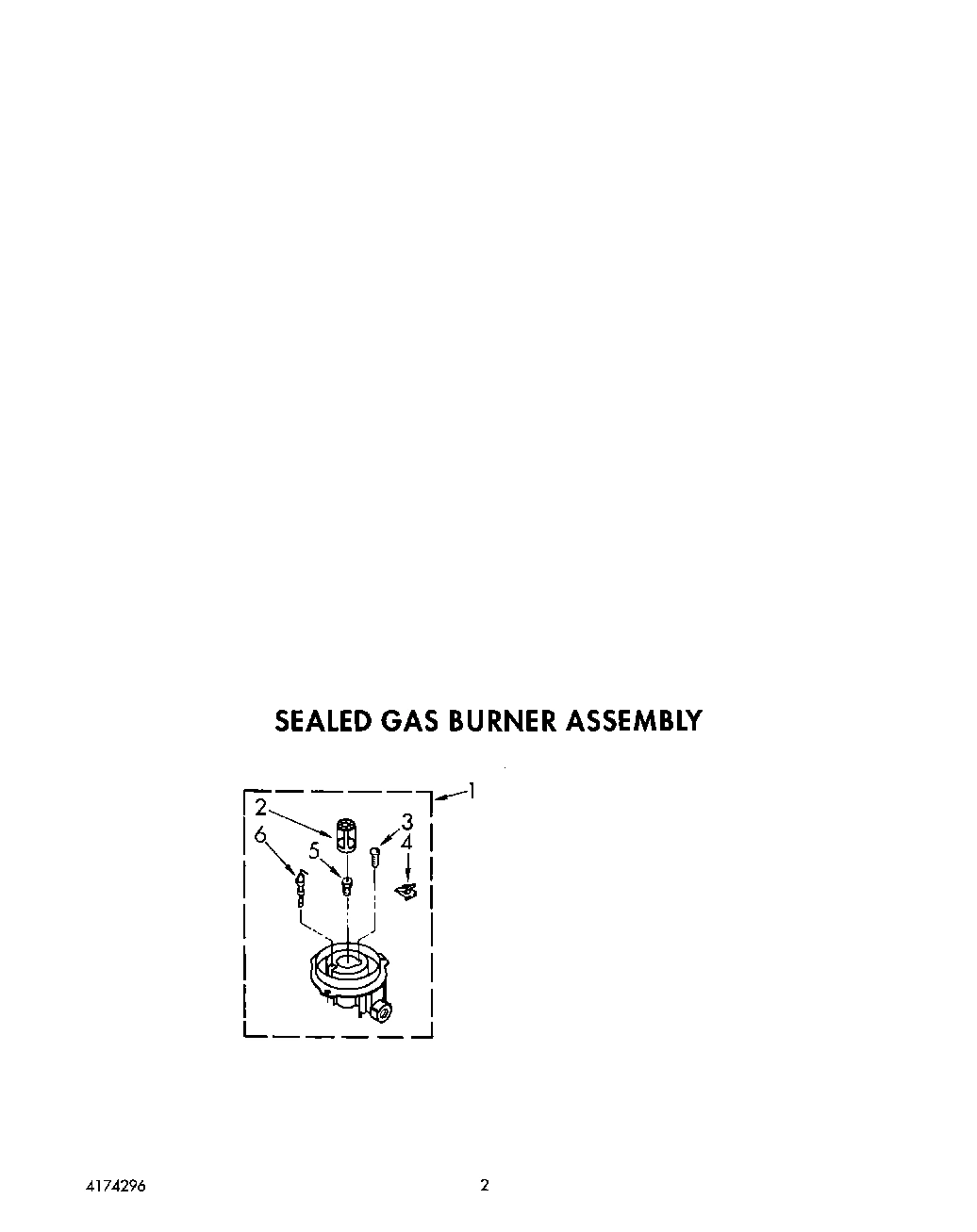

02 - SECTION

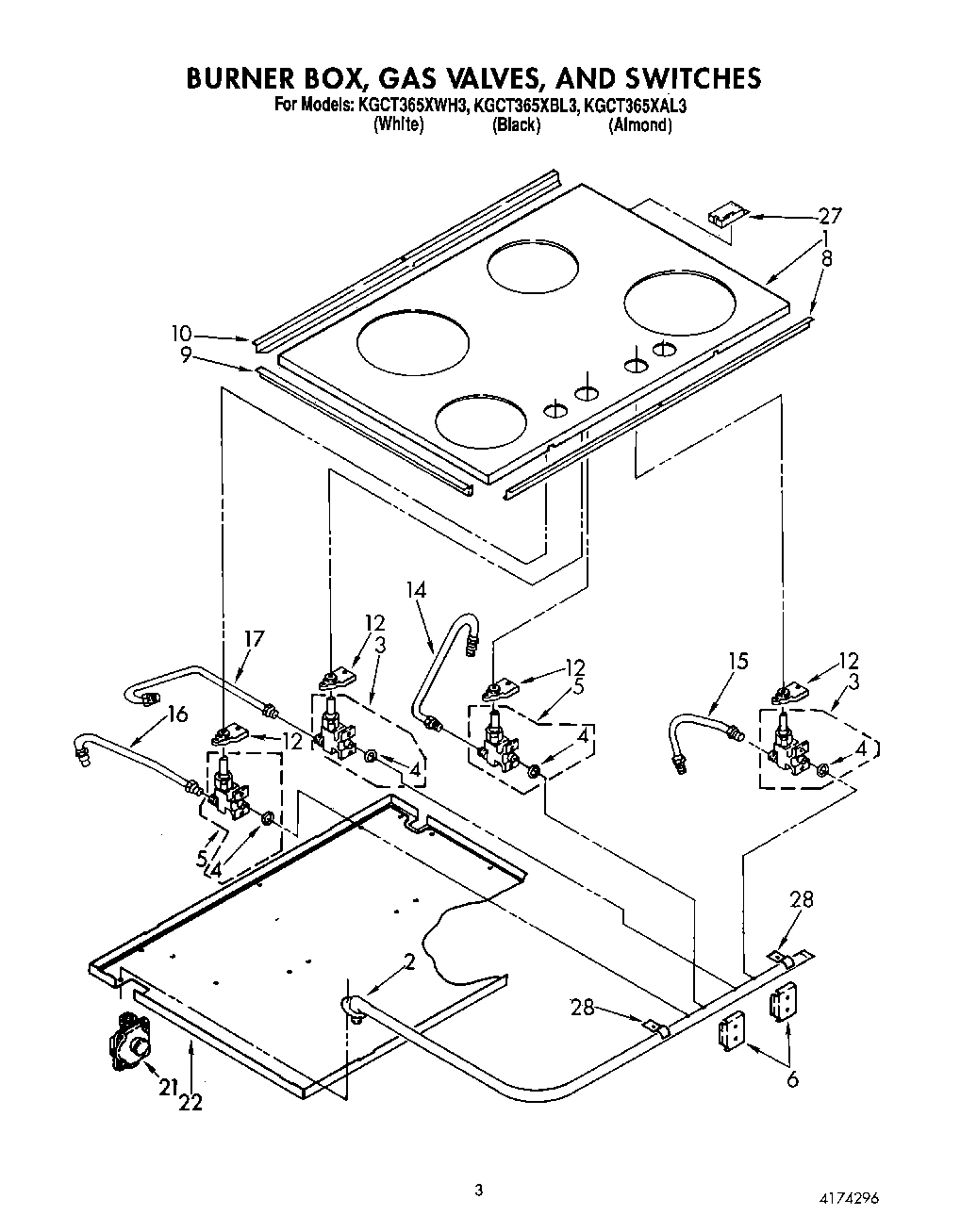

03 - SECTION

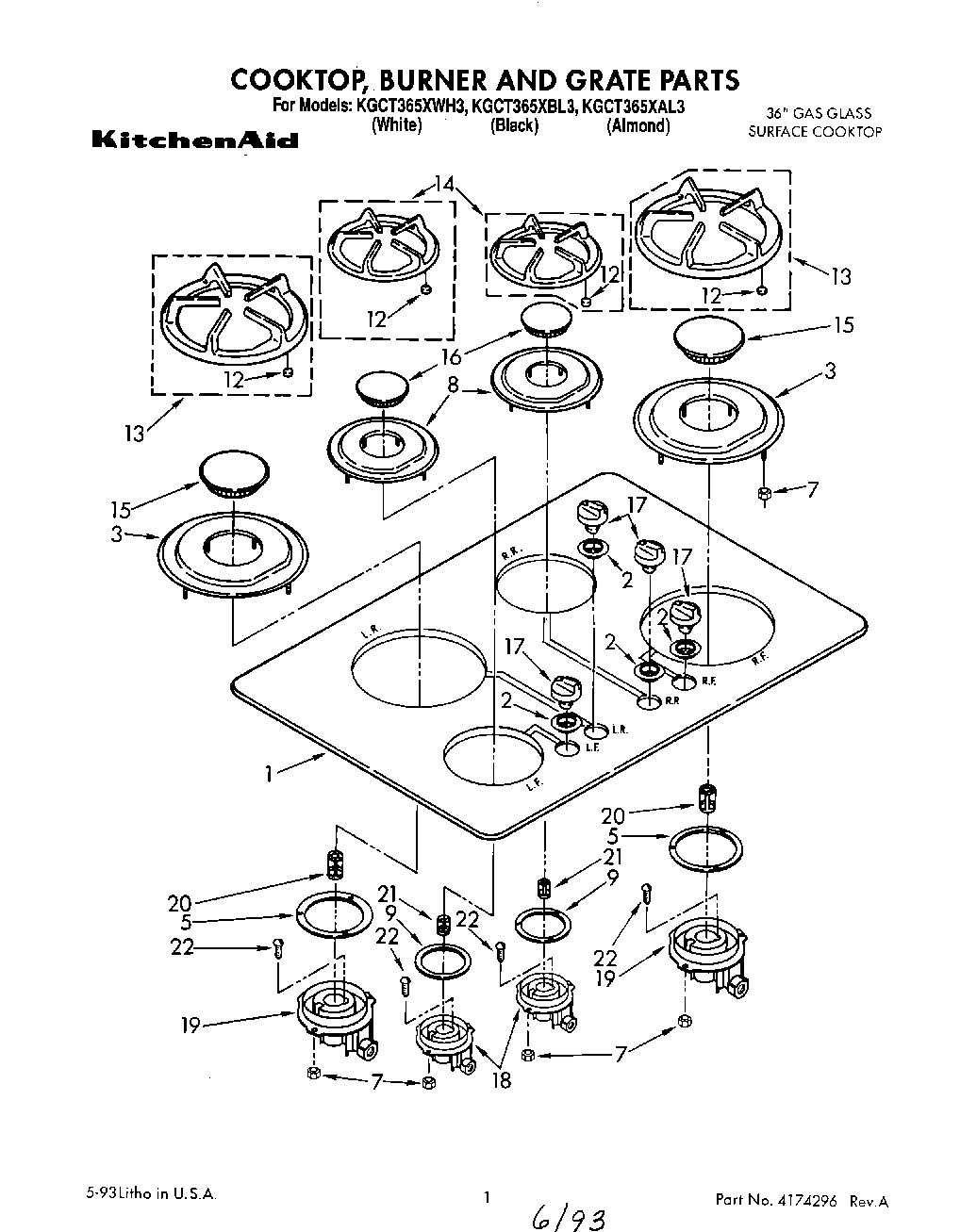

01 - SECTION
Common parts from model Whirlpool KGCT365XAL3 GAS COOKTOP
Tape, Foam WPL 3179164 Contact Us For Availability
Tie, Wire (2) WPL 3179589 Contact Us For Availability
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
Hardware, Mounting WPL 3180600 Contact Us For Availability
Harness, Wire Sealed Gas Cooktop WPL 3181197 Contact Us For Availability
Wire Assy. White 12`` Spark Module Term.2 To WPL 3185243 Contact Us For Availability
Wire Assy. Red 16`` Spark Module Term.1 To Le WPL 3185244 Contact Us For Availability
Wire Assy. Blue 29`` Spark Module Term.3 To R WPL 3185246 Contact Us For Availability
Wire Assy. Yellow 35`` Spark Module Term.4 To WPL 3185247 Contact Us For Availability
Wire Assy. Red 24`` Spark Module Term.9 To Ri WPL 3185775 Contact Us For Availability
Wire Assy. White 20.5`` Spark Mod WPL 3185776 Contact Us For Availability
WPL 3185777 WPL 3185777 Contact Us For Availability
WPL 3185778 WPL 3185778 Contact Us For Availability
WPL 4159465 WPL 4159465 Contact Us For Availability
WPL 4169261 WPL 4169261 Contact Us For Availability
WPL 4175444 WPL 4175444 Contact Us For Availability
WPL LIT3185703 WPL LIT3185703 Contact Us For Availability
WPL LIT3185782 WPL LIT3185782 Contact Us For Availability
WPL LIT4174296 WPL LIT4174296 Contact Us For Availability
1
Cover, Top Assy. WPL 3180913 Contact Us For Availability
1
Cooktop, Glass (Black Model) WPL 3181345 Contact Us For Availability
1
Cooktop, Glass (Almond Model) WPL 3181346 Contact Us For Availability
1
Cooktop, Glass (White Model) WPL 3181347 Contact Us For Availability
2
Pipe, Manifold WPL 3180427 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) (Includes Illus. WPL 3180430 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black Model) WPL 3180085 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond Model (Include WPL 3180086 Contact Us For Availability
3
Bezel, Cooktop (Large) (White Model) WPL 3180087 Contact Us For Availability
4
Washer, Gas Valve Sealing Washer (4) WPL 3183487 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3180292 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 3180429 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
6
Jet Lighter WPL 3180233 Contact Us For Availability
6
Screw (8) WPL 3180435 Contact Us For Availability
6
Bracket, Clamp (4) (Gas Valve) WPL 3181205 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Frame, Front WPL 3180697 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black Model) WPL 3180088 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond Model (Include WPL 3180089 Contact Us For Availability
8
Bezel, Cooktop (Small) (White Model) WPL 3180090 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
10
Frame, Rear WPL 3180670 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 3180414 Contact Us For Availability
13
Grate, Large (RF & LR) (Black Model) WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (White Model) WPL 3185354 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond Model (Include WPL 3185507 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3185302 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Bl WPL 3180927 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Wh WPL 3185356 Contact Us For Availability
14
Grate (Small) (LF & RR) (Includes No. 12) (Al WPL 3185509 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3185301 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black Model) WPL 3180082 Contact Us For Availability
15
Cap, Rapid Burner (2) (White Model) WPL 3185352 Contact Us For Availability
15
Cap, Rapid Burner (2) (Almond Model) WPL 3185505 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3185300 Contact Us For Availability
16
Cap, Semi Rapid (Black Mod WPL 3180091 Contact Us For Availability
16
WPL 3185353 WPL 3185353 Contact Us For Availability
16
WPL 3185506 WPL 3185506 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3185299 Contact Us For Availability
18
WPL 3180265 WPL 3180265 Contact Us For Availability
19
WPL 3180266 WPL 3180266 Contact Us For Availability
20
WPL 3180288 WPL 3180288 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
21
WPL 3180267 WPL 3180267 Contact Us For Availability
22
Cover, Burner Box WPL 3180668 Contact Us For Availability
22
WPL 3180235 WPL 3180235 Contact Us For Availability
28
Screw WPL 3148443 Contact Us For Availability
28
Clip WPL 311506 Contact Us For Availability
28
Clamp, Manifold WPL 3180609 Contact Us For Availability
× ![]()
