Model Whirlpool KGCT365AWH0 GAS COOKTOP – Common Parts & Diagrams

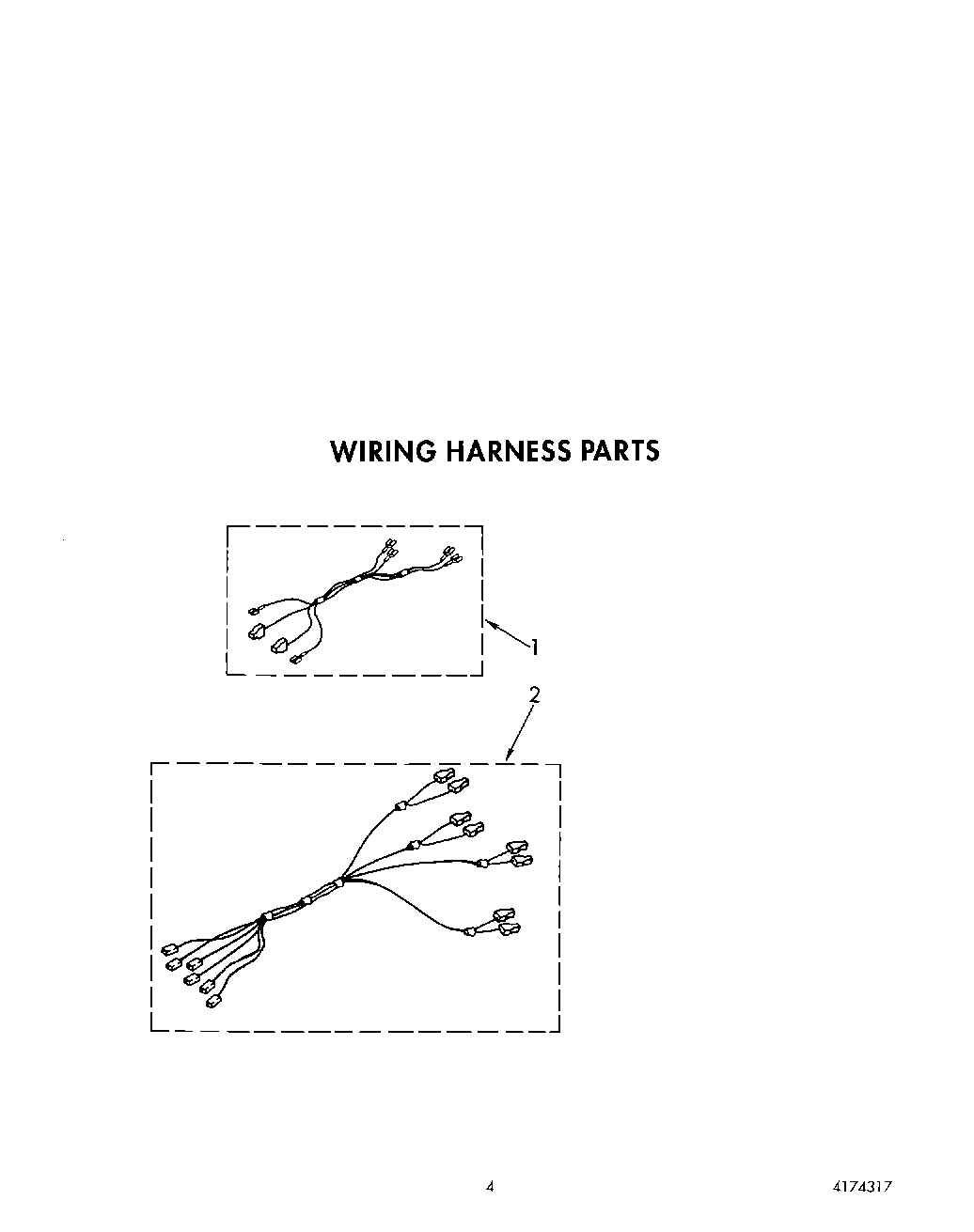

04 - WIRING HARNESS

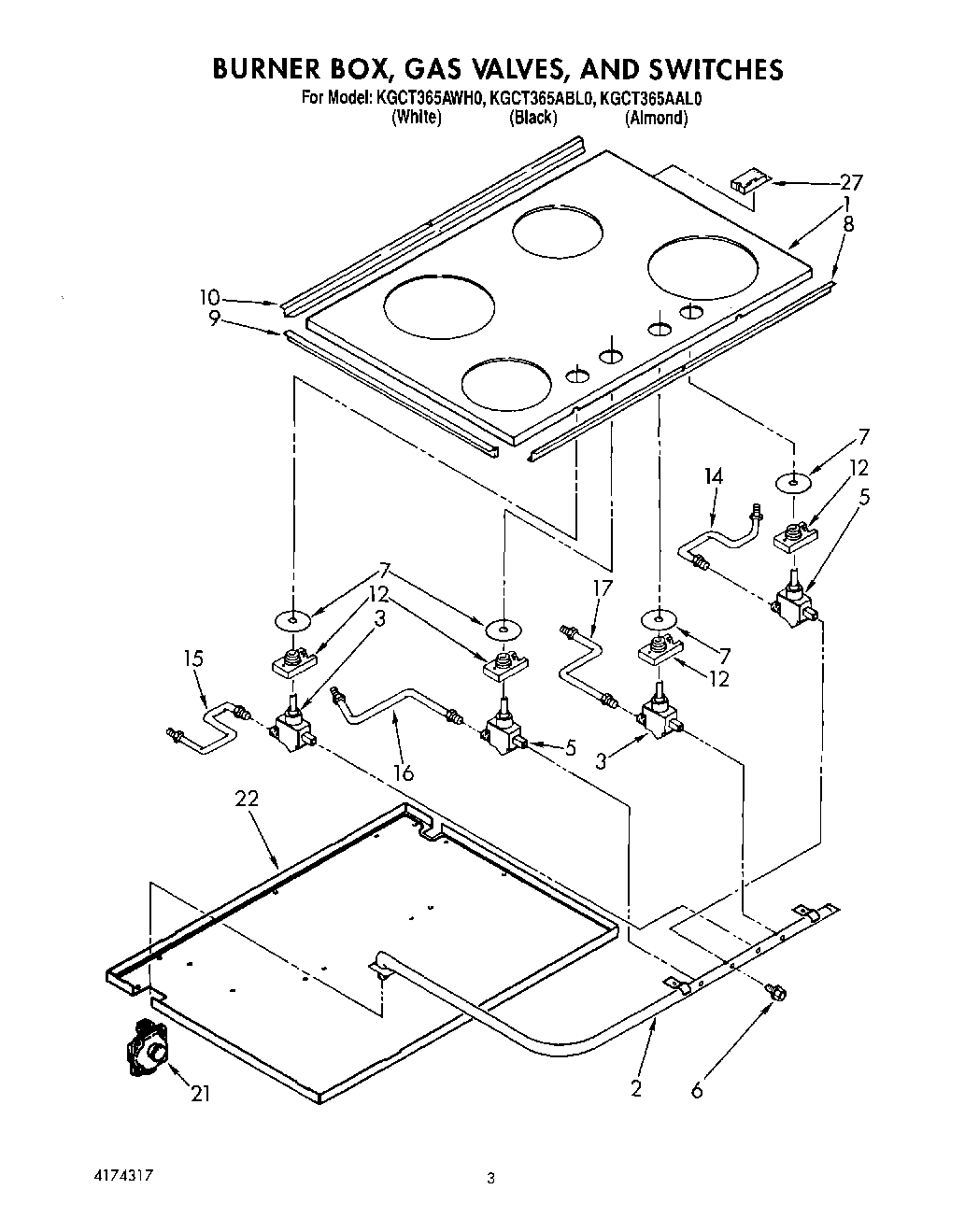

03 - BURNER BOX, GAS VALVES, AND SWITCHES

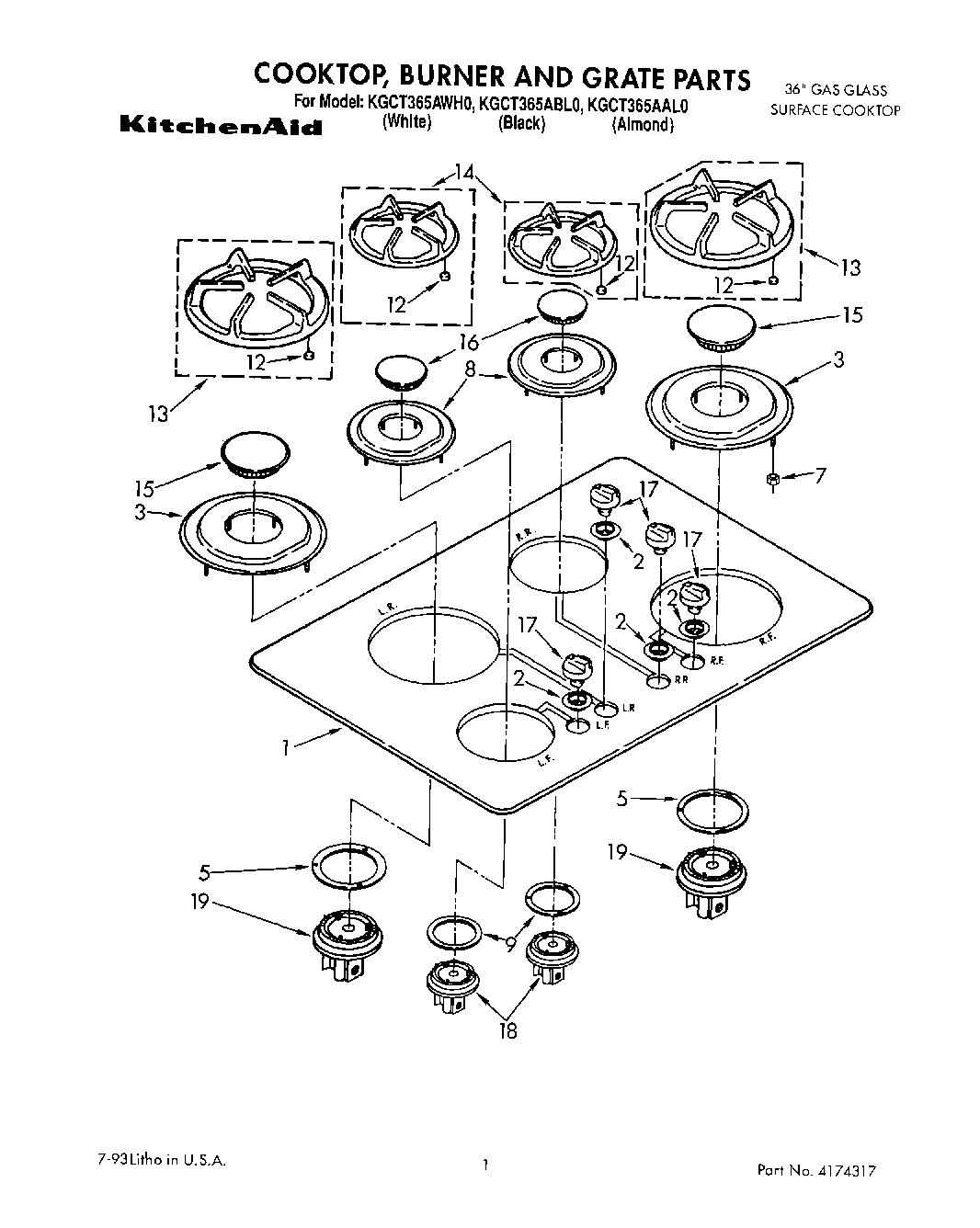

01 - COOKTOP, BURNER AND GRATE

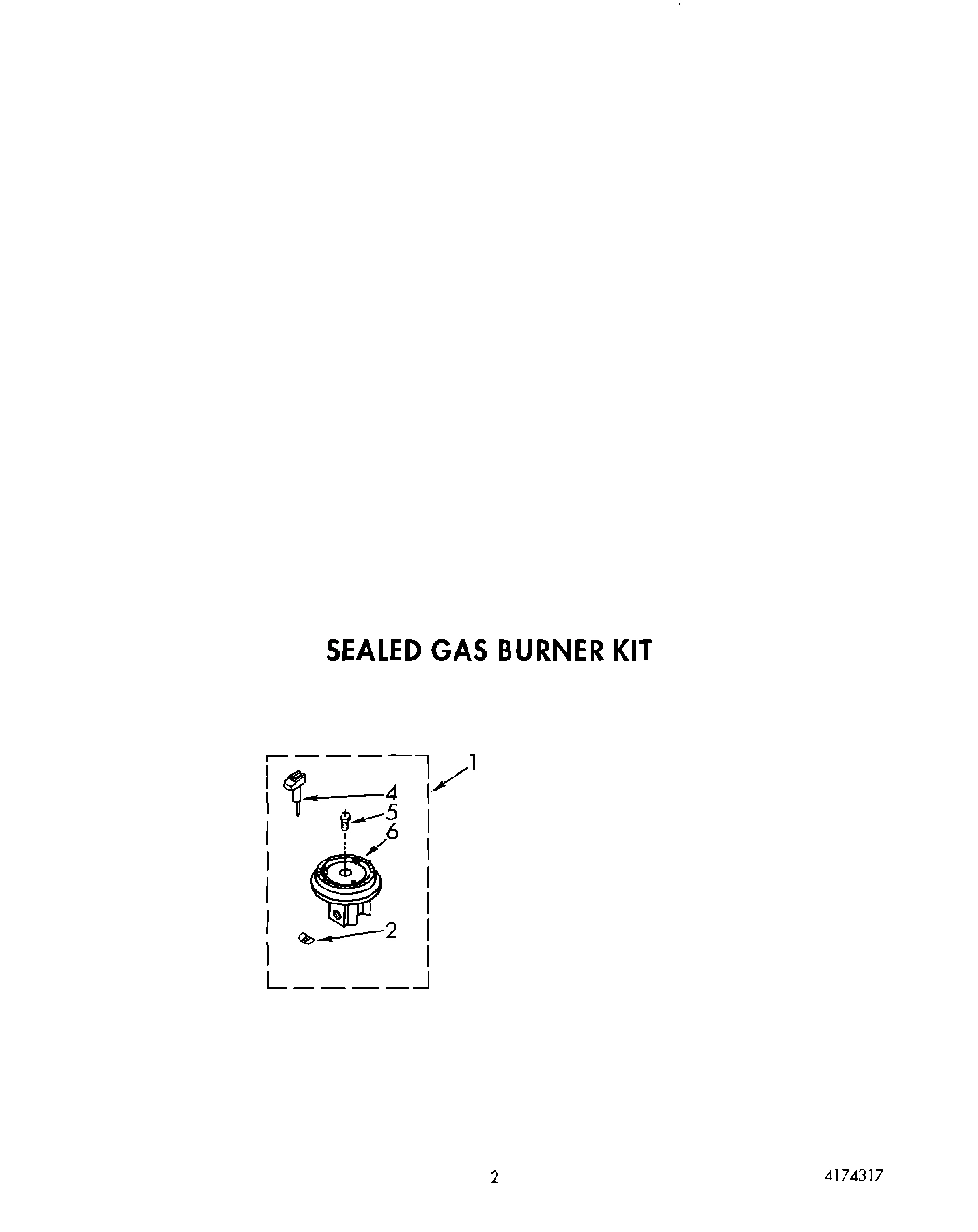

02 - SEALED GAS BURNER KIT
Common parts from model Whirlpool KGCT365AWH0 GAS COOKTOP
Use & Care Guide WPL LIT3185703 Contact Us For Availability
Installation Instructions WPL LIT3185891 Contact Us For Availability
1
Cover, Top Assy. WPL 3180913 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3185897 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3185898 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3185899 Contact Us For Availability
1
Sealed Gas Burner Kit (Large Burner) WPL 814244 Contact Us For Availability
1
Sealed Gas Burner Kit (Small Burner) WPL 814245 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Washer WPL 4159603 Contact Us For Availability
2
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
2
Pipe, Manifold WPL 3185807 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond (Includes Illu WPL 3185819 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185948 Contact Us For Availability
6
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Frame, Front WPL 3180697 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond (Includes Illu WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
10
Frame, Rear WPL 3180672 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 3180414 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3185354 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond (Includes No.1 WPL 3185507 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3185749 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Bl WPL 3180927 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Wh WPL 3185356 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Al WPL 3185509 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3185748 Contact Us For Availability
15
Cap, Rapid Burner (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner (2) (White) WPL 3185794 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (LR) WPL 3185747 Contact Us For Availability
16
Cap, Semi Rapid (Almond Burner (2)) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid (White) WPL 3185797 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3185746 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Screw WPL 3148443 Contact Us For Availability
22
Cover, Burner Box WPL 3180668 Contact Us For Availability
× ![]()
