Model Whirlpool KGCT305XAL0 GAS COOKTOP – Common Parts & Diagrams

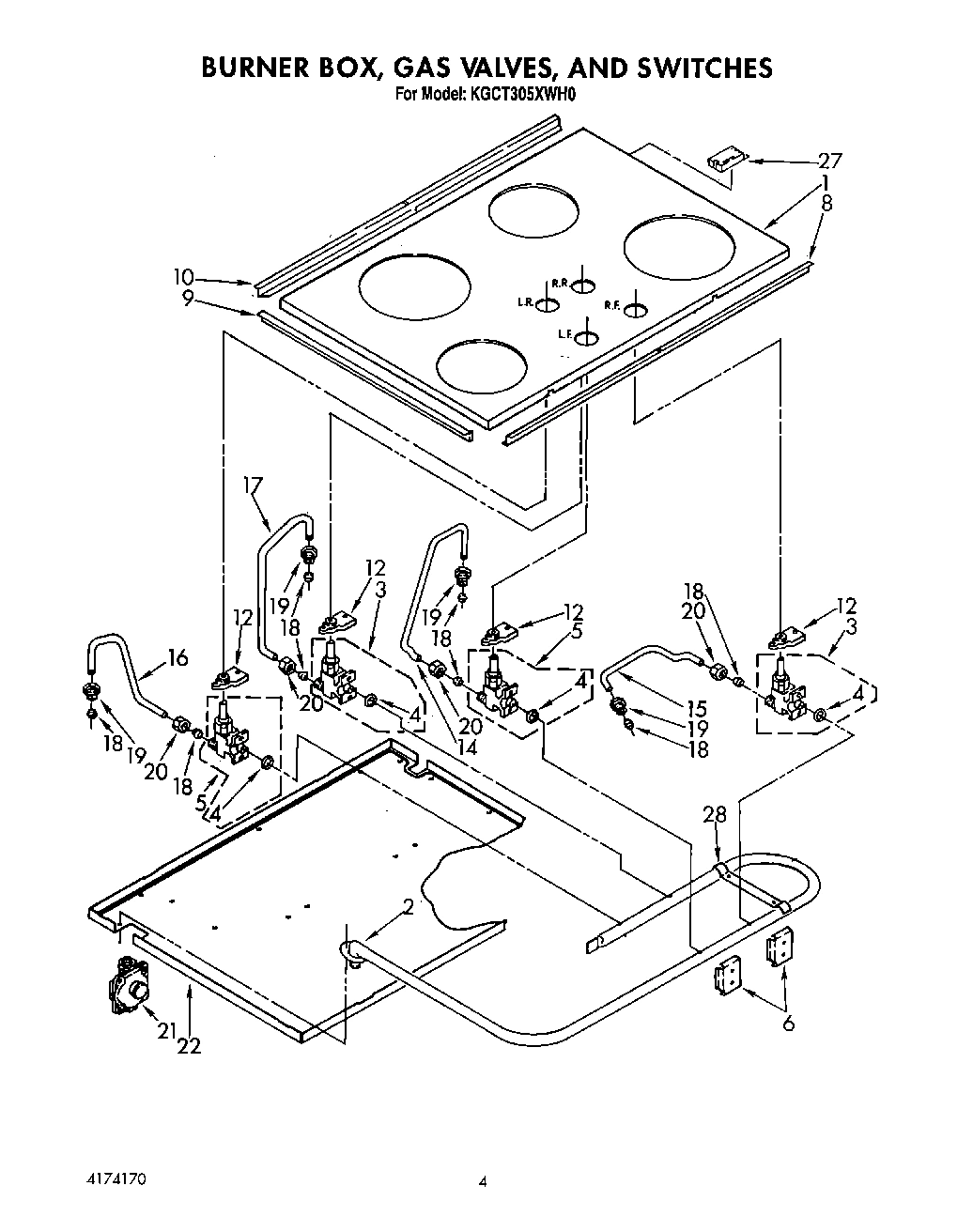

03 - BURNER BOX, GAS VALVES, AND SWITCHES

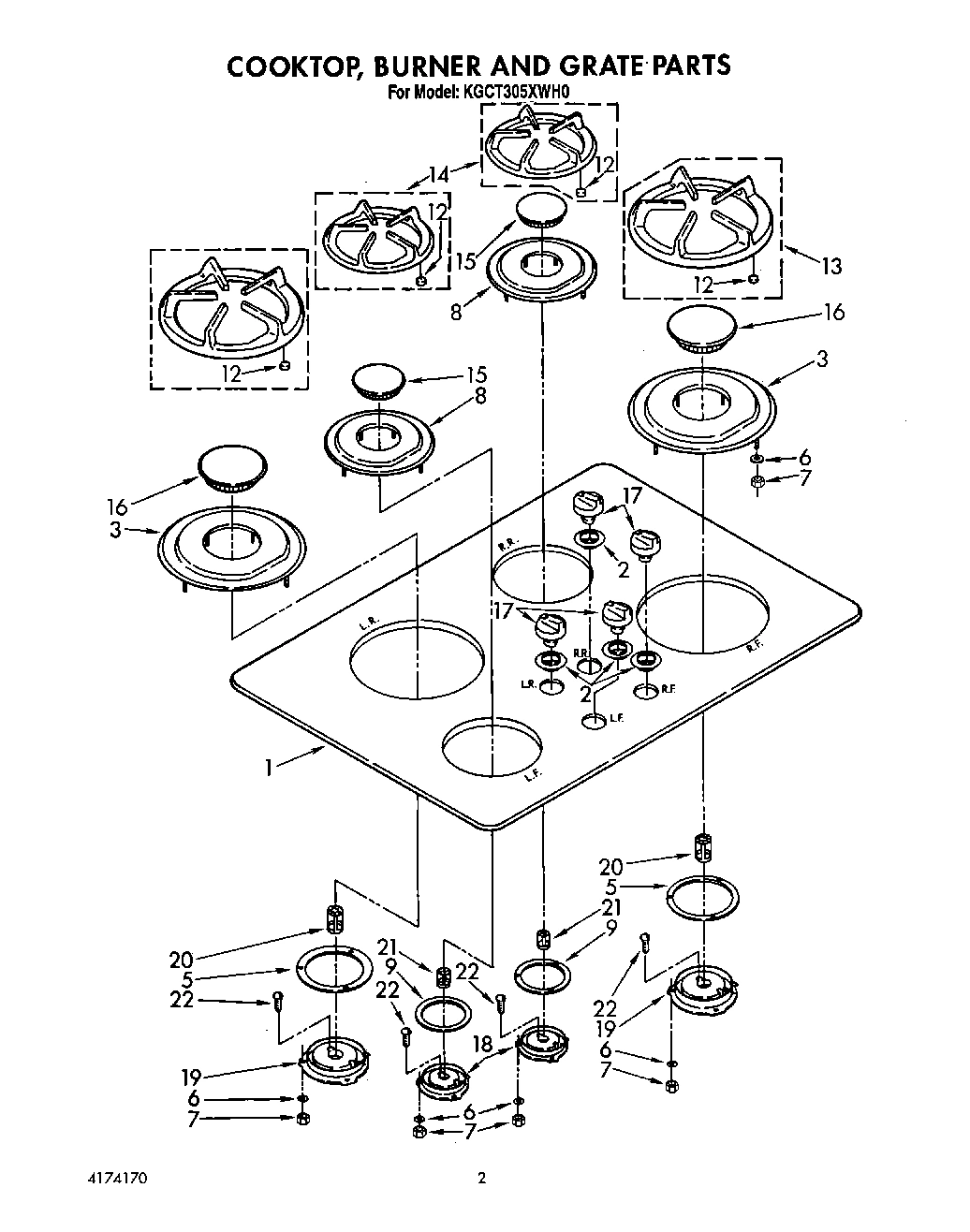

02 - COOKTOP, BURNER AND GRATE

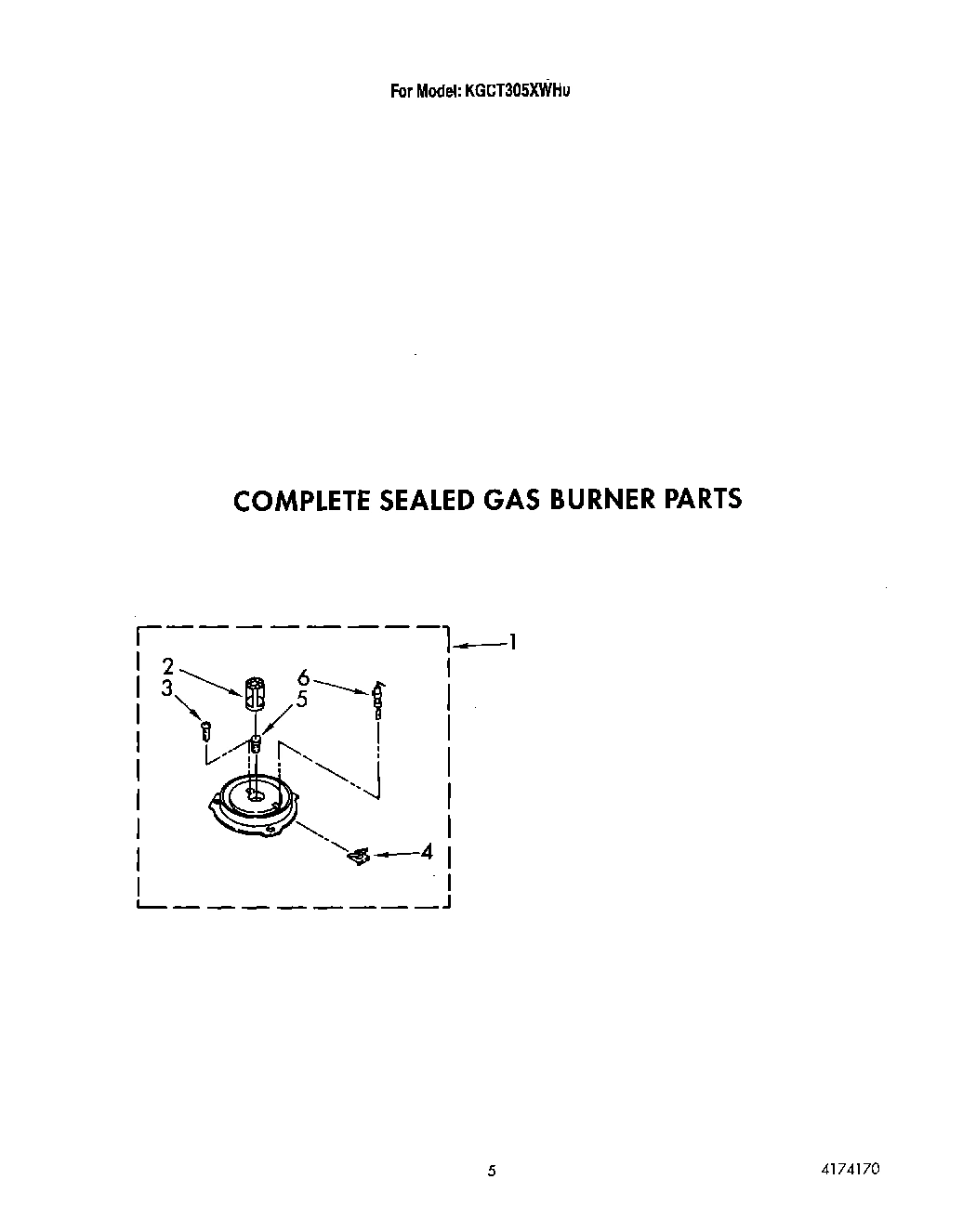

04 - COMPLETE SEALED GAS BURNER
Common parts from model Whirlpool KGCT305XAL0 GAS COOKTOP
1
Cooktop, Glass (Black) WPL 3181342 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3181343 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3181344 Contact Us For Availability
1
Burner, Gas (Complete) (Small) WPL 3180265 Contact Us For Availability
1
Burner, Gas (Complete) (Large) WPL 3180266 Contact Us For Availability
2
Shutter, Air (For Large Burner) WPL 3180288 Contact Us For Availability
2
Shutter, Air (For Small Burner) WPL 3180267 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black (Includes Illus WPL 3180085 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 3180086 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3180087 Contact Us For Availability
3
Screw, Burner WPL 3180235 Contact Us For Availability
4
Washer, Gas Valve Sealing Washer (4) WPL 3180431 Contact Us For Availability
4
Clip, Burner Jet Lighter WPL 3180387 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 3180429 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3180291 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3180292 Contact Us For Availability
6
Jet Lighter WPL 3180233 Contact Us For Availability
6
Bracket, Clamp (4) (Gas Valve) WPL 3181205 Contact Us For Availability
6
Tape, Foam WPL 3179164 Contact Us For Availability
6
Tie, Wire WPL 3179589 Contact Us For Availability
6
Wire Assy. White 10`` WPL 3180461 Contact Us For Availability
6
Wire Assy. White 16`` WPL 3180463 Contact Us For Availability
6
Wire Assy. White 23`` WPL 3180464 Contact Us For Availability
6
Wire Assy. Red 14`` WPL 3180470 Contact Us For Availability
6
Wire Assy. Red 18`` WPL 3180471 Contact Us For Availability
6
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
6
Hardware, Mounting WPL 3180600 Contact Us For Availability
6
Harness, Wire Sealed Gas Cooktop WPL 3181197 Contact Us For Availability
6
Wire Assy. White 29`` WPL 3181667 Contact Us For Availability
6
Wire Assy. Red 18`` WPL 3181669 Contact Us For Availability
6
Wire Assy. Red 20.5`` WPL 3181670 Contact Us For Availability
6
Cord, Power WPL 4169261 Contact Us For Availability
6
Conversion Kit Natural Gas To L.P. WPL 4175444 Contact Us For Availability
7
Nut, Hex (3) WPL 4159072 Contact Us For Availability
8
Frame, Front WPL 3180696 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black (Includes Illus WPL 3180088 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 3180089 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3180090 Contact Us For Availability
9
Frame, Side (2) WPL 3181256 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
10
Frame, Rear WPL 3180670 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 4173550 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Blac WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Taup WPL 3180922 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No.12) (Shad WPL 3180923 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3180424 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Bl WPL 3180927 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Ta WPL 3180928 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Includes No.12) (Sh WPL 3180929 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3180418 Contact Us For Availability
15
Cap, Semi Rapid Burner (2) (Black (KGCT305XBL WPL 3180091 Contact Us For Availability
15
Cap, Semi Rapid Burner (2) (Taupe (KGCT305XAL WPL 3180092 Contact Us For Availability
15
Cap, Semi WPL 3180093 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3180422 Contact Us For Availability
16
WPL 3180082 WPL 3180082 Contact Us For Availability
16
WPL 3180083 WPL 3180083 Contact Us For Availability
16
WPL 3180084 WPL 3180084 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3180420 Contact Us For Availability
18
Sleeving, Gas Tube (8) WPL 3180436 Contact Us For Availability
19
Nut, Gas Tubing (Burner End) 4 WPL 3180438 Contact Us For Availability
20
Nut, Gas Tubing (Gas Valve End) 4 WPL 3180437 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Cover, Burner Box WPL 3180669 Contact Us For Availability
28
Clamp, Manifold WPL 3180413 Contact Us For Availability
NI
Screw (8) WPL 3180435 Contact Us For Availability
× ![]()
