Model Whirlpool KGCT305TAL1 GAS COOKTOP – Common Parts & Diagrams

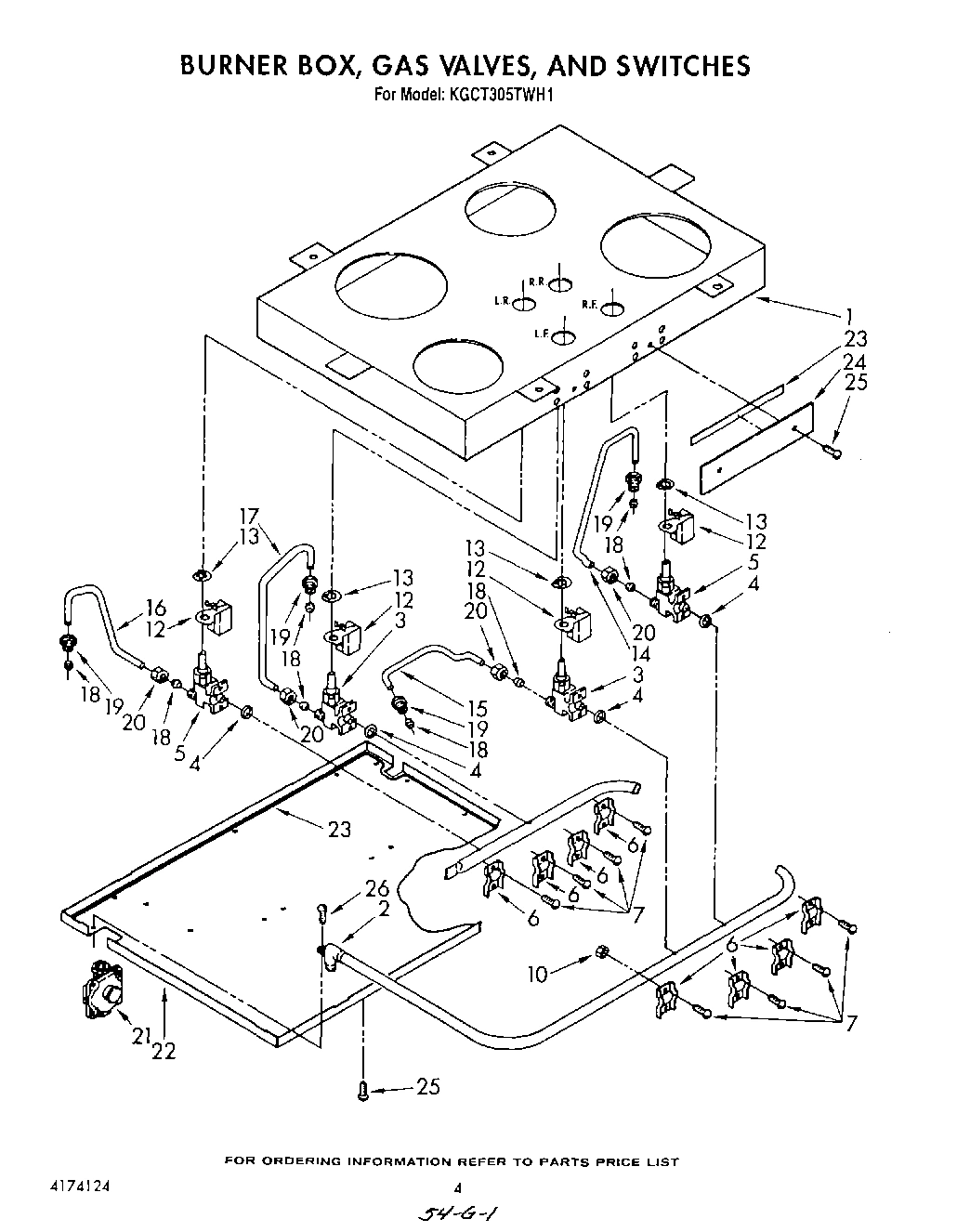

03 - BURNER BOX, GAS VALVES,AND SWITCHES

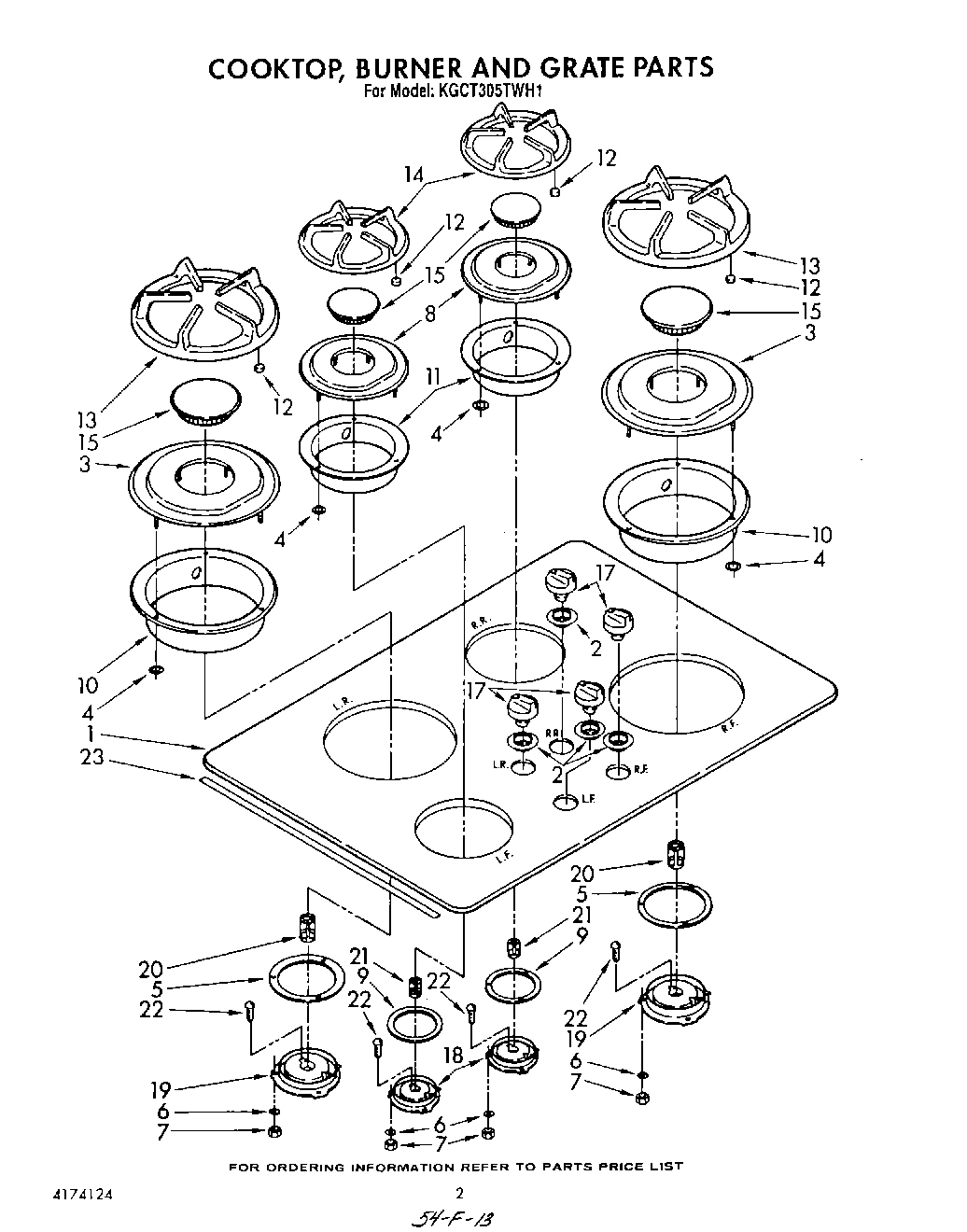

02 - COOKTOP BURNER AND GRATE

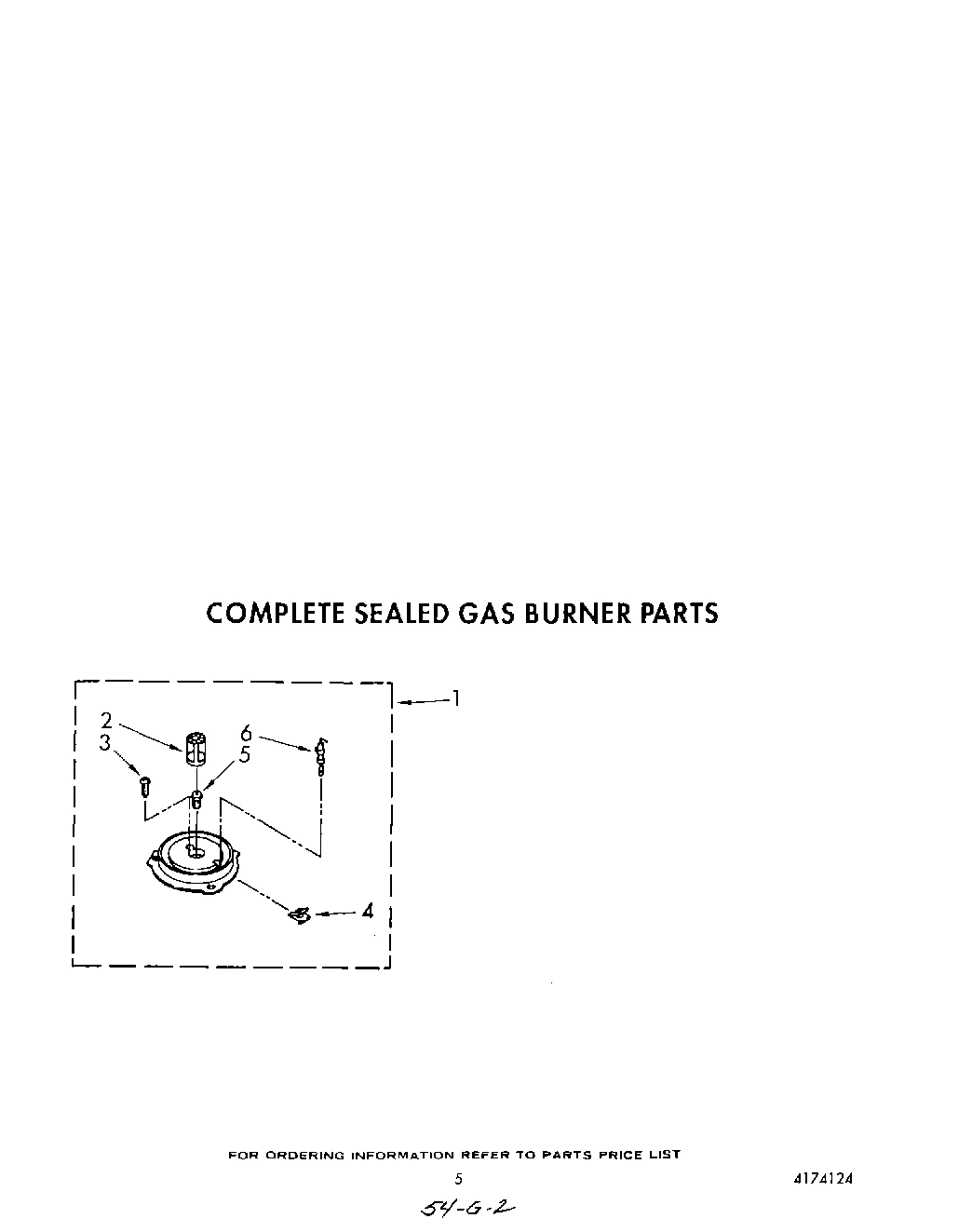

04 - COMPLETE SEALED GAS BURNER

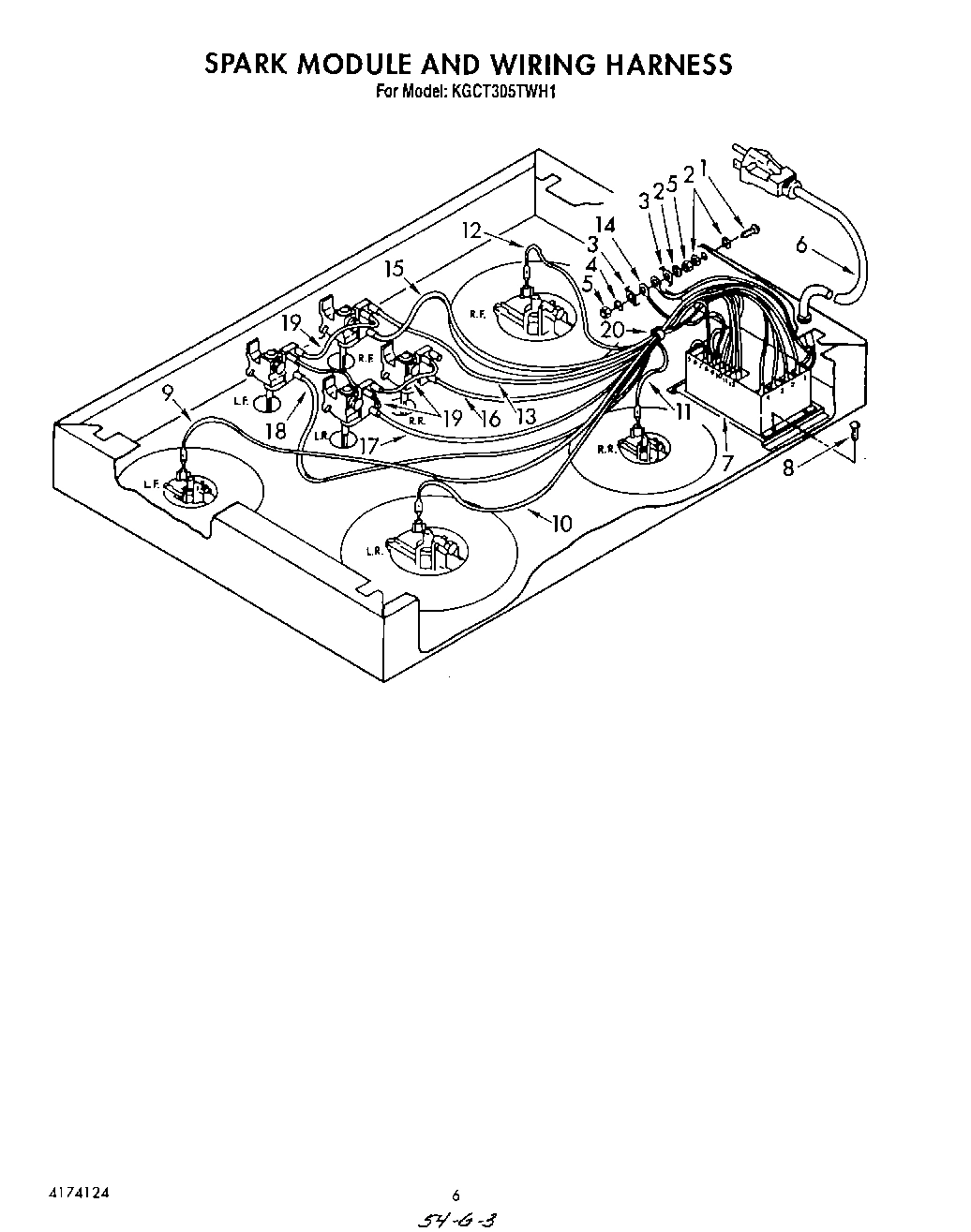

05 - SPARK, MODULE, AND WIRING HARNESS
Common parts from model Whirlpool KGCT305TAL1 GAS COOKTOP
List, Repair Parts WPL LIT4174124 Contact Us For Availability
1
Box, Burner WPL 4173596 Contact Us For Availability
1
Cooktop, Glass (White) WPL 4173514 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 4173515 Contact Us For Availability
1
Cooktop, Glass (Black (Includes Illus. 23)) WPL 4173516 Contact Us For Availability
1
Burner, Gas (Complete) (Small) WPL 4173537 Contact Us For Availability
1
burner, gas (complete) (large) WPL 4173536 Contact Us For Availability
1
Screw, Grounding WPL 4173495 Contact Us For Availability
2
Pipe, Manifold (Complete With Elbow Connector WPL 4173598 Contact Us For Availability
2
Grommet, Glass Cooktop (4) (White) WPL 4173462 Contact Us For Availability
2
Grommet, Glass Cooktop (4) (Almond) WPL 4173463 Contact Us For Availability
2
Grommet, Glass Cooktop (4) (Black) WPL 4173464 Contact Us For Availability
2
Shutter, Air (For Large Burner) WPL 4173539 Contact Us For Availability
2
Shutter, Air (For Small Burner) WPL 4173540 Contact Us For Availability
2
Washer, Internal Tooth Grounding WPL 4173496 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) (Includes Illus. WPL 4173594 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 4173471 Contact Us For Availability
3
bezel, cooktop (large) (almond) WPL 4173472 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black (Includes Illus WPL 4173473 Contact Us For Availability
3
Screw, Burner WPL 4173538 Contact Us For Availability
3
Clamp, Washer (Copper) WPL 4173497 Contact Us For Availability
4
Washer, Gas Valve Sealing (4) WPL 4173524 Contact Us For Availability
4
Retainer, Push-On (3) WPL 4173469 Contact Us For Availability
4
Clip, Burner Jet Lighter WPL 4173542 Contact Us For Availability
4
Washer, Coil Spring WPL 4173498 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 4173595 Contact Us For Availability
5
Gasket, Burner (Large) WPL 4173474 Contact Us For Availability
5
Orifice, Burner (Use With Small Burner) WPL 4173543 Contact Us For Availability
5
Orifice, Burner (Use With Large Burner) WPL 4173544 Contact Us For Availability
5
Nut, Hex (Brass) WPL 4173499 Contact Us For Availability
6
Bracket, Clamp (8) (Gas Valve) WPL 4173494 Contact Us For Availability
6
Washer, Flat WPL 4173478 Contact Us For Availability
6
Jet Lighter WPL 4173541 Contact Us For Availability
6
Cord, Power WPL 4173500 Contact Us For Availability
7
Screw, Gas Valve To Manifold (8) WPL 4173589 Contact Us For Availability
7
Nut, Hex WPL 4173477 Contact Us For Availability
8
bezel, cooktop (small) (white) WPL 4173465 Contact Us For Availability
8
bezel, cooktop (small) (almond) WPL 4173466 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black (Includes Illus WPL 4173467 Contact Us For Availability
8
Screw, Spark Module (3) WPL 4173591 Contact Us For Availability
9
Gasket, Burner (Small) WPL 4173461 Contact Us For Availability
10
Shield, Heat (Large) (Includes Illus. 4) WPL 4173470 Contact Us For Availability
10
Wire Assembly No.2 (White) (Spark Module to L WPL 4173531 Contact Us For Availability
11
Shield, Heat (Small) (Includes Illus. 4) WPL 4173468 Contact Us For Availability
11
Wire Assembly No.3 (White) (Spark Module to R WPL 4173532 Contact Us For Availability
12
Switch, Gas Burner Ignition (Includes Illus. WPL 4173525 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 4173550 Contact Us For Availability
12
Wire Assembly No.4 (White) (Spark Module to R WPL 4173530 Contact Us For Availability
13
Clip, Burner Switch (4) WPL 4173526 Contact Us For Availability
13
Grate, Large (RF & LR) (Shadow Grey (KGCT305T WPL 4173488 Contact Us For Availability
13
Grate, Large (RF & LR) (Taupe (KGCT305TAL0)) WPL 4173489 Contact Us For Availability
13
Grate, Large (RF & LR) (Black (KGCT305TBL0)) WPL 4173490 Contact Us For Availability
13
Wire Assembly No.7 (Black) (Spark Module to R WPL 4173533 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 4173502 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Shadow Grey (KGCT30 WPL 4173491 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Taupe (KGCT305TAL0) WPL 4173492 Contact Us For Availability
14
Grate (Small) L.F.& R.R. (Black (KGCT305TBL0) WPL 4173493 Contact Us For Availability
14
Wire Assembly No.8 (Green/Yellow) (Spark Modu WPL 4173534 Contact Us For Availability
15
Cap, Burner (Set of 4) (2-Small 2-Large) (Sha WPL 4175450 Contact Us For Availability
15
Cap, Burner (Set WPL 4175451 Contact Us For Availability
15
WPL 4175452 WPL 4175452 Contact Us For Availability
15
Wire Assembly No.9 (Red) (Spark Module to RF WPL 4173535 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 4173504 Contact Us For Availability
16
Wire Assembly No.10 (Red) (Spark Module to RR WPL 4173546 Contact Us For Availability
17
WPL 4173481 WPL 4173481 Contact Us For Availability
17
WPL 4173479 WPL 4173479 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 4173503 Contact Us For Availability
17
WPL 4173480 WPL 4173480 Contact Us For Availability
17
Wire Assembly No.11 (Red) (Spark Module To LR WPL 4173547 Contact Us For Availability
18
Sleeving, Gas Tube (8) WPL 4173527 Contact Us For Availability
18
Wire Assembly No.12 (Red) (Spark Module to LF WPL 4173545 Contact Us For Availability
19
Nut, Gas Tubing (Burner End) 4 WPL 4173529 Contact Us For Availability
19
Wire Assembly No.13 14, and 15 (Black) (Loop WPL 4173548 Contact Us For Availability
20
Nut, Gas Tubing (Gas Valve End) 4 WPL 4173528 Contact Us For Availability
20
Tie, Cable (Harness Wires) WPL 4173549 Contact Us For Availability
21
Regulator, Pressure WPL 4173554 Contact Us For Availability
22
Cover, Burner Box (Includes Illus. No. 23) WPL 4173513 Contact Us For Availability
23
Seal, Burner Box WPL 4173476 Contact Us For Availability
23
WPL 4164429 WPL 4164429 Contact Us For Availability
23
WPL 4173552 WPL 4173552 Contact Us For Availability
23
WPL 4175385 WPL 4175385 Contact Us For Availability
24
Cover, Access (Includes Illus No. 23) WPL 4173475 Contact Us For Availability
25
Screw, Mounting (Burner Box/Access Cover) WPL 4173590 Contact Us For Availability
26
Screw, Manifold Mounting (At Elbow) WPL 4173586 Contact Us For Availability
× ![]()
