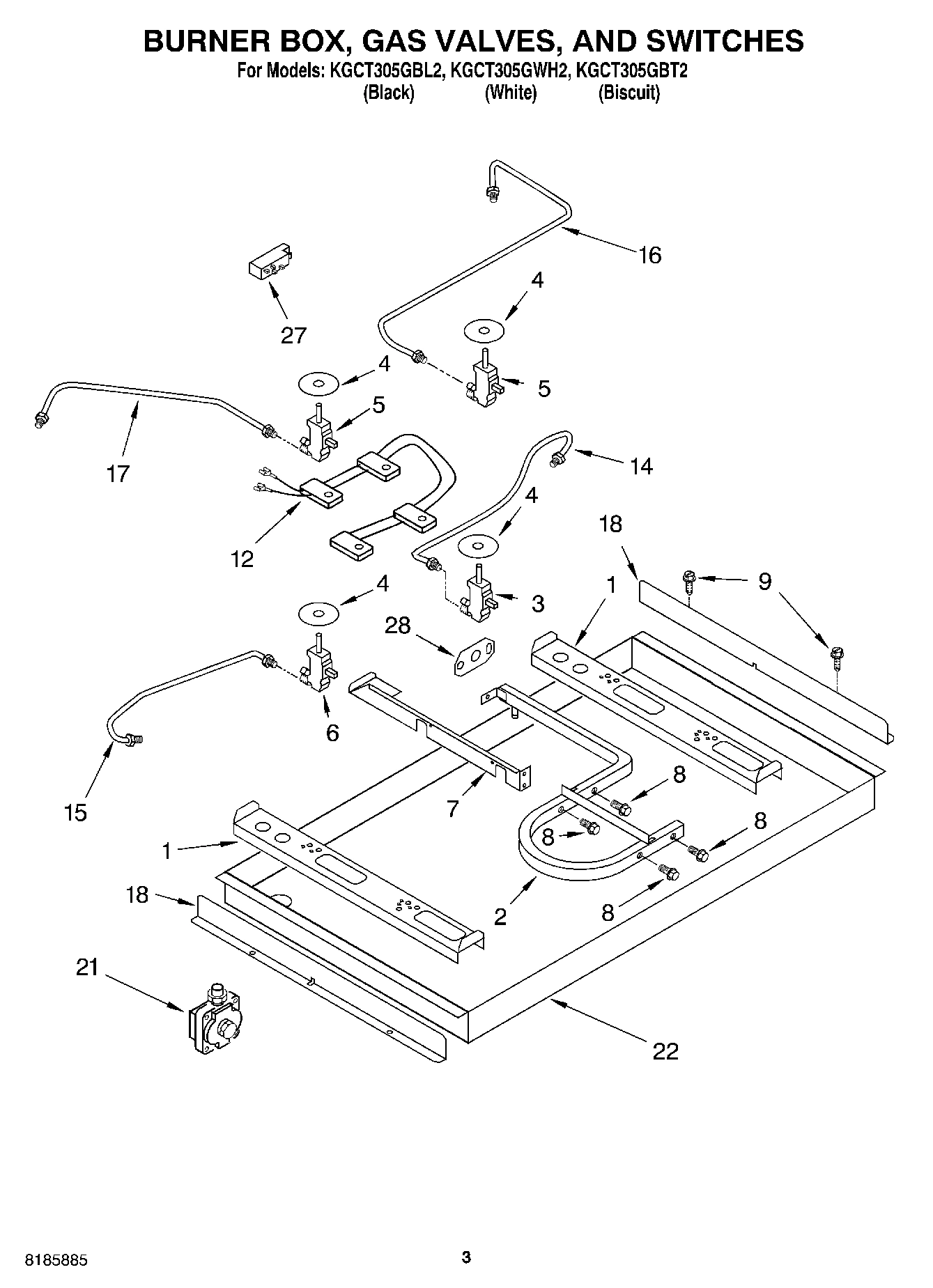

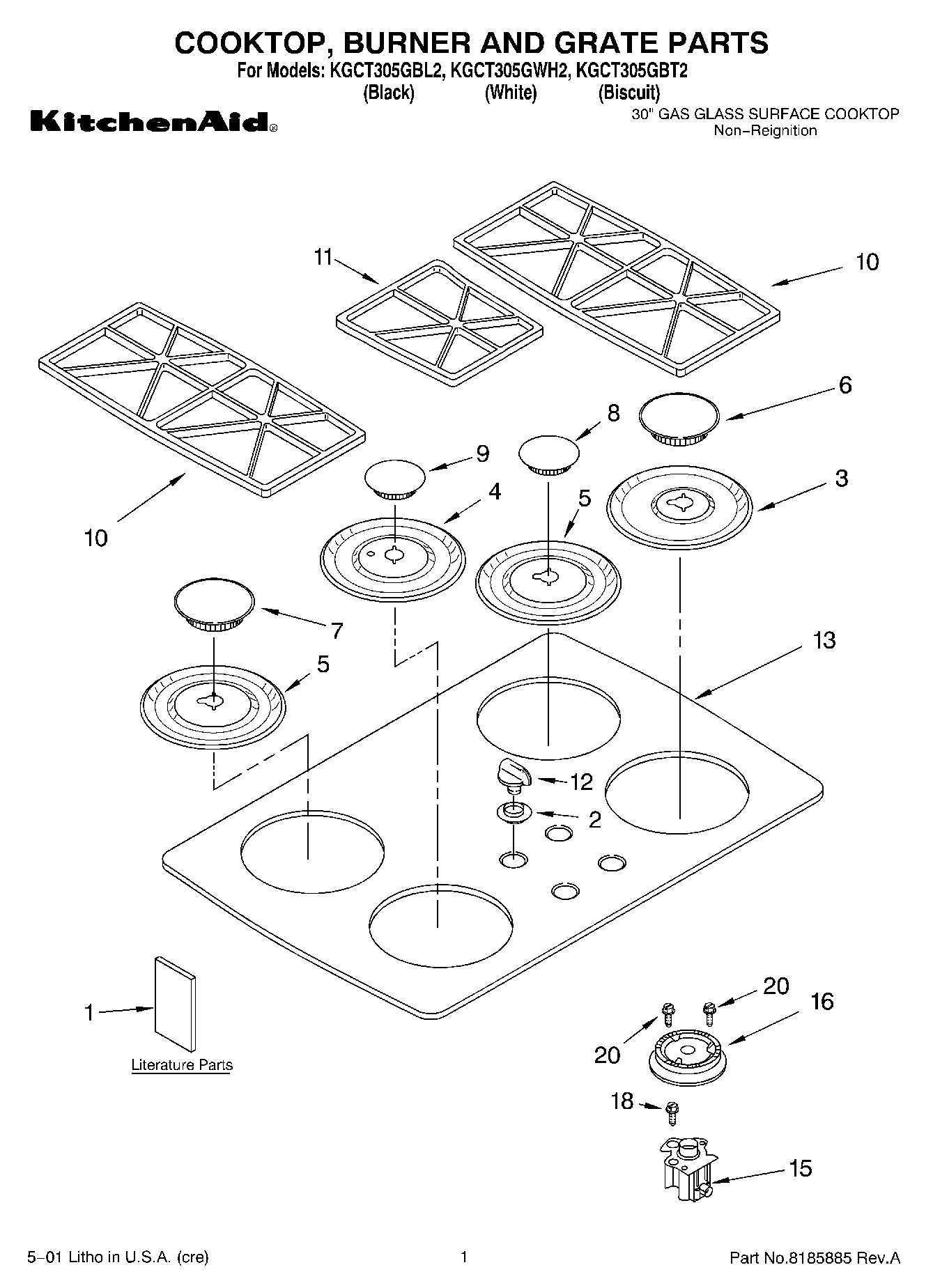

Model Whirlpool KGCT305GBT2 GAS COOKTOP – Common Parts &amp; Diagrams

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $3.73

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $3.79

2

Pipe, Manifold WPL 6610011 Contact Us For Availability

3

Valve, Gas Burner Burner, (RF) WPL 3191292 Contact Us For Availability

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

5

Valve, Gas Burner (RR & LR) WPL 3191293 Contact Us For Availability

6

Cap, (RF) (Black) WPL 3191728 Contact Us For Availability

6

Valve, Gas Burner (LF) WPL 3192157 Contact Us For Availability

7

WP3191731 Whirlpool Burner Cap Backorder WPL WP3191731 $27.74

7

Rail, Center WPL 3192819 Contact Us For Availability

8

Cap, (RR) (Black) WPL 3191734 Contact Us For Availability

8

Bolt (Gas Valve) WPL 3185829 Contact Us For Availability

9

Cap, (LF) (Black) WPL 3191737 Contact Us For Availability

10

Grate, Burner (Black) WPL 3191485 Contact Us For Availability

10

Grate, Burner (White) WPL 3191486 Contact Us For Availability

10

Grate, Burner (Biscuit) WPL 3191487 Contact Us For Availability

11

Grate, Filler (Black) WPL 3191277 Contact Us For Availability

11

Grate, Filler (White) WPL 3191278 Contact Us For Availability

11

Grate, Filler (Biscuit) WPL 3191279 Contact Us For Availability

WP3191334 Whirlpool Wire Harness Backorder WPL WP3191334 $140.62

WP3191922 Whirlpool Control Knob In Stock WPL WP3191922 $3.70

Knob, Control (4) (White) WPL 3191923 Contact Us For Availability

Knob, Control (4) (Biscuit) WPL 3191925 Contact Us For Availability

13

Cooktop, Glass (Black) WPL 3192153 Contact Us For Availability

13

Cooktop, Glass (White) WPL 3192154 Contact Us For Availability

13

Cooktop, Glass (Bisc WPL 3192156 Contact Us For Availability

14

3191324 Whirlpool Oven Gas Tubing Backorder WPL 3191324 $43.68

814513 Whirlpool Top Burner Backorder WPL 814513 $83.51

WPL 9754188 WPL 9754188 Contact Us For Availability

WPL 9754182 WPL 9754182 Contact Us For Availability

WPL 9754187 WPL 9754187 Contact Us For Availability

Tubing, Gas Burner (LF) WPL 3191326 Contact Us For Availability

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

WP4455980 Whirlpool Burner Head Backorder WPL WP4455980 $37.44

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

WPL 4455849 WPL 4455849 Contact Us For Availability

Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability

17

Tubing, Gas Burner (LR) WPL 3191327 Contact Us For Availability

18

3191462 Whirlpool Oven Heat Shield Backorder WPL 3191462 $10.91

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

22

Burner Box WPL 4455813 Contact Us For Availability

27

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

27

WPW10110491 Whirlpool Spark Module In Stock WPL WPW10110491 $112.05

3192491 Whirlpool Support Bracket Backorder WPL 3192491 $6.00

4173634 Whirlpool Bushing Backorder WPL 4173634 $4.61

8186533 Whirlpool Hardware Backorder WPL 8186533 $28.80

W10392007 Whirlpool Power Cord Backorder WPL W10392007 $35.56

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

Conversion Kit Natural Gas To L.P. WPL 3192261 Contact Us For Availability

Hardware, Mounting WPL 3188310 Contact Us For Availability

Seal, Foam-Cooktop WPL 3191239 Contact Us For Availability

Harness, Ignitor 15`` (2) WPL 3192229 Contact Us For Availability

Harness, Ignitor 28`` (2) WPL 3192230 Contact Us For Availability

Tinnerman Nut WPL 4167077 Contact Us For Availability
