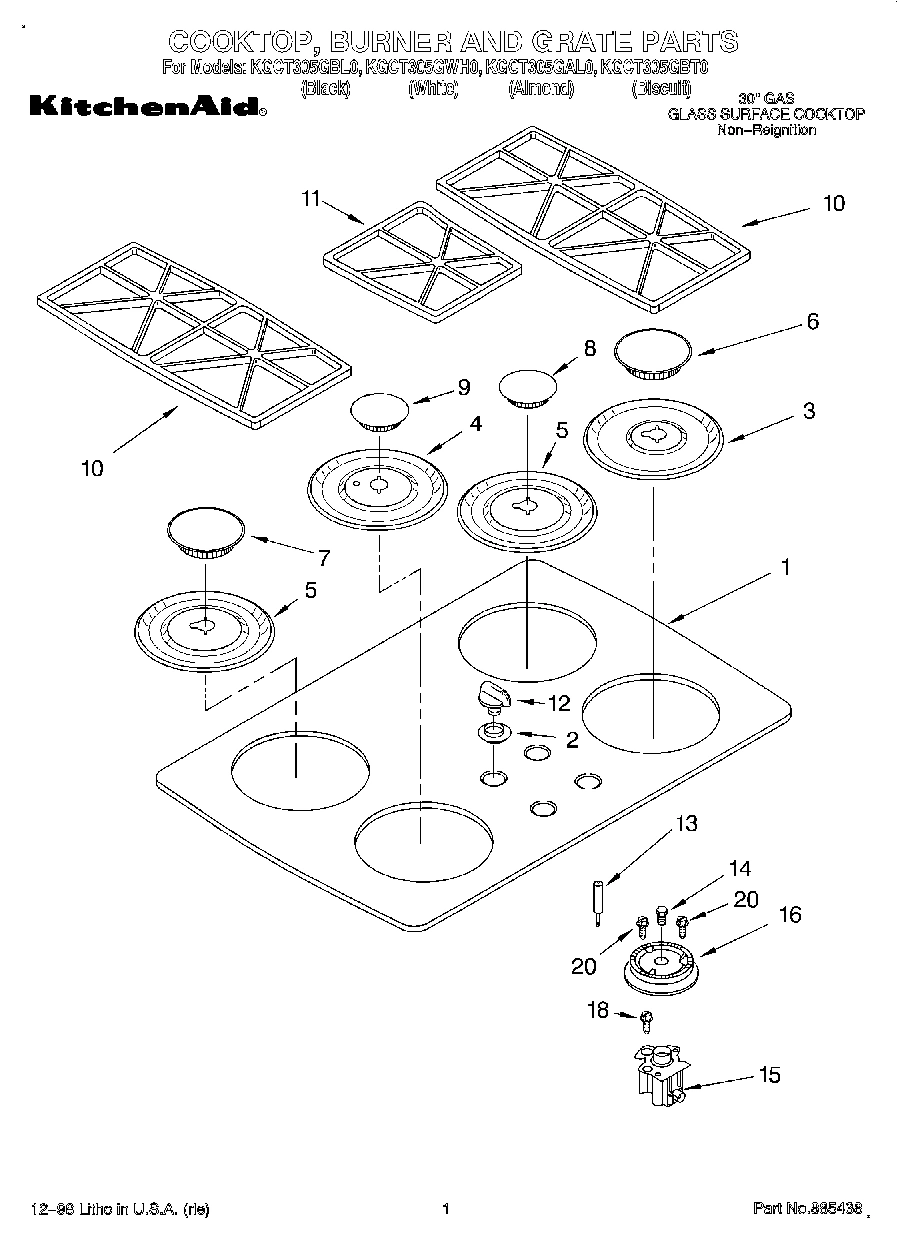

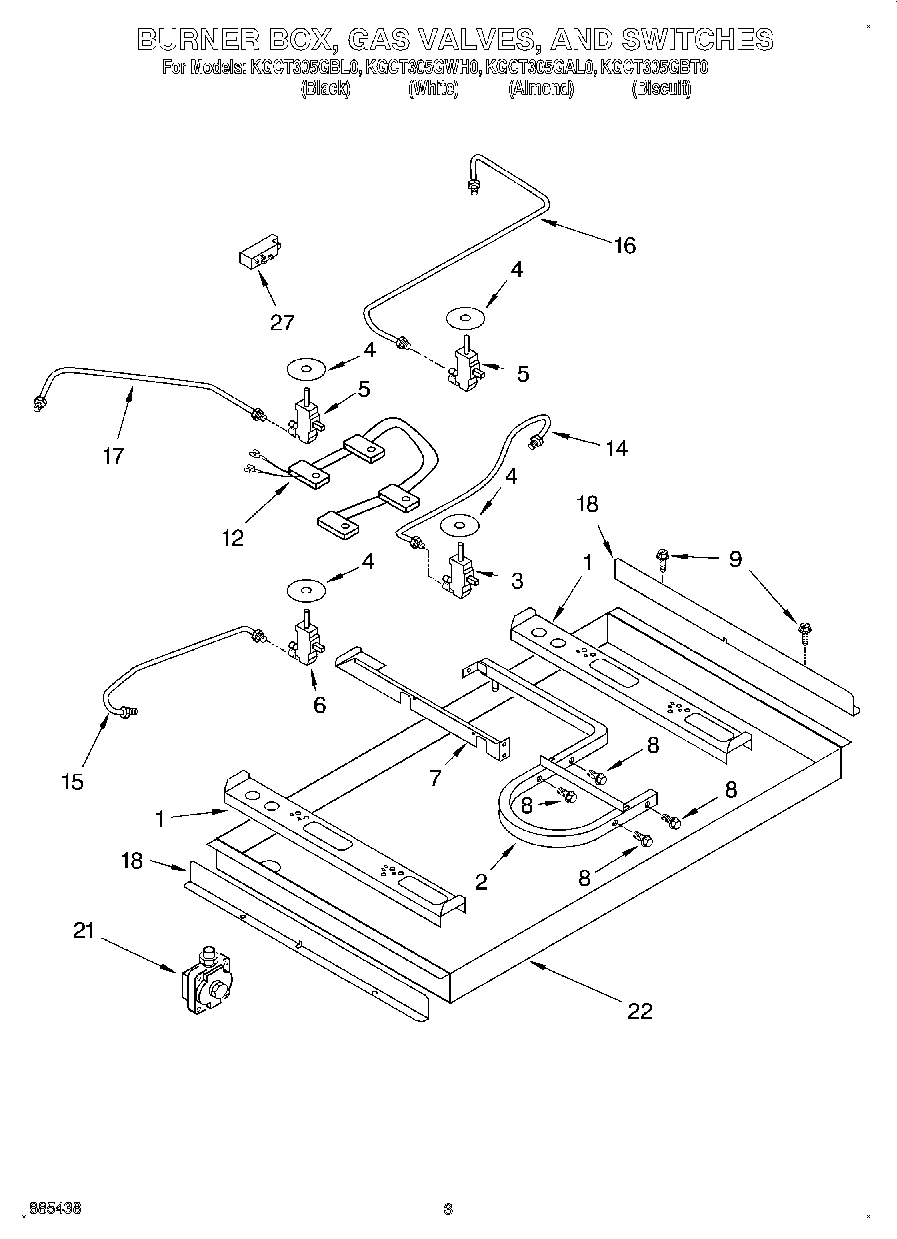

Model Whirlpool KGCT305GAL0 GAS COOKTOP – Common Parts & Diagrams

Conversion Kit Natural Gas To L.P.
Conversion Kit Natural Gas To L.P. WPL 3192261 Contact Us For Availability
View on Model
1
Cooktop, Glass (White)
Cooktop, Glass (White) WPL 3192154 Contact Us For Availability
View on Model
1
Cooktop, Glass (Almond)
Cooktop, Glass (Almond) WPL 3192155 Contact Us For Availability
View on Model
1
Cooktop, Glass (Biscuit)
Cooktop, Glass (Biscuit) WPL 3192156 Contact Us For Availability
View on Model
2
Grommet, Glass (Biscuit)
Grommet, Glass (Biscuit) WPL 3191817 Contact Us For Availability
View on Model
3
Valve, Gas Burner Burner, (RF)
Valve, Gas Burner Burner, (RF) WPL 3191292 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (Black)
Bezel, Cooktop (RF) (Black) WPL 3191307 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (White)
Bezel, Cooktop (RF) (White) WPL 3191308 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (Almond)
Bezel, Cooktop (RF) (Almond) WPL 3191309 Contact Us For Availability
View on Model
3
Bezel, Cooktop (RF) (Biscuit)
Bezel, Cooktop (RF) (Biscuit) WPL 3191819 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (Black)
Bezel, Cooktop (LF) (Black) WPL 3191498 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (White)
Bezel, Cooktop (LF) (White) WPL 3191499 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (Almond)
Bezel, Cooktop (LF) (Almond) WPL 3191500 Contact Us For Availability
View on Model
4
Bezel, Cooktop (LF) (Biscuit)
Bezel, Cooktop (LF) (Biscuit) WPL 3191826 Contact Us For Availability
View on Model
5
Valve, Gas Burner (RR & LR)
Valve, Gas Burner (RR & LR) WPL 3191293 Contact Us For Availability
View on Model
5
Bezel, Cooktop (LR, RR) (Black)
Bezel, Cooktop (LR, RR) (Black) WPL 3191302 Contact Us For Availability
View on Model
5
Bezel, Cooktop (LR, RR) (White)
Bezel, Cooktop (LR, RR) (White) WPL 3191303 Contact Us For Availability
View on Model
5
Bezel, Cooktop (LR, RR) (Almond)
Bezel, Cooktop (LR, RR) (Almond) WPL 3191304 Contact Us For Availability
View on Model
5
Bezel, Cooktop (LR, RR) (Biscuit)
Bezel, Cooktop (LR, RR) (Biscuit) WPL 3191818 Contact Us For Availability
View on Model
6
Cap, (RF) (Black)
Cap, (RF) (Black) WPL 3191728 Contact Us For Availability
View on Model
6
Cap, (RF) (White)
Cap, (RF) (White) WPL 3191729 Contact Us For Availability
View on Model
6
Cap, (RF) (Almond/Biscuit)
Cap, (RF) (Almond/Biscuit) WPL 3191730 Contact Us For Availability
View on Model
7
Cap, (LR) (Black)
Cap, (LR) (Black) WPL 3191731 Contact Us For Availability
View on Model
7
Cap, (LR) (White)
Cap, (LR) (White) WPL 3191732 Contact Us For Availability
View on Model
7
Cap, (LR) (Almond/Biscuit)
Cap, (LR) (Almond/Biscuit) WPL 3191733 Contact Us For Availability
View on Model
8
Cap, (RR) (Black)
Cap, (RR) (Black) WPL 3191734 Contact Us For Availability
View on Model
8
Cap, (RR) (White)
Cap, (RR) (White) WPL 3191735 Contact Us For Availability
View on Model
8
Cap, (RR) (Almond/Biscuit)
Cap, (RR) (Almond/Biscuit) WPL 3191736 Contact Us For Availability
View on Model
9
Cap, (LF) (Black)
Cap, (LF) (Black) WPL 3191737 Contact Us For Availability
View on Model
9
Cap, (LF) (White)
Cap, (LF) (White) WPL 3191738 Contact Us For Availability
View on Model
9
Cap, (LF) (Almond/Biscuit)
Cap, (LF) (Almond/Biscuit) WPL 3191739 Contact Us For Availability
View on Model
10
Grate, Burner (Black)
Grate, Burner (Black) WPL 3191485 Contact Us For Availability
View on Model
10
Grate, Burner (White)
Grate, Burner (White) WPL 3191486 Contact Us For Availability
View on Model
10
Grate, Burner (Almond/Biscuit)
Grate, Burner (Almond/Biscuit) WPL 3191487 Contact Us For Availability
View on Model
11
Grate, Filler (Black)
Grate, Filler (Black) WPL 3191277 Contact Us For Availability
View on Model
11
Grate, Filler (White)
Grate, Filler (White) WPL 3191278 Contact Us For Availability
View on Model
11
Grate, Filler (Almond/Biscuit)
Grate, Filler (Almond/Biscuit) WPL 3191279 Contact Us For Availability
View on Model
12
Knob, Control (4) (White)
Knob, Control (4) (White) WPL 3191923 Contact Us For Availability
View on Model
12
WPL 3191925
WPL 3191925 WPL 3191925 Contact Us For Availability
View on Model
12
Knob, Control (4) (
Knob, Control (4) ( WPL 3191924 Contact Us For Availability
View on Model
13
WPL 3192527
WPL 3192527 WPL 3192527 Contact Us For Availability
View on Model
14
WPL 3192525
WPL 3192525 WPL 3192525 Contact Us For Availability
View on Model
14
Tubing, Gas Burner (RF)
Tubing, Gas Burner (RF) WPL 3191324 Contact Us For Availability
View on Model
14
WPL 3192528
WPL 3192528 WPL 3192528 Contact Us For Availability
View on Model
15
WPL 3191740
WPL 3191740 WPL 3191740 Contact Us For Availability
View on Model
15
WPL 3191742
WPL 3191742 WPL 3191742 Contact Us For Availability
View on Model
15
WPL 3191743
WPL 3191743 WPL 3191743 Contact Us For Availability
View on Model
16
Tubing, Gas Burner (RR)
Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability
View on Model
16
WPL 9753109
WPL 9753109 WPL 9753109 Contact Us For Availability
View on Model
16
WPL 9753110
WPL 9753110 WPL 9753110 Contact Us For Availability
View on Model
16
WPL 9753111
WPL 9753111 WPL 9753111 Contact Us For Availability
View on Model
