Model Whirlpool KGCT305ABL1 GAS COOKTOP – Common Parts & Diagrams

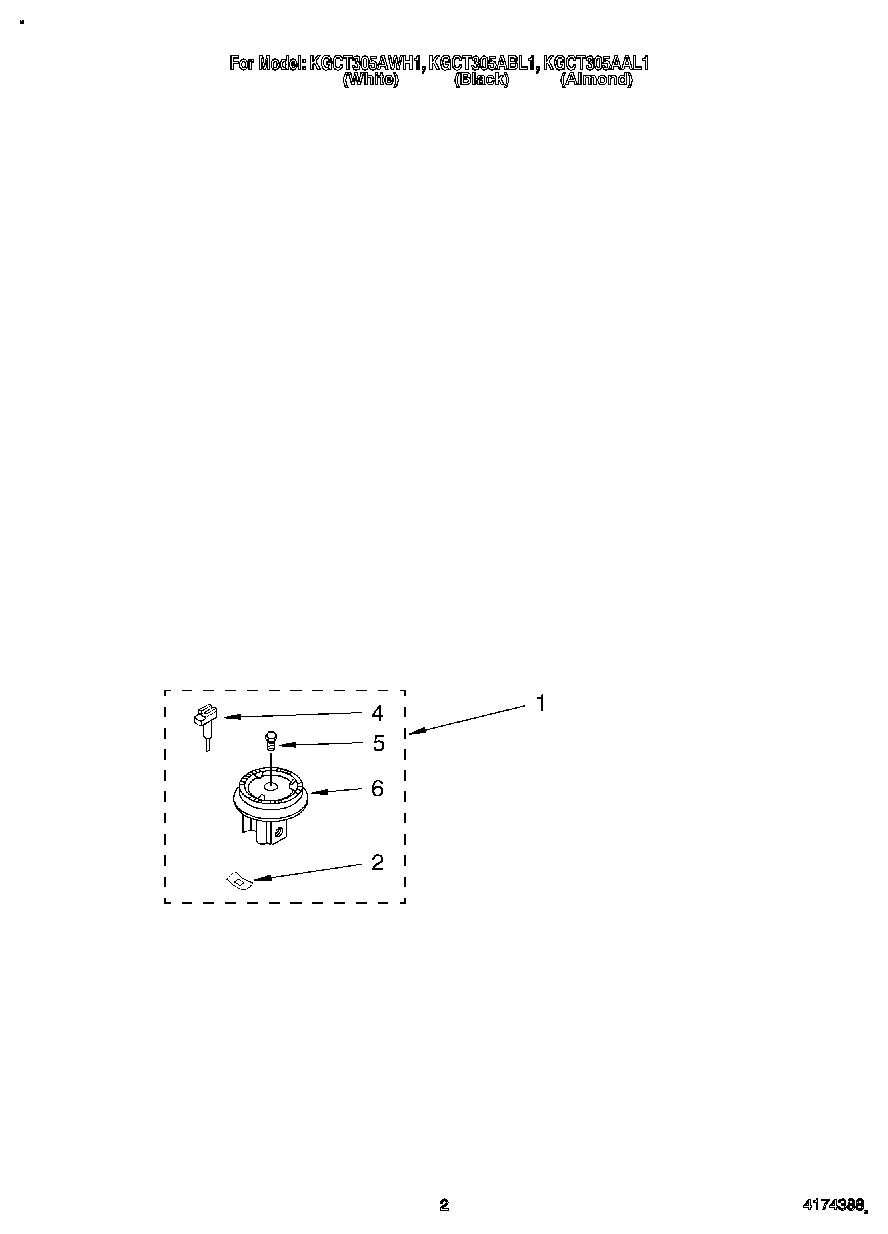

02 - SEALED GAS BURNER KIT

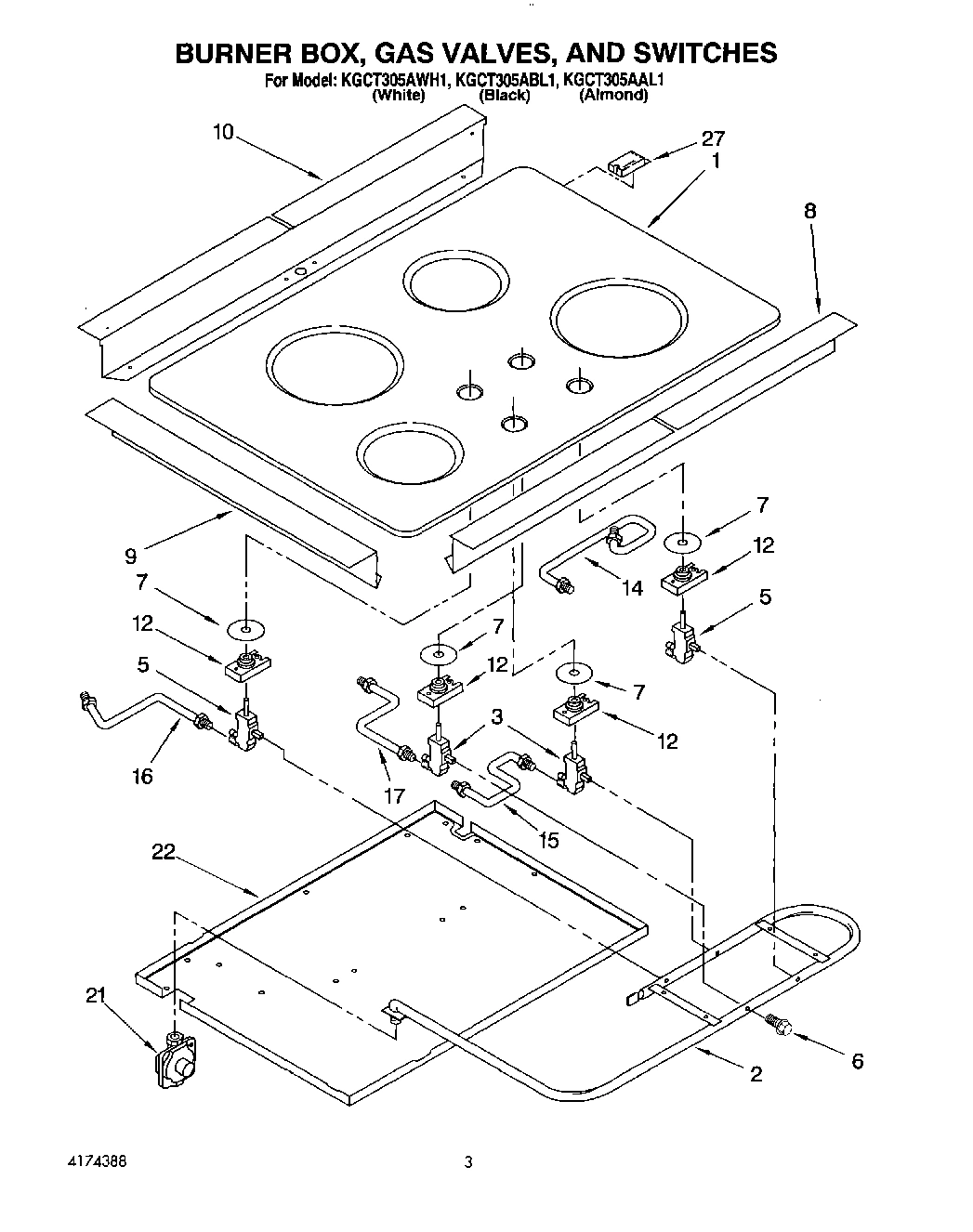

03 - BURNER BOX, GAS VALVES, AND SWITCHES

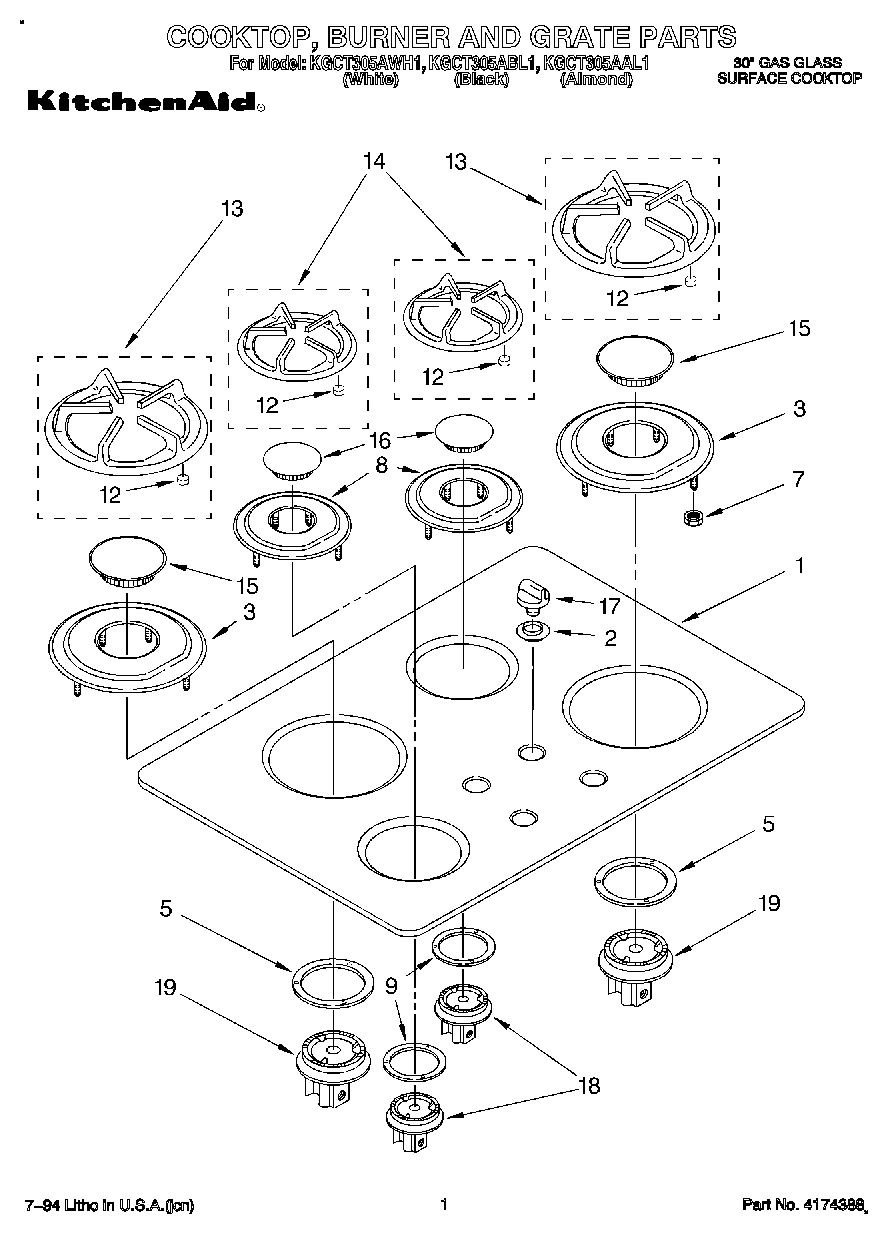

01 - COOKTOP, BURNER AND GRATE

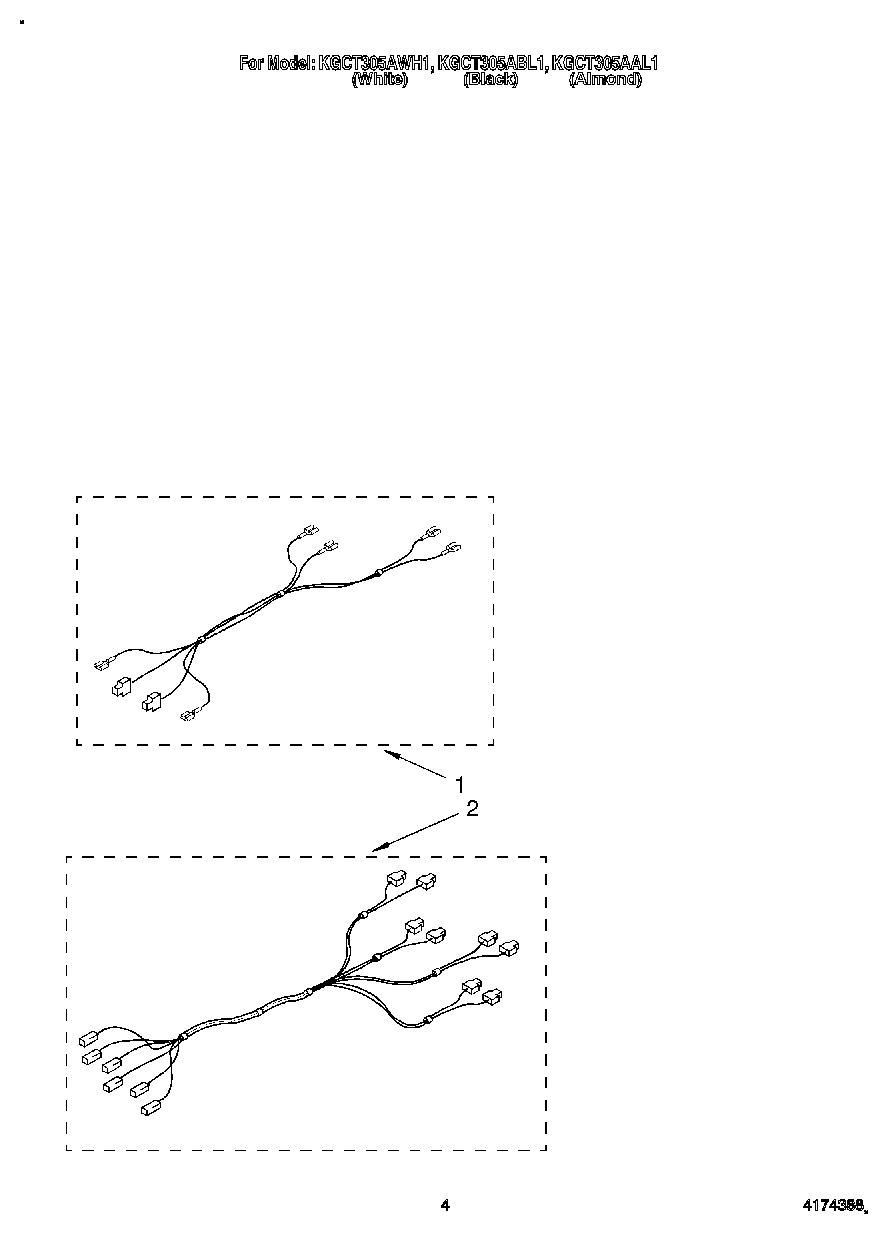

04 - WIRING HARNESS
Common parts from model Whirlpool KGCT305ABL1 GAS COOKTOP
Use & Care Guide WPL LIT3185703 Contact Us For Availability
Installation Instructions WPL LIT3185891 Contact Us For Availability
1
Cover, Top Assy. WPL 3185823 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3185894 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3185895 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3185896 Contact Us For Availability
1
Harness, Wire (Ignitor) WPL 3185831 Contact Us For Availability
2
Pipe, Manifold WPL 3185806 Contact Us For Availability
2
Tie, Wire (2) WPL 3149157 Contact Us For Availability
2
Tape, Foam WPL 3179164 Contact Us For Availability
2
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
2
Hardware, Mounting WPL 3180600 Contact Us For Availability
2
Harness, Wire (Switch) WPL 3185832 Contact Us For Availability
2
Cord, Power WPL 3185833 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Washer WPL 4159603 Contact Us For Availability
2
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond (Includes Illu WPL 3185819 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability
4
Electode WPL 3185804 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
6
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Frame, Front WPL 3180696 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond (Includes Illu WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
9
Screw (8) WPL 3148443 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
10
Frame, Rear WPL 3180670 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 3180414 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3185354 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond (Includes No.1 WPL 3185507 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability
14
Grate (Small) (LF & RR) (Black) WPL 3180927 Contact Us For Availability
14
Grate (Small) (LF & RR) (White) WPL 3185356 Contact Us For Availability
14
Grate (Small) (LF & RR) (Almond (Includes No. WPL 3185509 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability
18
Burner, WPL 3185821 Contact Us For Availability
19
WPL 3185822 WPL 3185822 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Cover, Burner Box WPL 3180669 Contact Us For Availability
× ![]()
