Model Whirlpool KGCT305AAL0 GAS COOKTOP – Common Parts & Diagrams
01 - COOKTOP, BURNER AND GRATE
04 - WIRING HARNESS

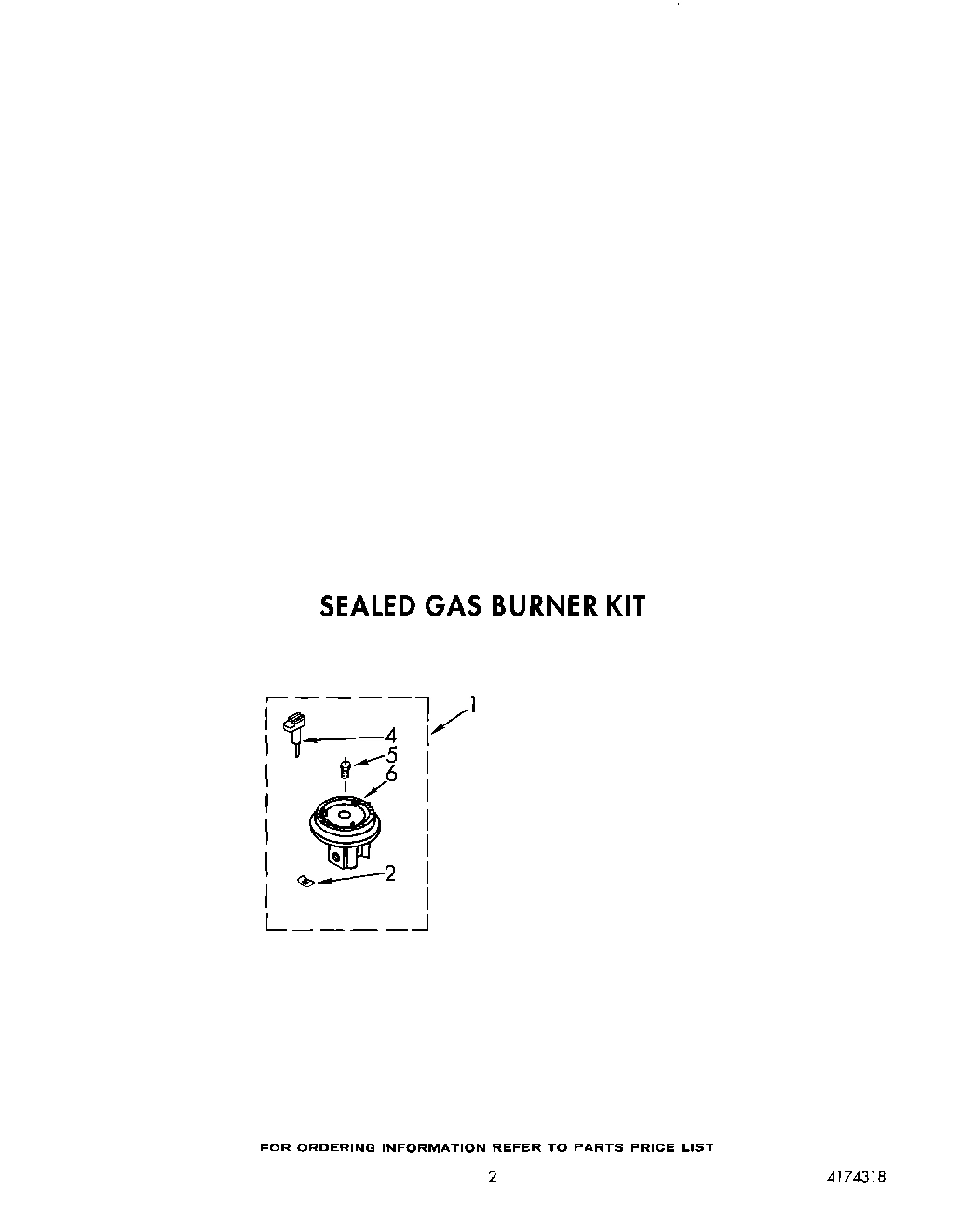

02 - SEALED GAS BURNER KIT

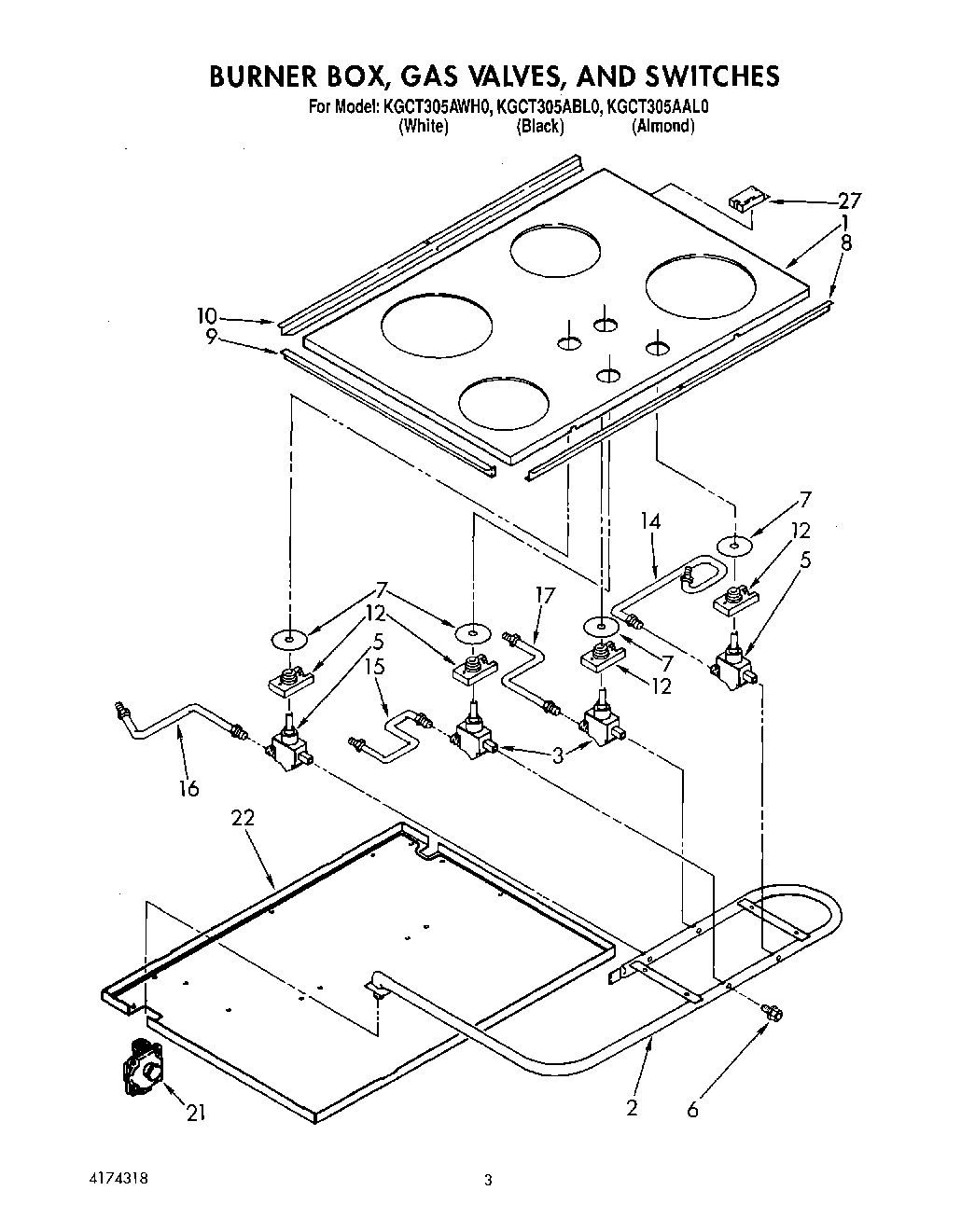

03 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCT305AAL0 GAS COOKTOP
Use & Care Guide WPL LIT3185703 Contact Us For Availability
Installation Instructions WPL LIT3185891 Contact Us For Availability
1
Harness, Wire (Ignitor) WPL 3185831 Contact Us For Availability
1
Sealed Gas Burner Kit (Large Burner) WPL 814244 Contact Us For Availability
1
Sealed Gas Burner Kit (Small Burner) WPL 814245 Contact Us For Availability
1
Cover, Top Assy. WPL 3185823 Contact Us For Availability
2
Tape, Foam WPL 3179164 Contact Us For Availability
2
Wire Assy. Module Ground WPL 3180474 Contact Us For Availability
2
Hardware, Mounting WPL 3180600 Contact Us For Availability
2
Harness, Wire (Switch) WPL 3185832 Contact Us For Availability
2
Cord, Power WPL 3185833 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Washer WPL 4159603 Contact Us For Availability
2
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
2
Pipe, Manifold WPL 3185806 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
4
Electode WPL 3185804 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185948 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
6
Screw (8) WPL 3180435 Contact Us For Availability
6
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond (Includes Illu WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
8
Frame, Front WPL 3180696 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
9
Screw (8) WPL 3148443 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
10
Frame, Rear WPL 3180670 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 3180414 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3185354 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond (Includes No.1 WPL 3185507 Contact Us For Availability
14
Grate (Small) (LF & RR) (Black) WPL 3180927 Contact Us For Availability
14
Grate (Small) (LF & RR) (White) WPL 3185356 Contact Us For Availability
14
Grate (Small) (LF & RR) (Almond (Includes No. WPL 3185509 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3185745 Contact Us For Availability
15
Cap, Rapid Burner (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3185744 Contact Us For Availability
16
Cap, Semi Rapid (Almond Burner (2)) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3185743 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3185742 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Cover, Burner Box WPL 3180669 Contact Us For Availability
27
Screw (3) WPL 4159461 Contact Us For Availability
× ![]()
