Model Whirlpool KGCT302XBL2 GAS COOKTOP – Common Parts & Diagrams
03 - SECTION
01 - SECTION

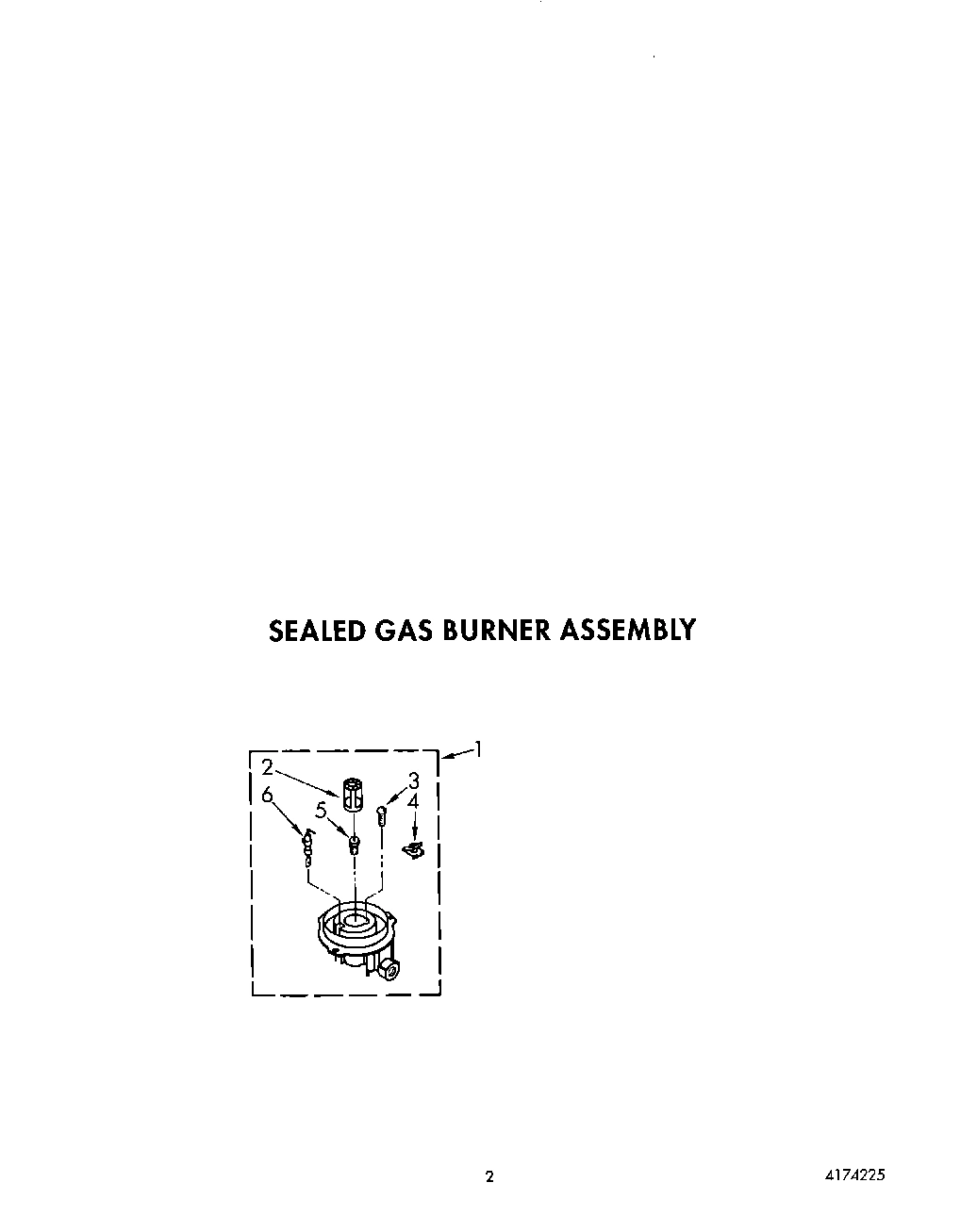

02 - SECTION
Common parts from model Whirlpool KGCT302XBL2 GAS COOKTOP
Wire Assy. Blue 23`` Spark Module Term.3 To R WPL 3185245 Contact Us For Availability
Wire Assy. Red 14`` Spark Module Term.12 To L WPL 3185248 Contact Us For Availability
Wire Assy. Yellow 18`` Spark Module Term.11 T WPL 3185249 Contact Us For Availability
Wire Assy. Yellow 31`` Spark Modu WPL 3185252 Contact Us For Availability
WPL 3185254 WPL 3185254 Contact Us For Availability
WPL 3185255 WPL 3185255 Contact Us For Availability
WPL 4169261 WPL 4169261 Contact Us For Availability
WPL 4175444 WPL 4175444 Contact Us For Availability
WPL LIT3177316 WPL LIT3177316 Contact Us For Availability
WPL LIT3185703 WPL LIT3185703 Contact Us For Availability
WPL LIT4174225 WPL LIT4174225 Contact Us For Availability
1
Cover, Top Assy. WPL 3180912 Contact Us For Availability
1
Cooktop, Glass (Black Model) WPL 3181342 Contact Us For Availability
1
Cooktop, Glass (Almond Model) WPL 3181343 Contact Us For Availability
1
Cooktop, Glass (White Model) WPL 3181344 Contact Us For Availability
1
Sealed Gas Burner Assembly (Small Burner) WPL 3180265 Contact Us For Availability
1
Sealed Gas Burner Assembly (Large Burner) WPL 3180266 Contact Us For Availability
2
Pipe, Manifold WPL 3180426 Contact Us For Availability
2
Shutter, Air (Large Shutter) WPL 3180288 Contact Us For Availability
2
Shutter, Air (Small Shutter) WPL 3180267 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) (Includes Illus. WPL 3180430 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black Model) WPL 3180085 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond Model (Include WPL 3180086 Contact Us For Availability
3
Bezel, Cooktop (Large) (White Model) WPL 3180087 Contact Us For Availability
3
Screw, Burner WPL 3180235 Contact Us For Availability
4
Washer, Gas Valve Sealing Washer (4) WPL 3183487 Contact Us For Availability
4
Clip, Burner Jet Lighter WPL 3180387 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) (Includes Illus. WPL 3180429 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3180291 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3180292 Contact Us For Availability
6
Jet Lighter WPL 3180233 Contact Us For Availability
6
Screw (8) WPL 3180435 Contact Us For Availability
6
Bracket, Clamp (4) (Gas Valve) WPL 3181205 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Frame, Front WPL 3180696 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black Model) WPL 3180088 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond Model (Include WPL 3180089 Contact Us For Availability
8
Bezel, Cooktop (Small) (White Model) WPL 3180090 Contact Us For Availability
9
Frame, Side (2) WPL 3185634 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
10
Frame, Rear WPL 3180670 Contact Us For Availability
12
Pad, Grate (Incls. 5 pads) WPL 3180414 Contact Us For Availability
13
Grate, Large (RF & LR) (Black Model) WPL 3180921 Contact Us For Availability
13
Grate, Large (RF & LR) (White Model) WPL 3185354 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond Model (Include WPL 3185507 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3185298 Contact Us For Availability
14
Grate (Small) (LF & RR) (Black Model) WPL 3180927 Contact Us For Availability
14
Grate (Small) (LF & RR) (White Model) WPL 3185356 Contact Us For Availability
14
Grate (Small) (LF & RR) (Almond Model (Includ WPL 3185509 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3185297 Contact Us For Availability
15
Cap, Rapid Burner (2) (Black Model) WPL 3180082 Contact Us For Availability
15
Cap, Rapid Burner (2) (White Model) WPL 3185352 Contact Us For Availability
15
Cap, Rapid Burner (2) (Almond Model) WPL 3185505 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3185296 Contact Us For Availability
16
Cap, Semi Rapid (Black Model) WPL 3180091 Contact Us For Availability
16
Cap, Semi Rapid (White Model) WPL 3185353 Contact Us For Availability
16
Cap, Semi Rapid (Alm WPL 3185506 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3185295 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Cover, Burner Box WPL 3180669 Contact Us For Availability
27
Screw (3) WPL 4159461 Contact Us For Availability
28
Screw (4) WPL 3148443 Contact Us For Availability
28
Clip (2) WPL 311506 Contact Us For Availability
28
Clamp, Manifold WPL 3180413 Contact Us For Availability
× ![]()
