Model Whirlpool KGCT055GBL0 15`` GAS GLASS SURFACE COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool KGCT055GBL0 15`` GAS GLASS SURFACE COOKTOP

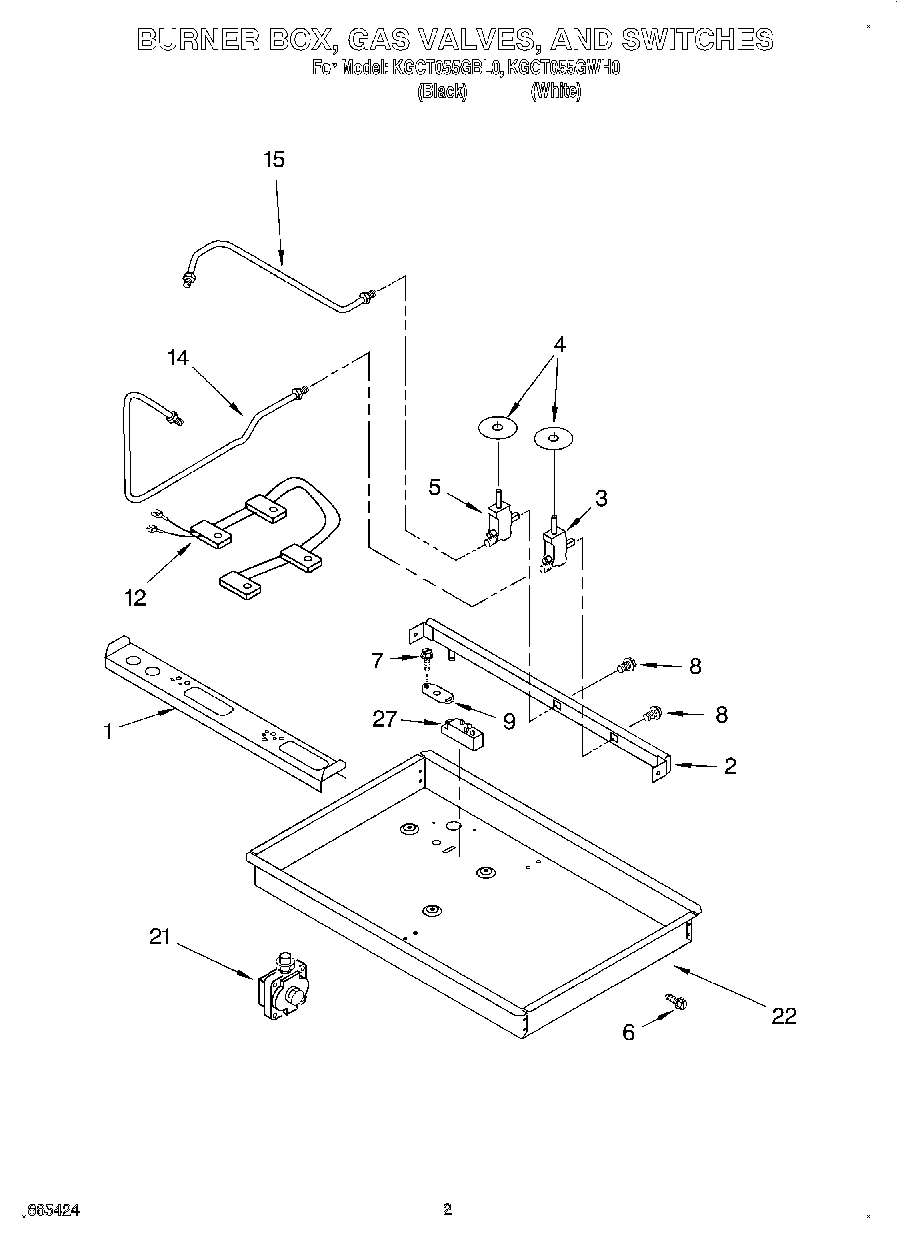

01 - SECTION

Print

• This Diagram
• All Diagrams

4173634 Whirlpool Bushing Backorder WPL 4173634 View Details $4.61

View on Model

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $30.25

View on Model

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $37.33

View on Model

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

Hardware, Mounting WPL 3188310 Contact Us For Availability

View on Model

Seal, Foam 15`` WPL 3191931 Contact Us For Availability

View on Model

Harness, Ignitor 15`` WPL 3192229 Contact Us For Availability

View on Model

Nut, Tinnerman WPL 4167077 Contact Us For Availability

View on Model

Installation Instructions WPL LIT3191827 Contact Us For Availability

View on Model

Use & Care Guide WPL LIT3191828 Contact Us For Availability

View on Model

Wiring Diagram WPL LIT3192097 Contact Us For Availability

View on Model

1

W10203756 Whirlpool Support Backorder WPL W10203756 View Details $6.37

View on Model

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 View Details $3.92

View on Model

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 View Details $3.79

View on Model

2

Pipe, Manifold WPL 3191297 Contact Us For Availability

View on Model

3

Valve, Gas Burner Front WPL 3191292 Contact Us For Availability

View on Model

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 View Details $30.25

View on Model

5

Valve, Gas Burner Rear WPL 3191293 Contact Us For Availability

View on Model

7

W10491985 Whirlpool Screw Backorder WPL W10491985 View Details $2.51

View on Model

7

Cap, Burner (Small) (Black) WPL 3191728 Contact Us For Availability

View on Model

8

Cap, Burner (Large) (Black) WPL 3191734 Contact Us For Availability

View on Model

8

Bolt, Gas Valve WPL 307630 Contact Us For Availability

View on Model

9

3192491 Whirlpool Support Bracket Backorder WPL 3192491 View Details $6.00

View on Model

10

Grate, Burner (Black) WPL 3191485 Contact Us For Availability

View on Model

10

Grate, Burner (White) WPL 3191486 Contact Us For Availability

View on Model

12

WP3191334 Whirlpool Wire Harness Backorder WPL WP3191334 View Details $147.65

View on Model

14

Tubing, Gas Burner (Front) WPL 3192343 Contact Us For Availability

View on Model

15

Tubing, Gas Burner (Rear) WPL 3192344 Contact Us For Availability

View on Model

17

WP3191922 Whirlpool Control Knob In Stock WPL WP3191922 View Details $3.88

View on Model

17

Knob, Control (2) (White) WPL 3191923 Contact Us For Availability

View on Model

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.64

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $1.52

View on Model

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

View on Model

22

Burner Box WPL 3192492 Contact Us For Availability

View on Model

27

Module Spark Reignition WPL 8053420 Contact Us For Availability

View on Model

×
