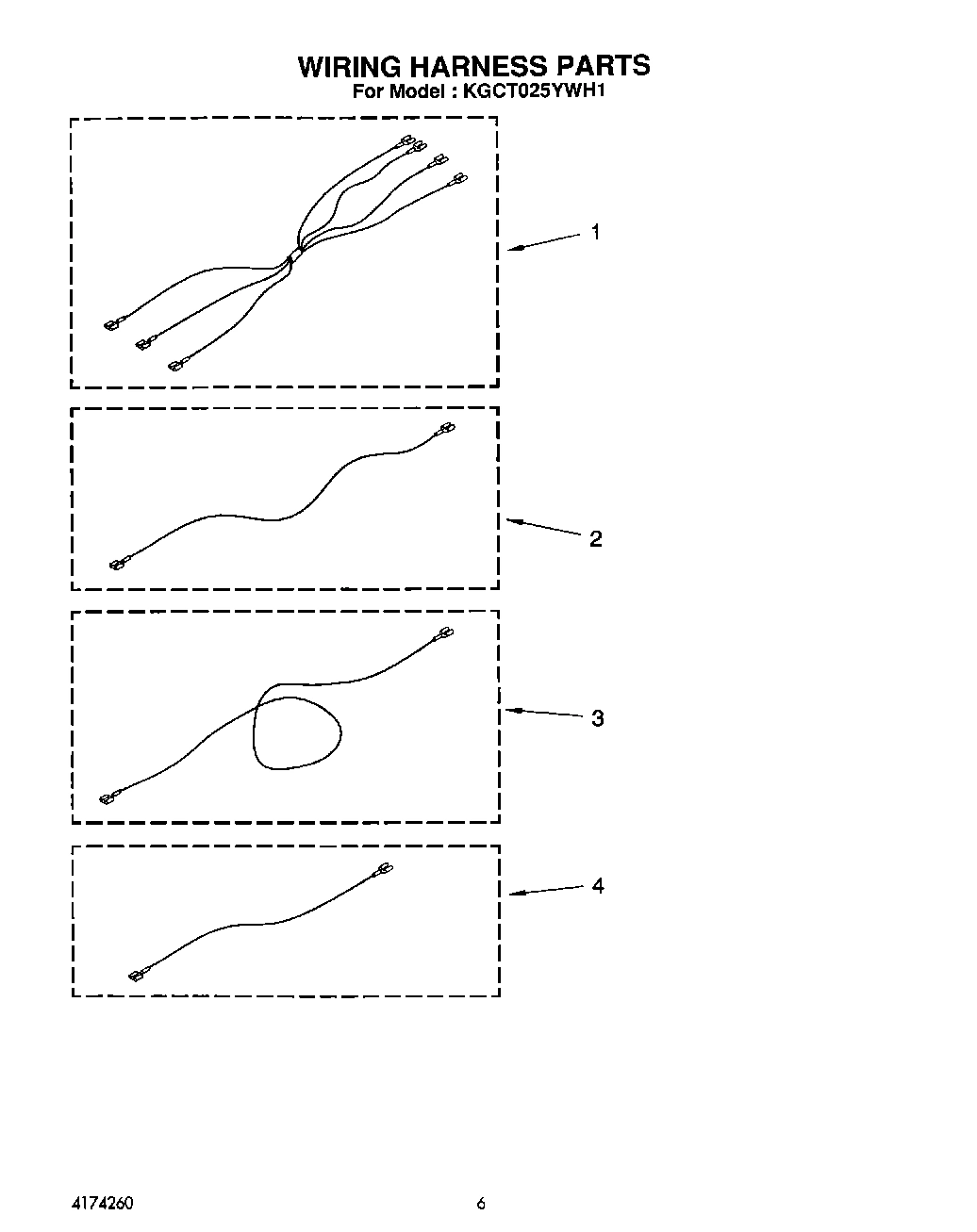

Model Whirlpool KGCT025YWH1 – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION
04 - SECTION
Common parts from model Whirlpool KGCT025YWH1
1
Cooktop, Glass (Almond) WPL 3182647 Contact Us For Availability
1
Grate, Large Burner (Black (KGCT025YBL1)) WPL 3180921 Contact Us For Availability
1
Grate, Large Burner (Grey (KGCT025YWH1)) WPL 3185354 Contact Us For Availability
1
Grate, Large Burner (Thrush Brown (KGCT025YAL WPL 3185507 Contact Us For Availability
1
Harness, Wire WPL 3183239 Contact Us For Availability
2
Cap, Large Burner (Black (KGCT025YBL1)) WPL 3180082 Contact Us For Availability
2
Cap, Large Burner (Grey (KGCT025YWH1)) WPL 3185352 Contact Us For Availability
2
Cap, Large Burner (Thrush Brown (KGCT025YAL1) WPL 3185505 Contact Us For Availability
2
Wire Assy. (10``) WPL 3183950 Contact Us For Availability
3
Cover, Top Burner Box WPL 3182724 Contact Us For Availability
3
Bezel, Large (Black (KGCT025YBL1)) WPL 3180085 Contact Us For Availability
3
Bezel, Large (Dark Taupe (KGCT025YAL1)) WPL 3180086 Contact Us For Availability
3
Bezel, Large (Shadow White (KGCT205YWH1)) WPL 3180087 Contact Us For Availability
3
Wire Assy. (16``) WPL 3183951 Contact Us For Availability
4
Shield, Heat Spark Module WPL 3182686 Contact Us For Availability
4
Nut (9) WPL 4166262 Contact Us For Availability
4
Wire Assy. GRD. WPL 3180474 Contact Us For Availability
5
Module, Spark WPL 3182771 Contact Us For Availability
5
Gasket, Burner (Small Burner) WPL 3181658 Contact Us For Availability
5
Gasket, Burner (Large Burner) WPL 3181659 Contact Us For Availability
6
Bracket, Spark Module WPL 3182685 Contact Us For Availability
6
Screw, (2) WPL 4159465 Contact Us For Availability
6
Sealed Gas Burner Kit (Small Burner (Includes WPL 3180265 Contact Us For Availability
6
Sealed Gas Burner Kit (Large Burner) WPL 3180266 Contact Us For Availability
7
Box, Burner (Right Hand Side) WPL 3182365 Contact Us For Availability
7
Box, Burner (Left Hand Side) WPL 3182366 Contact Us For Availability
7
Shutter, Air (Available In Kit Only) WPL ARI87687A7 Contact Us For Availability
8
Cover, Bottom Burner Box WPL 3182590 Contact Us For Availability
8
Screw, Burner WPL 3180235 Contact Us For Availability
9
Regulator, Gas WPL 3177120 Contact Us For Availability
9
Clip, Ignitor WPL 3180387 Contact Us For Availability
10
Orifice, Burner (Available In Kit Only) WPL ARI87688A5 Contact Us For Availability
11
Ignitor WPL 3180233 Contact Us For Availability
11
Manifold, Square WPL 3182757 Contact Us For Availability
12
Valve, Rapid WPL 3182811 Contact Us For Availability
12
Bezel, Small (Black (KGCT025YBL1)) WPL 3180088 Contact Us For Availability
12
Bezel, Small (Dark Taupe (KGCT025YAL1)) WPL 3180089 Contact Us For Availability
12
Bezel, Small (Shadow White (KGCT025YWH1)) WPL 3180090 Contact Us For Availability
13
Switch, Ignition WPL 3183145 Contact Us For Availability
13
Cap, Burner Small (Black (KGCT025YBL1)) WPL 3180091 Contact Us For Availability
13
Cap, Burner Small (Grey (KGCT025YWH0)) WPL 3185353 Contact Us For Availability
13
Cap, Burner Small (Thrush Brown (KGCT025YAL1) WPL 3185506 Contact Us For Availability
14
Tube Assembly Rear Burner WPL 3182760 Contact Us For Availability
14
Grate, Burner Small (Black (KGCT025YBL0)) WPL 3180927 Contact Us For Availability
14
Grate, Burner Small (Grey (KGCT025YWH1)) WPL 3185356 Contact Us For Availability
14
Grate, Burner Small (Thrush Brown (K WPL 3185509 Contact Us For Availability
15
Manifold Pipe, Round WPL 3184475 Contact Us For Availability
15
WPL 3180414 WPL 3180414 Contact Us For Availability
16
Tube Assembly Front burner WPL 3182984 Contact Us For Availability
17
Bolt, Valve WPL 4169277 Contact Us For Availability
17
Valve, Semi Rapid WPL 3182810 Contact Us For Availability
19
Screw, 8-32 X 2 1/2 WPL 3179557 Contact Us For Availability
19
Nut, Tinnerman (2) WPL 4167077 Contact Us For Availability
20
Trim, Extrusion (Black) WPL 3182437 Contact Us For Availability
20
Trim, Extrusion (Almond) WPL 3182438 Contact Us For Availability
20
Trim, Extrusion (White) WPL 3182439 Contact Us For Availability
× ![]()
