Model Whirlpool KGCT025ABL2 – Common Parts & Diagrams
02 - SECTION
01 - SECTION

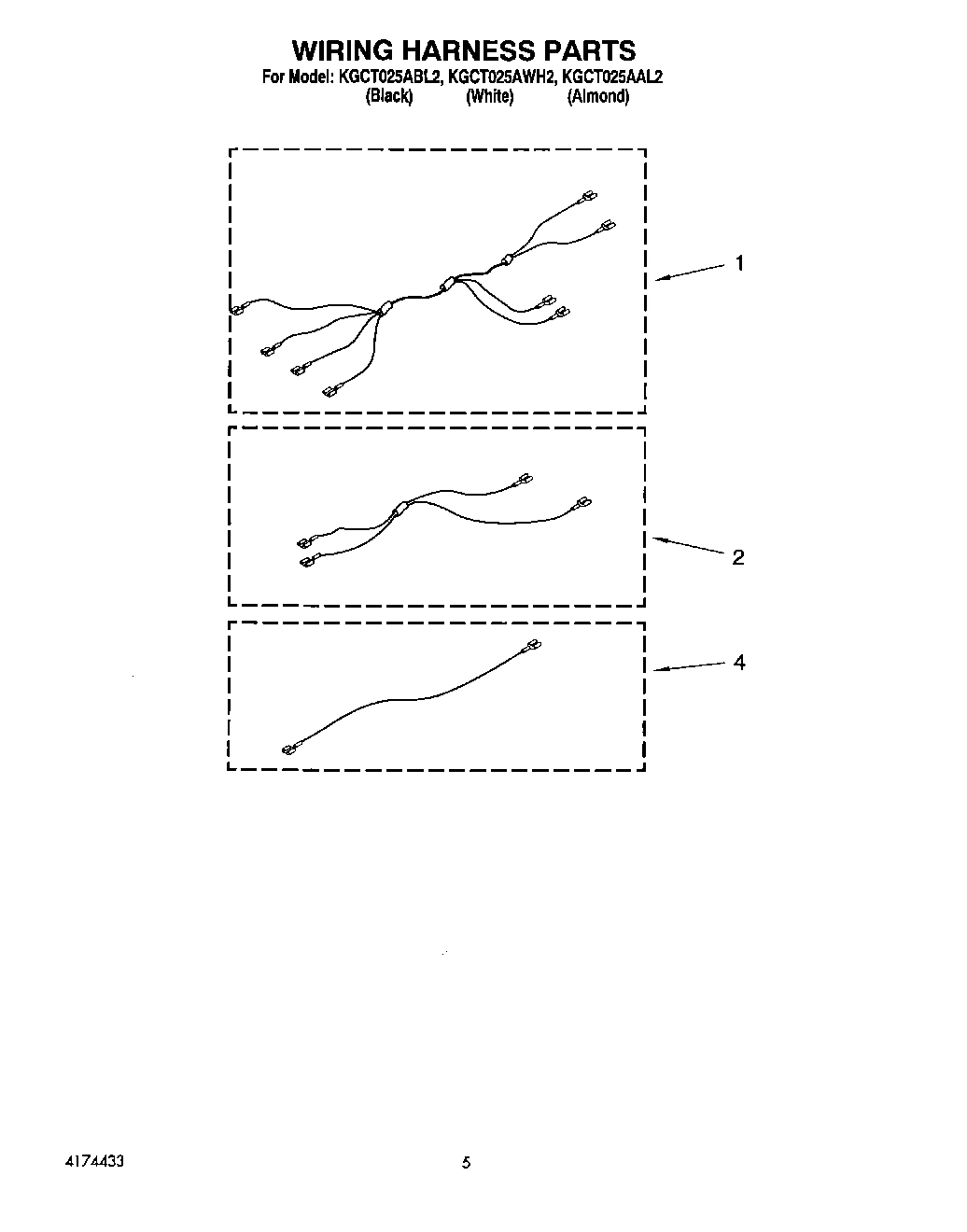

03 - SECTION
Common parts from model Whirlpool KGCT025ABL2
Tape, Foam (67``) WPL 3179167 Contact Us For Availability
Hardware, WPL 3183440 Contact Us For Availability
Power Cord WPL 3186540 Contact Us For Availability
Installation Instructions WPL LIT3186523 Contact Us For Availability
Use & Care Guide WPL LIT3186756 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3182645 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3182646 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3182647 Contact Us For Availability
1
Harness, Wire (Switch) WPL 3186538 Contact Us For Availability
2
Harness, Wire (Ignitor) WPL 3186537 Contact Us For Availability
3
Bezel, Large (Almond Model) WPL 3185819 Contact Us For Availability
3
Bezel, Large (White Model) WPL 3185820 Contact Us For Availability
3
Cover, Top Burner Box WPL 3182724 Contact Us For Availability
4
Nut (9) WPL 4166262 Contact Us For Availability
4
Shield, Heat Spark Module WPL 3182686 Contact Us For Availability
4
Wire Assy. GRD. WPL 3180474 Contact Us For Availability
4
Washer WPL 4159603 Contact Us For Availability
5
Gasket, Burner (Small Burner) WPL 3181658 Contact Us For Availability
5
Gasket, Burner (Large Burner) WPL 3181659 Contact Us For Availability
5
Module, Spark WPL 3182771 Contact Us For Availability
6
Sealed Gas Burner Kit (Large Burner) WPL 814244 Contact Us For Availability
6
Sealed Gas Burner Kit (Small Burner) WPL 814245 Contact Us For Availability
6
Bracket, Spark Module WPL 3182685 Contact Us For Availability
6
Screw, (2) WPL 4159465 Contact Us For Availability
7
Burner, Sealed (Small) WPL 3185821 Contact Us For Availability
7
Burner, Sealed (Large (Includes Orifice)) WPL 3185822 Contact Us For Availability
7
Box, Burner (Right Hand Side) WPL 3182365 Contact Us For Availability
7
Box, Burner (Left Hand Side) WPL 3182366 Contact Us For Availability
8
Cover, Bottom Burner Box WPL 3186734 Contact Us For Availability
9
Nut WPL 3185805 Contact Us For Availability
9
Regulator, Gas WPL 3177120 Contact Us For Availability
10
Orifice, Burner (Large Burner) WPL 3185947 Contact Us For Availability
10
Orifice, Burner (Small Burner) WPL 3185948 Contact Us For Availability
11
Electrode WPL 3185804 Contact Us For Availability
12
Bezel, Small (Black Model) WPL 3185815 Contact Us For Availability
12
Bezel, Small (Almond Model) WPL 3185816 Contact Us For Availability
12
Bezel, Small (White Model) WPL 3185817 Contact Us For Availability
12
Valve, Rapid WPL 3186512 Contact Us For Availability
13
Switch, Ignition WPL 3183145 Contact Us For Availability
13
Cap, Burner Small (Almond Model) WPL 3185795 Contact Us For Availability
13
Cap, Burner Small (Black Model) WPL 3185796 Contact Us For Availability
13
Cap, Burner Small (White Model) WPL 3185797 Contact Us For Availability
14
Grate, Burner Small (Black Model) WPL 3186565 Contact Us For Availability
14
Grate, Burner Small (White Model) WPL 3186600 Contact Us For Availability
14
Grate, Burner Small (Almond Model) WPL 3186601 Contact Us For Availability
14
Tube Assembly Rear Burner WPL 3186693 Contact Us For Availability
15
Manifold Pipe, Round WPL 3184475 Contact Us For Availability
16
Tube Assembly Front Burner WPL 3186694 Contact Us For Availability
17
Bolt, Valve WPL 4169277 Contact Us For Availability
17
Valve, Semi Rapid WPL 3186511 Contact Us For Availability
19
Screw, 8-32 X 2 1/2 WPL 3179557 Contact Us For Availability
19
Nut, Tinnerman (2) WPL 4167077 Contact Us For Availability
20
Trim, Extrusion (Black) WPL 3182437 Contact Us For Availability
20
Trim, Extrusion (Almond) WPL 3182438 Contact Us For Availability
20
Trim, Extrusion (White) WPL 3182439 Contact Us For Availability
× ![]()
