Model Whirlpool KGCS166GWH3 36`` GAS COOKTOP – Common Parts & Diagrams

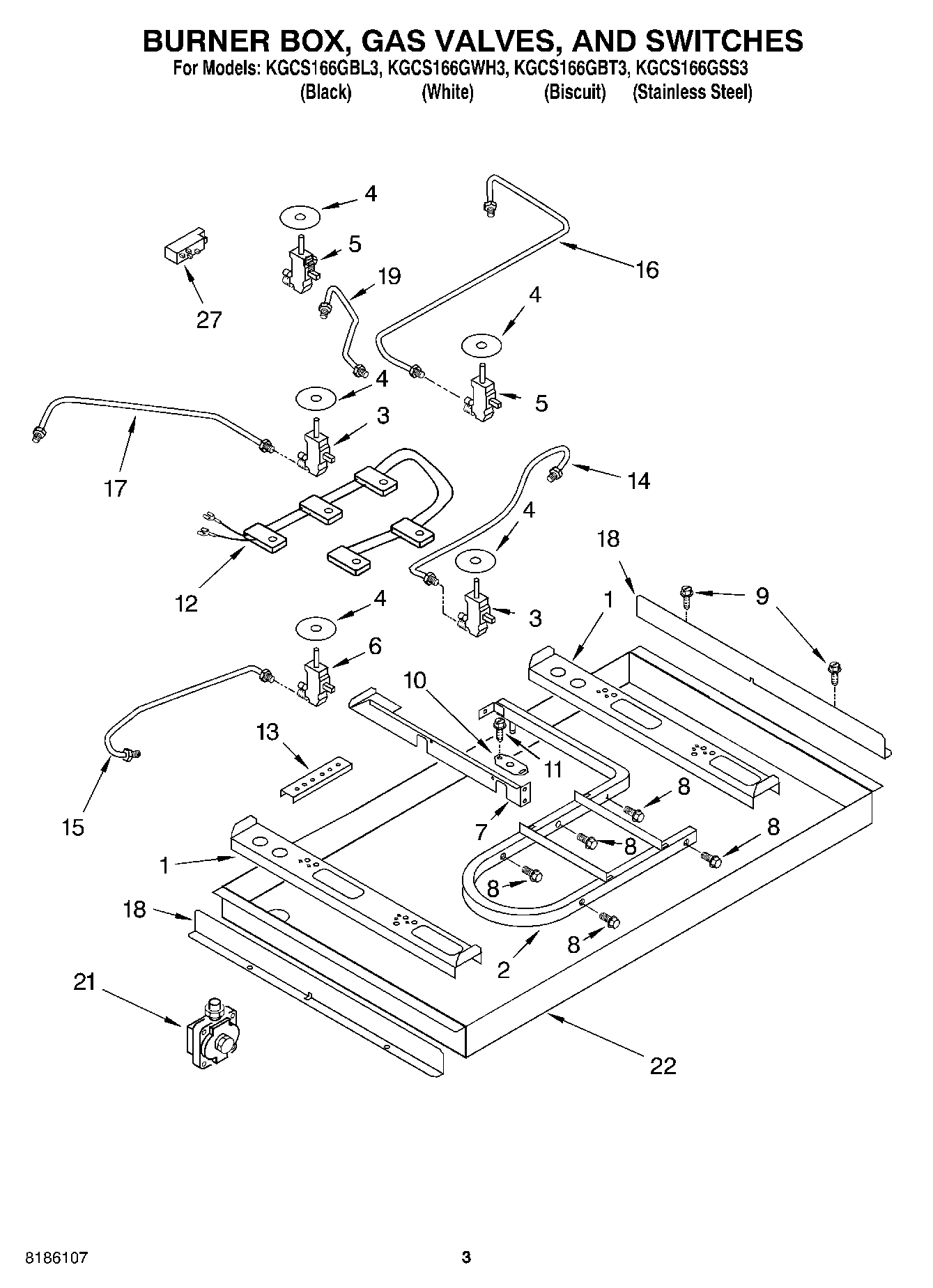

02 - BURNER BOX, GAS VALVES, AND SWITCHES

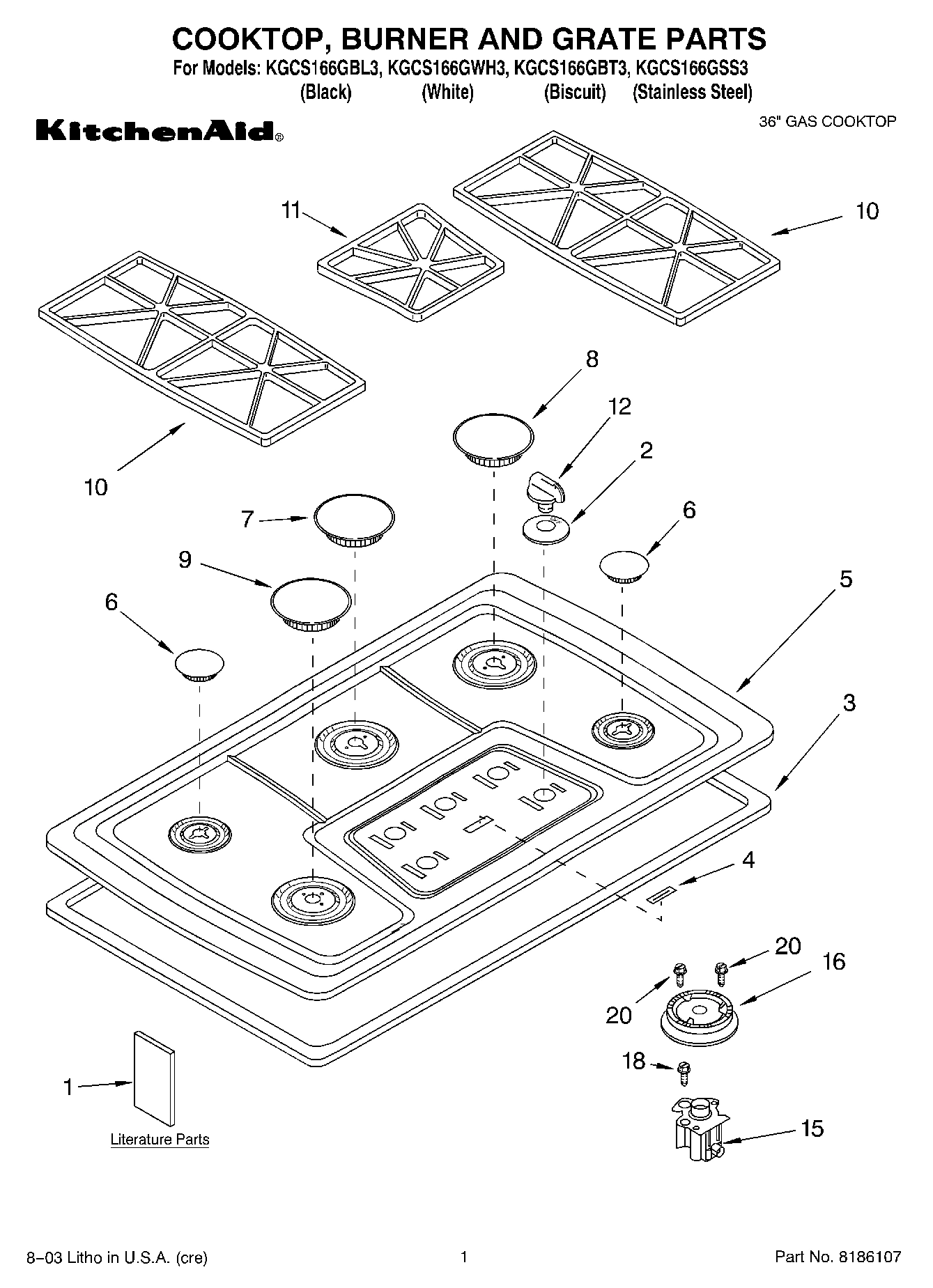

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCS166GWH3 36`` GAS COOKTOP
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT3192099 Contact Us For Availability
1
Literature Parts (LP Conversion Instructions) WPL LIT3192742 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3193071 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4455834 Contact Us For Availability
2
Collar, Knob (White) WPL 3192165 Contact Us For Availability
2
Collar, Knob (Biscuit) WPL 3192167 Contact Us For Availability
3
Valve, Gas Burner Burner, (RF) (LR) WPL 3191292 Contact Us For Availability
3
Seal, Foam WPL 3193091 Contact Us For Availability
4
Nameplate (Black) WPL 3191514 Contact Us For Availability
4
Nameplate (White) WPL 3191516 Contact Us For Availability
4
Nameplate (Biscuit) WPL 3191920 Contact Us For Availability
5
Valve, Gas Burner (RR & CR) WPL 3191293 Contact Us For Availability
5
Cooktop (Black) WPL 3191255 Contact Us For Availability
5
Cooktop (White) WPL 3191256 Contact Us For Availability
5
Cooktop (Stainless Steel) WPL 3191258 Contact Us For Availability
5
Cooktop (Biscuit) WPL 3191295 Contact Us For Availability
6
Cap, (RF) (LR) (Black) WPL 3191728 Contact Us For Availability
6
Cap, (RF) (LR) (White) WPL 3191729 Contact Us For Availability
6
Cap, (RF) (LR) (Biscuit) WPL 3191730 Contact Us For Availability
7
Cap, (CR) (White) WPL 3191732 Contact Us For Availability
7
Cap, (CR) (Biscuit) WPL 3191733 Contact Us For Availability
7
Cap, (CR) (Use w/Stainless Steel Model) WPL 3192487 Contact Us For Availability
8
Cap, (RR) (Use w/Stainless Steel Model) WPL 3192488 Contact Us For Availability
8
Cap, (RR) (Black) WPL 3191734 Contact Us For Availability
8
Cap, (RR) (White) WPL 3191735 Contact Us For Availability
8
Cap, (RR) (Biscuit) WPL 3191736 Contact Us For Availability
9
Cap, (LF) (Black) WPL 3191737 Contact Us For Availability
9
Cap, (LF) (White) WPL 3191738 Contact Us For Availability
9
Cap, (LF) (Biscuit) WPL 3191739 Contact Us For Availability
9
Cap, (LF) (Use w/Stainless Steel Model) WPL 3192489 Contact Us For Availability
10
Grate, Burner (Black) WPL 4456435 Contact Us For Availability
10
Grate, Burner (White) WPL 4456436 Contact Us For Availability
10
Grate, Burner (Biscuit) WPL 4456437 Contact Us For Availability
11
Grate, Filler (Black) WPL 4456443 Contact Us For Availability
11
Grate, Filler (White) WPL 4456444 Contact Us For Availability
11
Grate, Filler (Biscuit) WPL 4456445 Contact Us For Availability
11
Grate, Filler (Use w/Stainless Steel Model) WPL 4456446 Contact Us For Availability
12
WPL 3191923 WPL 3191923 Contact Us For Availability
12
WPL 3191925 WPL 3191925 Contact Us For Availability
12
Harness & Switches WPL 3191336 Contact Us For Availability
15
WPL 9754188 WPL 9754188 Contact Us For Availability
15
WPL 9754182 WPL 9754182 Contact Us For Availability
15
WPL 9754187 WPL 9754187 Contact Us For Availability
16
WPL 4455849 WPL 4455849 Contact Us For Availability
16
Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability
27
Harness, Ignitor 28`` (2) WPL 4456531 Contact Us For Availability
27
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI87671A2 Contact Us For Availability
27
Miscellaneous WPL ARI87672A6 Contact Us For Availability
27
WIRING HARNESS PARTS WPL ARI87673A3 Contact Us For Availability
× ![]()
