Model Whirlpool KGCS160SWH0 36`` GAS COOKTOP – Common Parts & Diagrams
01 - SECTION
03 - SECTION
04 - SECTION
02 - SECTION

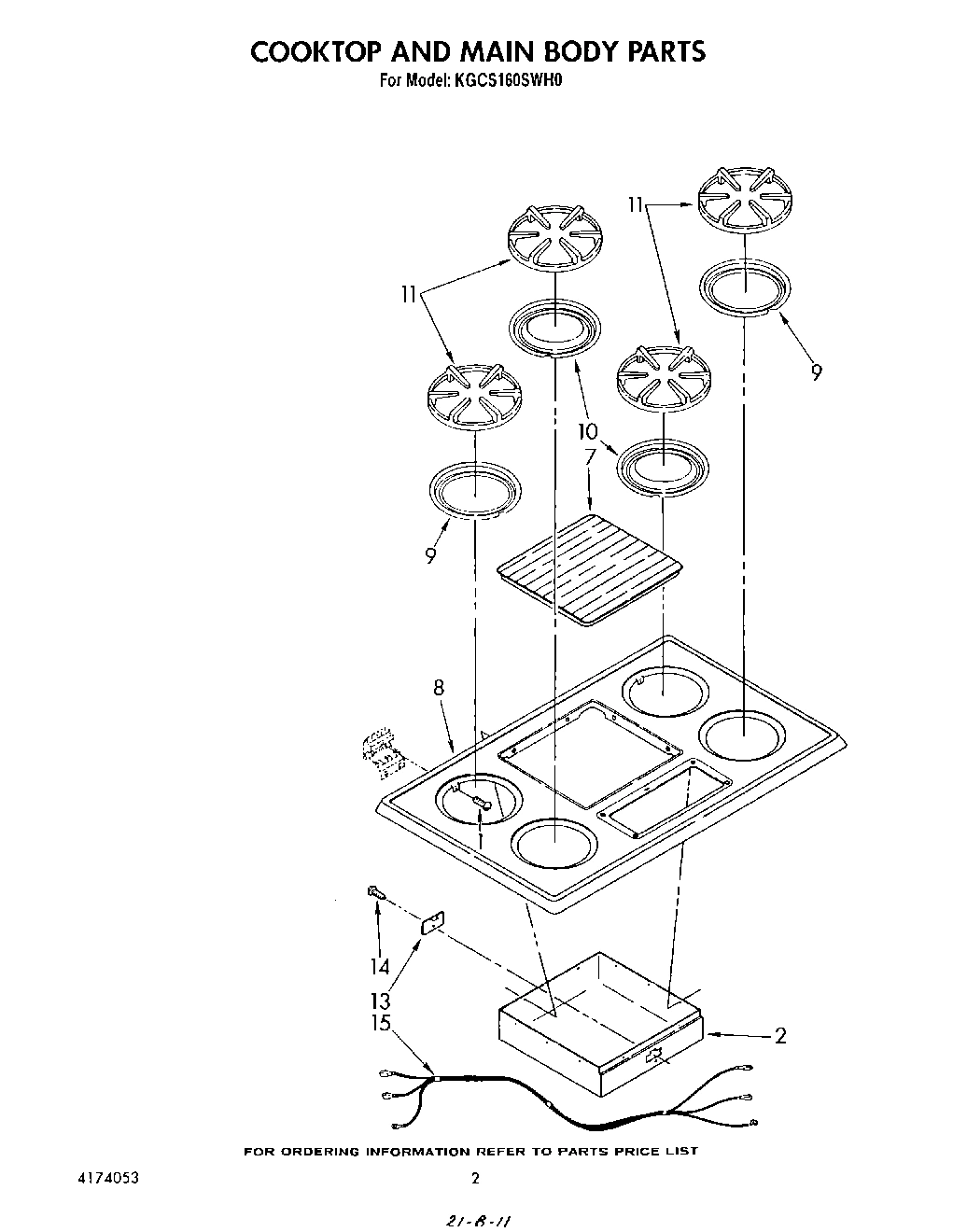

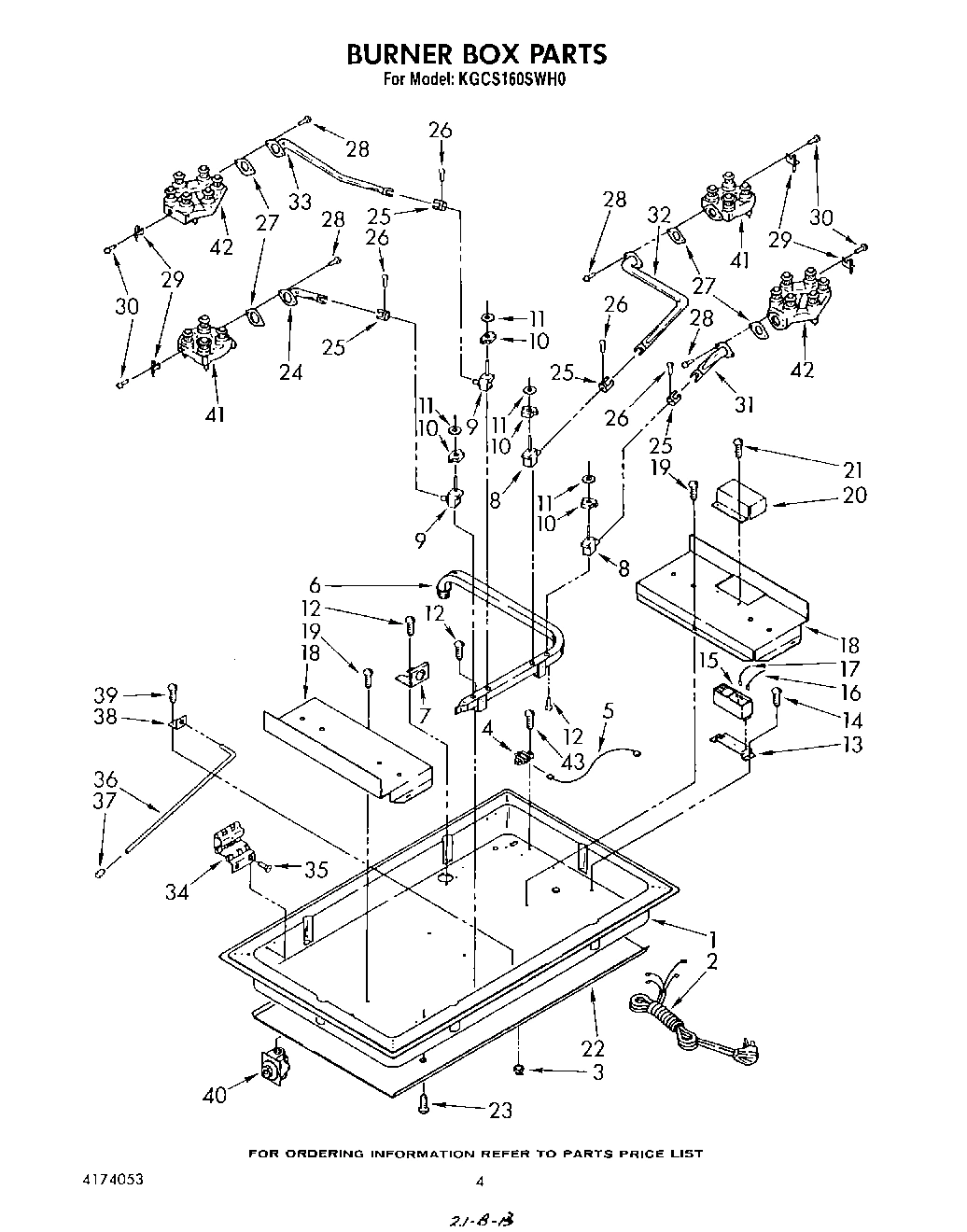

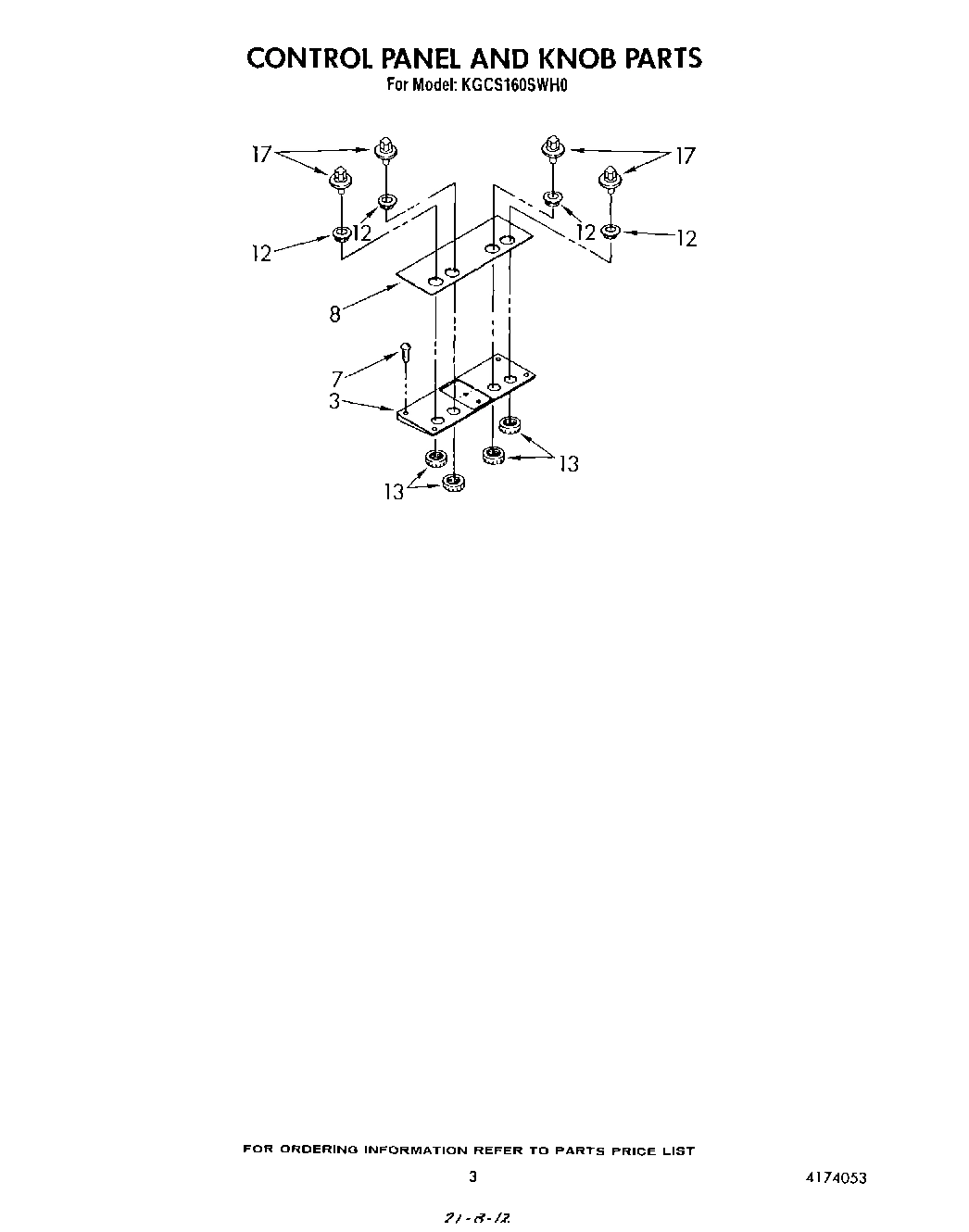

Common parts from model Whirlpool KGCS160SWH0 36`` GAS COOKTOP
Guide, Use & Care WPL LIT3177082 Contact Us For Availability
Instructions, Installation WPL LIT4174018 Contact Us For Availability
Repair Parts List WPL LIT4174053 Contact Us For Availability
1
Box, Burner WPL 4173102 Contact Us For Availability
2
Power Cord WPL 4173105 Contact Us For Availability
2
Pan, Heat Shield WPL 4173123 Contact Us For Availability
3
Bushing, Strain Relief WPL 4173103 Contact Us For Availability
4
Block, Terminal WPL 4173104 Contact Us For Availability
5
Wire, Spark Module To Terminal Block WPL 4173221 Contact Us For Availability
6
Mainfold WPL 4173108 Contact Us For Availability
7
Screw, Drive (4) (Frame Mounting) WPL 4159404 Contact Us For Availability
7
Bracket, Manifold Support WPL 4173109 Contact Us For Availability
7
Cutting Board WPL 4173040 Contact Us For Availability
8
Panel, Control (Glass) (Kitchen Aid Name- pla WPL 4173271 Contact Us For Availability
8
Valve, Daisy (2) (Bolt Thru) WPL 4173110 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 4173138 Contact Us For Availability
8
Cooktop (White) WPL 4173139 Contact Us For Availability
8
Cooktop (Almond) WPL 4173140 Contact Us For Availability
8
Cooktop (Onyx Black) WPL 4173141 Contact Us For Availability
9
Valve, Power (2) (Bolt Thru) WPL 4173111 Contact Us For Availability
9
Bowl, Drip (2) (Power Burner) WPL 4169274 Contact Us For Availability
10
Switch, Gas Ignitor (4) WPL 4173112 Contact Us For Availability
10
Bowl, Drip (2) (Daisy Burner) WPL 4169275 Contact Us For Availability
11
Grate, Burner (4) WPL 4169276 Contact Us For Availability
12
Grommet, Control Panel Positioning (4) WPL 4173134 Contact Us For Availability
13
Locknut, Control Panel Positioning (4) WPL 4173135 Contact Us For Availability
13
Bracket, Spark Module WPL 4169250 Contact Us For Availability
13
Clip, Grill Ground WPL 4173220 Contact Us For Availability
14
Screw, Drive (2) (Spark Module Bracket Mounti WPL 4159448 Contact Us For Availability
15
Module, Spark Ignition WPL 4169249 Contact Us For Availability
15
Hardware, Installation WPL 4164343 Contact Us For Availability
15
Wiring Harness (Spark Module To Valve Switch) WPL 4173107 Contact Us For Availability
16
Wire, Direct Spark (17``) WPL 4173113 Contact Us For Availability
17
Knob, Burner Control (4) WPL 4169279 Contact Us For Availability
17
Wire, Direct Spark (47``) WPL 4173114 Contact Us For Availability
18
Bracket, Burner Base (Right) WPL 4173115 Contact Us For Availability
18
Bracket, Burner Base (Left) WPL 4173116 Contact Us For Availability
20
Cover, Spark Module WPL 4173117 Contact Us For Availability
22
Pan, Heat Shield Burner Box WPL 4173118 Contact Us For Availability
24
Venturi (Left Front) (Includes Illus. 25 & 26 WPL 4173119 Contact Us For Availability
25
Shutter, Venturi WPL 4173100 Contact Us For Availability
26
Screw, Drive (Shutter Mounting) WPL 4159460 Contact Us For Availability
27
Gasket, Venturi To Burner WPL 4166263 Contact Us For Availability
28
Screw, Drive (2) (Venturi To Burner) WPL 4159186 Contact Us For Availability
31
Venturi (Right Front) (Includes Illus. 25 & 2 WPL 4173120 Contact Us For Availability
32
Venturi (Right Rear) WPL 4173121 Contact Us For Availability
33
Venturi (Left Rear) WPL 4173122 Contact Us For Availability
34
Hinge, Cooktop (2) WPL 4169248 Contact Us For Availability
36
WPL 4173127 WPL 4173127 Contact Us For Availability
37
WPL 4173128 WPL 4173128 Contact Us For Availability
38
WPL 4173129 WPL 4173129 Contact Us For Availability
39
WPL 4159465 WPL 4159465 Contact Us For Availability
40
WPL 4167273 WPL 4167273 Contact Us For Availability
41
WPL 4169263 WPL 4169263 Contact Us For Availability
42
WPL 4169266 WPL 4169266 Contact Us For Availability
43
WPL 4173231 WPL 4173231 Contact Us For Availability
× ![]()
