Model Whirlpool KGCS105GSS3 COOKTOP – Common Parts & Diagrams

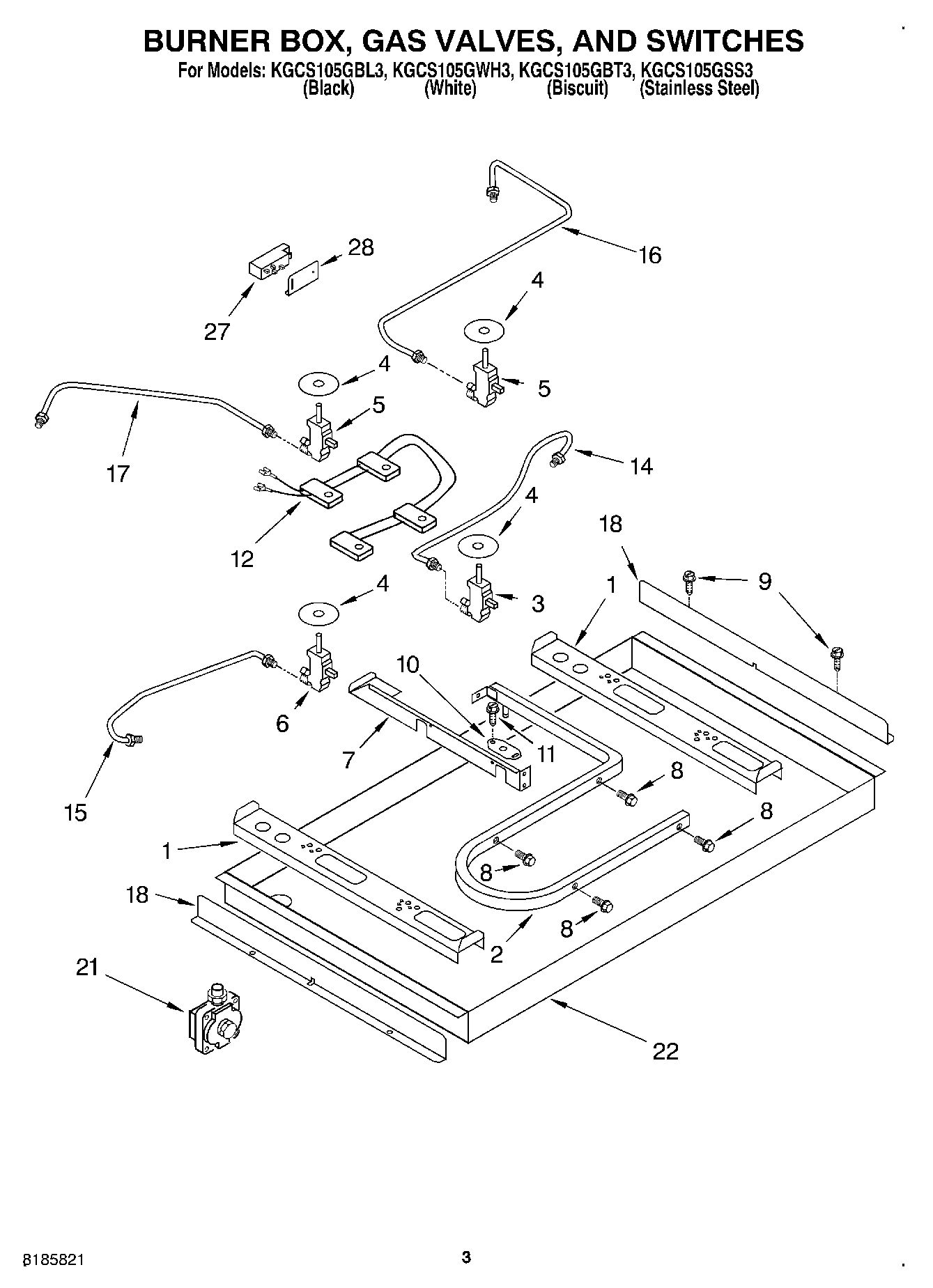

02 - BURNER BOX, GAS VALVES, AND SWITCHES

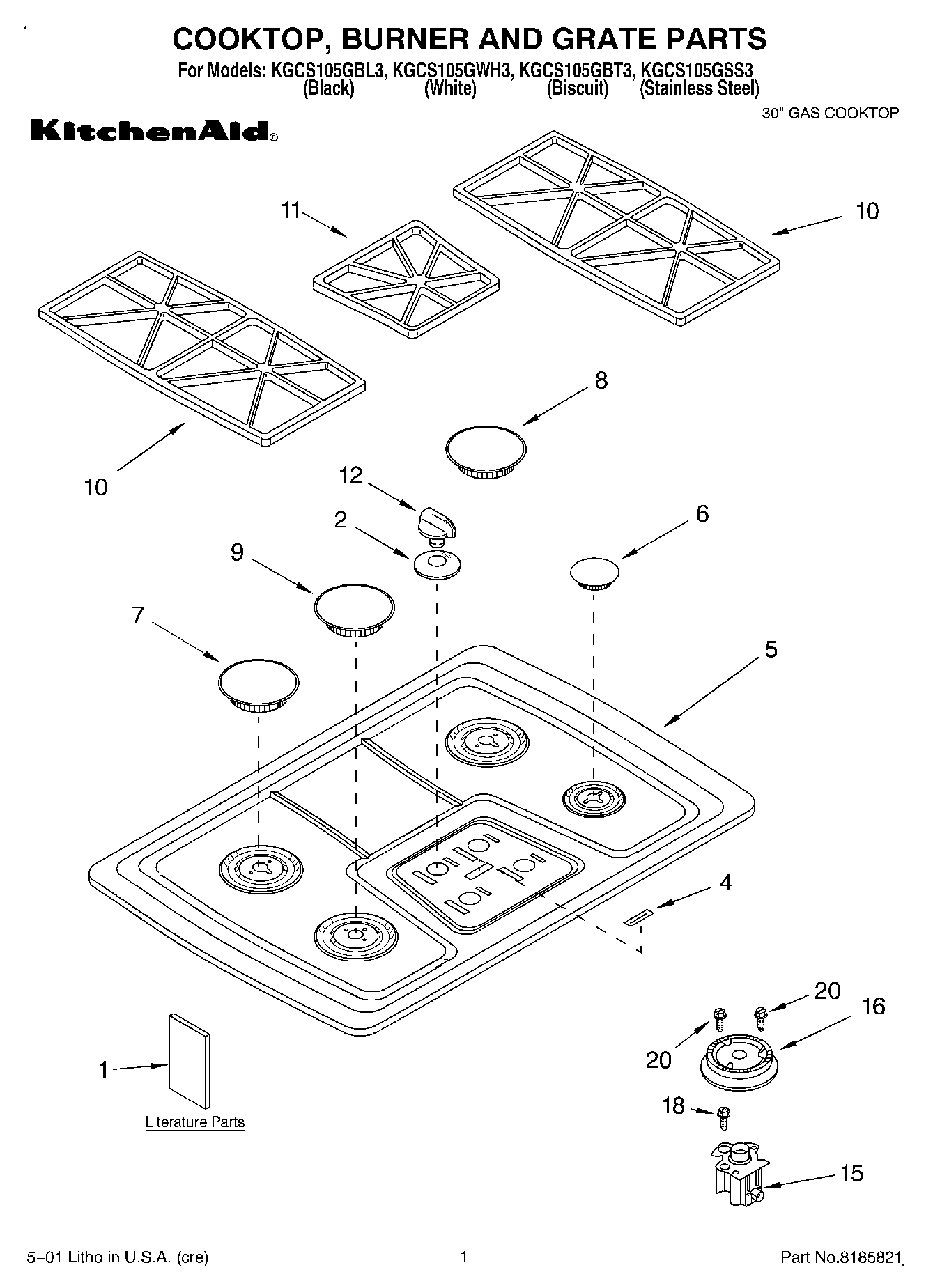

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCS105GSS3 COOKTOP
1
Literature Parts (Wiring Diagram) WPL LIT3192098 Contact Us For Availability
1
Literature Parts (LP Conversion Instructions) WPL LIT3192742 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3193071 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4455834 Contact Us For Availability
2
Collar, Knob (White) WPL 3192165 Contact Us For Availability
2
Collar, Knob (Biscuit) WPL 3192167 Contact Us For Availability
3
Valve, Gas Burner Burner, (RF) WPL 3191292 Contact Us For Availability
4
Nameplate (Black) WPL 3191514 Contact Us For Availability
4
Nameplate (White) WPL 3191516 Contact Us For Availability
4
Nameplate (Biscuit) WPL 3191920 Contact Us For Availability
5
Valve, Gas Burner (RR & LR) WPL 3191293 Contact Us For Availability
5
Cooktop (Black) WPL 3191245 Contact Us For Availability
5
Cooktop (White) WPL 3191246 Contact Us For Availability
5
Cooktop (Stainless Steel) WPL 3191248 Contact Us For Availability
5
Cooktop (Biscuit) WPL 3191294 Contact Us For Availability
6
Cap, (RF) (Black) WPL 3191728 Contact Us For Availability
6
Cap, (RF) (White) WPL 3191729 Contact Us For Availability
6
Cap, (RF) (Biscuit) WPL 3191730 Contact Us For Availability
7
Cap, (LR) (White) WPL 3191732 Contact Us For Availability
7
Cap, (LR) (Biscuit) WPL 3191733 Contact Us For Availability
7
Cap, (LR) (Use w/Stainless Steel Model) WPL 3192487 Contact Us For Availability
8
Cap, (RR) (Use w/Stainless Steel Model) WPL 3192488 Contact Us For Availability
8
Cap, (RR) (Black) WPL 3191734 Contact Us For Availability
8
Cap, (RR) (White) WPL 3191735 Contact Us For Availability
8
Cap, (RR) (Biscuit) WPL 3191736 Contact Us For Availability
9
Cap, (LF) (Black) WPL 3191737 Contact Us For Availability
9
Cap, (LF) (White) WPL 3191738 Contact Us For Availability
9
Cap, (LF) (Biscuit) WPL 3191739 Contact Us For Availability
9
Cap, (LF) (Use w/Stainless Steel Model) WPL 3192489 Contact Us For Availability
10
Grate, Burner (Black) WPL 3191485 Contact Us For Availability
10
Grate, Burner (White) WPL 3191486 Contact Us For Availability
10
Grate, Burner (Biscuit) WPL 3191487 Contact Us For Availability
11
Grate, Filler (Black) WPL 3191277 Contact Us For Availability
11
Grate, Filler (White) WPL 3191278 Contact Us For Availability
11
Grate, Filler (Biscuit) WPL 3191279 Contact Us For Availability
11
Grate, Filler (Use w/Stainless Steel Model) WPL 3192484 Contact Us For Availability
12
Knob, Control WPL 3191923 Contact Us For Availability
12
WPL 3191925 WPL 3191925 Contact Us For Availability
15
WPL 9754188 WPL 9754188 Contact Us For Availability
15
WPL 9754182 WPL 9754182 Contact Us For Availability
15
WPL 9754187 WPL 9754187 Contact Us For Availability
16
Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability
16
WPL 9754181 WPL 9754181 Contact Us For Availability
× ![]()
