Model Whirlpool KGCS100SWH1 30`` GAS COOKTOP – Common Parts & Diagrams

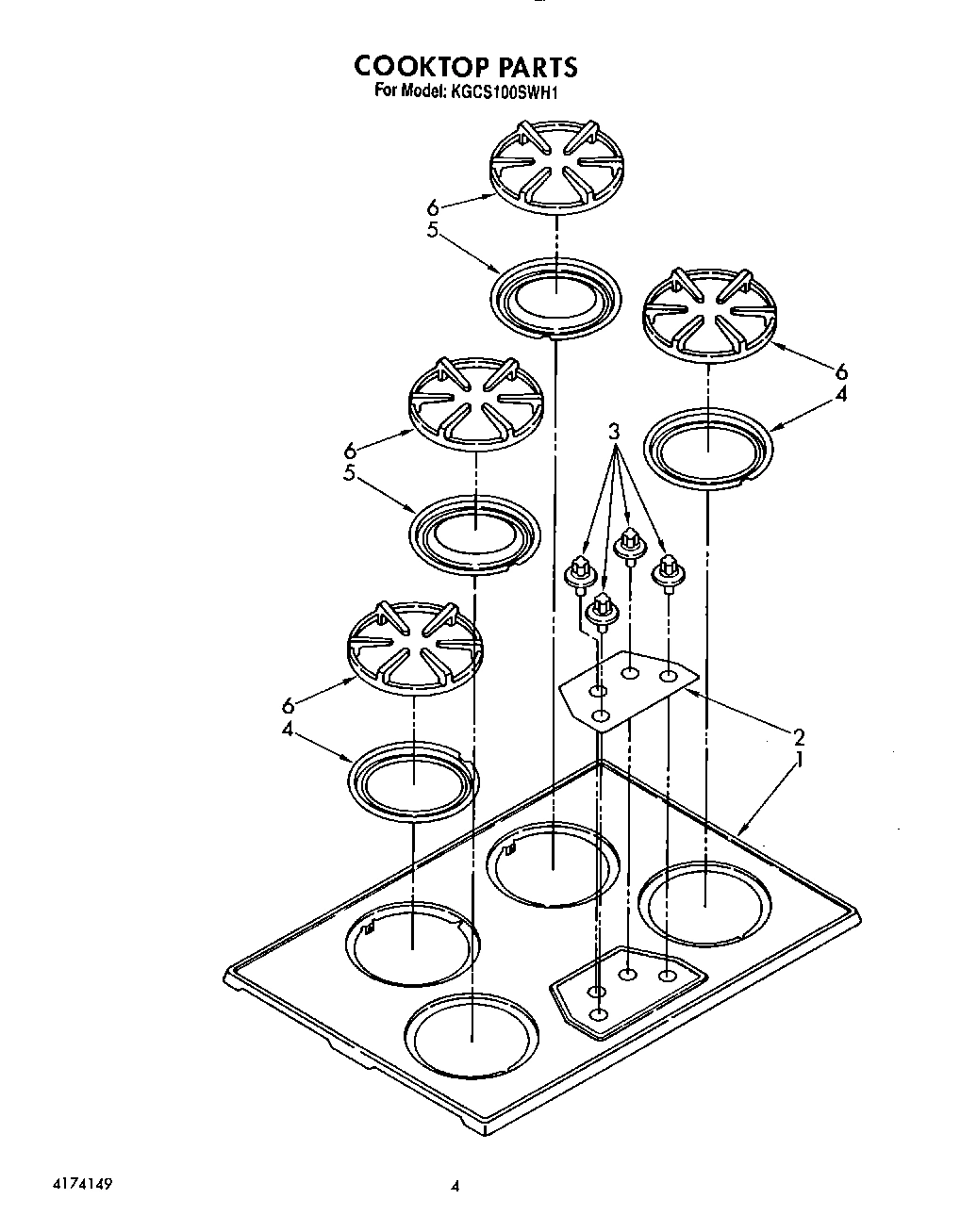

03 - COOKTOP PARTS

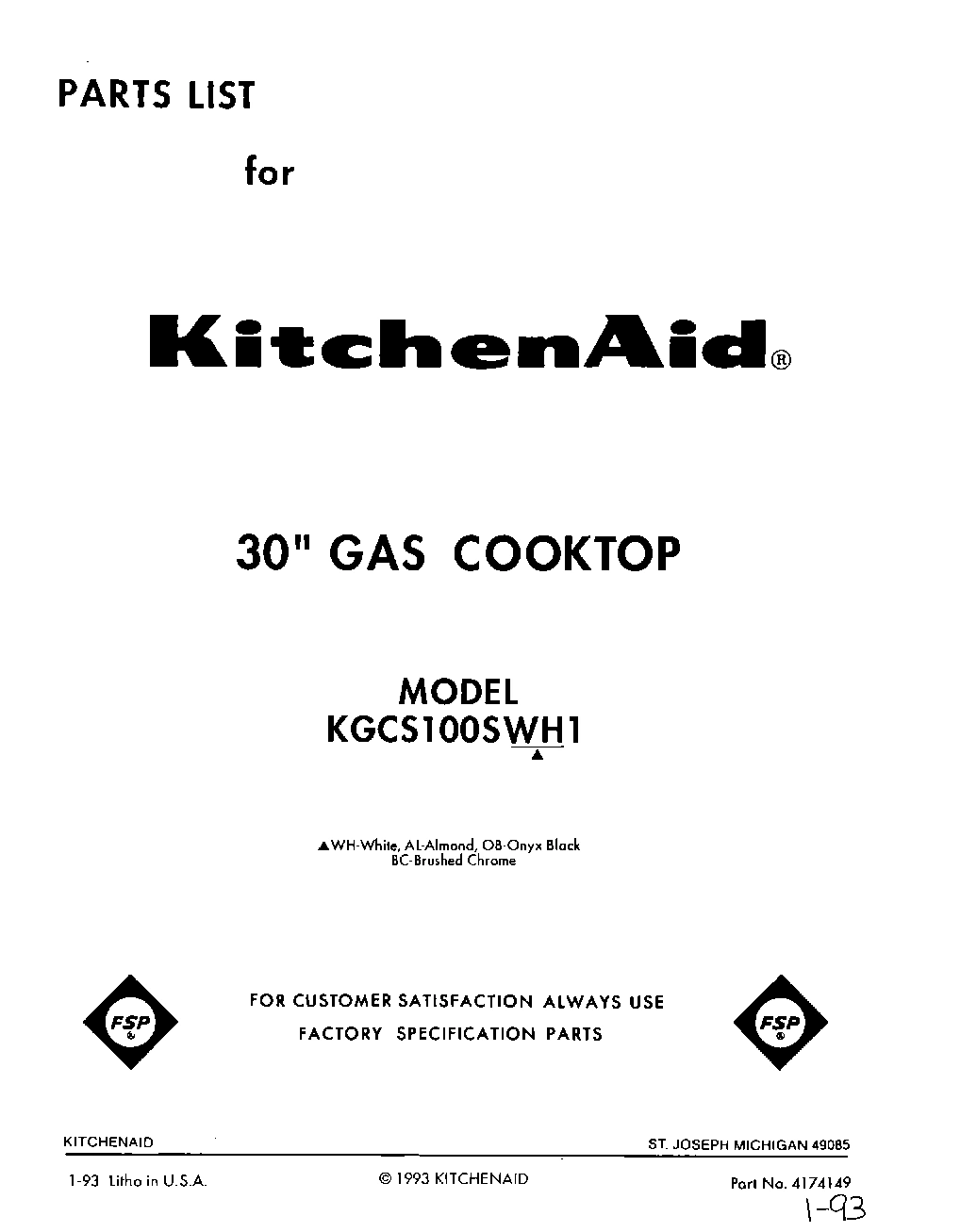

01 - COVER

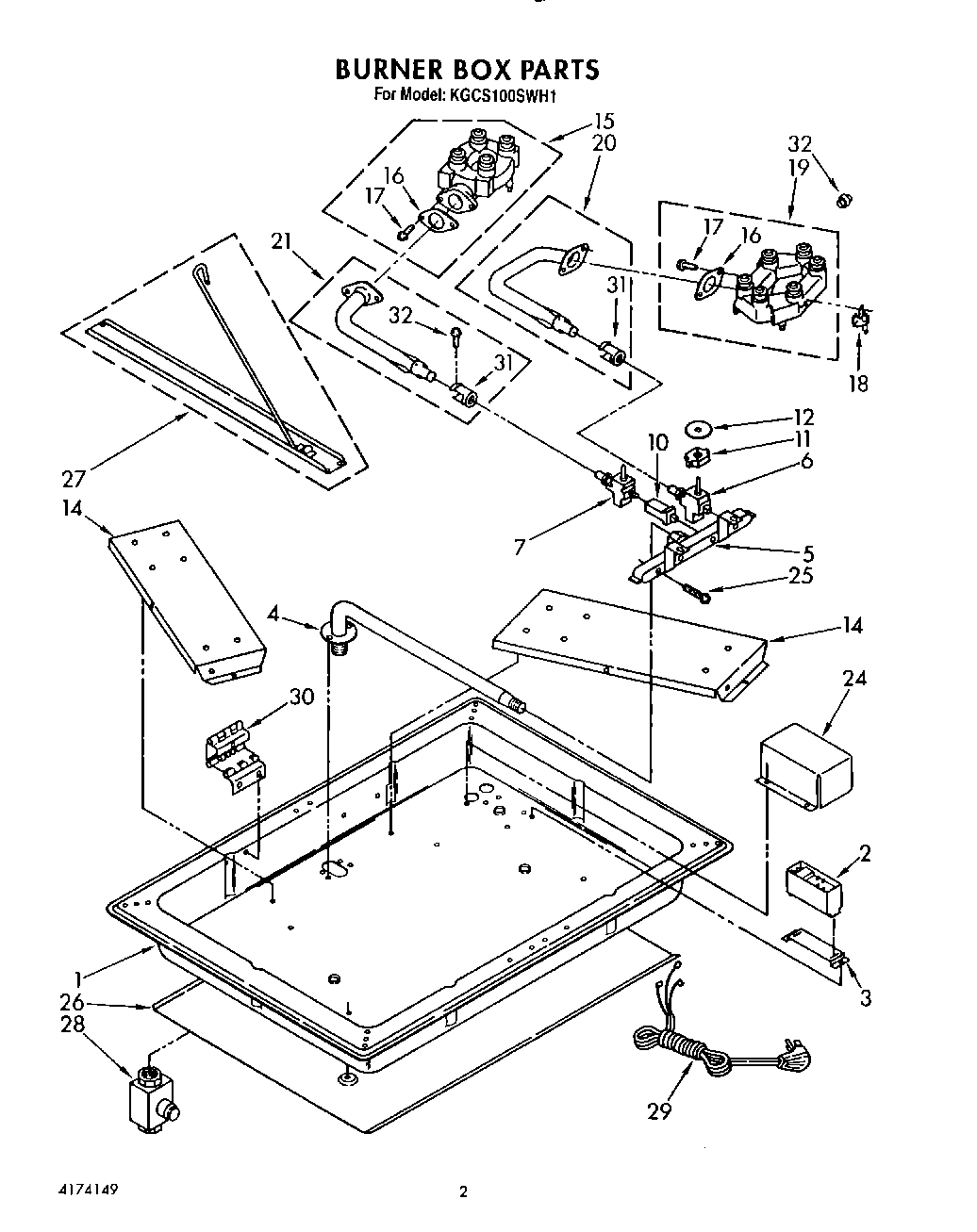

02 - BURNER BOX PARTS
Common parts from model Whirlpool KGCS100SWH1 30`` GAS COOKTOP
Use & Care Guide WPL LIT3177082 Contact Us For Availability
Installation Instructions WPL LIT4174015 Contact Us For Availability
Repair Parts List WPL LIT4174149 Contact Us For Availability
1
Cooktop (Brushed Chrome) WPL 4173069 Contact Us For Availability
1
Cooktop (Onyx Black) WPL 4173070 Contact Us For Availability
1
Box, Burner WPL 3178705 Contact Us For Availability
2
Nameplate WPL 4169278 Contact Us For Availability
2
Module, Spark Ignitor Wire WPL 3178595 Contact Us For Availability
3
Knob, Control (4) WPL 4169279 Contact Us For Availability
3
Bracket, Spark Module WPL 4169250 Contact Us For Availability
4
Bowl, Drip (2) (Power Burner) WPL 3178706 Contact Us For Availability
4
Manifold, Inlet WPL 4169251 Contact Us For Availability
5
Bowl, Drip (2) (Daisy Burner) WPL 3178707 Contact Us For Availability
5
Manifold, Control WPL 4169252 Contact Us For Availability
6
Grate, Cooktop (4) WPL 3178597 Contact Us For Availability
6
Hardware, Installation WPL 4164344 Contact Us For Availability
6
Valve, Daisy (Bolt Thru) Left Front WPL 3178502 Contact Us For Availability
6
Valve, Power Bolt Thru Right Front WPL 4169255 Contact Us For Availability
7
Valve, Power Pipe Left Rear WPL 3178503 Contact Us For Availability
7
Valve, Daisy Pipe Right Rear WPL 4169254 Contact Us For Availability
10
Extension, Valve 1/8 NPT (2) WPL 4169257 Contact Us For Availability
11
Switch, Valve (4) WPL 4168745 Contact Us For Availability
14
Bushing (4) WPL 3178504 Contact Us For Availability
14
Bracket, Burner Base (2) WPL 4169262 Contact Us For Availability
15
Daisy Burner (L.F. & R.R.) WPL 3178701 Contact Us For Availability
16
Gasket, Venturi WPL 4166263 Contact Us For Availability
17
Screw, Venturi WPL 4159323 Contact Us For Availability
19
Burner, Power (R.F. & L.R.) WPL 3178700 Contact Us For Availability
20
Venturi Assembly (Right Front) WPL 4169267 Contact Us For Availability
20
Venturi Assembly (Left Front) WPL 4169268 Contact Us For Availability
21
Venturi Assembly (Right Rear) WPL 4169269 Contact Us For Availability
21
Venturi Assembly (Left Rear) WPL 4169270 Contact Us For Availability
24
Cover, Spark Module WPL 4169271 Contact Us For Availability
25
Washer (2) WPL 4159569 Contact Us For Availability
25
Bolt, Gas Valve WPL 4169277 Contact Us For Availability
26
Shield, Heat WPL 4173093 Contact Us For Availability
27
Screw (4) WPL 4159448 Contact Us For Availability
27
Strut, Top Support WPL 4173101 Contact Us For Availability
28
REGULATOR, PRESSURE WPL 4167273 Contact Us For Availability
29
Power Cord WPL 4169261 Contact Us For Availability
30
Screw (4) WPL 4159465 Contact Us For Availability
30
Hinge, Cooktop (2) WPL 4169248 Contact Us For Availability
31
Valve, Mixer WPL 4173100 Contact Us For Availability
32
Screw WPL 4159460 Contact Us For Availability
32
Lighter, Jet WPL 4169264 Contact Us For Availability
NI
Rod, Top Support WPL 3178882 Contact Us For Availability
× ![]()
