Model Whirlpool KGCS100SWH0 30`` GAS COOKTOP – Common Parts & Diagrams
02 - BURNER BOX PARTS
03 - COOKTOP PARTS

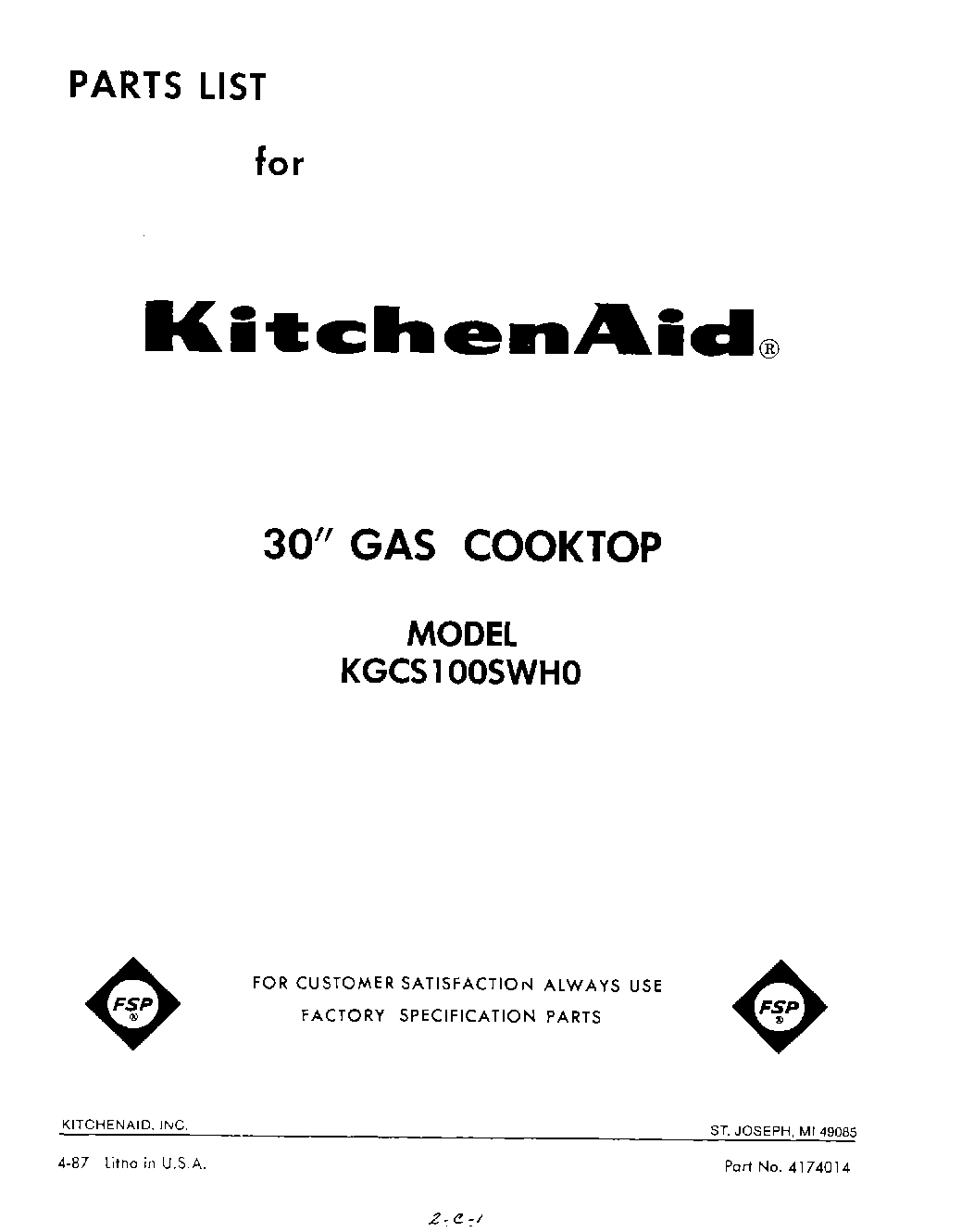

01 - COVER
Common parts from model Whirlpool KGCS100SWH0 30`` GAS COOKTOP
WPL LIT4177812 WPL LIT4177812 Contact Us For Availability
1
Box, Burner WPL 4169247 Contact Us For Availability
1
Cooktop (Almond) WPL 4173067 Contact Us For Availability
1
Cooktop (White) WPL 4173068 Contact Us For Availability
1
Cooktop (Brushed Chrome) WPL 4173069 Contact Us For Availability
1
Cooktop (Onyx Black) WPL 4173070 Contact Us For Availability
2
Ignitor Wire (27`` (2)) WPL 4169245 Contact Us For Availability
2
Ignitor Wire (43``(2)) WPL 4169246 Contact Us For Availability
2
Module, Spark WPL 4169249 Contact Us For Availability
2
Nameplate WPL 4169278 Contact Us For Availability
3
Bracket, Spark Module WPL 4169250 Contact Us For Availability
3
Knob, Control (4) WPL 4169279 Contact Us For Availability
4
Manifold, Inlet WPL 4169251 Contact Us For Availability
4
Bowl, Drip (2) (Power Burner) WPL 4169274 Contact Us For Availability
5
Manifold, Control WPL 4169252 Contact Us For Availability
5
Bowl, Drip (2) (Daisy Burner) WPL 4169275 Contact Us For Availability
6
Valve, Daisy (Bolt Thru) (Includes Orifice Ho WPL 4169253 Contact Us For Availability
6
Grate, Cooktop (4) WPL 4169276 Contact Us For Availability
7
Valve, Daisy (R.R.) (Includes Orifice Hood) WPL 4173223 Contact Us For Availability
7
Hardware, Installation WPL 4164344 Contact Us For Availability
8
Valve, Power (R.F.) Bolt Thru (Includes Orifi WPL 4169255 Contact Us For Availability
9
Valve, Power (L.R.) (Includes Orifice Hood) WPL 4173222 Contact Us For Availability
10
Extension, Valve 1/8 NPT (2) WPL 4169257 Contact Us For Availability
11
Switch, Valve (4) WPL 4168745 Contact Us For Availability
13
Rod, Top Support WPL 4169260 Contact Us For Availability
14
Bracket, Burner Base (2) WPL 4169262 Contact Us For Availability
15
Gasket, Venturi WPL 4166263 Contact Us For Availability
15
Screw, Venturi Mounting (2) WPL 4159323 Contact Us For Availability
15
Daisy Burner (L.F. & R.R.) (Includes Illus. 1 WPL 4169263 Contact Us For Availability
19
Burner, Power (R.F. & L.R.) (Includes Illus. WPL 4169266 Contact Us For Availability
20
Screw, Drive WPL 4159460 Contact Us For Availability
20
Venturi (R.F.) (Includes Illus. 20A & 20B) WPL 4169267 Contact Us For Availability
20
Mixer, Valve WPL 4173100 Contact Us For Availability
21
Venturi (R.R.) (Includes Illus. 20A & 20B) WPL 4169269 Contact Us For Availability
22
Venturi L.F.) (Includes Illus. 20A & 20B) WPL 4169268 Contact Us For Availability
23
Venturi (L.R.) (Includes Illus. 20A & 20B) WPL 4169270 Contact Us For Availability
24
Cover, Spark Module WPL 4169271 Contact Us For Availability
25
Bolt, Gas Valve WPL 4169277 Contact Us For Availability
26
WPL 4173093 WPL 4173093 Contact Us For Availability
27
WPL 4159448 WPL 4159448 Contact Us For Availability
27
WPL 4173101 WPL 4173101 Contact Us For Availability
28
WPL 4167273 WPL 4167273 Contact Us For Availability
29
WPL 4169261 WPL 4169261 Contact Us For Availability
30
WPL 4159465 WPL 4159465 Contact Us For Availability
30
WPL 4169248 WPL 4169248 Contact Us For Availability
× ![]()
