Model Whirlpool KGCP487JSS06 48`` Stainless Steel Professional Cooktop – Common Parts & Diagrams

Common parts from model Whirlpool KGCP487JSS06 48`` Stainless Steel Professional Cooktop

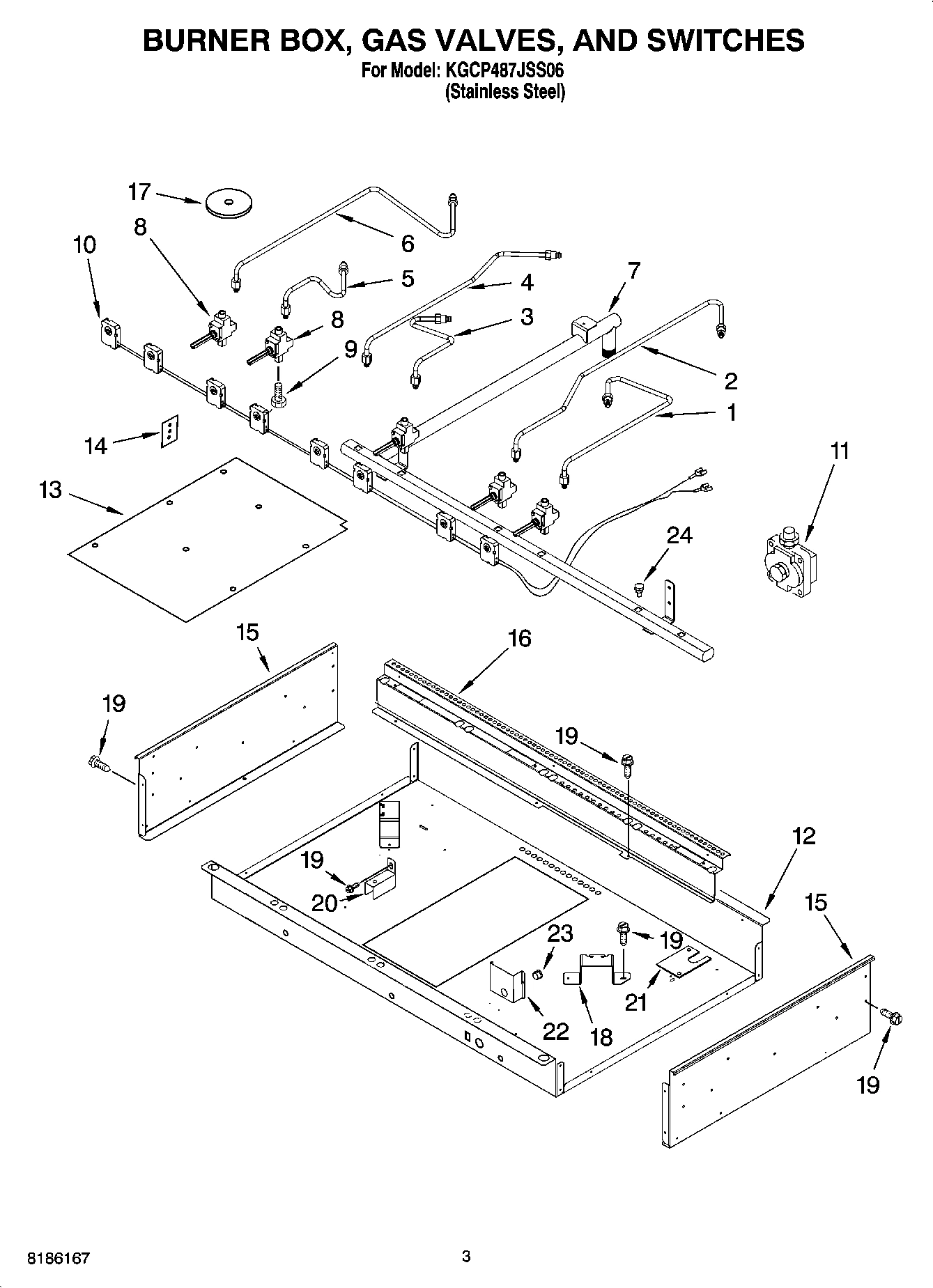

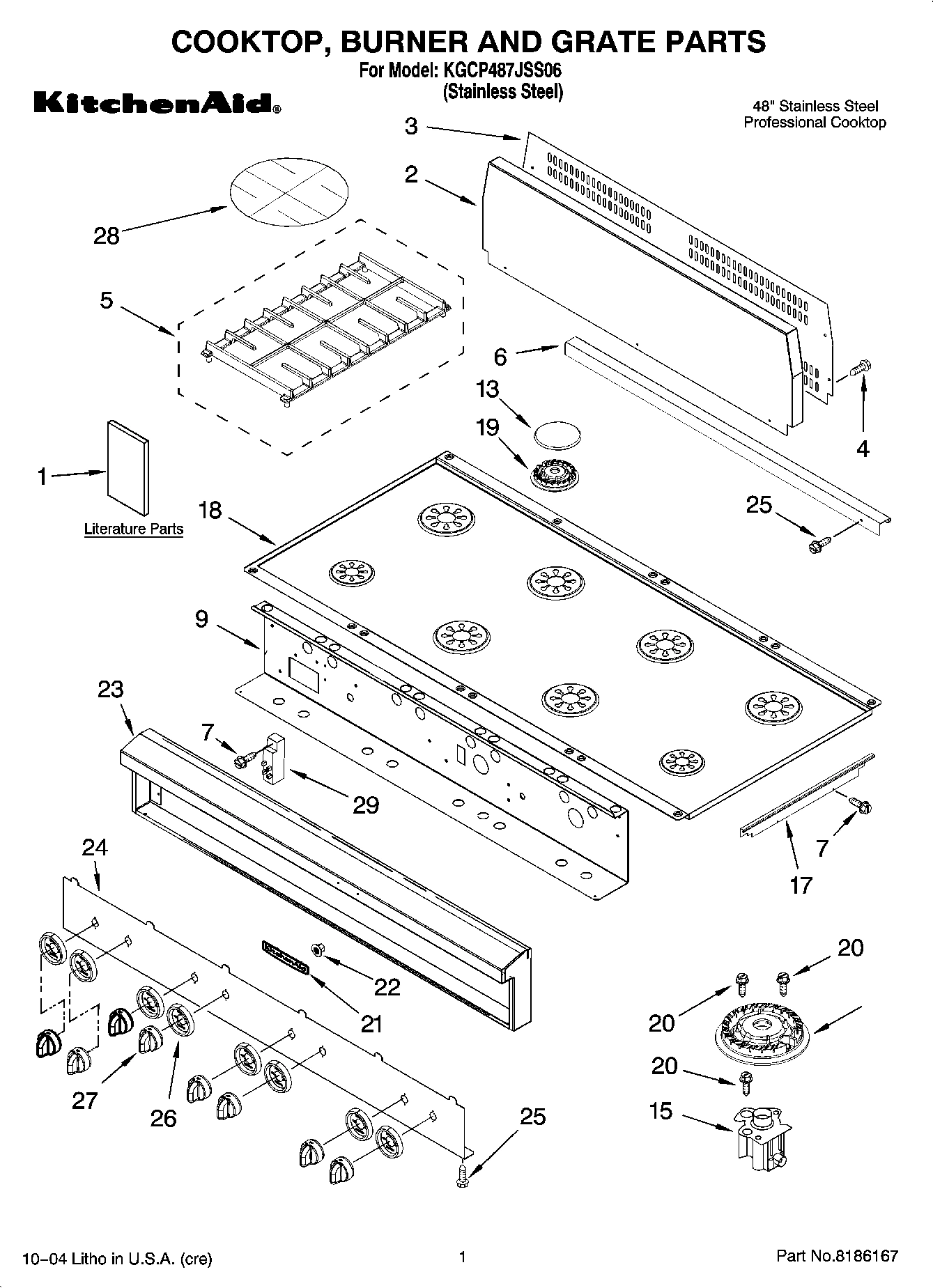

01 - COOKTOP, BURNER AND GRATE PARTS

Print

• This Diagram
• All Diagrams

4456627 Whirlpool Wire Harness Backorder WPL 4456627 View Details $47.14

View on Model

W10392007 Whirlpool Power Cord Backorder WPL W10392007 View Details $35.56

View on Model

Harness, Wire (Ignitor 42``) WPL 4456628 Contact Us For Availability

View on Model

Bushing WPL 1129449 Contact Us For Availability

View on Model

CLEANER WPL 8171420 Contact Us For Availability

View on Model

L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability

View on Model

Conversion Kit WPL 8284934 Contact Us For Availability

View on Model

Harness, Wire Jumper WPL 8285025 Contact Us For Availability

View on Model

WIRING HARNESS PARTS WPL ARI87561A8 Contact Us For Availability

View on Model

Miscellaneous WPL ARI87562A5 Contact Us For Availability

View on Model

1

Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability

View on Model

2

Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability

View on Model

3

Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability

View on Model

4

Tubing, Gas Burner - CR WPL 4455152 Contact Us For Availability

View on Model

5

Tubing, Gas Burner - LF WPL 4455153 Contact Us For Availability

View on Model

6

Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability

View on Model

7

Manifold WPL 8284737 Contact Us For Availability

View on Model

8

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 View Details $134.02

View on Model

8

Valve, Burner (Large (6)) WPL 4456818 Contact Us For Availability

View on Model

9

WP3186217 Whirlpool Screw Backorder WPL WP3186217 View Details $2.51

View on Model

10

Burner Switch & Harness Assembly WPL 4456906 Contact Us For Availability

View on Model

11

WP9759091 Whirlpool Regulator Backorder WPL WP9759091 View Details $128.39

View on Model

12

Burner Box WPL 4457095 Contact Us For Availability

View on Model

13

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 View Details $2.51

View on Model

13

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 View Details $25.81

View on Model

13

Cap, Burner (Turbo, 14K (6)) WPL 4455243 Contact Us For Availability

View on Model

13

Plate, Burner Holder WPL 8284964 Contact Us For Availability

View on Model

14

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

15

Side, Burner Box (Right Hand) WPL 8285487 Contact Us For Availability

View on Model

15

Side, Burner Box (Left Hand) WPL 8285488 Contact Us For Availability

View on Model

16

Support, Rear WPL 9759137 Contact Us For Availability

View on Model

17

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 View Details $28.80

View on Model

18

Screw WPL 4449040 Contact Us For Availability

View on Model

18

Cooktop, Black WPL 8284726 Contact Us For Availability

View on Model

18

Bracket, Burner WPL 3192811 Contact Us For Availability

View on Model

19

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

19

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 View Details $34.15

View on Model

19

Burner Head (Turbo, 14K (6)) WPL 4455849 Contact Us For Availability

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $1.52

View on Model

20

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

View on Model

21

Nameplate WPL 2005292 Contact Us For Availability

View on Model

21

Cover, Manifold Slot WPL 8285361 Contact Us For Availability

View on Model

22

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 View Details $4.59

View on Model

22

Cover, Shelf WPL 8284680 Contact Us For Availability

View on Model

23

Control Frame WPL 8284939 Contact Us For Availability

View on Model

23

Bushing, Cover Shelf WPL 8284722 Contact Us For Availability

View on Model

24

Panel, Control WPL 4457157 Contact Us For Availability

View on Model

24

Plug, Manifold (close) WPL 8284796 Contact Us For Availability

View on Model

25

W11233072 Whirlpool Screw In Stock WPL W11233072 View Details $9.59

View on Model

26

Bezel, Knob WPL 4455192 Contact Us For Availability

View on Model

27

WPW10078400 Whirlpool Knob Assembly Backorder WPL WPW10078400 View Details $3.70

View on Model

28

Plate, Simmer WPL 4455109 Contact Us For Availability

View on Model

29

WPW10110491 Whirlpool Spark Module In Stock WPL WPW10110491 View Details $112.05

View on Model

×
