Model Whirlpool KGCP484KSS04 48`` Stainless Steel Professional Cooktop (with gr – Common Parts & Diagrams

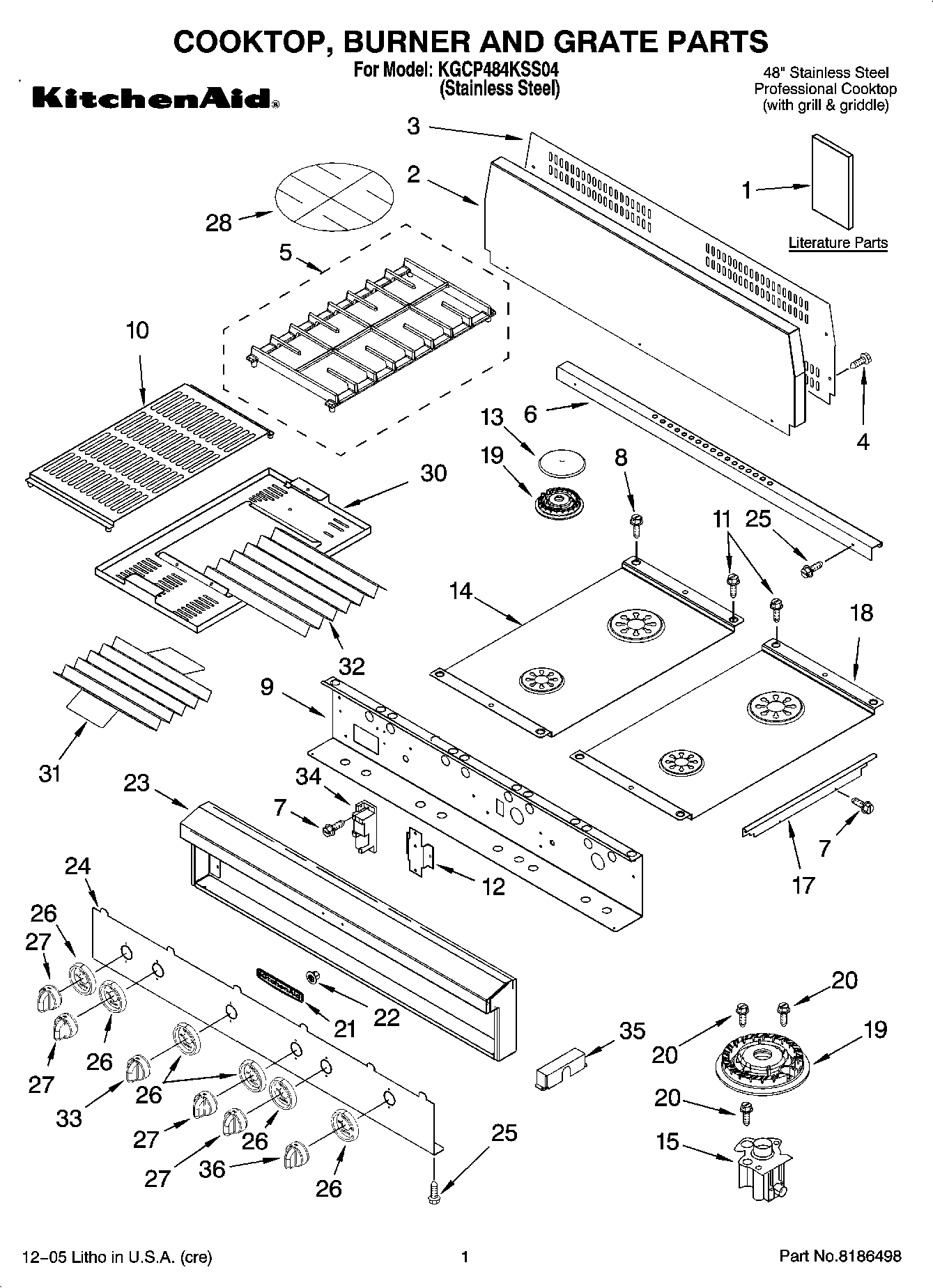

01 - COOKTOP, BURNER AND GRATE PARTS

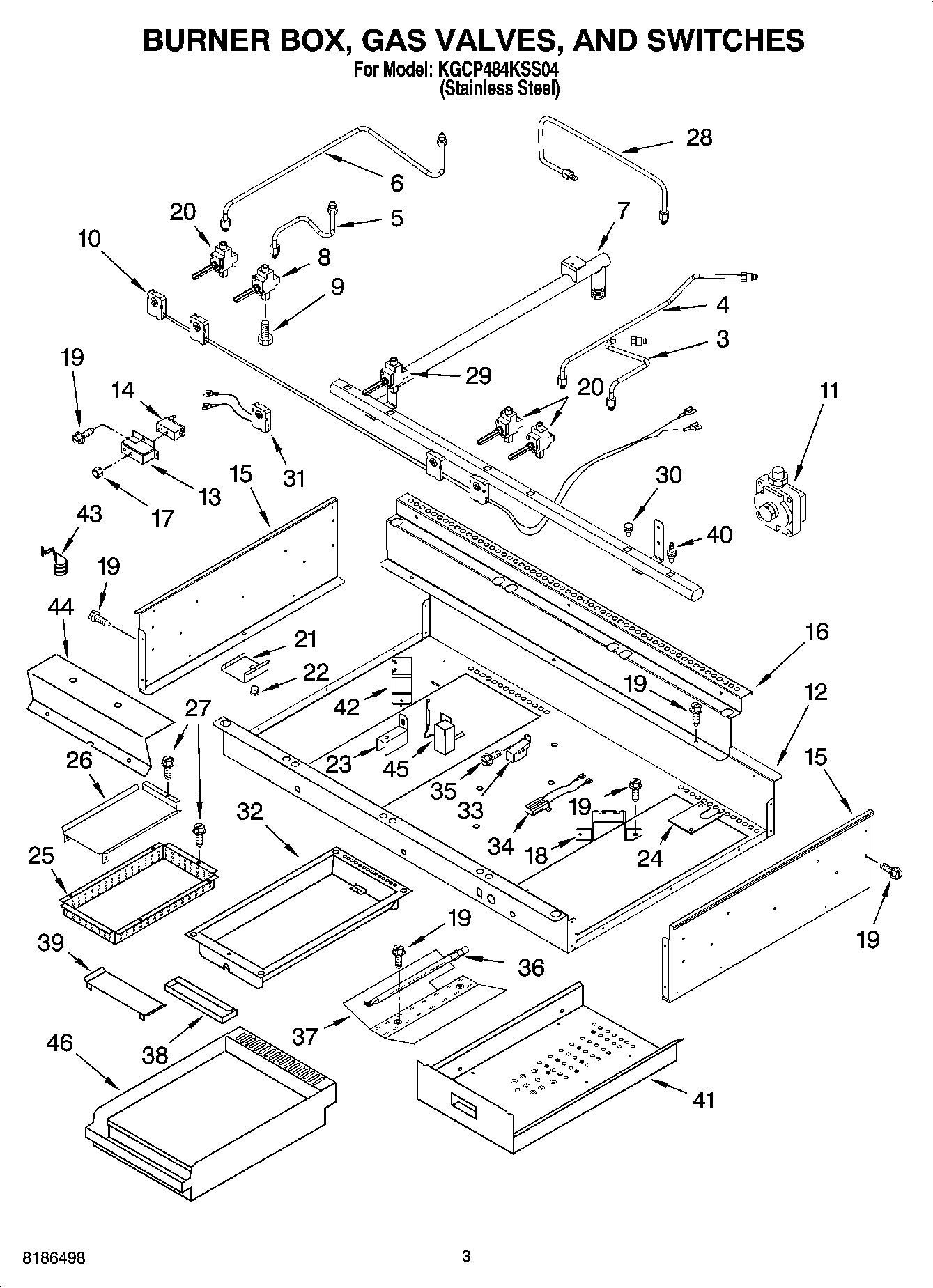

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS
Common parts from model Whirlpool KGCP484KSS04 48`` Stainless Steel Professional Cooktop (with gr
Bushing WPL 1129449 Contact Us For Availability
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
Harness, Jumper Valve WPL 8284847 Contact Us For Availability
Harness, Wire Jumper (black) WPL 8285000 Contact Us For Availability
Harness, Spark Jmp Com WPL 8285047 Contact Us For Availability
WPL 8285048 WPL 8285048 Contact Us For Availability
WPL 8537055 WPL 8537055 Contact Us For Availability
WPL ARI87557A2 WPL ARI87557A2 Contact Us For Availability
WPL ARI87558A6 WPL ARI87558A6 Contact Us For Availability
3
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
4
Tubing, Gas WPL 4455152 Contact Us For Availability
5
Tubing, Gas Burner - CR Burner - LF WPL 4455153 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
7
Manifold (Includes Items 9 & 30) WPL 8284737 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456908 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Burner Box WPL 4457096 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
13
Bracket WPL 9760834 Contact Us For Availability
14
Valve, 8284858 Grill (Griddle) WPL 8284788 Contact Us For Availability
15
Side, Burner Box (Right Hand) WPL 8285487 Contact Us For Availability
15
Side, Burner Box (Left Hand) WPL 8285488 Contact Us For Availability
16
Support, Rear WPL 9759138 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Turbi (Bronze) WPL 4456818 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, 8284790 Grill (Griddle) WPL 8284966 Contact Us For Availability
29
Valve, Gas Grill WPL 4456819 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
30
Plug, Manifold (close) WPL 8284796 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
31
Harness, Switch Grill WPL 4457185 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
32
Module, Grill WPL 8284787 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
33
Bracket, Ignitor (Griddle) WPL 8284800 Contact Us For Availability
33
Bracket, Ignitor (Grill) WPL 8284968 Contact Us For Availability
34
Module, Spark 2 burner (2) WPL 8522422 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
35
Cover, Burner Spud WPL 8285038 Contact Us For Availability
36
Log Burner, Griddle WPL 8285051 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip (Grill) WPL 8284791 Contact Us For Availability
38
Tray, Drip (Griddle) WPL 8285569 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Enclosure, Griddle WPL 8285056 Contact Us For Availability
42
Bracket, Thermo WPL 8284993 Contact Us For Availability
44
Bracket WPL 8284811 Contact Us For Availability
45
Griddle, Thermo WPL 8284765 Contact Us For Availability
46
Module, Griddle WPL 8284759 Contact Us For Availability
× ![]()
