Model Whirlpool KGCP484KSS03 48`` Stainless Steel Professional Cooktop (with gr – Common Parts & Diagrams

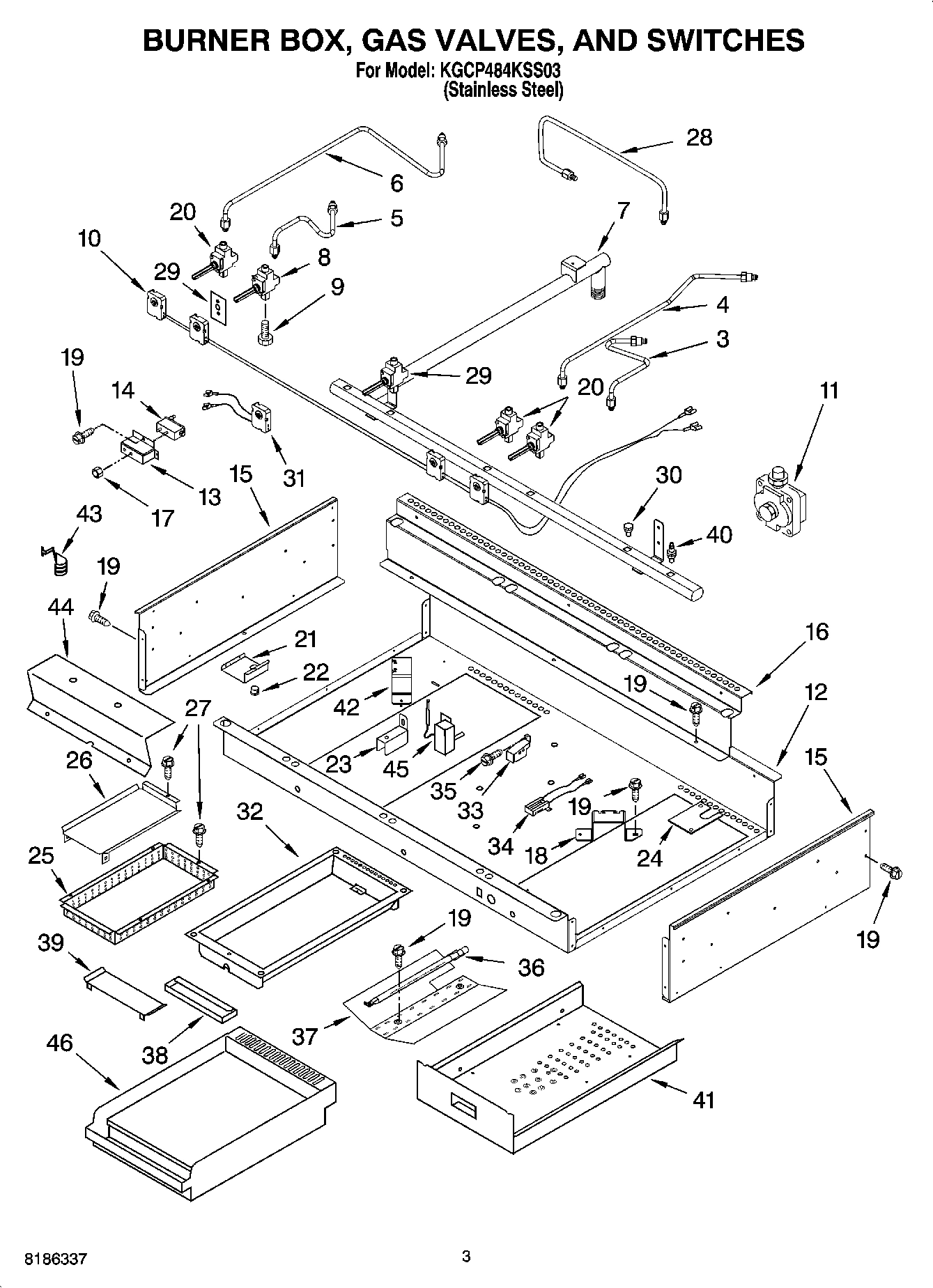

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

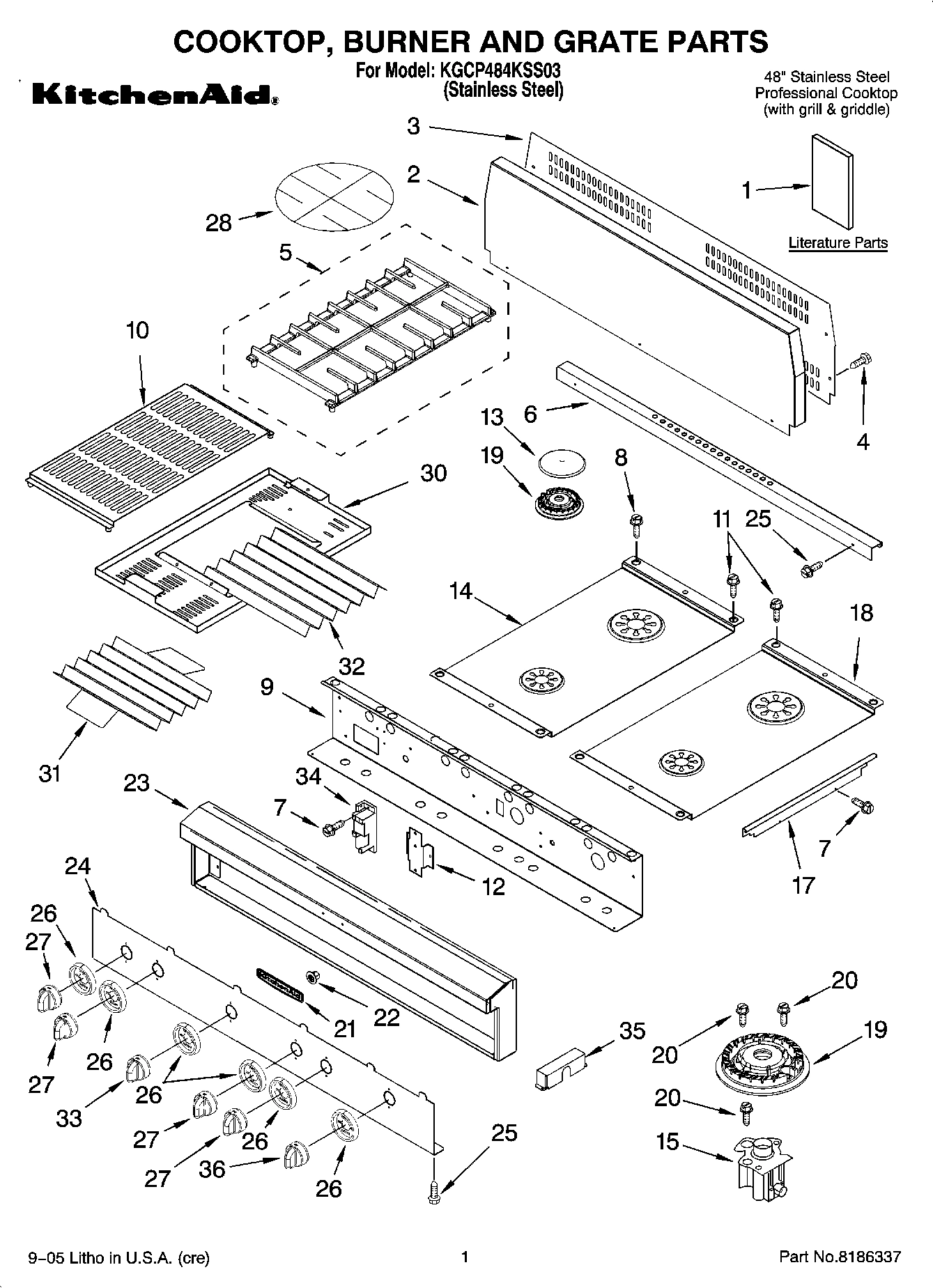

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP484KSS03 48`` Stainless Steel Professional Cooktop (with gr
1
Wiring Diagram WPL 8284959 Contact Us For Availability
1
Installation Instructions WPL 8284979 Contact Us For Availability
1
Use & Care Guide WPL 8285588 Contact Us For Availability
1
Instructions, LP Conversion WPL 9759442 Contact Us For Availability
2
Backsplash WPL 8284730 Contact Us For Availability
3
Support, Backsplash WPL 8284760 Contact Us For Availability
5
Grate, Burner WPL 4457149 Contact Us For Availability
6
Trim, Island WPL 8285066 Contact Us For Availability
9
Support, Control Panel WPL 8285486 Contact Us For Availability
10
Grate, Grill WPL 4457151 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Bracket, Spark Module WPL 4457260 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
14
Valve, 8284858 Grill (Griddle) WPL 8284788 Contact Us For Availability
14
Cooktop (12``) (Sm & Lg Burners) WPL 8284985 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary) WPL 4456920 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 4457297 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 9759541 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
18
Cooktop (12``) (2 Lrg Burners) WPL 8284812 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Turbi (Bronze) WPL 4456818 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
24
Panel, Control WPL 4457162 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, 8284790 Grill (Griddle) WPL 8284966 Contact Us For Availability
29
Valve, Gas Grill WPL 4456819 Contact Us For Availability
30
Plug, Manifold (close) WPL 8284796 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
31
Harness, Switch Grill WPL 4457185 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
32
Module, Grill WPL 8284787 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
33
Bracket, Ignitor (Griddle) WPL 8284800 Contact Us For Availability
33
Bracket, Ignitor (Grill) WPL 8284968 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
34
Module, Spark 2 burner (2) WPL 8522422 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
35
Cover, Burner Spud WPL 8285038 Contact Us For Availability
36
Log Burner, Griddle WPL 8285051 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip (Grill) WPL 8284791 Contact Us For Availability
38
Tray, Drip (Griddle) WPL 8285569 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Enclosure, Griddle WPL 8285056 Contact Us For Availability
42
Bracket, Thermo WPL 8284993 Contact Us For Availability
44
Bracket WPL 8284811 Contact Us For Availability
45
Griddle, Thermo WPL 8284765 Contact Us For Availability
46
Module, Griddle WPL 8284759 Contact Us For Availability
× ![]()
