Model Whirlpool KGCP484KSS0 COOKTOP – Common Parts & Diagrams

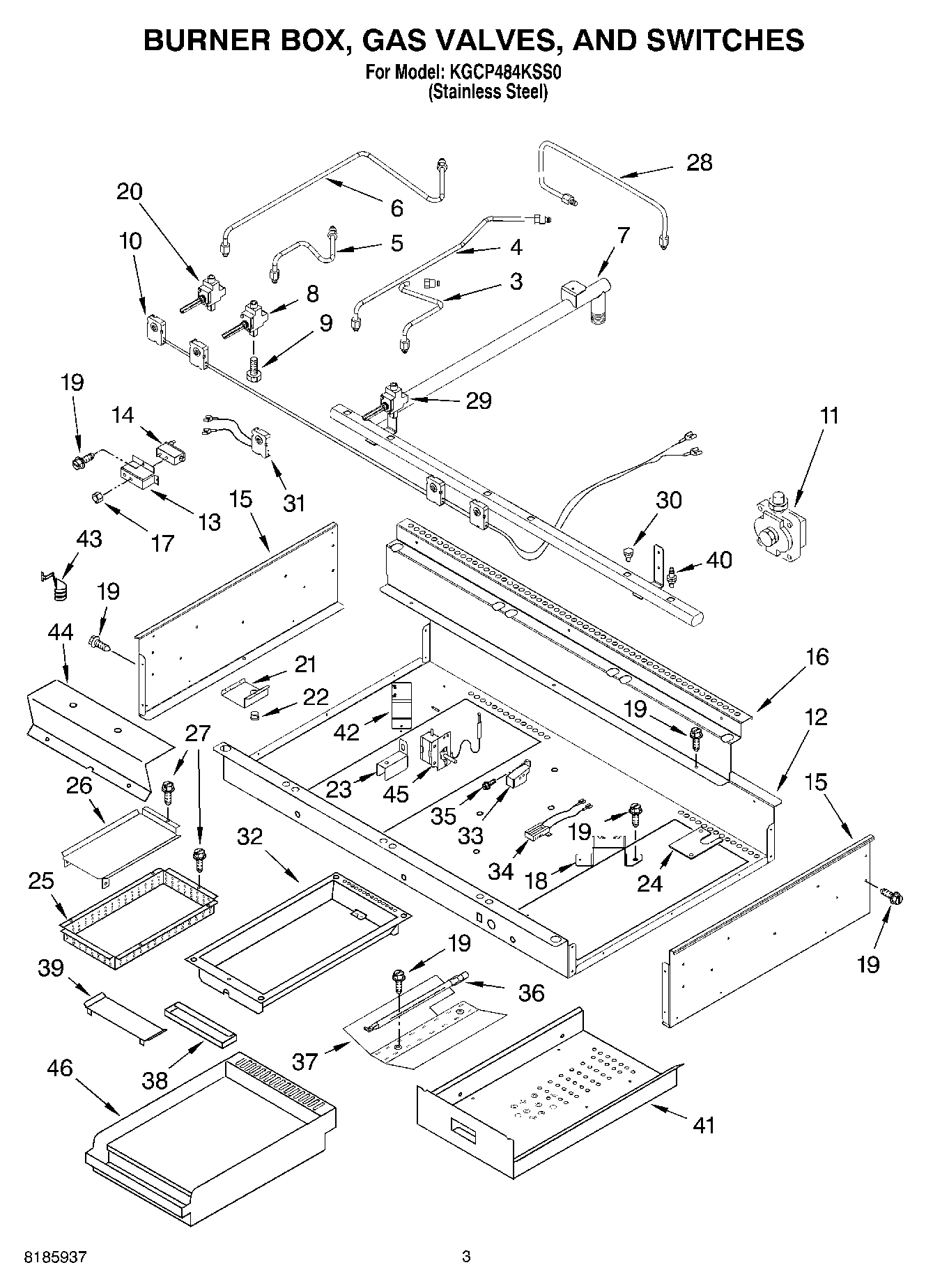

02 - BURNER BOX, GAS VALVES, SWITCHES

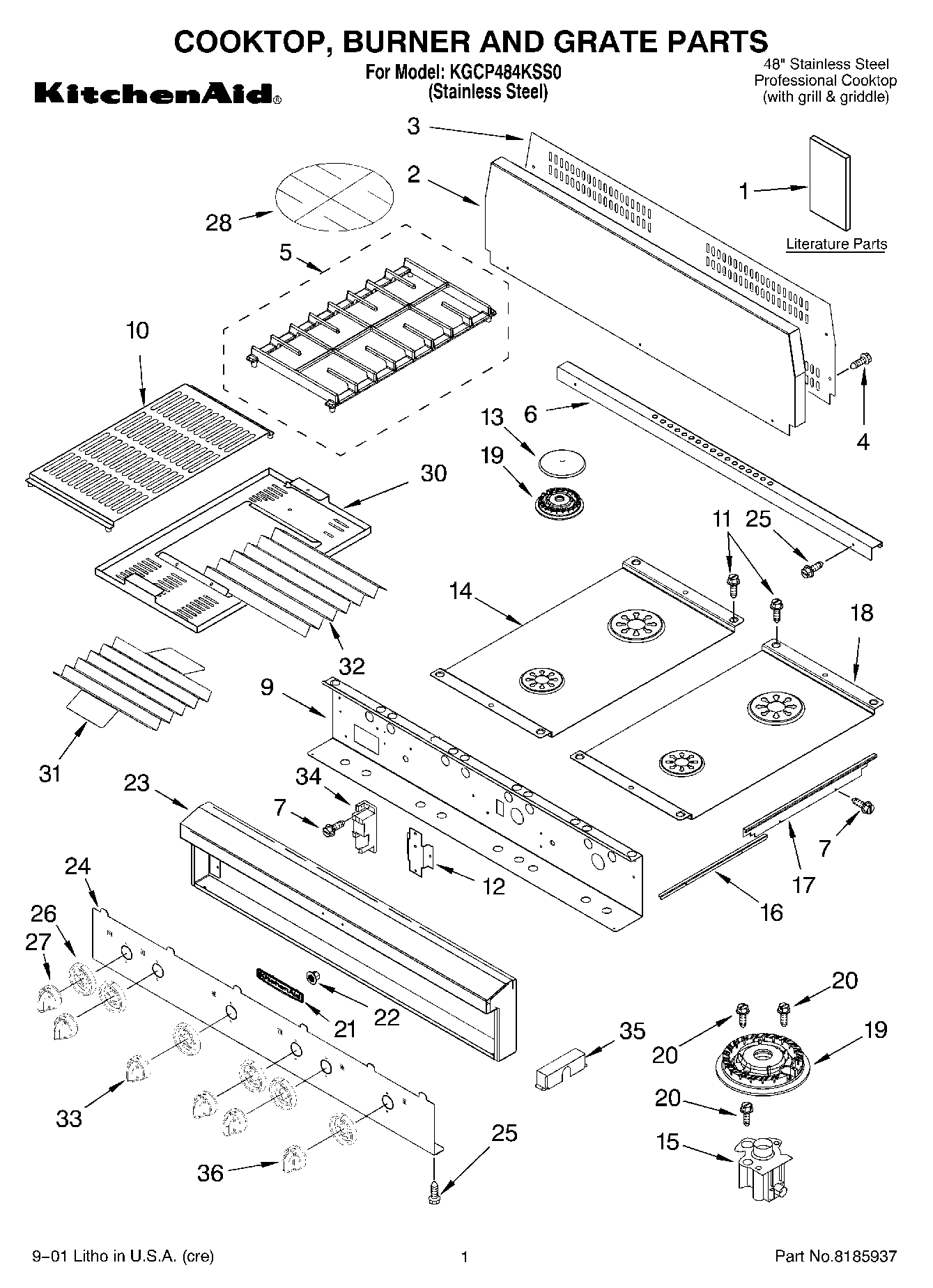

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP484KSS0 COOKTOP
1
Literature Parts (Use & Care Guide) WPL LIT8284746 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8284780 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8284821 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8284979 Contact Us For Availability
2
Backsplash WPL 8284730 Contact Us For Availability
3
Support, Backsplash WPL 8284760 Contact Us For Availability
5
Grate, Burner WPL 4454963 Contact Us For Availability
6
Trim, Island WPL 8284967 Contact Us For Availability
9
Support, Control Panel WPL 8285032 Contact Us For Availability
10
Grate, Grill WPL 8284741 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Bracket, Spark Module WPL 8285005 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
14
Valve, Griddle WPL 8284788 Contact Us For Availability
14
Valve, Grill WPL 8284858 Contact Us For Availability
14
Cooktop (12``) (Sm & Lg Burners) WPL 8284985 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Turbo (4)) WPL 9754188 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 9754182 Contact Us For Availability
16
Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability
16
Support Rail (Combo) WPL 8285042 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 8284818 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 8284819 Contact Us For Availability
18
Cooktop (12``) (Sm & Lg Burners) WPL 8284812 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Auxillary WPL 3191292 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
24
Cover, Panel WPL 4455139 Contact Us For Availability
24
Panel, Control WPL 8284903 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Grill WPL 8284790 Contact Us For Availability
28
Tube, (Griddle) WPL 8284966 Contact Us For Availability
29
Valve, Gas Grill WPL 8284922 Contact Us For Availability
30
Plug, Manifold (close) WPL 8284796 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
31
Harness, Switch Grill WPL 8284974 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
32
Module, Grill WPL 8284787 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
33
Bracket, Ignitor (Griddle) WPL 8284800 Contact Us For Availability
33
Bracket, Ignitor (Grill) WPL 8284968 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
34
Module, Spark 2 burner (2) WPL 8522422 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
35
Cover, Burner Spud WPL 8285038 Contact Us For Availability
36
Log Burner, Grill WPL 8284764 Contact Us For Availability
36
Log Burner, Griddle WPL 8284991 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip (Griddle) WPL 8284763 Contact Us For Availability
38
Tray, Drip (Grill) WPL 8284791 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Enclosure, Griddle WPL 8285050 Contact Us For Availability
42
Bracket, Thermo WPL 8284993 Contact Us For Availability
44
Bracket WPL 8284811 Contact Us For Availability
45
Griddle, Thermo WPL 8284765 Contact Us For Availability
46
Bushing WPL 1129449 Contact Us For Availability
46
Harness, Wire Jumper (6 burner) WPL 3191418 Contact Us For Availability
46
Harness, Ignitor WPL 3192230 Contact Us For Availability
46
Module WPL 8284759 Contact Us For Availability
46
WPL 8284772 WPL 8284772 Contact Us For Availability
46
WPL 8284782 WPL 8284782 Contact Us For Availability
46
WPL 8284847 WPL 8284847 Contact Us For Availability
46
WPL 8285000 WPL 8285000 Contact Us For Availability
46
WPL 8285047 WPL 8285047 Contact Us For Availability
46
WPL 8285048 WPL 8285048 Contact Us For Availability
× ![]()
