Model Whirlpool KGCP483KSS05 48`` Stainless Professional Cooktop (With Griddle) – Common Parts & Diagrams

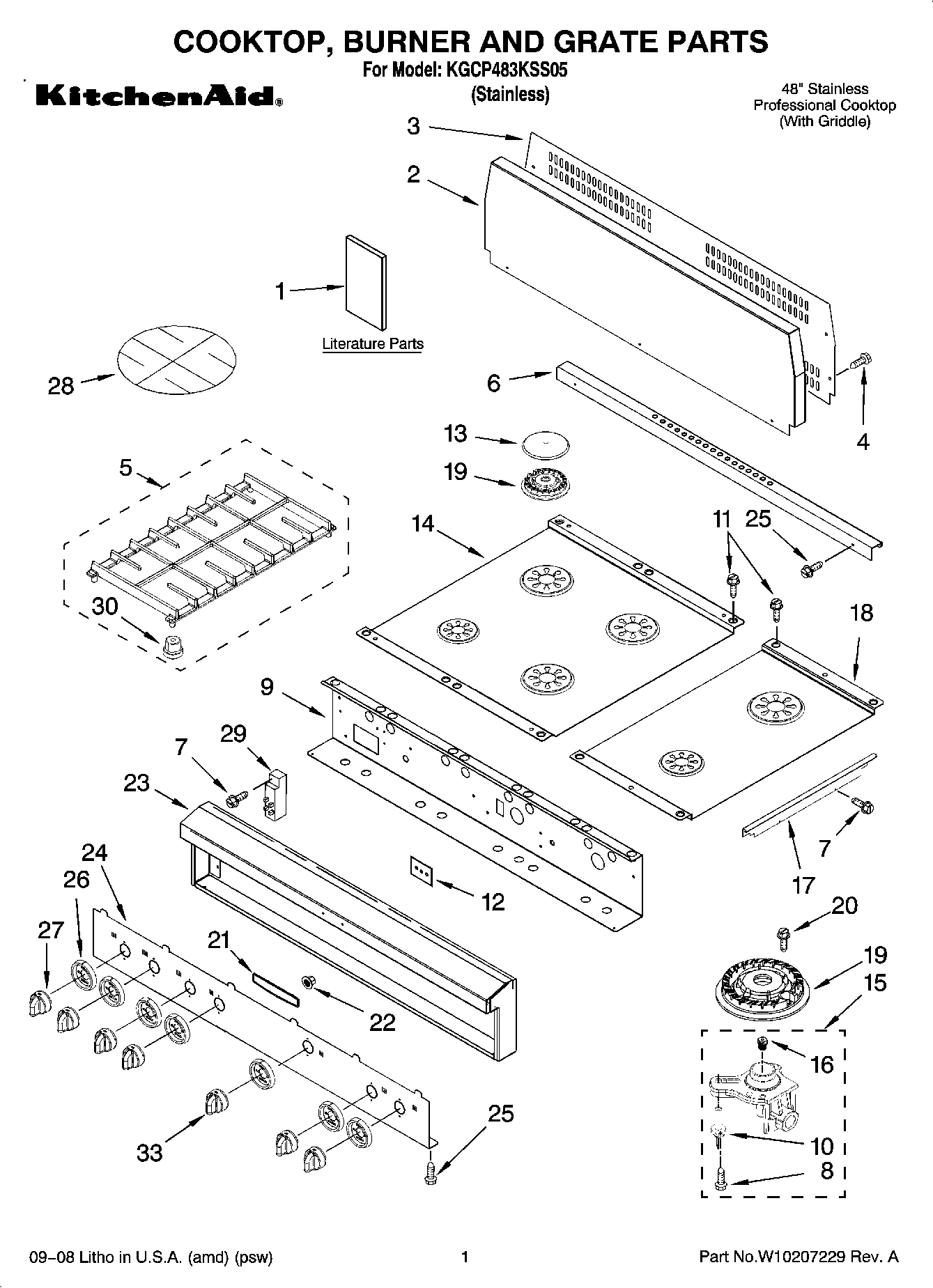

01 - COOKTOP, BURNER AND GRATE PARTS

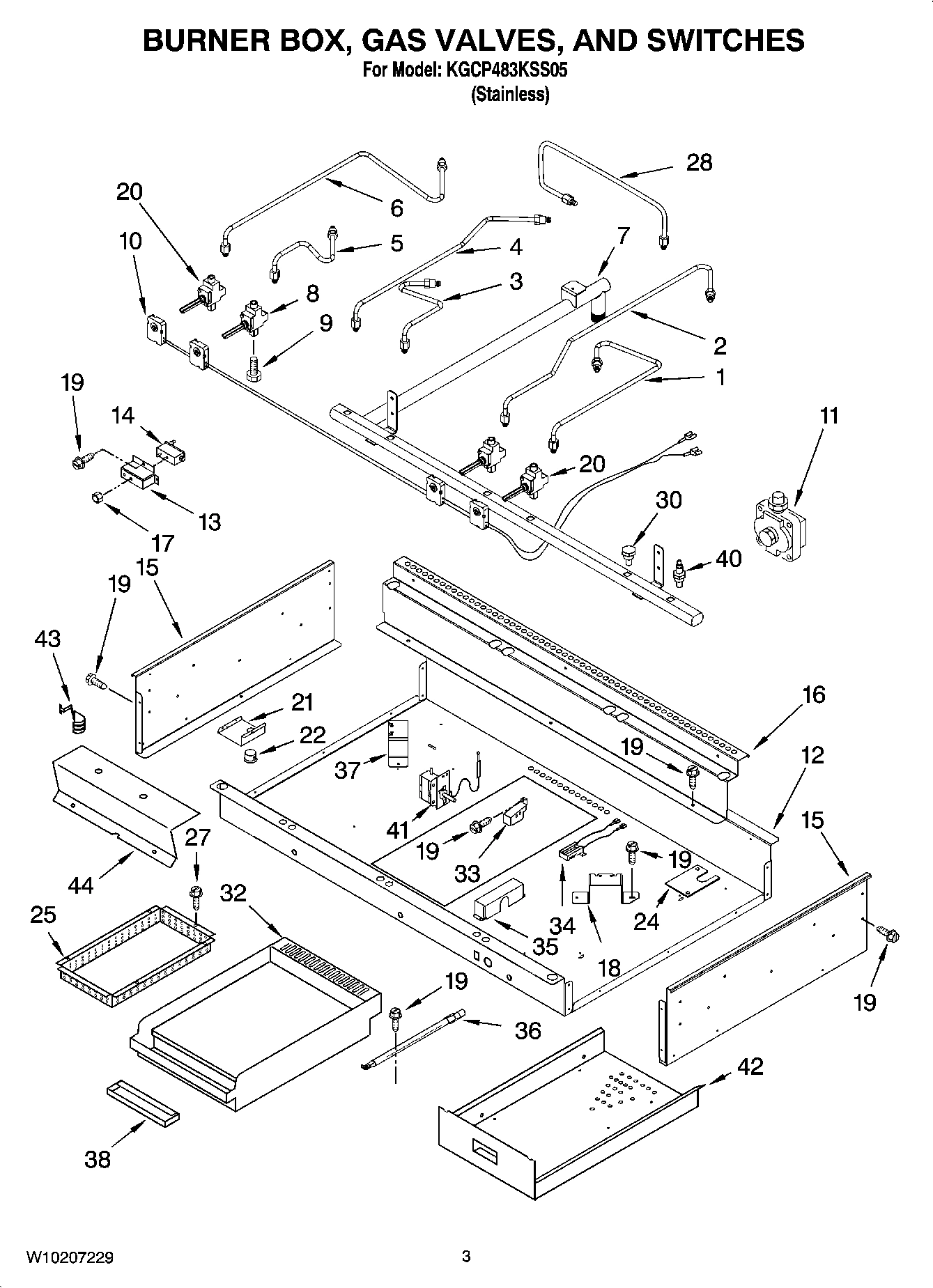

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS
Common parts from model Whirlpool KGCP483KSS05 48`` Stainless Professional Cooktop (With Griddle)
Harness, Ign 42`` WPL 4456628 Contact Us For Availability
Nut, Tinnerman WPL 4167077 Contact Us For Availability
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
Power Cord WPL 8285527 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI87551A5 Contact Us For Availability
Miscellaneous WPL ARI87552A3 Contact Us For Availability
1
Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability
3
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
4
Tubing, Gas WPL 4455152 Contact Us For Availability
5
Tubing, Gas Burner - CR Burner - LF WPL 4455153 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
7
Manifold (Includes Items 9 & 30) WPL 8284737 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456907 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Burner Box WPL 4457095 Contact Us For Availability
13
Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability
13
Bracket, Griddle Valve WPL 9760834 Contact Us For Availability
14
Valve, Griddle WPL 8284788 Contact Us For Availability
15
Side, Burner Box (Right) WPL 8285487 Contact Us For Availability
15
Side, Burner Box (Left) WPL 8285488 Contact Us For Availability
16
Orifice (14K) WPL 3192525 Contact Us For Availability
16
Support, Rear WPL 9759137 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head (Turbo) WPL 4455849 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
25
Box, Burner Lower WPL W10095290 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Griddle WPL 4456767 Contact Us For Availability
30
Plug, Manifold (closed) WPL 8284796 Contact Us For Availability
32
Module, Griddle WPL W10115169 Contact Us For Availability
33
Bracket, Ignitor WPL W10157547 Contact Us For Availability
34
Ignitor, Griddle WPL 8284941 Contact Us For Availability
35
Cover, Burner Spud WPL 8285038 Contact Us For Availability
36
Log Burner, Griddle WPL 8285051 Contact Us For Availability
37
Bracket, Thermo WPL 8284993 Contact Us For Availability
38
Tray, Drip WPL W10157582 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Griddle, Thermo WPL 8284765 Contact Us For Availability
42
Enclosure, Griddle WPL 8285056 Contact Us For Availability
44
Bracket WPL W10157545 Contact Us For Availability
× ![]()
