Model Whirlpool KGCP483KSS0 COOKTOP – Common Parts & Diagrams

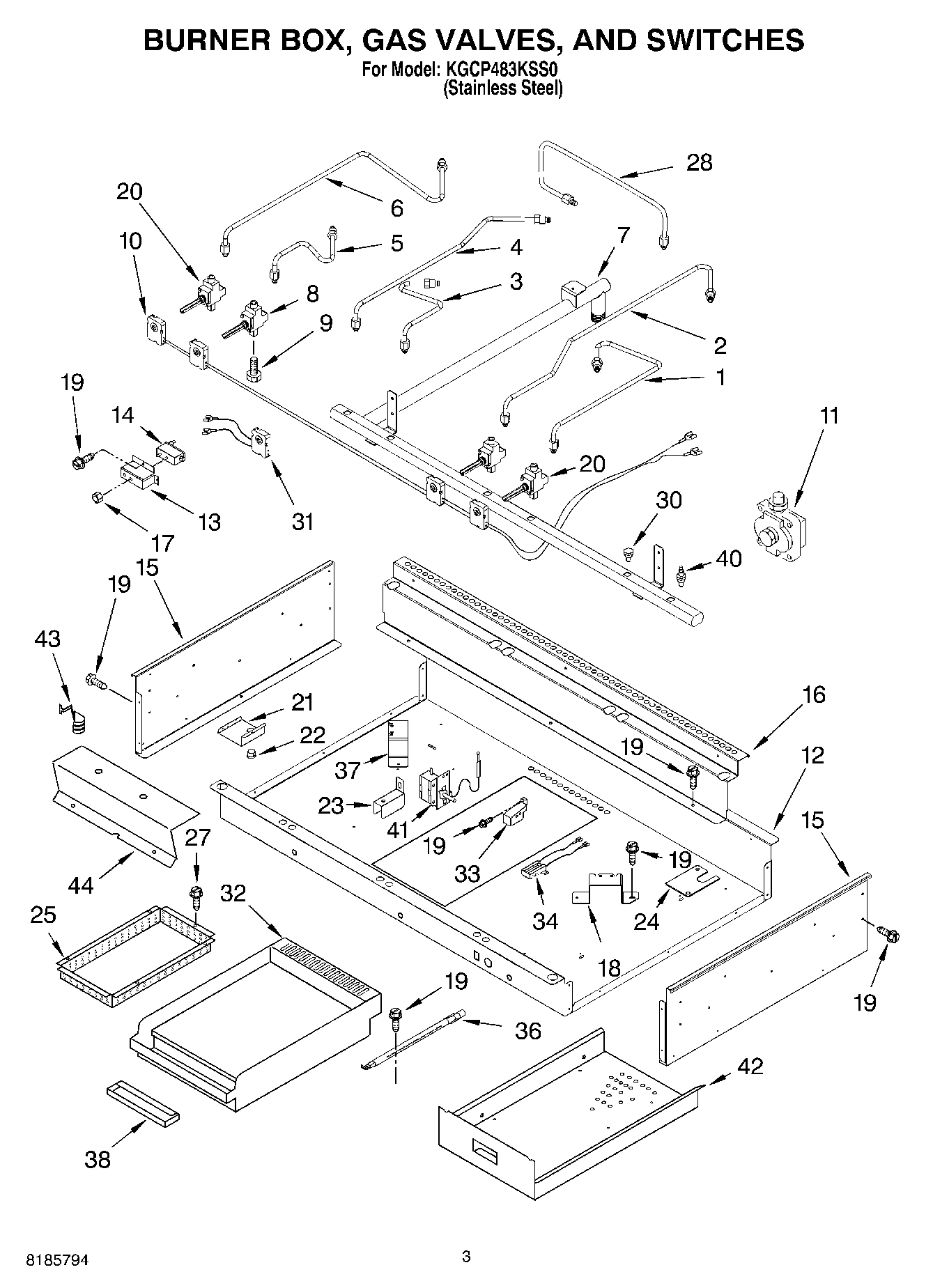

02 - BURNER BOX, GAS VALVES, AND SWITCHES

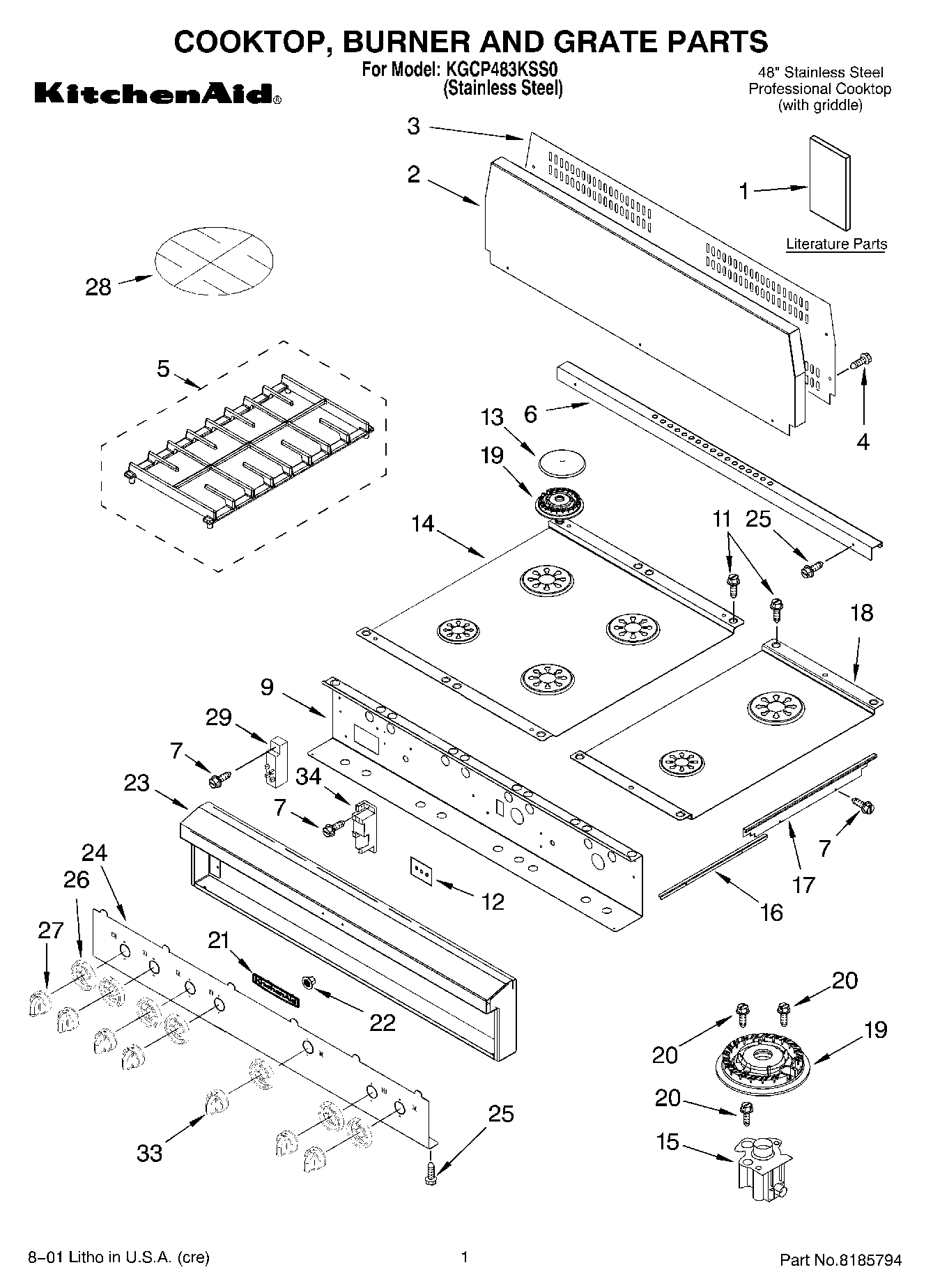

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP483KSS0 COOKTOP
1
Literature Parts (Use & Care Guide) WPL LIT8284746 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8284780 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8284821 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8284979 Contact Us For Availability
2
Backsplash WPL 8284730 Contact Us For Availability
3
Support, Backsplash WPL 8284760 Contact Us For Availability
5
Grate, Burner WPL 4454963 Contact Us For Availability
6
Trim, Island WPL 8284852 Contact Us For Availability
9
Support, Control Panel WPL 8284973 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
14
Valve, Griddle WPL 8284788 Contact Us For Availability
14
Cooktop (24``) WPL 8284739 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Turbo (4)) WPL 9754188 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 9754182 Contact Us For Availability
16
Support, Rear WPL 8284947 Contact Us For Availability
16
Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 8284818 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 8284819 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
18
Cooktop (12``) WPL 8284812 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Auxillary WPL 3191292 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
24
Cover, Panel WPL 4455139 Contact Us For Availability
24
Panel, Control WPL 8284799 Contact Us For Availability
25
Box, Burner Lower WPL 8284854 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Griddle WPL 8284975 Contact Us For Availability
30
Plug, Manifold (closed) WPL 8284796 Contact Us For Availability
31
Harness, Switch Grill WPL 8284974 Contact Us For Availability
32
Module, Griddle WPL 8284759 Contact Us For Availability
33
Bracket, Ignitor WPL 8284800 Contact Us For Availability
34
Module, Spark WPL 8522422 Contact Us For Availability
34
Ignitor, Griddle WPL 8284941 Contact Us For Availability
36
Log Burner, Griddle WPL 8284991 Contact Us For Availability
37
Bracket, Thermo WPL 8284993 Contact Us For Availability
38
Tray, Drip WPL 8284763 Contact Us For Availability
40
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
41
Griddle, Thermo WPL 8284765 Contact Us For Availability
42
Enclosure, Griddle WPL 8284992 Contact Us For Availability
44
Bushing WPL 1129449 Contact Us For Availability
44
Harness, Wire Jumper (6 burner) WPL 3191418 Contact Us For Availability
44
Harness, Wire Ignitor (Brown) WPL 8284772 Contact Us For Availability
44
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
44
Bracket WPL 8284811 Contact Us For Availability
44
Harness, Wire Jumper WPL 8284847 Contact Us For Availability
44
Harness, Wire Jumper (black) WPL 8284848 Contact Us For Availability
44
Harness, Wire Jumper (white) WPL 8284849 Contact Us For Availability
44
Harness, Wire Jumper (yellow) WPL 8284976 Contact Us For Availability
× ![]()
