Model Whirlpool KGCP482KSS1 48`` Stainless Steel Professional Cooktop (with gr – Common Parts & Diagrams

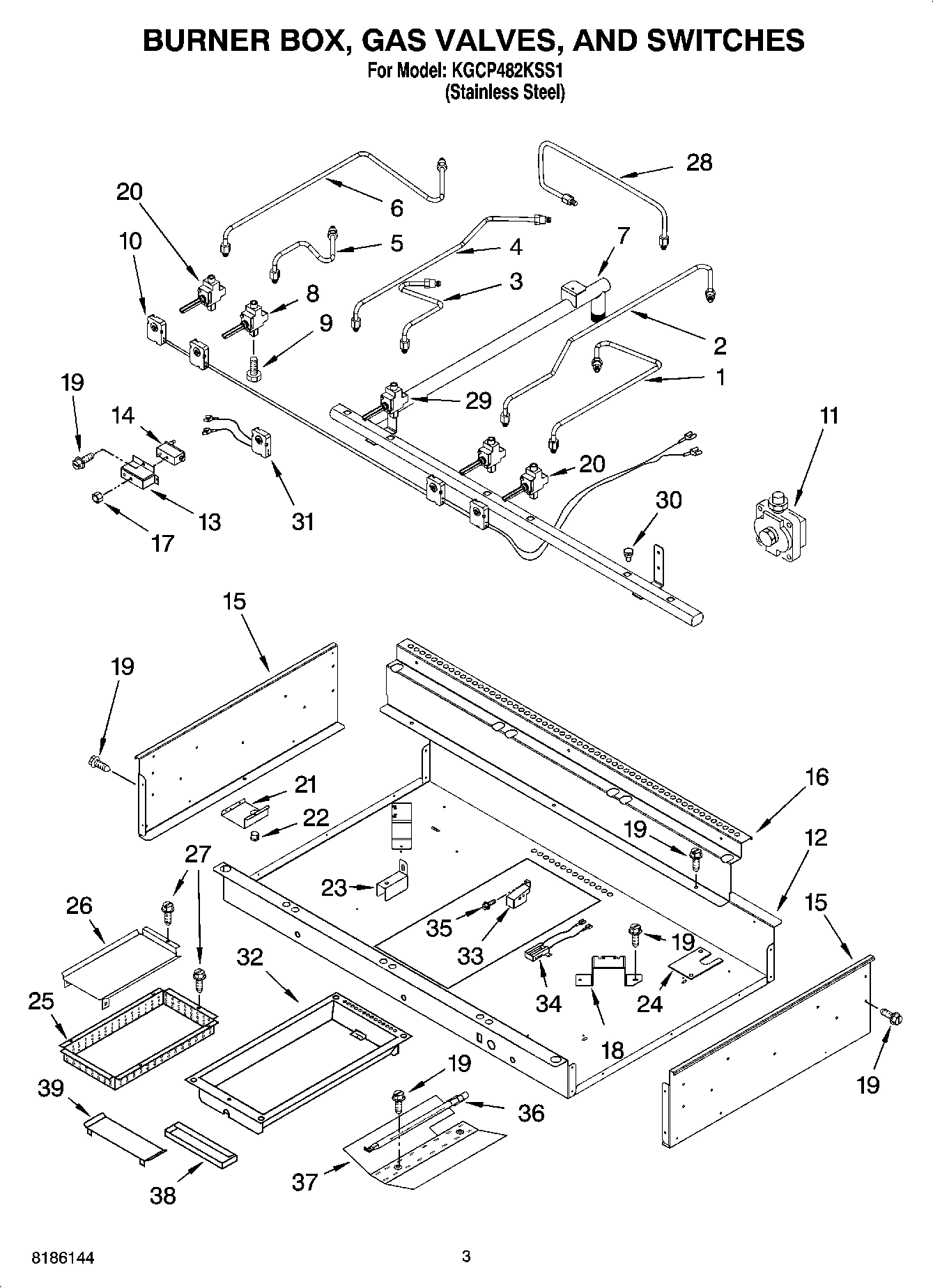

02 - BURNER BOX, GAS VALVES, AND SWITCHES

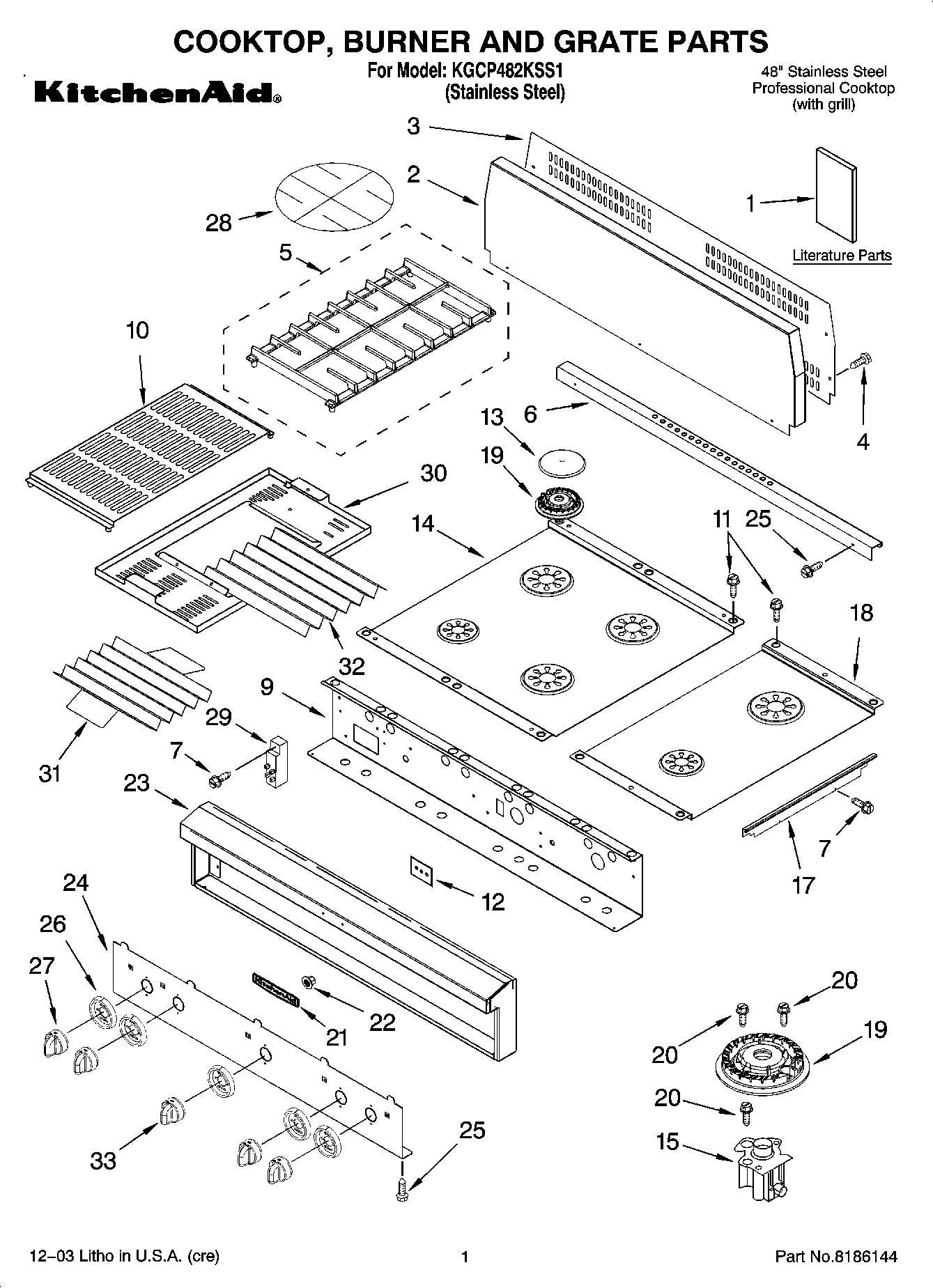

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP482KSS1 48`` Stainless Steel Professional Cooktop (with gr
1
Literature Parts (Installation Instructions) WPL LIT8285479 Contact Us For Availability
1
Wiring Diagram WPL LIT8285497 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8285588 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8285589 Contact Us For Availability
2
Backsplash WPL 8284730 Contact Us For Availability
3
Support, Backsplash WPL 8284760 Contact Us For Availability
5
Grate, Burner WPL 4454963 Contact Us For Availability
6
Trim, Island WPL 8284852 Contact Us For Availability
9
Support, Control Panel WPL 8285486 Contact Us For Availability
10
Grate, Grill WPL 8284741 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
14
Valve, Grill WPL 8284858 Contact Us For Availability
14
Cooktop (24``) WPL 8284739 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 4456920 Contact Us For Availability
16
Support, Rear WPL 8284947 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 8285489 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 8285490 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
18
Cooktop (12``) WPL 8284812 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Auxillary WPL 3191292 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
24
Panel, Control WPL 8284738 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Grill WPL 8284790 Contact Us For Availability
29
Valve, Gas Grill WPL 8284922 Contact Us For Availability
30
Plug, Manifold WPL 8284796 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
31
Harness, Switch Grill WPL 8284974 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
32
Module, Grill WPL 8284787 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
33
Bracket, Ignitor WPL 8284968 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
36
Log Burner, Grill WPL 8285052 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip WPL 8284791 Contact Us For Availability
39
Harness, Ignitor WPL 4456628 Contact Us For Availability
39
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
39
Power Cord FE02349 Bushing WPL 8285527 Contact Us For Availability
39
WIRING HARNESS PARTS WPL ARI87539A8 Contact Us For Availability
39
``28`` WPL ARI87540A6 Contact Us For Availability
39
``42`` WPL ARI87541A3 Contact Us For Availability
39
Miscellaneous WPL ARI87542A7 Contact Us For Availability
× ![]()
