Model Whirlpool KGCP482KSS03 48`` Stainless Steel Professional Cooktop (with gr – Common Parts & Diagrams

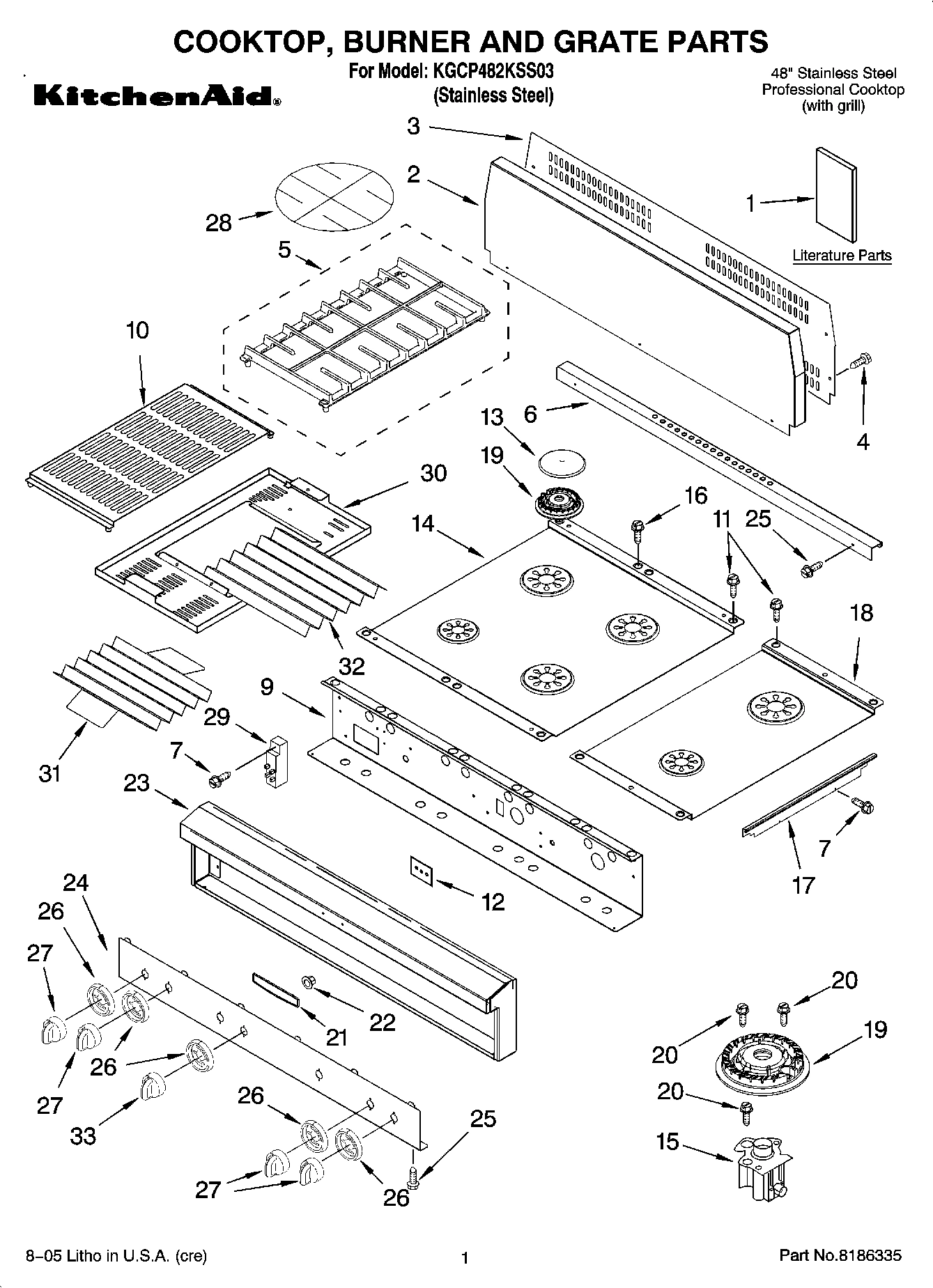

01 - COOKTOP, BURNER AND GRATE PARTS

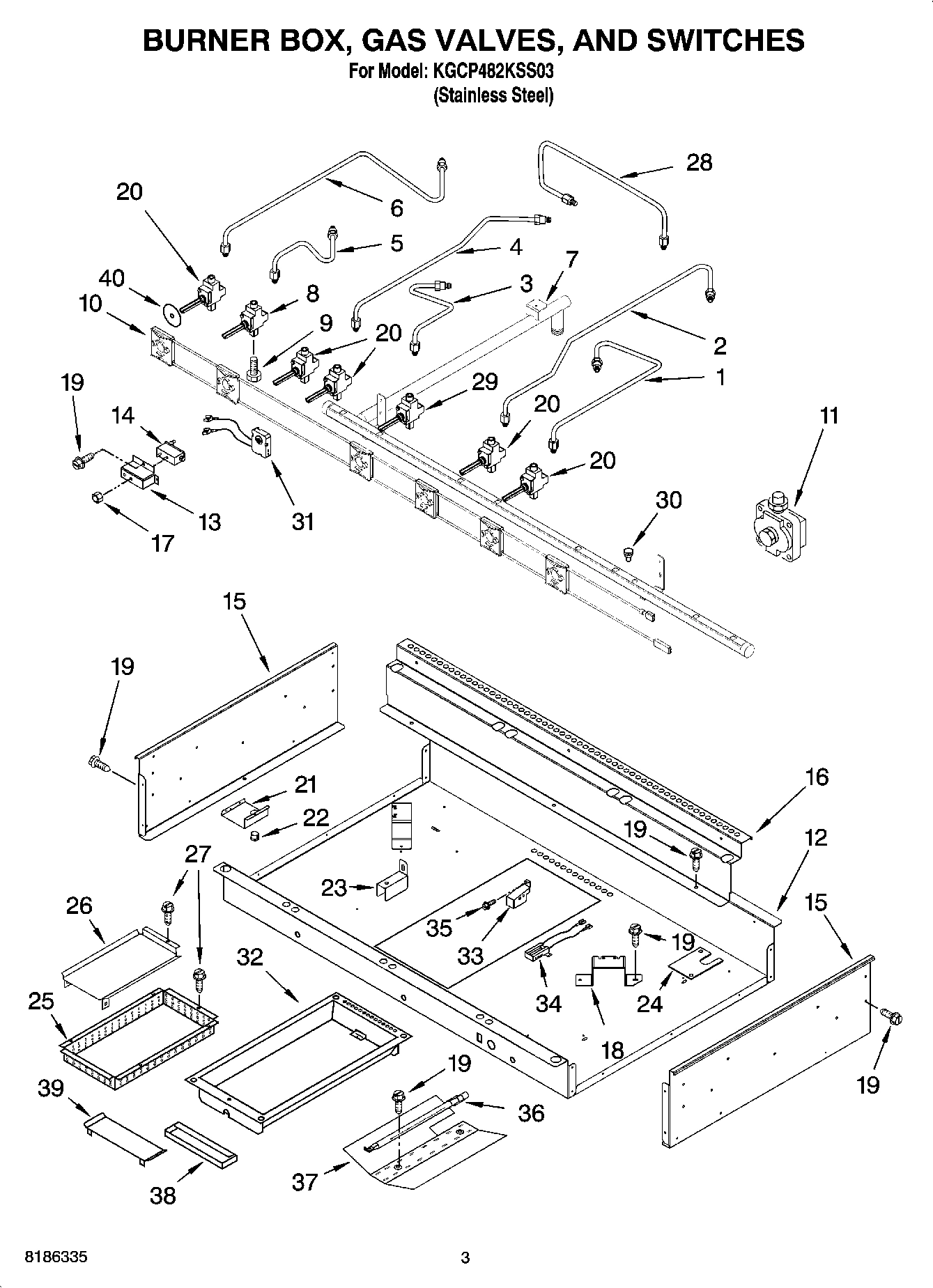

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS
Common parts from model Whirlpool KGCP482KSS03 48`` Stainless Steel Professional Cooktop (with gr
Harness, Ignitor WPL 4456628 Contact Us For Availability
L.P. Orifice Spud Pack WPL 8284782 Contact Us For Availability
Power Cord FE02349 Bushing WPL 8285527 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI87531A2 Contact Us For Availability
``28`` WPL ARI87532A3 Contact Us For Availability
``42`` WPL ARI87533A3 Contact Us For Availability
Miscellaneous WPL ARI87534A3 Contact Us For Availability
1
Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability
3
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
4
Tubing, Gas WPL 4455152 Contact Us For Availability
5
Tubing, Gas Burner - CR Burner - LF WPL 4455153 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
7
Manifold (Includes Items 9 & 30) WPL 8284737 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456907 Contact Us For Availability
11
Screw WPL 4449040 Contact Us For Availability
12
Burner Box WPL 4457095 Contact Us For Availability
13
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
13
Bracket, Grill Valve WPL 9760835 Contact Us For Availability
14
Valve, Grill WPL 8284858 Contact Us For Availability
15
Side, Burner Box (Right Hand) WPL 8285487 Contact Us For Availability
15
Side, Burner Box (Left Hand) WPL 8285488 Contact Us For Availability
16
Support, Rear WPL 9759137 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Turbi (4) WPL 4456818 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Control Frame WPL 8284939 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Panel, Control WPL 4457158 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Grill WPL 4456768 Contact Us For Availability
29
Valve, Gas Grill WPL 4456819 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
30
Plug, Manifold WPL 8284796 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
31
Harness, Switch Grill WPL 4457185 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
32
Module, Grill WPL 8284787 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
33
Bracket, Ignitor WPL 8284968 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
36
Log Burner, Grill WPL 8285052 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip WPL 8284791 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
× ![]()
