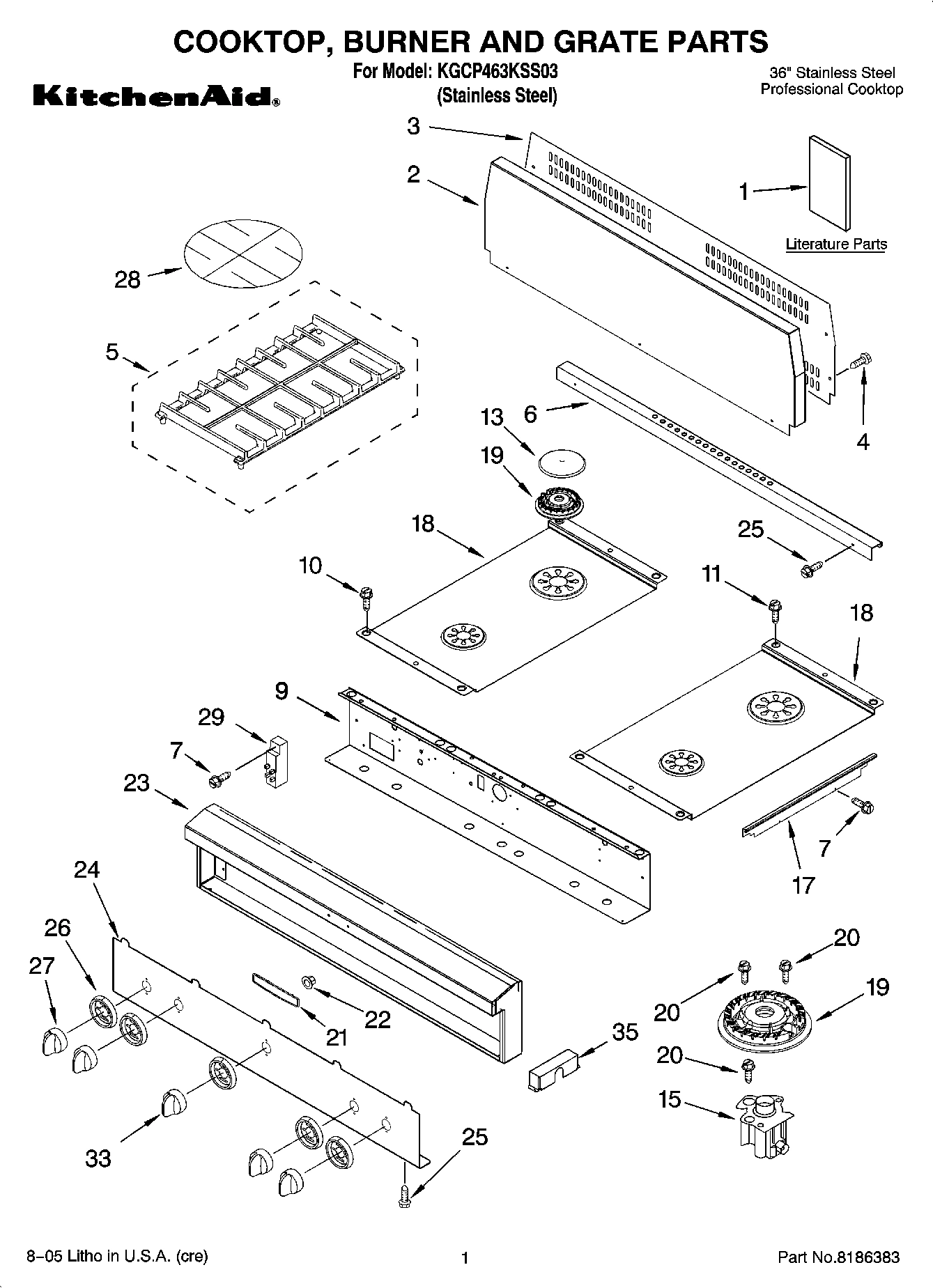

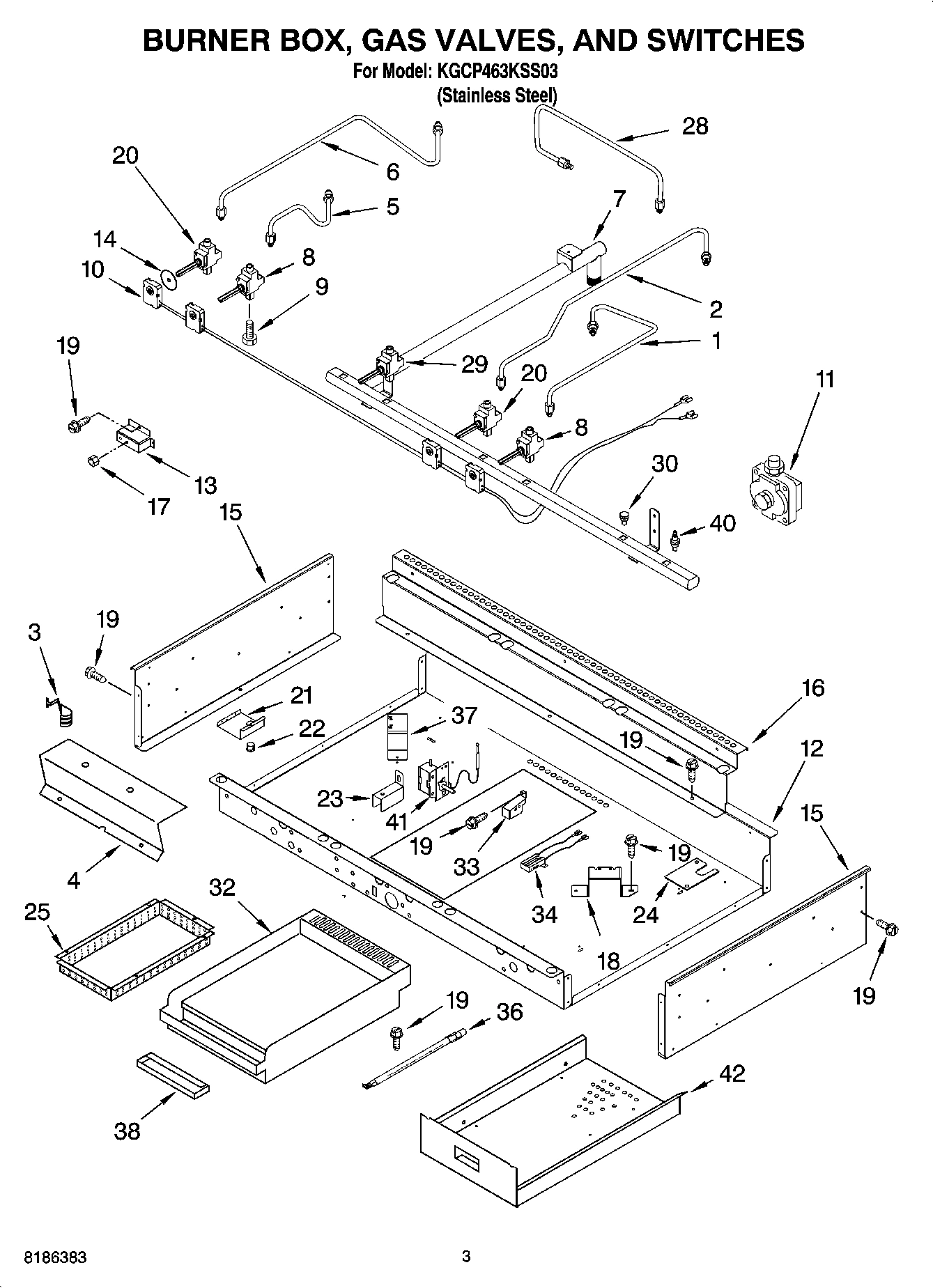

Model Whirlpool KGCP463KSS03 36`` Stainless Steel Professional Cooktop – Common Parts & Diagrams

Harness, Wire Ignitor
Harness, Wire Ignitor WPL 4456628 Contact Us For Availability
View on Model
1
Installation Instructions
Installation Instructions WPL 8285479 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 8285587 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 8285588 Contact Us For Availability
View on Model
1
Instructions, LP Conversion
Instructions, LP Conversion WPL 9759442 Contact Us For Availability
View on Model
2
Backsplash
Backsplash WPL 4454960 Contact Us For Availability
View on Model
3
Support, Backsplash
Support, Backsplash WPL 8284712 Contact Us For Availability
View on Model
5
Grate, Burner
Grate, Burner WPL 4457149 Contact Us For Availability
View on Model
6
Trim, Island
Trim, Island WPL 8284851 Contact Us For Availability
View on Model
9
Support, Control Panel
Support, Control Panel WPL 8285478 Contact Us For Availability
View on Model
10
Burner Switch & Harness Assembly
Burner Switch & Harness Assembly WPL 4456911 Contact Us For Availability
View on Model
11
Screw (2)
Screw (2) WPL 4449040 Contact Us For Availability
View on Model
13
Cap, Burner (14K (2))
Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability
View on Model
15
Holder, Orifice Includes Orifice (Auxillary (
Holder, Orifice Includes Orifice (Auxillary ( WPL 4456920 Contact Us For Availability
View on Model
17
Trim, Side (Right Hand)
Trim, Side (Right Hand) WPL 4457294 Contact Us For Availability
View on Model
17
Trim, Side (Left Hand)
Trim, Side (Left Hand) WPL 4457295 Contact Us For Availability
View on Model
18
Cooktop, Black
Cooktop, Black WPL 8284812 Contact Us For Availability
View on Model
19
Burner Head 14K (Turbo (2))
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
View on Model
20
Valve, Burner Turbi (Bronze)
Valve, Burner Turbi (Bronze) WPL 4456818 Contact Us For Availability
View on Model
21
Nameplate
Nameplate WPL 2005292 Contact Us For Availability
View on Model
22
Bushing, Cover Shelf
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
View on Model
23
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
23
Control Frame
Control Frame WPL 4455217 Contact Us For Availability
View on Model
24
Cover, Panel
Cover, Panel WPL 8285361 Contact Us For Availability
View on Model
24
Panel, Control
Panel, Control WPL 4457160 Contact Us For Availability
View on Model
25
Box, Burner Lower
Box, Burner Lower WPL 8285031 Contact Us For Availability
View on Model
26
Bezel, Knob
Bezel, Knob WPL 4455192 Contact Us For Availability
View on Model
28
Plate, Simmer
Plate, Simmer WPL 4455109 Contact Us For Availability
View on Model
28
Tube, Griddle
Tube, Griddle WPL 8284975 Contact Us For Availability
View on Model
29
Valve, Griddle
Valve, Griddle WPL 8284788 Contact Us For Availability
View on Model
30
Plug, Manifold (closed)
Plug, Manifold (closed) WPL 8284796 Contact Us For Availability
View on Model
32
Module, Griddle
Module, Griddle WPL 8284759 Contact Us For Availability
View on Model
33
Bracket, Ignitor
Bracket, Ignitor WPL 8284800 Contact Us For Availability
View on Model
34
Ignitor, Grill
Ignitor, Grill WPL 8284941 Contact Us For Availability
View on Model
35
Cover, Burner Spud
Cover, Burner Spud WPL 8285038 Contact Us For Availability
View on Model
36
Log Burner, Griddle
Log Burner, Griddle WPL 8285051 Contact Us For Availability
View on Model
37
Bracket, Thermo
Bracket, Thermo WPL 8284993 Contact Us For Availability
View on Model
38
Tray, Drip
Tray, Drip WPL 8285569 Contact Us For Availability
View on Model
40
Plug, Manifold (open)
Plug, Manifold (open) WPL 8284804 Contact Us For Availability
View on Model
41
Griddle, Thermo
Griddle, Thermo WPL 8284765 Contact Us For Availability
View on Model
42
Enclosure, Griddle
Enclosure, Griddle WPL 8285056 Contact Us For Availability
View on Model
